Heating & Cooling Combined Unit

Model # PHF342000K00A1 Official ICP package unit

Here are the diagrams and repair parts for Official ICP PHF342000K00A1 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Central Air Conditioner Condenser Fan Grille 1173832
#B

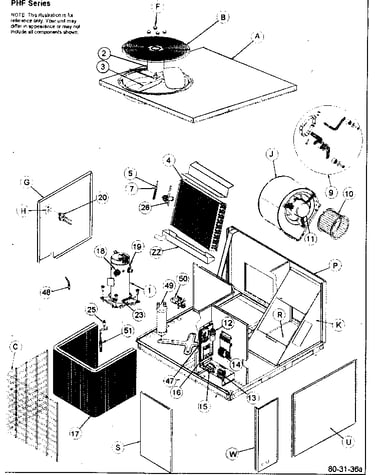

Cabinet parts diagram

Central air conditioner condenser fan grille

Part #1173832

$300.27 |
$12.00 OFF Phone Price : $312.27
In Stock
Plug,comp 1173827
#19

Cabinet parts diagram

Plug,comp

Part #1173827

$38.00
In Stock
Contactor 1173690
#13

Cabinet parts diagram

Contactor

Part #1173690

$77.73
In Stock
Condenser Coil 1174330
#17

Cabinet parts diagram

Condenser coil

Part #1174330

$1664.15
In Stock
Wheel 1173815
#10

Cabinet parts diagram

Wheel

Part #1173815

$228.01
In Stock
Mnt,mtr Bl 1174295
#9

Cabinet parts diagram

Mnt,mtr bl

Part #1174295

$83.40
In Stock
Switch,hp 1173712
#25

Cabinet parts diagram

Switch,hp

Part #1173712

$27.54
In Stock
Icp Pcb Assembly 1177026
#16

Cabinet parts diagram

Icp pcb assembly

Part #1177026

$135.92 |
8% OFF Phone Price : $147.92
In Stock
Fan,cond 1173706
#3

Cabinet parts diagram

Fan,cond

Part #1173706

$295.58
In Stock
Distributor 1174243
#7

Cabinet parts diagram

Distributor

Part #1174243

$70.00
In Stock
