DeWalt
Circular Saw

Model # D360-04 Official DeWalt circular saw

Here are the diagrams and repair parts for Official DeWalt D360-04 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

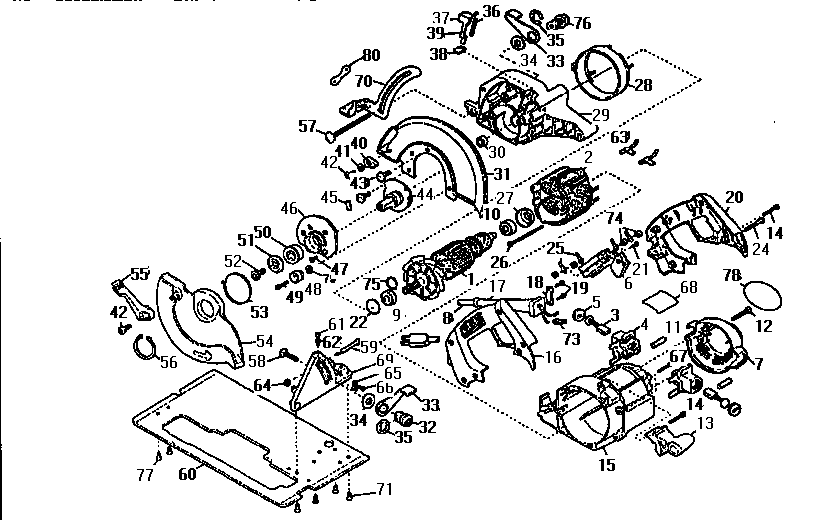

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Black & Decker Pivot Bracket 148195-00
#70

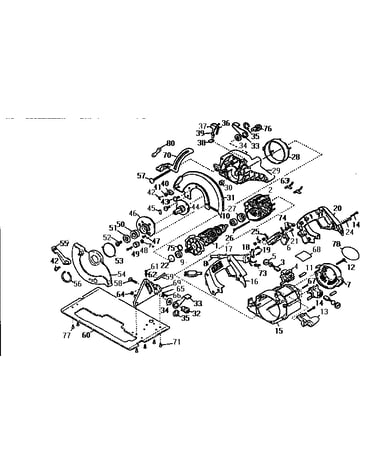

Circular saw diagram

Black & decker pivot bracket

Part #148195-00

The manufacturer no longer makes this part, and there's no substitute part

Wiper 145351-00
#38

Circular saw diagram

Wiper

Part #145351-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Retainer Ring 144803-00
#75

Circular saw diagram

Power tool retainer ring

Part #144803-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 330045-27
#49

Circular saw diagram

Black & decker screw

Part #330045-27

The manufacturer no longer makes this part, and there's no substitute part

Foam Seal 147194-00
#45

Circular saw diagram

Foam seal

Part #147194-00

The manufacturer no longer makes this part, and there's no substitute part

Button 145350-00
#37

Circular saw diagram

Button

Part #145350-00

The manufacturer no longer makes this part, and there's no substitute part

Inner Clp 145342-00
#50

Circular saw diagram

Inner clp

Part #145342-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw O-ring 701297-00
#22

Circular saw diagram

Miter saw o-ring

Part #701297-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-19
#26

Circular saw diagram

Screw

Part #330019-19

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Sleeve 137382-00
#27

Circular saw diagram

Black & decker sleeve

Part #137382-00

The manufacturer no longer makes this part, and there's no substitute part
