Modern Maid
Gas Range

Model # PHU201UK/P1130729NK Official Modern Maid gas range

Here are the diagrams and repair parts for Official Modern Maid PHU201UK-P1130729NK gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Frame, Glass Panel, White 303151W
#6B

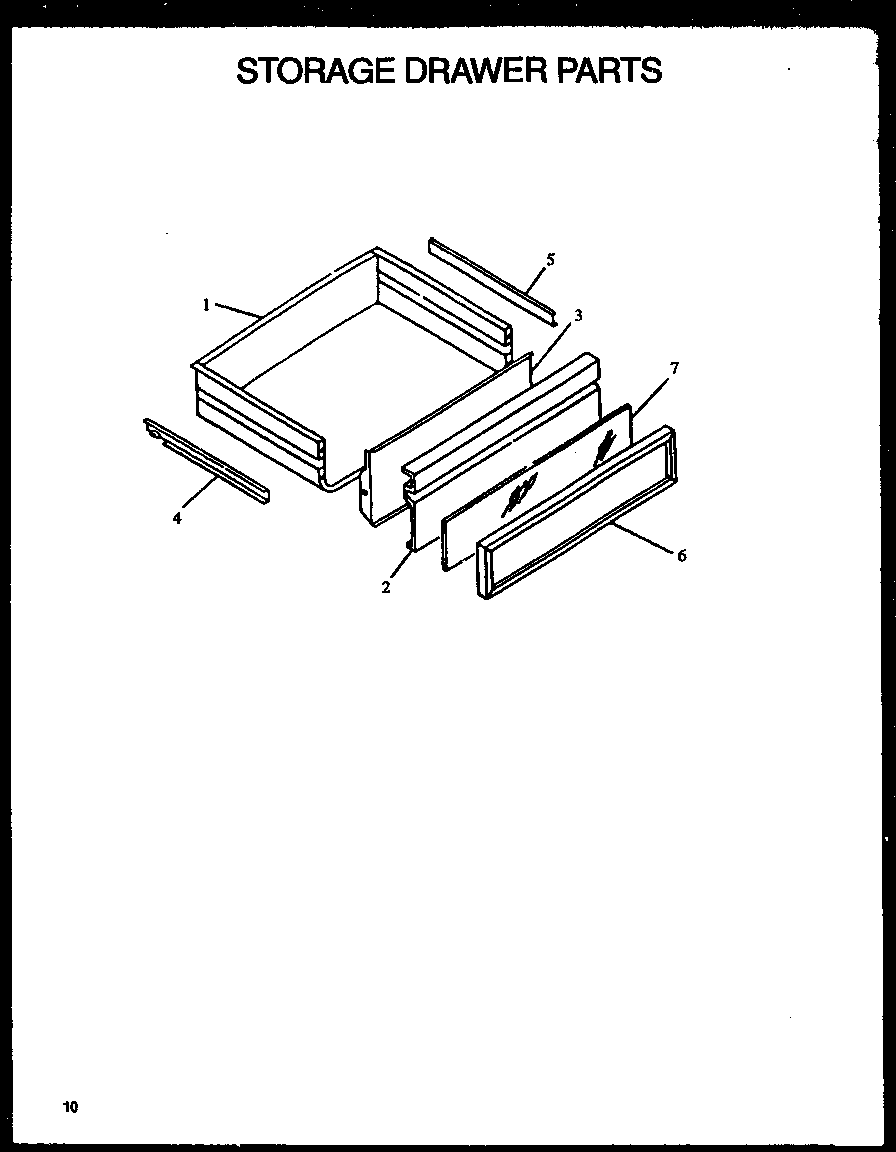

Storage drawer parts diagram

Frame, glass panel, white

Part #303151W

The manufacturer no longer makes this part, and there's no substitute part

Burner Cap 4" 303536B
#4A

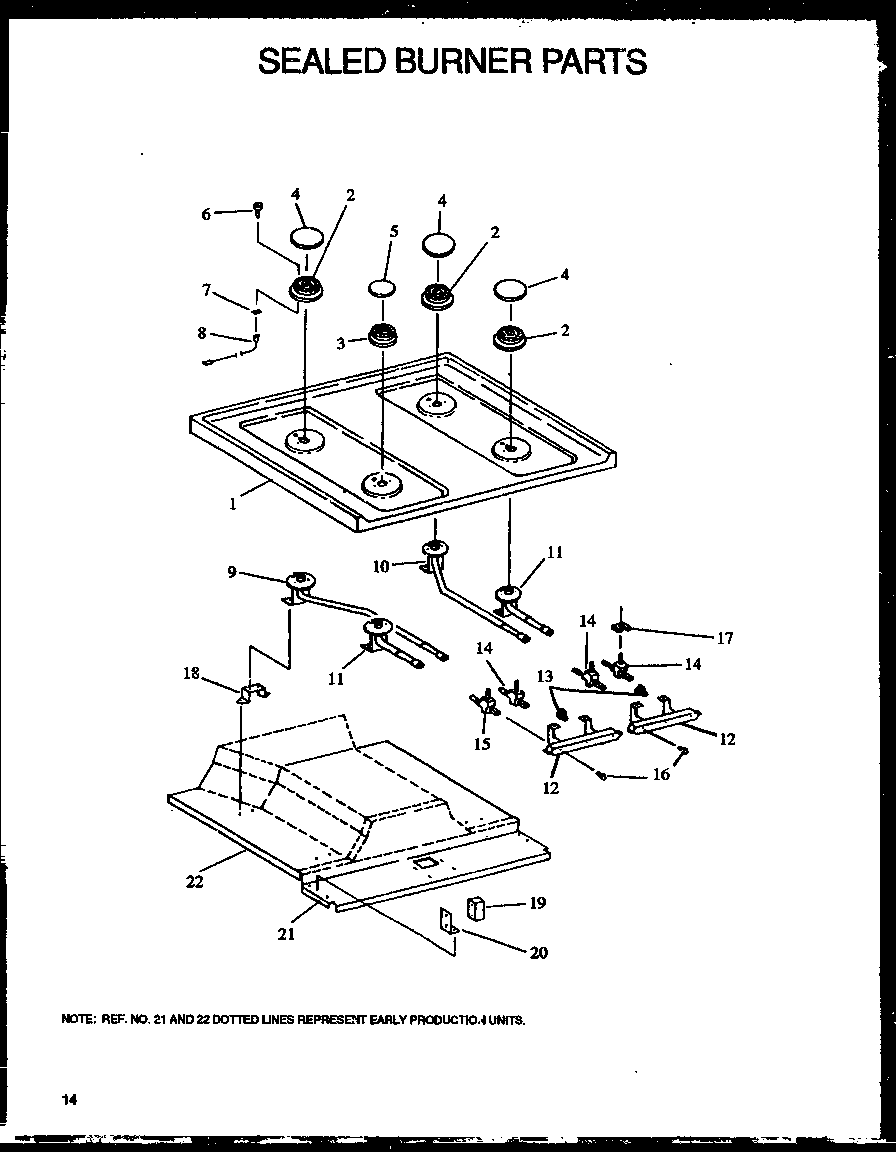

Sealed burner parts diagram

Burner cap 4"

Part #303536B

The manufacturer no longer makes this part, and there's no substitute part

Top Trim, Oven Door 0303371
#17B

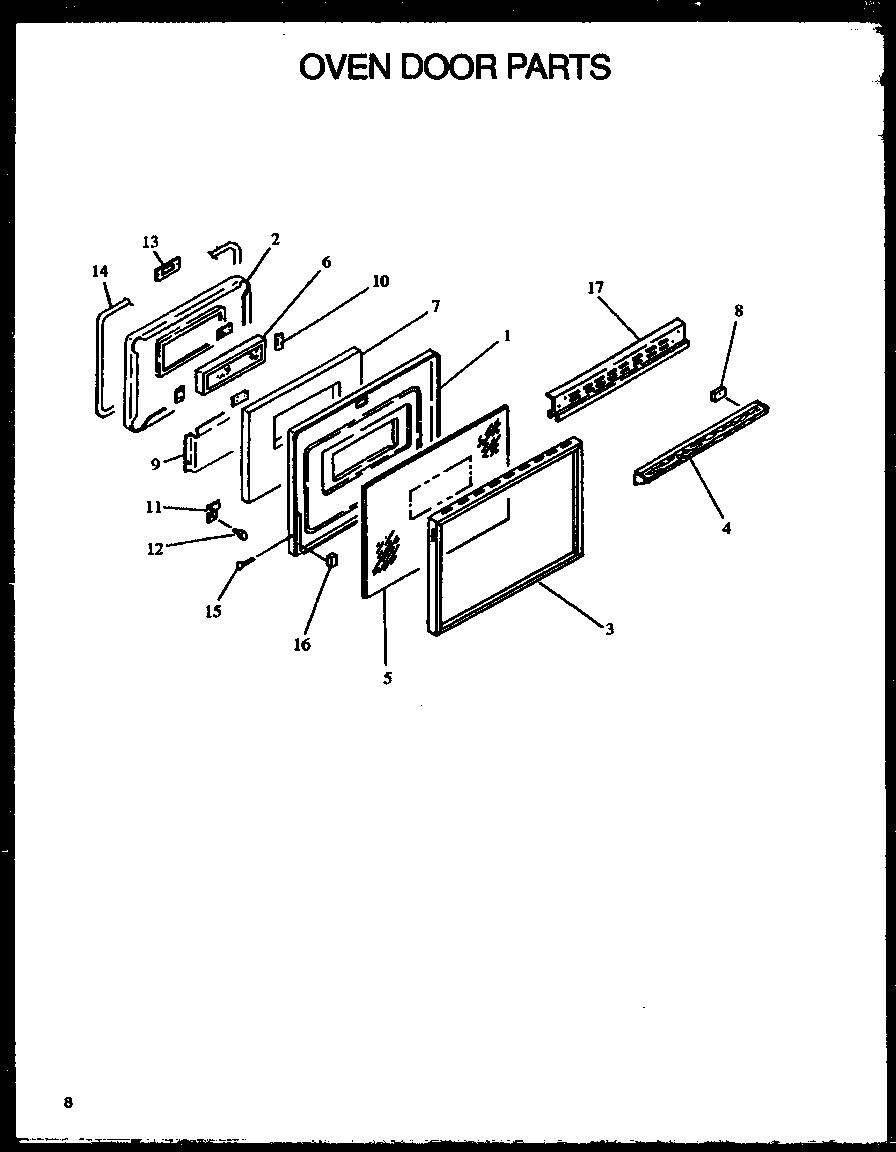

Oven door parts diagram

Top trim, oven door

Part #0303371

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly, R.h. 0066954
#14

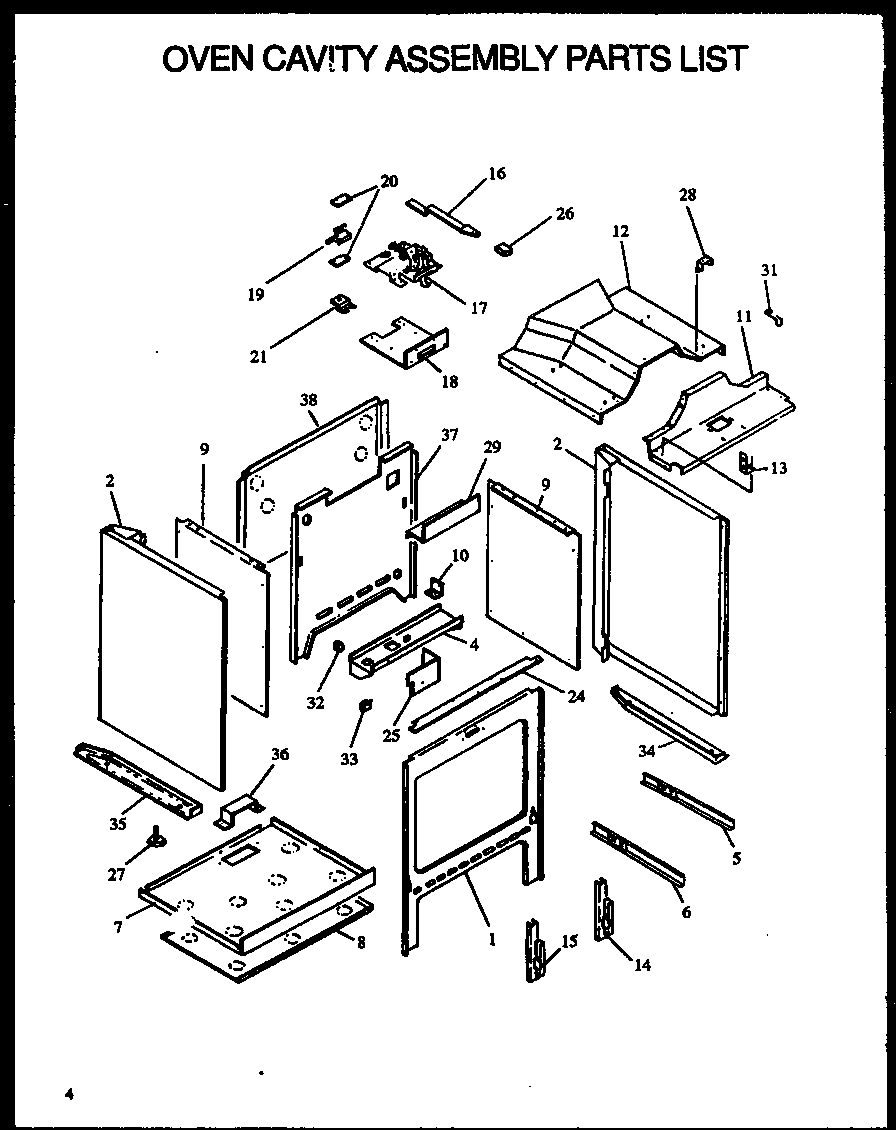

Oven cavity assembly parts list diagram

Hinge assembly, r.h.

Part #0066954

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer, Front 0303571
Insulation retainer, front

Part #0303571

The manufacturer no longer makes this part, and there's no substitute part

Glass Panel, Storage Drawer, White 0303152
#7B

Storage drawer parts diagram

Glass panel, storage drawer, white

Part #0303152

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Insert 0302386
#2A

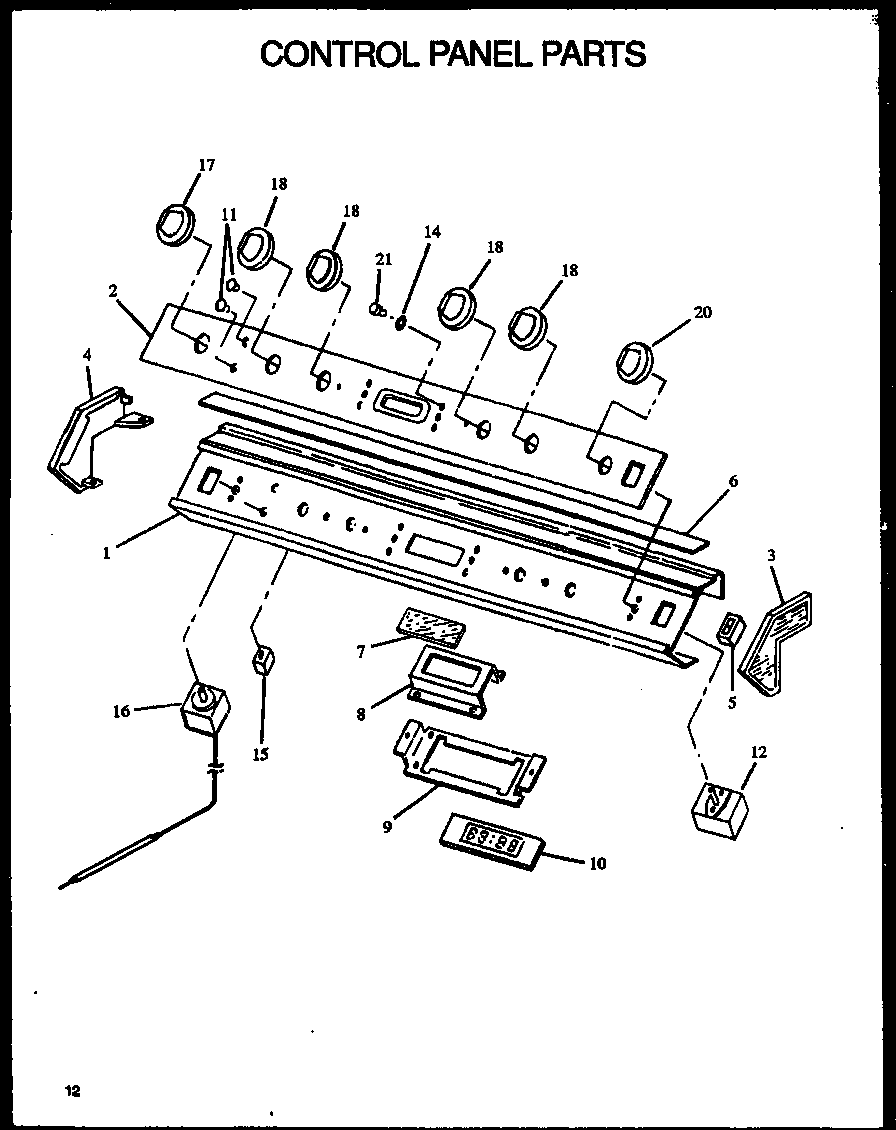

Control panel parts diagram

Control panel insert

Part #0302386

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Burner Venturi Mounting 0303189
Bracket, burner venturi mounting

Part #0303189

The manufacturer no longer makes this part, and there's no substitute part

Trim, Dilution Flue Cover (at Date Code 9104) 0303930
#28B

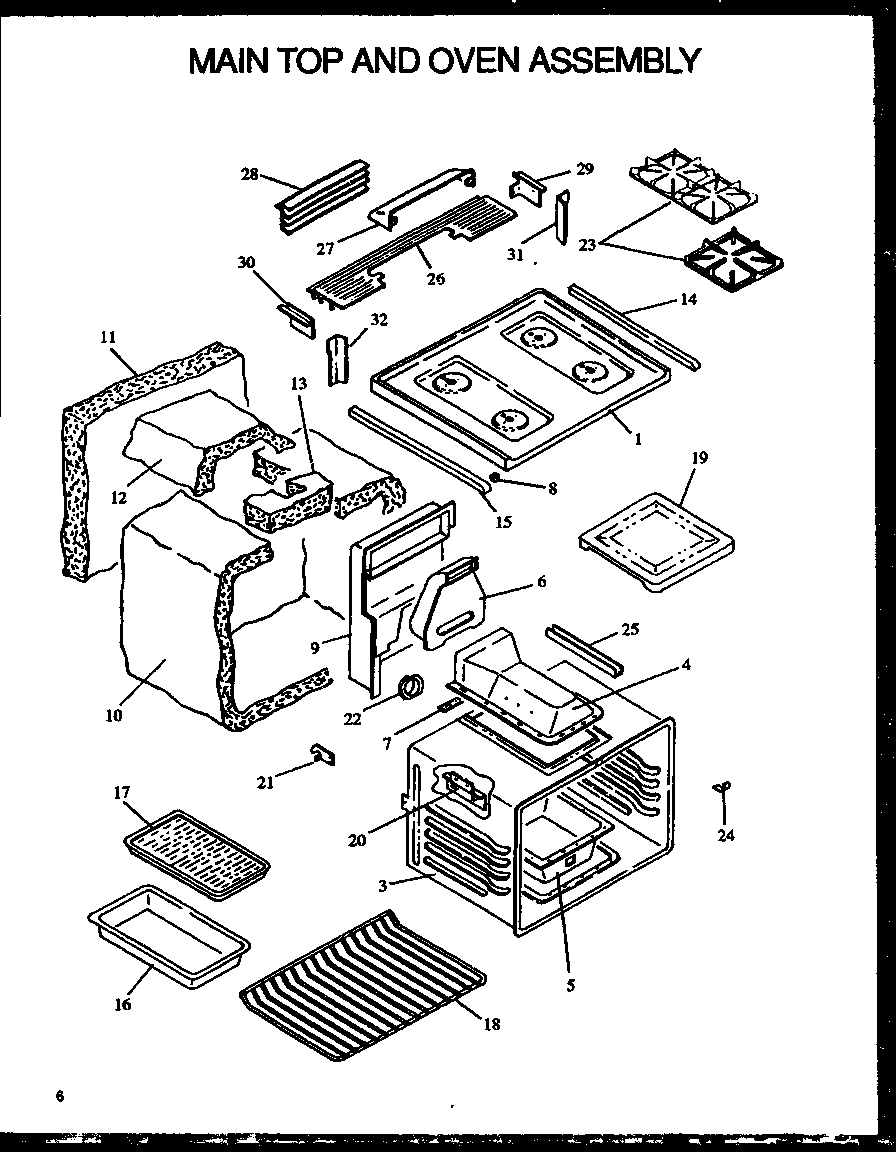

Main top and oven assembly diagram

Trim, dilution flue cover (at date code 9104)

Part #0303930

The manufacturer no longer makes this part, and there's no substitute part

Insert, Control Panel Top 0301131
#6A

Control panel parts diagram

Insert, control panel top

Part #0301131

The manufacturer no longer makes this part, and there's no substitute part
