Washer

Model # WBXR2090D0WW Official GE washer

Here are the diagrams and repair parts for Official GE WBXR2090D0WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WBXR2090D0WW Washer
Hub Nut WH02X1193
#325

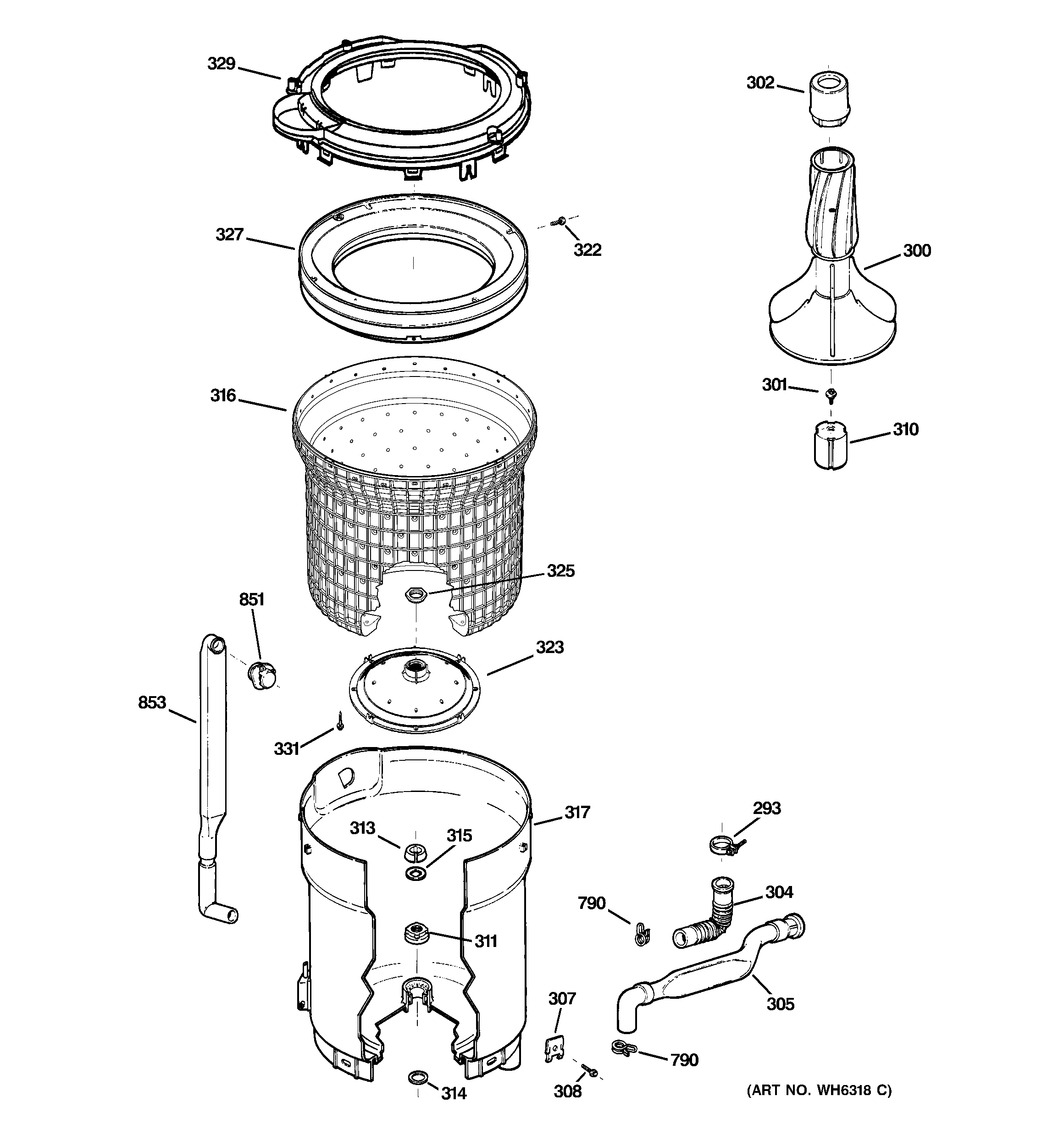

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
3 (2)
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Washer Tub Seal WH02X10032
#311

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$11.72 |
15% OFF Phone Price : $13.72
In Stock
Washer Control Knob WH01X10061
#8

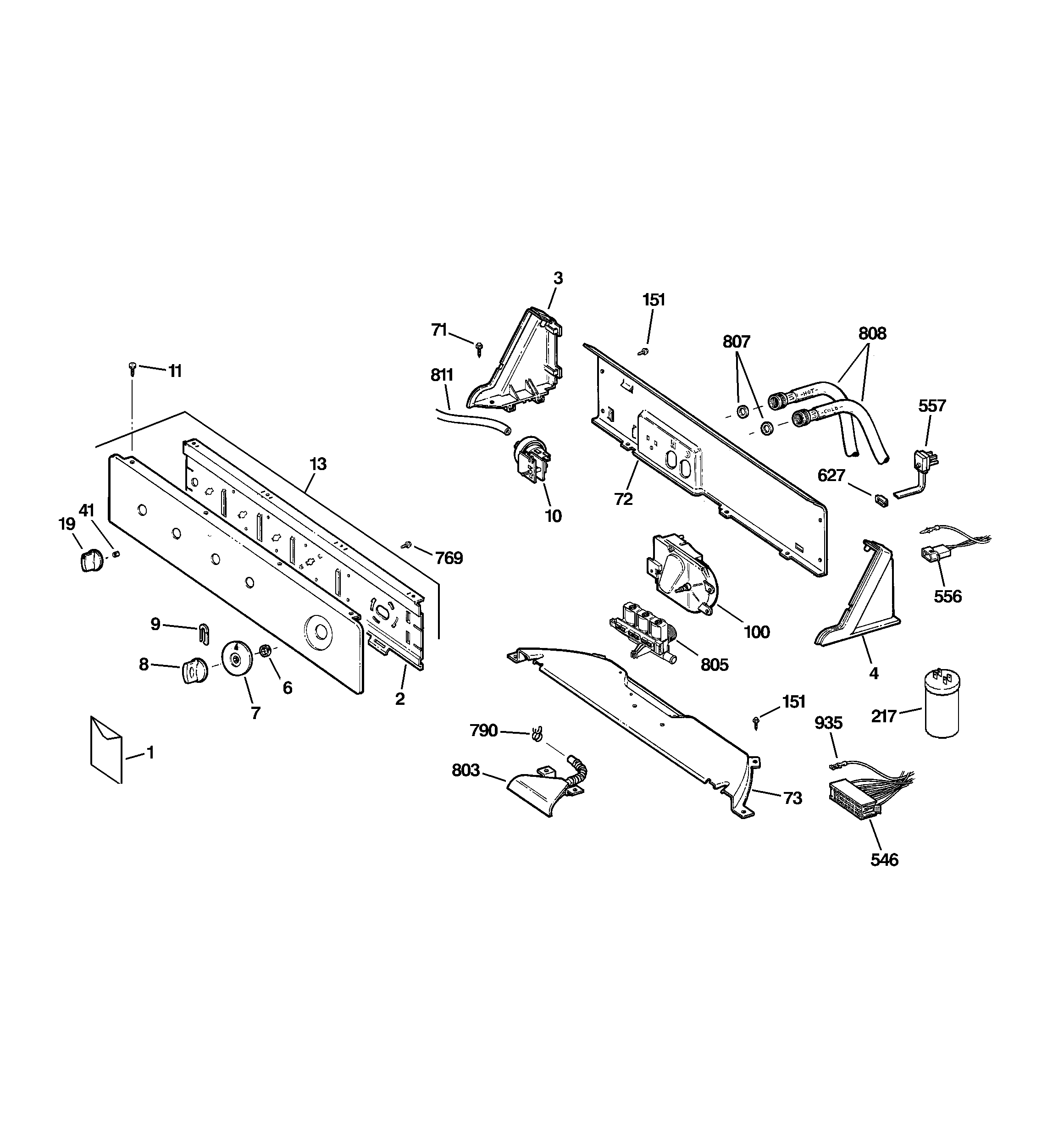

Controls & backsplash diagram

Washer control knob

Part #WH01X10061

Replaced by #WH01X10310

?
Manufacturer substitution
This part replaces WH01X10061. Substitute parts can look different from the original.
4.2 (5)
BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Washer Suspension Rod And Spring Assembly WH16X10057
#414

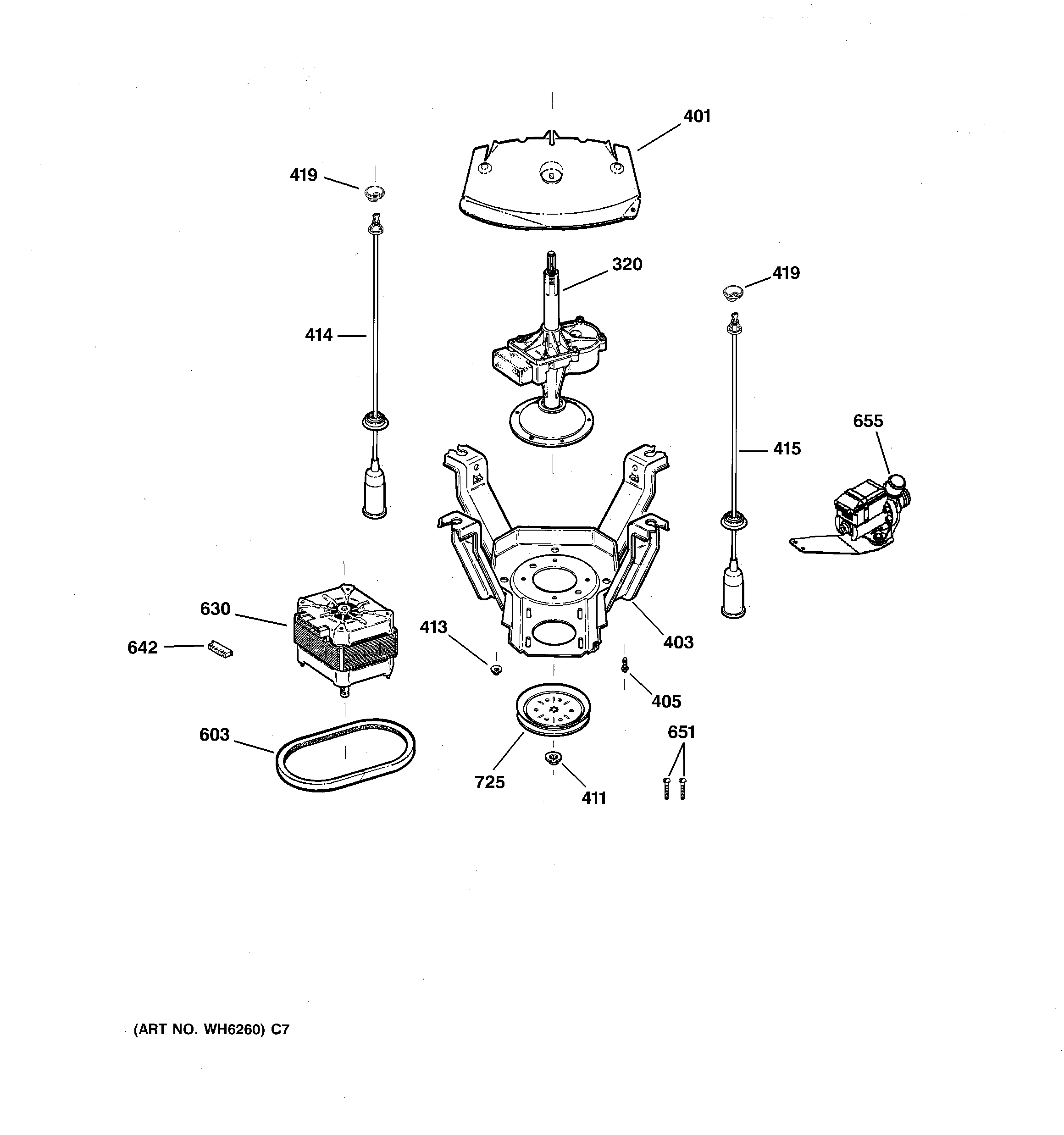

Suspension, pump & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10057

5 (1)
BEST SELLER
$31.00 |
16% OFF Phone Price : $37.00
In Stock
Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
4.8 (5)
BEST SELLER
$57.94 |
9% OFF Phone Price : $63.94
In Stock
Spring Clip WH01X2117
#9

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Strap Dampng WH01X10046
#370

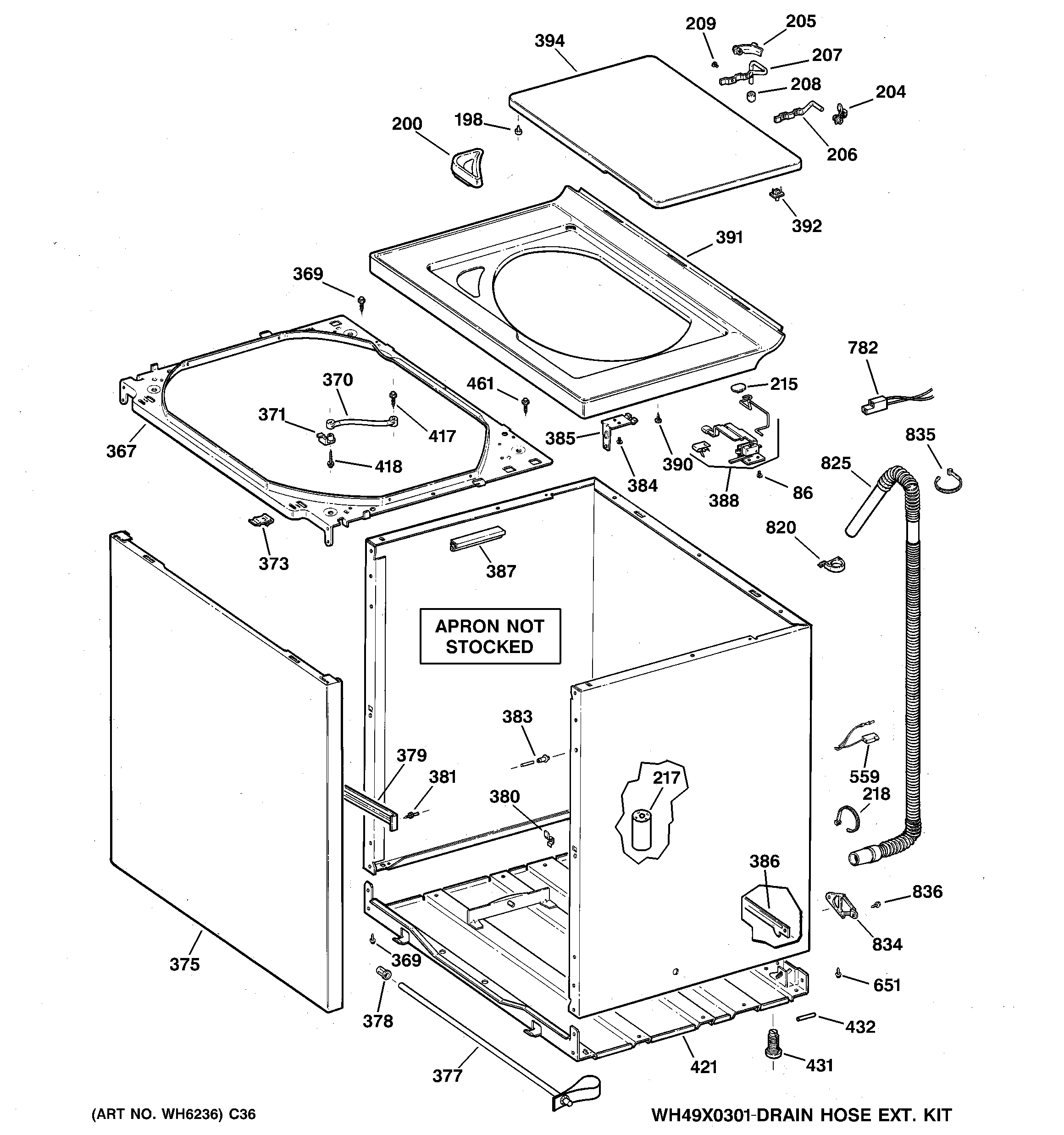

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$12.53 |
59% OFF Was : $30.67
In Stock
Drive Extension Hose WH41X0367
#825

Cabinet, cover & front panel diagram

Drive extension hose

Part #WH41X0367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X0367. Substitute parts can look different from the original.
4.38 (8)
$23.39 |
20% OFF Phone Price : $29.39
In Stock
Motor Capacitor WH12X10212
Motor capacitor

Part #WH12X10212

Replaced by #WH12X10462

?
Manufacturer substitution
This part replaces WH12X10212. Substitute parts can look different from the original.
5 (5)
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Drain Hose WH41X0371
#304

Tub, basket & agitator diagram

Drain hose

Part #WH41X0371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X0371. Substitute parts can look different from the original.
This item is not returnable
$15.32 |
12% OFF Phone Price : $17.32
In Stock
