Hotpoint
Upright Freezer

Model # FV13CKC Official Hotpoint freezer

Here are the diagrams and repair parts for Official Hotpoint FV13CKC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Drier WR86X83
#123

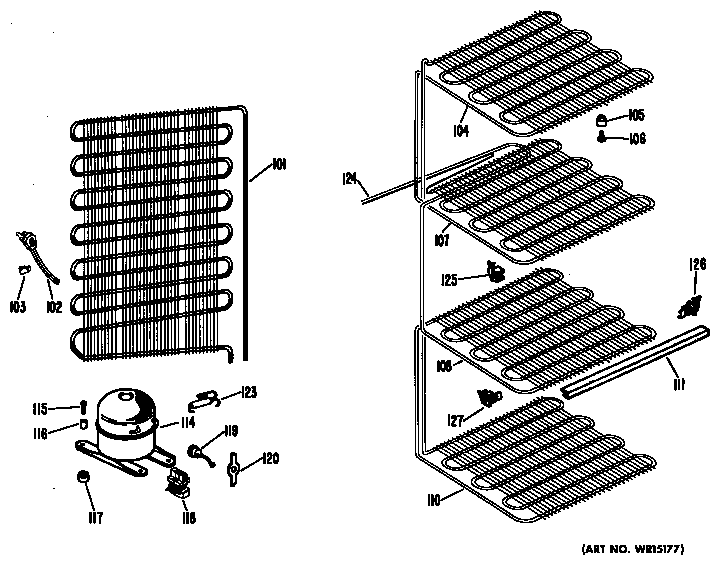

Unit diagram

Drier

Part #WR86X83

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X83. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108
#102

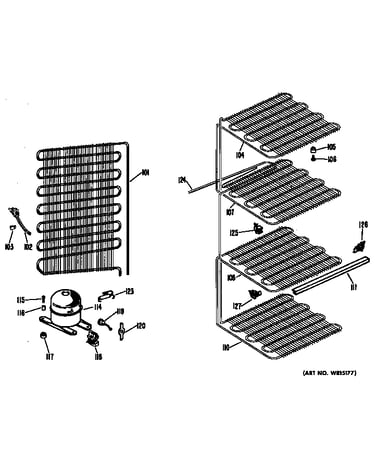

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#103

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Breaker Strip WR40X5446
#37A

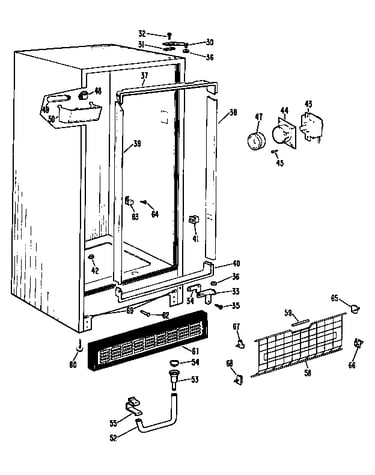

Cabinet diagram

Breaker strip

Part #WR40X5446

$37.49
In Stock
Insulator WR2X6309
#43B

Cabinet diagram

Insulator

Part #WR2X6309

Replaced by #WR2X9500

?
Manufacturer substitution
This part replaces WR2X6309. Substitute parts can look different from the original.
$37.40
In Stock
Breaker Strip WR40X5555
#38

Cabinet diagram

Breaker strip

Part #WR40X5555

The manufacturer no longer makes this part, and there's no substitute part

End Cap Kit WR2X6053
#11A

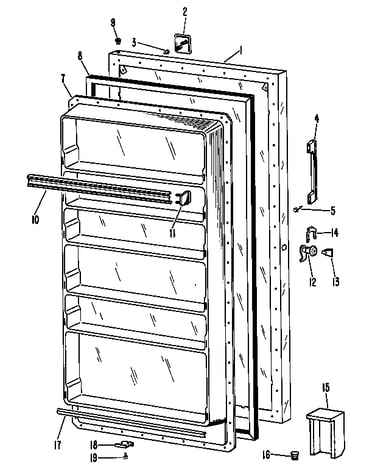

Door diagram

End cap kit

Part #WR2X6053

The manufacturer no longer makes this part, and there's no substitute part

Spacer WR2X6354
#34

Cabinet diagram

Spacer

Part #WR2X6354

The manufacturer no longer makes this part, and there's no substitute part

Spacer WR1X5142
#105A

Unit diagram

Spacer

Part #WR1X5142

The manufacturer no longer makes this part, and there's no substitute part

Control Housing WR2X7469
#44

Cabinet diagram

Control housing

Part #WR2X7469

The manufacturer no longer makes this part, and there's no substitute part
