Sharp
Countertop Microwave

Model # R-610DK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-610DK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

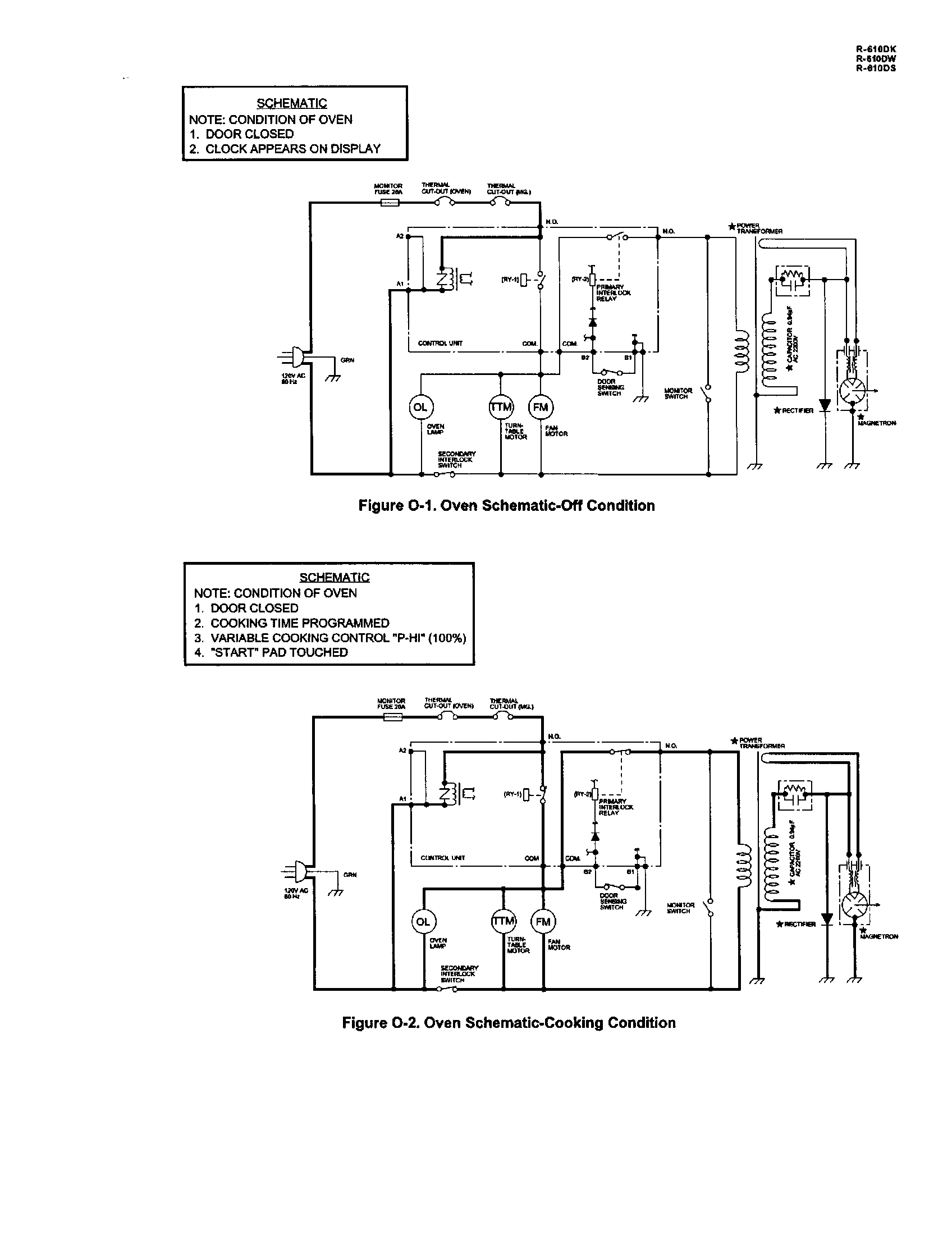

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Screw LX-CZA079WREZ

#7-15

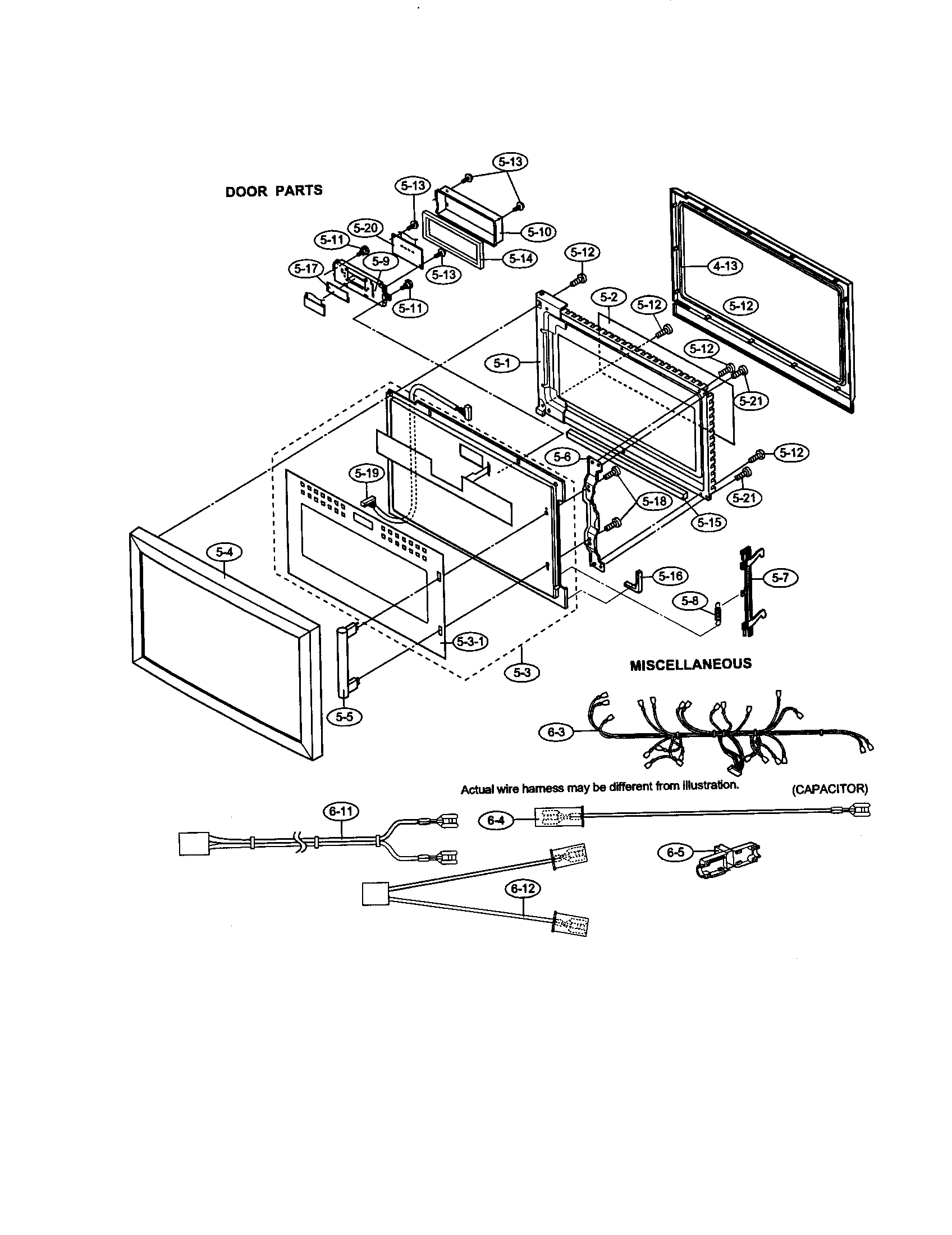

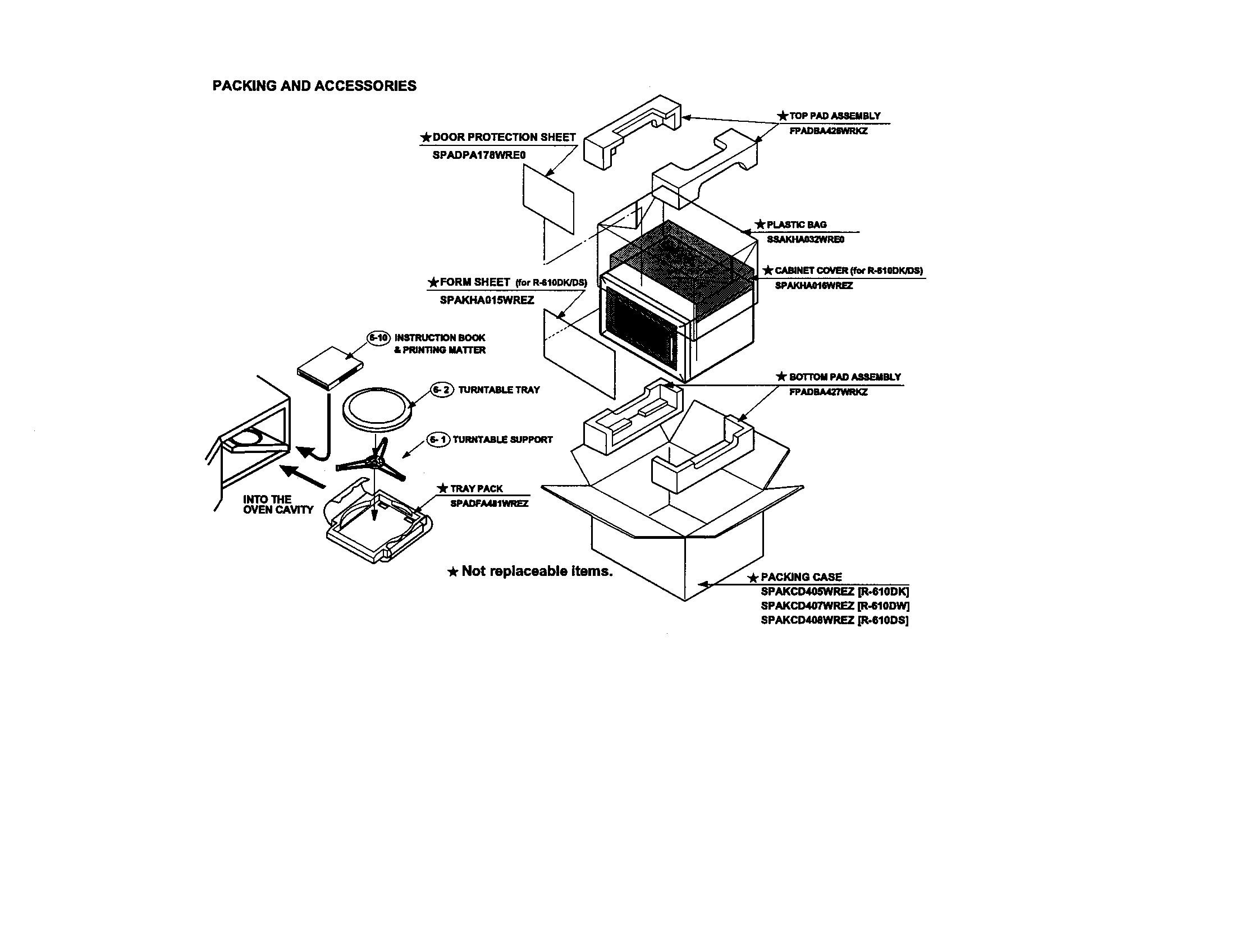

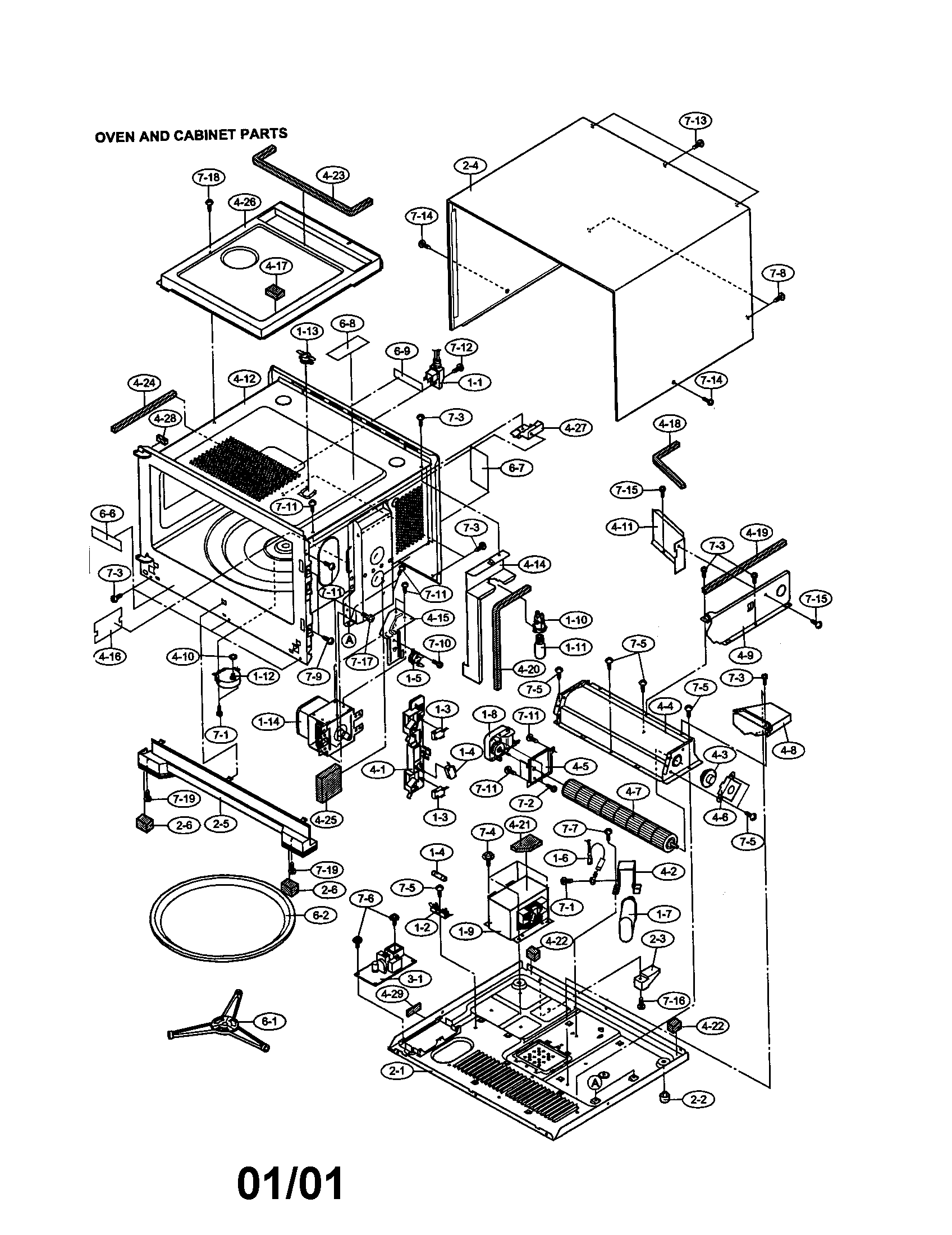

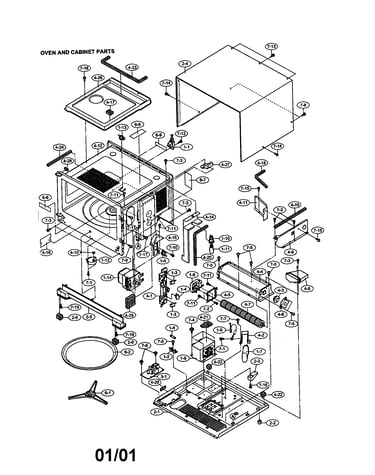

All parts diagram

Screw

Part #LX-CZA079WREZ

The manufacturer no longer makes this part, and there's no substitute part

Lcd Holder LHLD-A225WRFZ

#5-09

All parts diagram

Lcd holder

Part #LHLD-A225WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0

#1-01

All parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Holder LANGRA056WRWZ

#4-06

All parts diagram

Holder

Part #LANGRA056WRWZ

The manufacturer no longer makes this part, and there's no substitute part

Harness FW-VZA264DREZ

#5-19

All parts diagram

Harness

Part #FW-VZA264DREZ

The manufacturer no longer makes this part, and there's no substitute part

Key Sheet PSHEPA737WREZ

#5-031A

All parts diagram

Key sheet

Part #PSHEPA737WREZ

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual TINSEA845WRRZ

#6-10

All parts diagram

Owner's manual

Part #TINSEA845WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Duct PDUC-A751WRTZ

#4-26

All parts diagram

Duct

Part #PDUC-A751WRTZ

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA340DRE0

#3-01C

All parts diagram

Connector

Part #QCNCMA340DRE0

The manufacturer no longer makes this part, and there's no substitute part

Key Sheet PSHEPA736WREZ

#5-03-1

All parts diagram

Key sheet

Part #PSHEPA736WREZ

The manufacturer no longer makes this part, and there's no substitute part
