Craftsman
Power Drill

Model # 31510560 Official Craftsman 3/8" reversible drill

Here are the diagrams and repair parts for Official Craftsman 31510560 3/8" reversible drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Housing 6-611064-00
#21

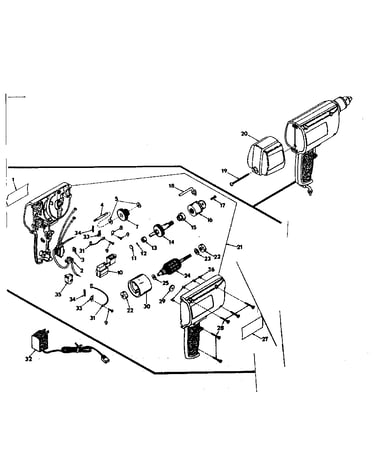

Unit parts diagram

Housing

Part #6-611064-00

The manufacturer no longer makes this part, and there's no substitute part

Chuck 2-617514-01
#16

Unit parts diagram

Chuck

Part #2-617514-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-621645-07
#19

Unit parts diagram

Screw

Part #1-621645-07

The manufacturer no longer makes this part, and there's no substitute part

Charger 3-610935-01
#32

Unit parts diagram

Charger

Part #3-610935-01

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-611092-01
#2

Unit parts diagram

Switch

Part #2-611092-01

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 1-709863-804
#3

Unit parts diagram

Square nut

Part #1-709863-804

The manufacturer no longer makes this part, and there's no substitute part

Field 2-610906-03
#30

Unit parts diagram

Field

Part #2-610906-03

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-610902-01
#15

Unit parts diagram

Bearing

Part #1-610902-01

The manufacturer no longer makes this part, and there's no substitute part

Clamp 1-610905-01
#33

Unit parts diagram

Clamp

Part #1-610905-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-703429-818
#23

Unit parts diagram

Washer

Part #1-703429-818

The manufacturer no longer makes this part, and there's no substitute part
