White-Westinghouse
Microwave/Hood Combo

Model # KM577GXM1 Official White-Westinghouse microwave & vent hood

Here are the diagrams and repair parts for Official White-Westinghouse KM577GXM1 microwave & vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Handle QM00011D85
#36

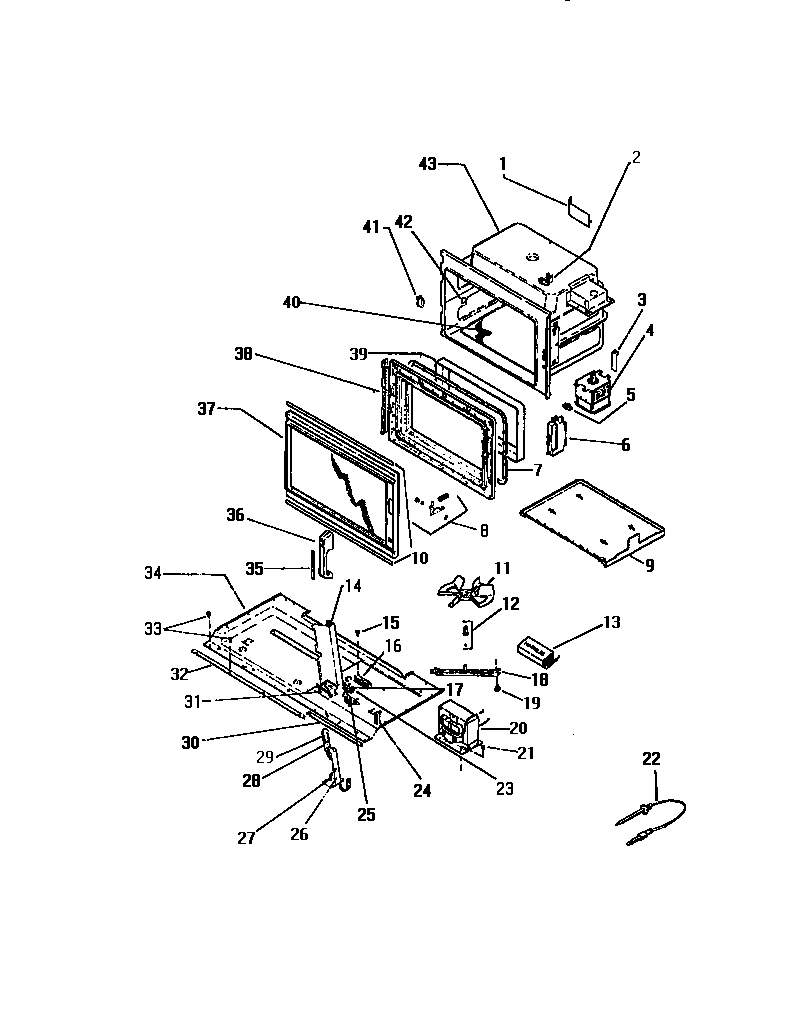

Body, door diagram

Handle

Part #QM00011D85

Replaced by #5308015482

?
Manufacturer substitution
This part replaces QM00011D85. Substitute parts can look different from the original.
$85.99
In Stock
Switch QM0014D253
#6

Body, door diagram

Switch

Part #QM0014D253

Replaced by #5308014394

?
Manufacturer substitution
This part replaces QM0014D253. Substitute parts can look different from the original.
$62.99
In Stock
Lamp QM0009D106
#37

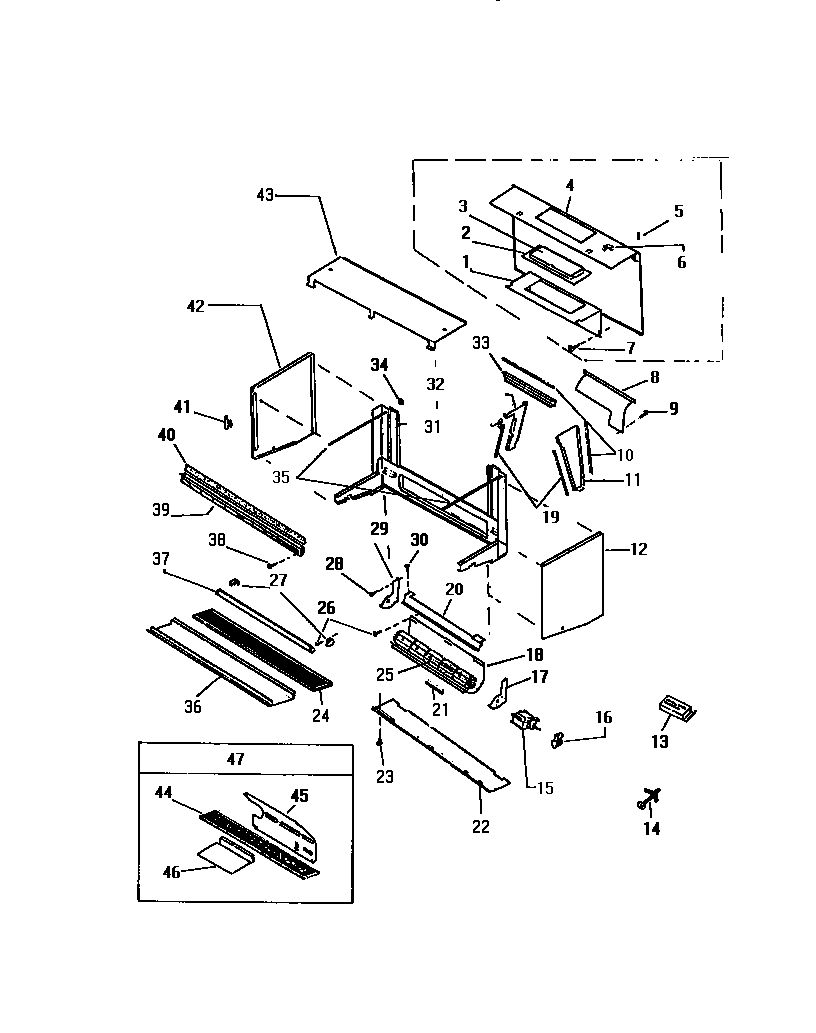

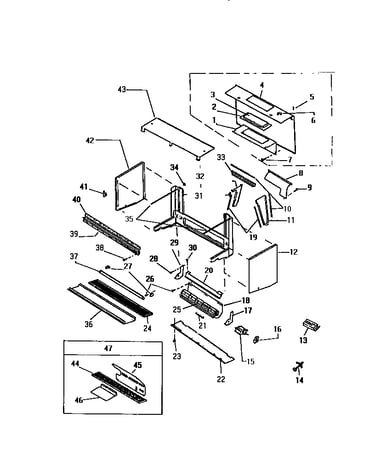

Vent hood/installation diagram

Lamp

Part #QM0009D106

The manufacturer no longer makes this part, and there's no substitute part

Nut QM00001D84
#26D

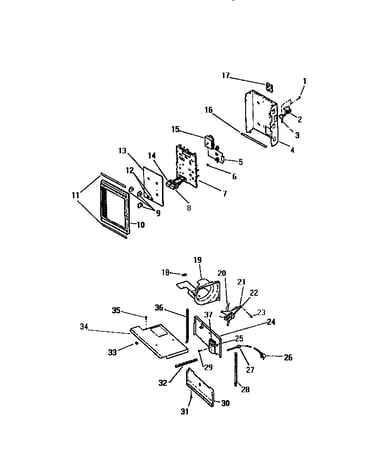

Control panel diagram

Nut

Part #QM00001D84

The manufacturer no longer makes this part, and there's no substitute part

Tape QM0002D493
Tape

Part #QM0002D493

The manufacturer no longer makes this part, and there's no substitute part

Washer, Jack Mtg (non-illustrated) QM0001D617
#2A

Body, door diagram

Washer, jack mtg (non-illustrated)

Part #QM0001D617

The manufacturer no longer makes this part, and there's no substitute part

Cover QM0052D212
#34

Control panel diagram

Cover

Part #QM0052D212

The manufacturer no longer makes this part, and there's no substitute part

Door Gasket QM00025D68
#7

Body, door diagram

Door gasket

Part #QM00025D68

The manufacturer no longer makes this part, and there's no substitute part

Bottom Panel QM0082D179
#22

Vent hood/installation diagram

Bottom panel

Part #QM0082D179

The manufacturer no longer makes this part, and there's no substitute part

Polly Rivet QM0001D612
#19

Body, door diagram

Polly rivet

Part #QM0001D612

The manufacturer no longer makes this part, and there's no substitute part
