Char-Broil
Gas Grill

Model # 4654309 Official Char-Broil outdoor grill

Here are the diagrams and repair parts for Official Char-Broil 4654309 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Hood 4503710
#7

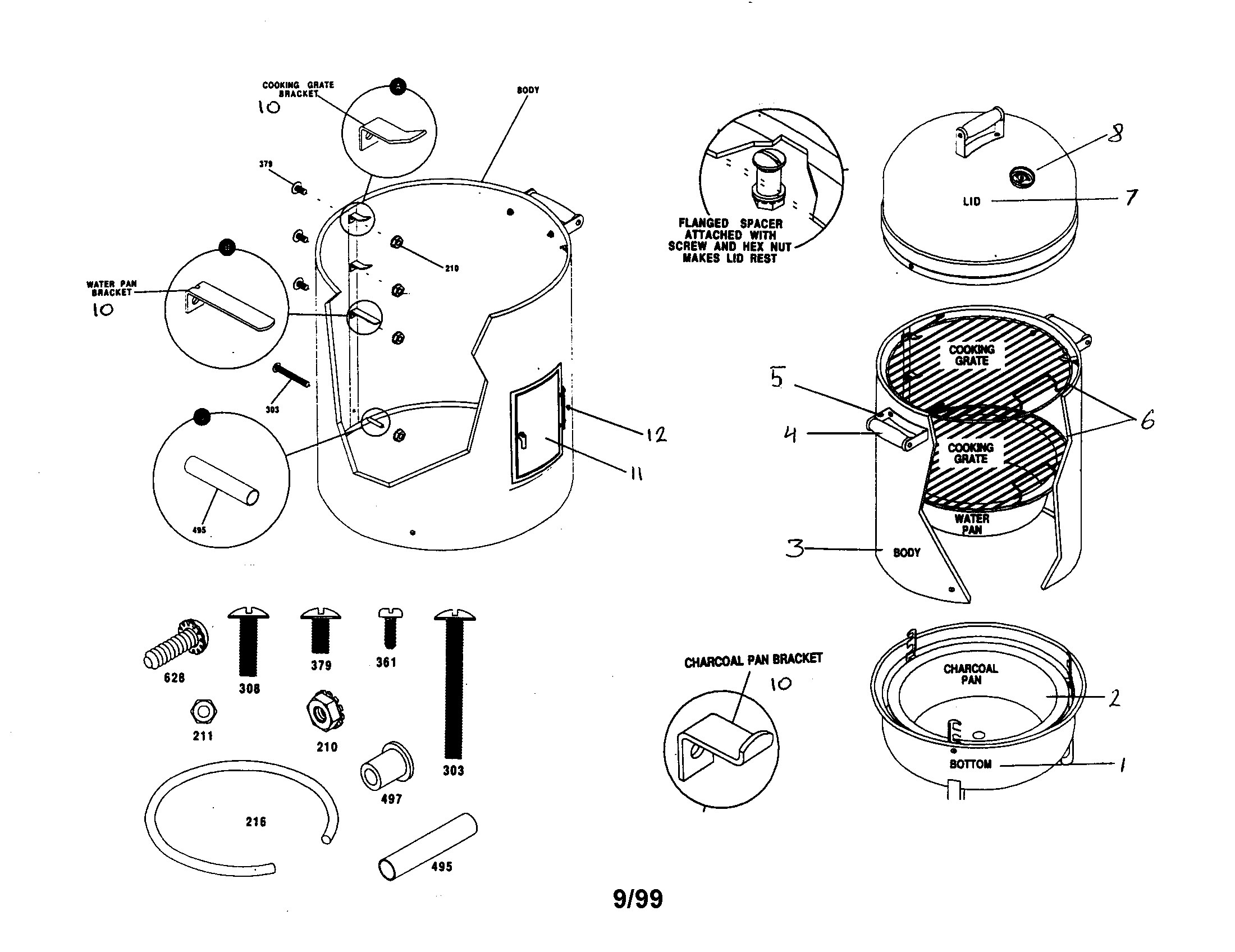

Outdoor grille - 415.13215 diagram

Hood

Part #4503710

The manufacturer no longer makes this part, and there's no substitute part

Handle 4502713
#5

Outdoor grille - 415.13215 diagram

Handle

Part #4502713

The manufacturer no longer makes this part, and there's no substitute part

Instruction Assembly 4161779

#NI

All parts diagram

Instruction assembly

Part #4161779

The manufacturer no longer makes this part, and there's no substitute part

Handle 4157215
#4

Outdoor grille - 415.13215 diagram

Handle

Part #4157215

The manufacturer no longer makes this part, and there's no substitute part

Screw 4080379

#NI

All parts diagram

Screw

Part #4080379

The manufacturer no longer makes this part, and there's no substitute part

Ring 4150216
#216

Outdoor grille - 415.13215 diagram

Ring

Part #4150216

The manufacturer no longer makes this part, and there's no substitute part

Screw 4080308
#308

Outdoor grille - 415.13215 diagram

Screw

Part #4080308

The manufacturer no longer makes this part, and there's no substitute part

Pan 4152770
#2

Outdoor grille - 415.13215 diagram

Pan

Part #4152770

The manufacturer no longer makes this part, and there's no substitute part

1/4 Spacer 4080495

#NI

All parts diagram

1/4 spacer

Part #4080495

The manufacturer no longer makes this part, and there's no substitute part

Screw 4080303
#303

Outdoor grille - 415.13215 diagram

Screw

Part #4080303

The manufacturer no longer makes this part, and there's no substitute part
