Model # 21-7119 Official DP prime fit concourse 10.55 gi treadmill

Here are the diagrams and repair parts for Official DP 21-7119 prime fit concourse 10.55 gi treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Washer 26018700
#67

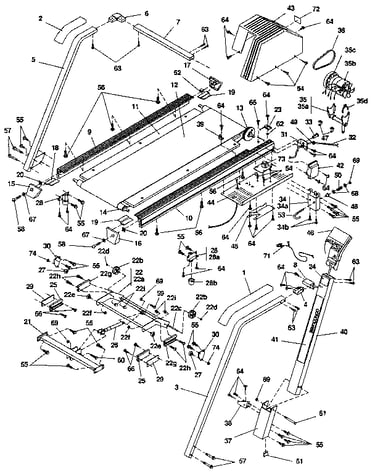

Motor and walking belt assembly diagram

Washer

Part #26018700

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 25014600
Lock nut

Part #25014600

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw 23021000
#55

Motor and walking belt assembly diagram

Hex screw

Part #23021000

The manufacturer no longer makes this part, and there's no substitute part

Motor/mnt As 39379300
#35

Motor and walking belt assembly diagram

Motor/mnt as

Part #39379300

The manufacturer no longer makes this part, and there's no substitute part

Rr/lf Guard 09170200
#19

Motor and walking belt assembly diagram

Rr/lf guard

Part #09170200

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 39394100
#46G

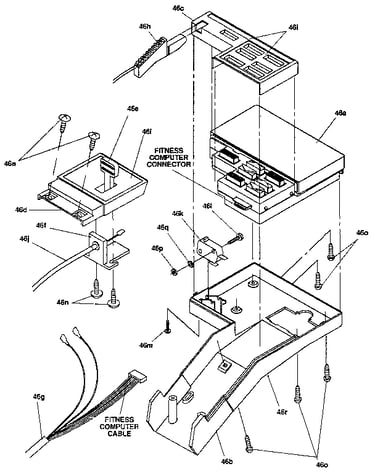

Control panel assembly diagram

Wire harness

Part #39394100

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 22027300
#61

Motor and walking belt assembly diagram

Hex bolt

Part #22027300

The manufacturer no longer makes this part, and there's no substitute part

Foot Asm 39393800
#28

Motor and walking belt assembly diagram

Foot asm

Part #39393800

The manufacturer no longer makes this part, and there's no substitute part

Rr Guard 09169100
#18

Motor and walking belt assembly diagram

Rr guard

Part #09169100

The manufacturer no longer makes this part, and there's no substitute part

Shrt Sleeve 04043500
#2

Motor and walking belt assembly diagram

Shrt sleeve

Part #04043500

The manufacturer no longer makes this part, and there's no substitute part
