Countertop Microwave

Model # 5658848310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658848310 microwave, as well as links to manuals and error code tables, if available.

By Schematic

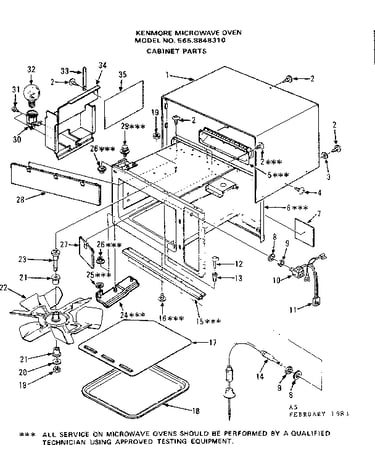

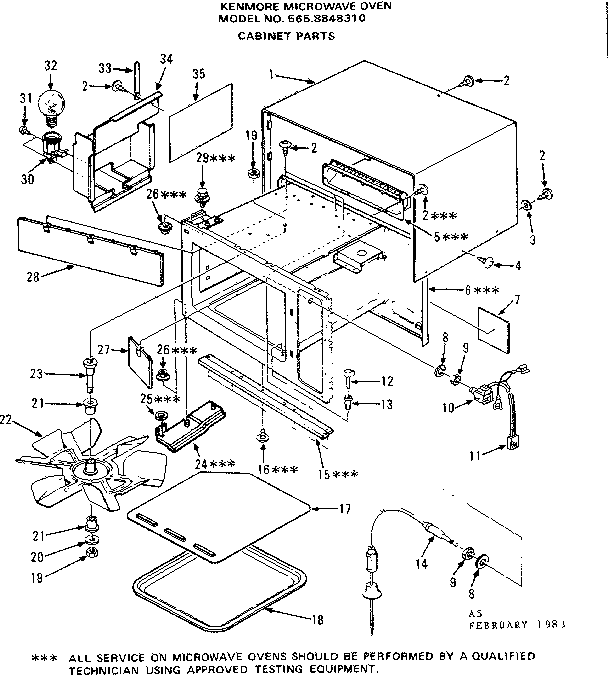

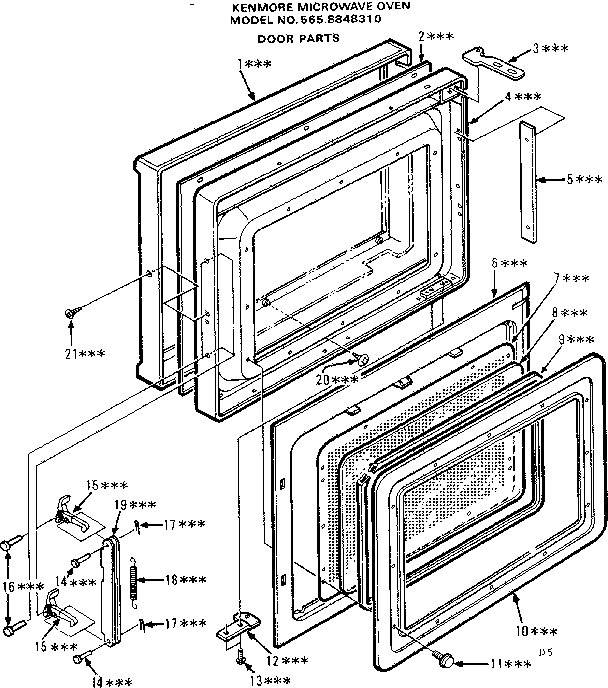

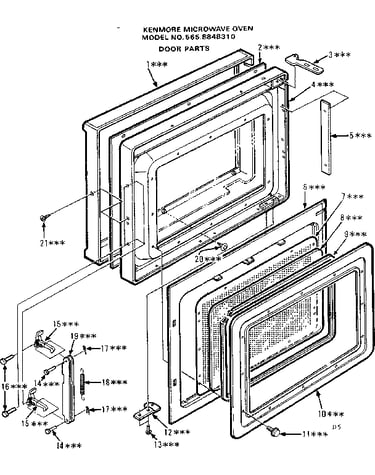

By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
5658848310 Microwaves
Kenmore Circuit Board 11694R
#10

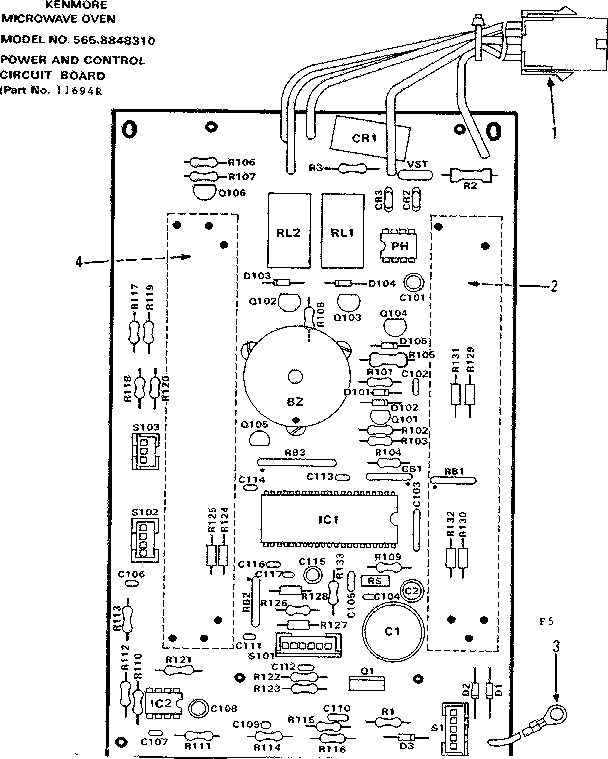

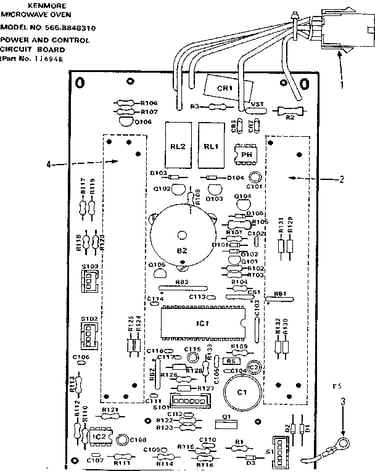

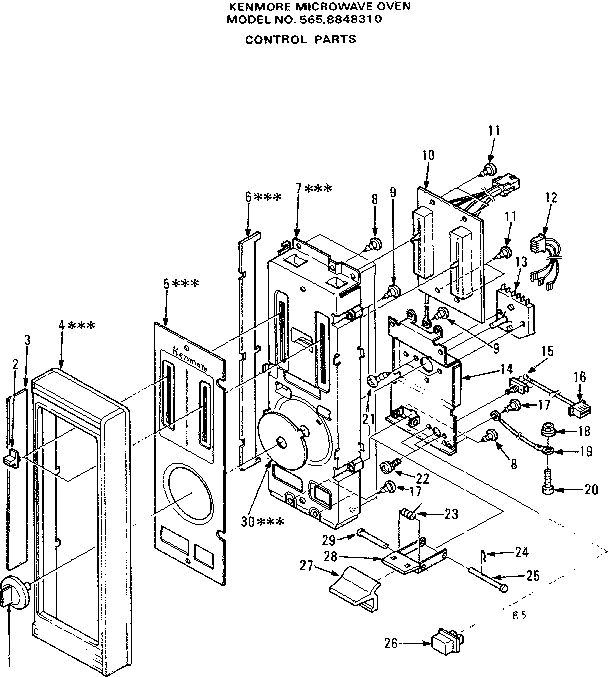

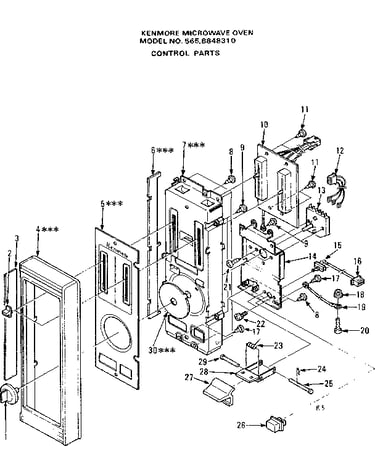

Control panel parts diagram

Kenmore circuit board

Part #11694R

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Lever 11090
#24

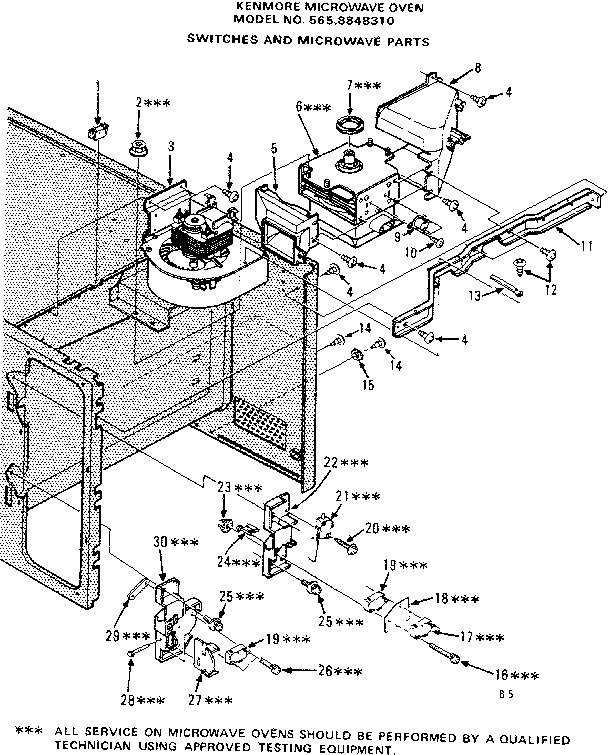

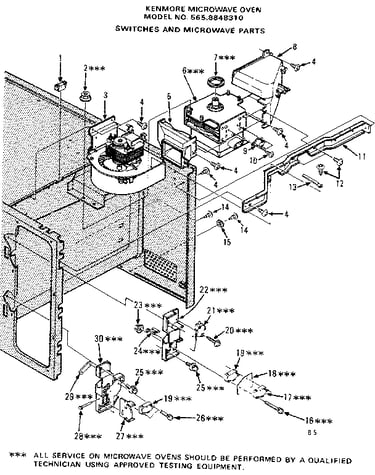

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#17

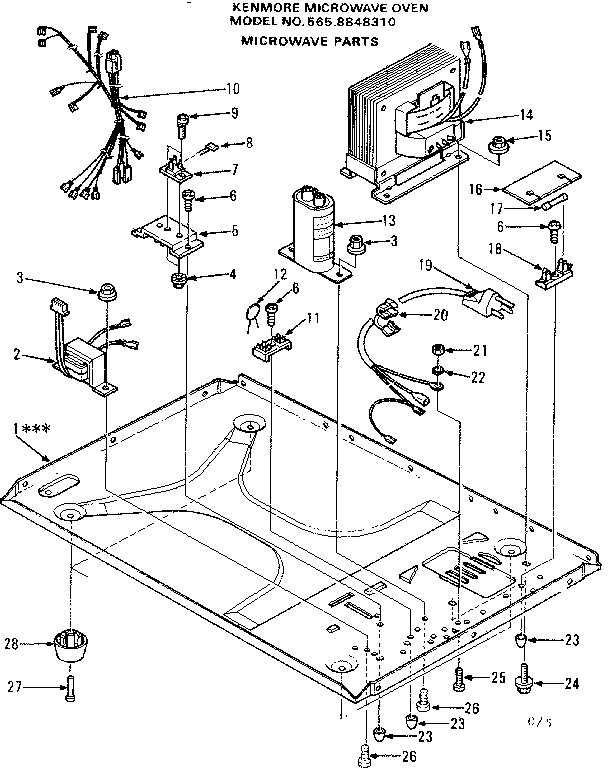

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#18

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Resistor 11730
#14

Power and control circuit board diagram

Resistor

Part #11730

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 11235
#9

Switches and microwave parts diagram

Thermostat

Part #11235

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 11346
#6

Switches and microwave parts diagram

Magnetron

Part #11346

The manufacturer no longer makes this part, and there's no substitute part

Screw 10305
#10

Switches and microwave parts diagram

Screw

Part #10305

The manufacturer no longer makes this part, and there's no substitute part

Switch 13000
#17

Switches and microwave parts diagram

Switch

Part #13000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11182
#6

Power and control circuit board diagram

Capacitor

Part #11182

The manufacturer no longer makes this part, and there's no substitute part
