Samsung
Room Air Conditioner

Model # AW0519 Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW0519 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Knob Spring DB67-60012A
#5A

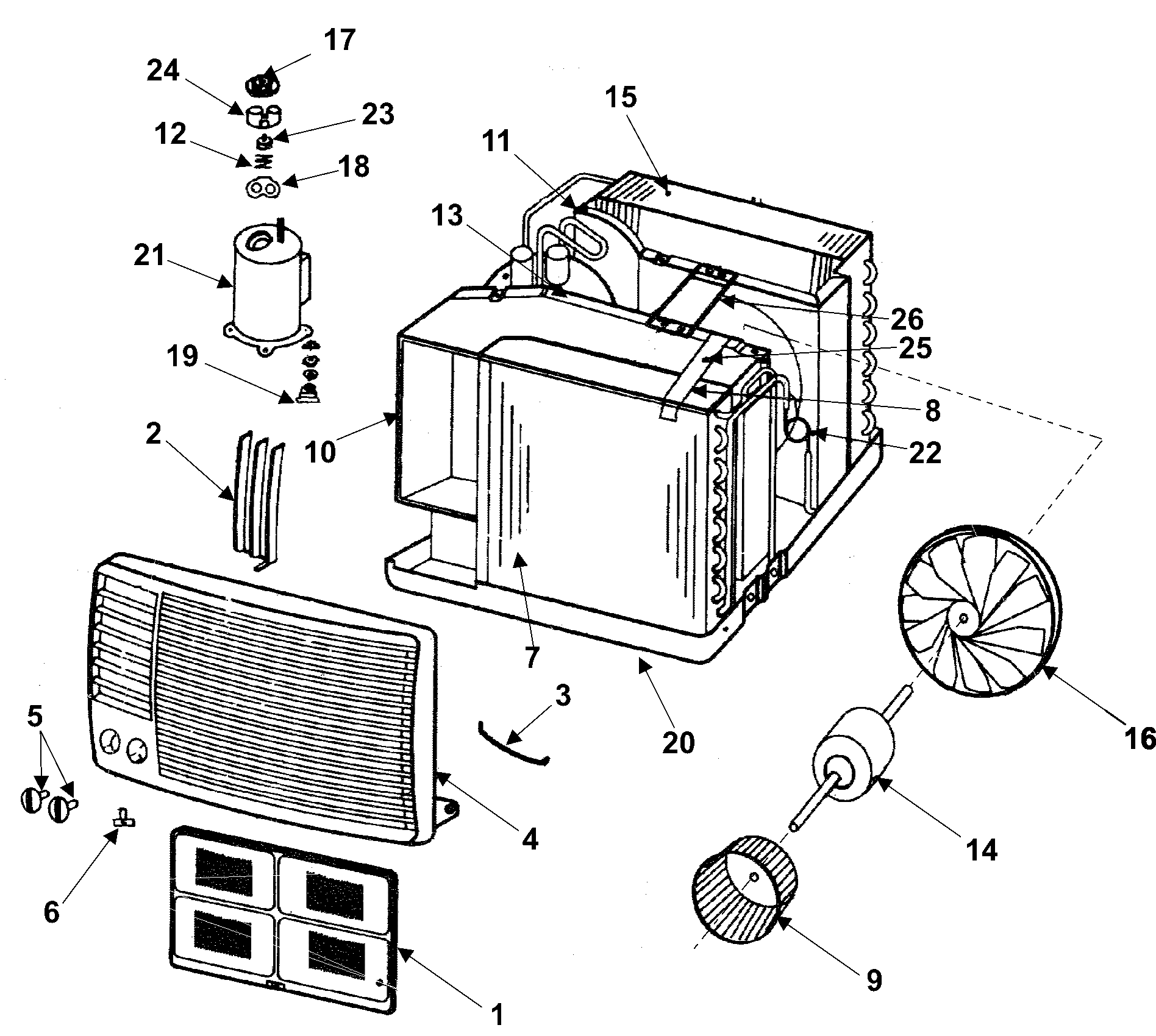

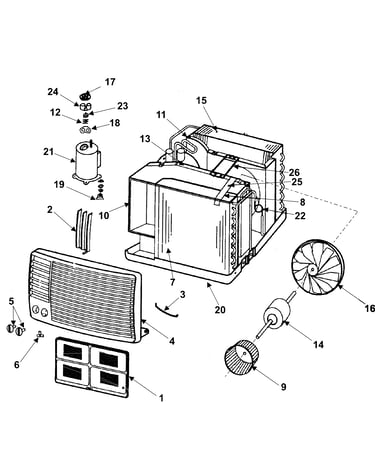

Chassis assembly diagram

Knob spring

Part #DB67-60012A

This item is not returnable
$3.89
In Stock
Air Guard DB63-30049K
#1

Chassis assembly diagram

Air guard

Part #DB63-30049K

The manufacturer no longer makes this part, and there's no substitute part

Assy-grill DB92-10031J
#4

Chassis assembly diagram

Assy-grill

Part #DB92-10031J

The manufacturer no longer makes this part, and there's no substitute part

Rotary Com 44A056HW2E1
#21

Chassis assembly diagram

Rotary com

Part #44A056HW2E1

The manufacturer no longer makes this part, and there's no substitute part

Shutter-gu DB64-20002C
#3A

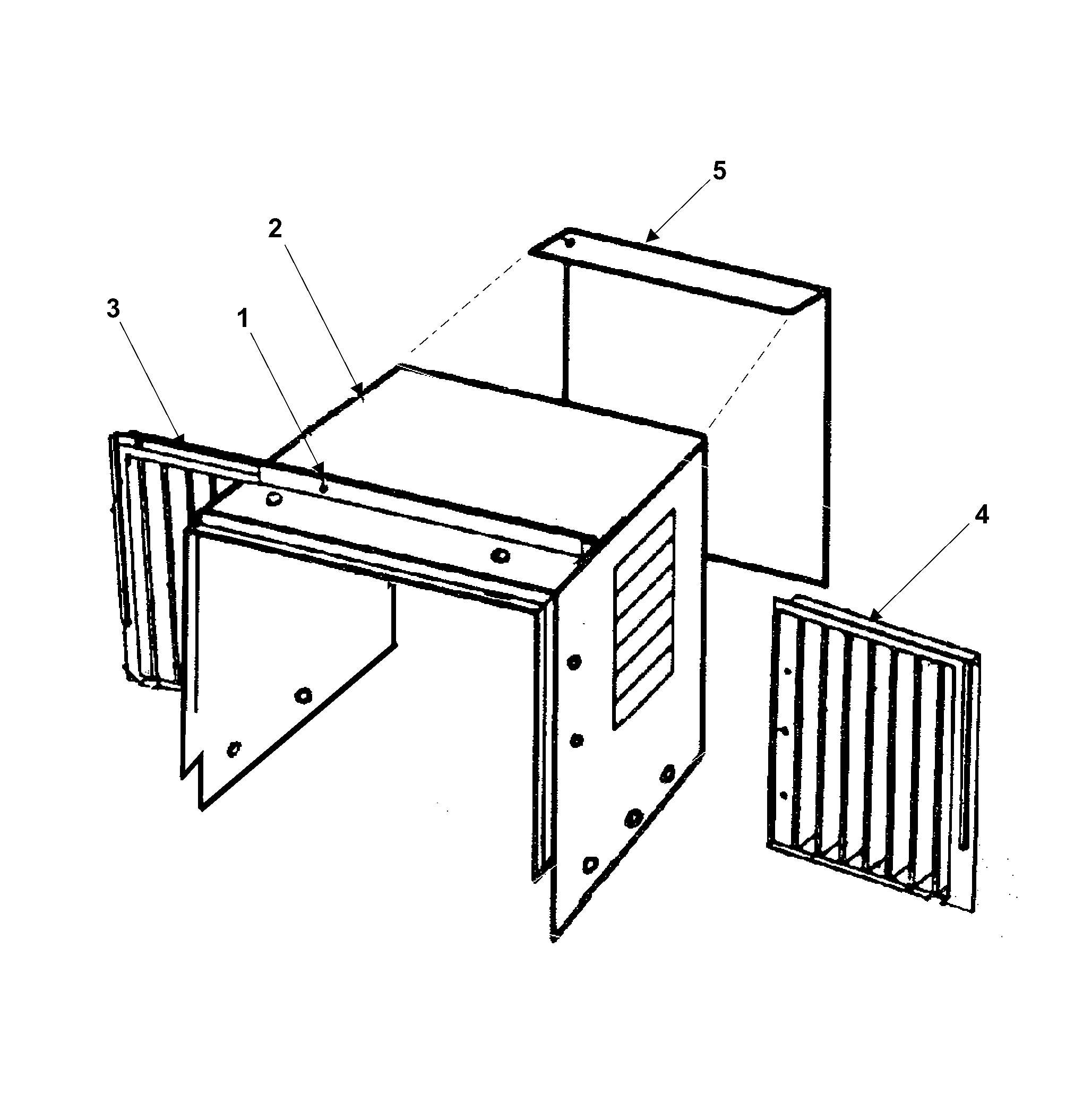

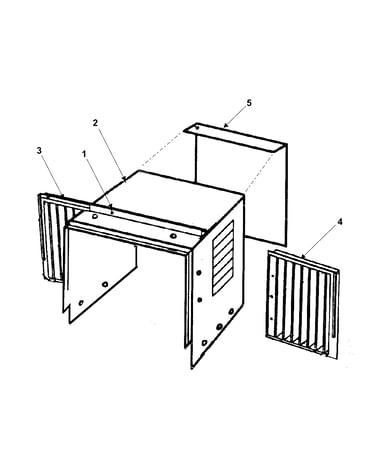

Outer case assembly diagram

Shutter-gu

Part #DB64-20002C

The manufacturer no longer makes this part, and there's no substitute part

Grille DB64-10109K
#4A

Chassis assembly diagram

Grille

Part #DB64-10109K

The manufacturer no longer makes this part, and there's no substitute part

Fan Propeller DB67-50030A
#16

Chassis assembly diagram

Fan propeller

Part #DB67-50030A

The manufacturer no longer makes this part, and there's no substitute part

Assy Control-box ----dna NLA
#1A

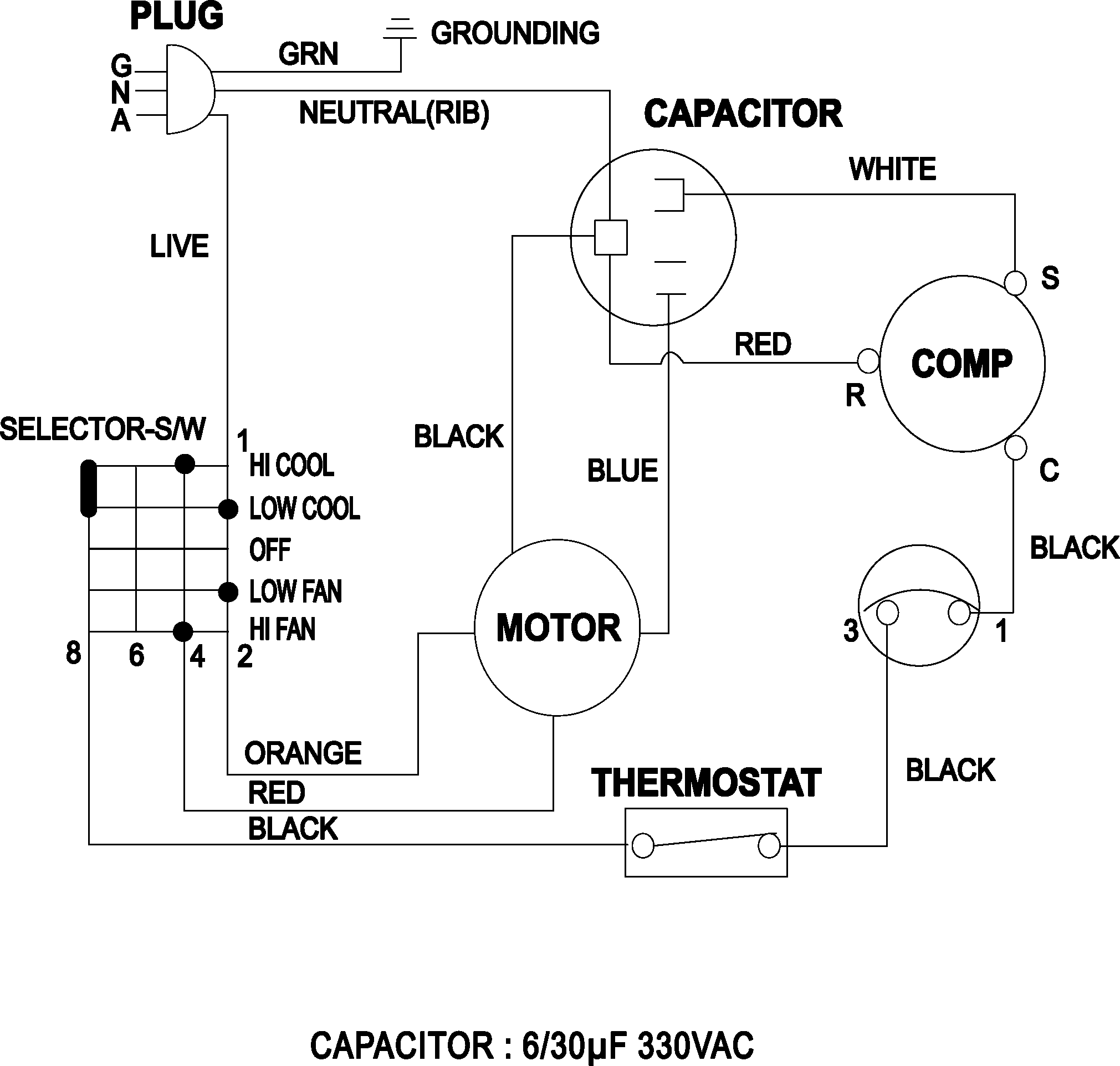

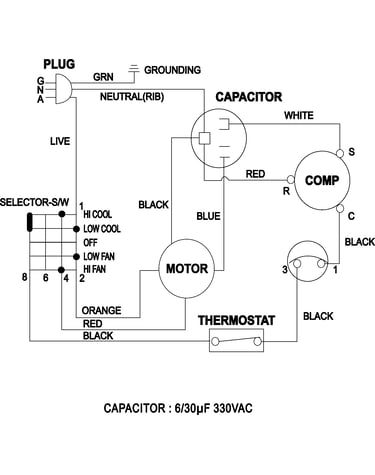

Wiring information diagram

Assy control-box ----dna

Part #NLA

The manufacturer no longer makes this part, and there's no substitute part

Gasket DB63-20002A
#18

Chassis assembly diagram

Gasket

Part #DB63-20002A

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly DB90-20017F
#20

Chassis assembly diagram

Base assembly

Part #DB90-20017F

The manufacturer no longer makes this part, and there's no substitute part
