Kenmore Elite
Gas Cooktop

Model # 79031113211 Official Kenmore Elite gas cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79031113211 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

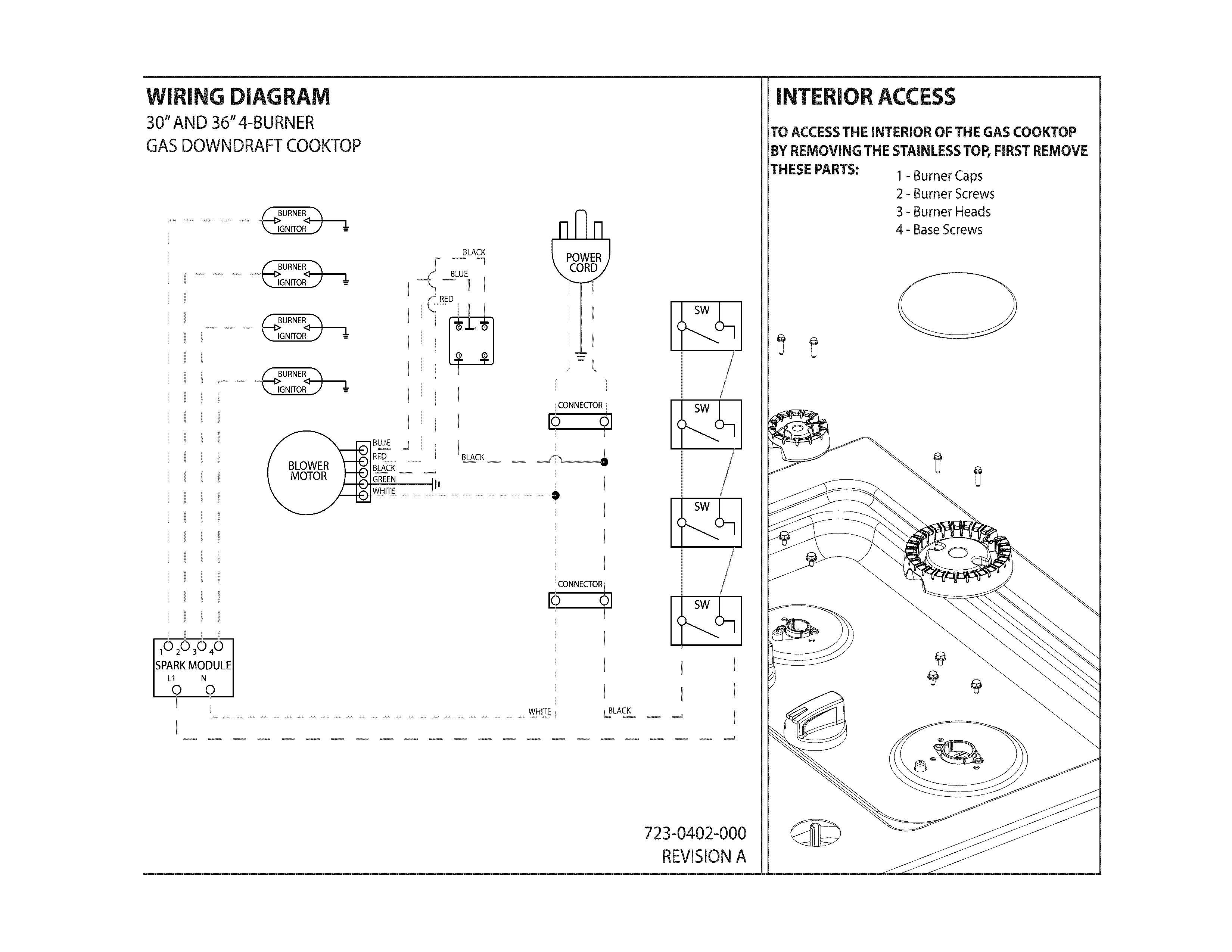

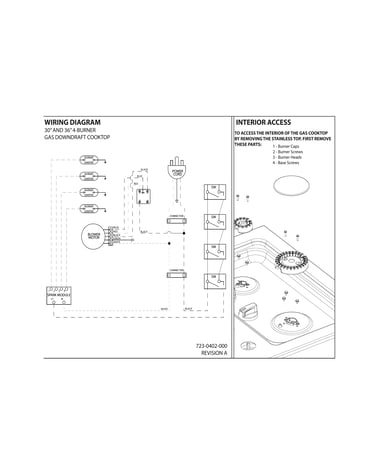

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#8

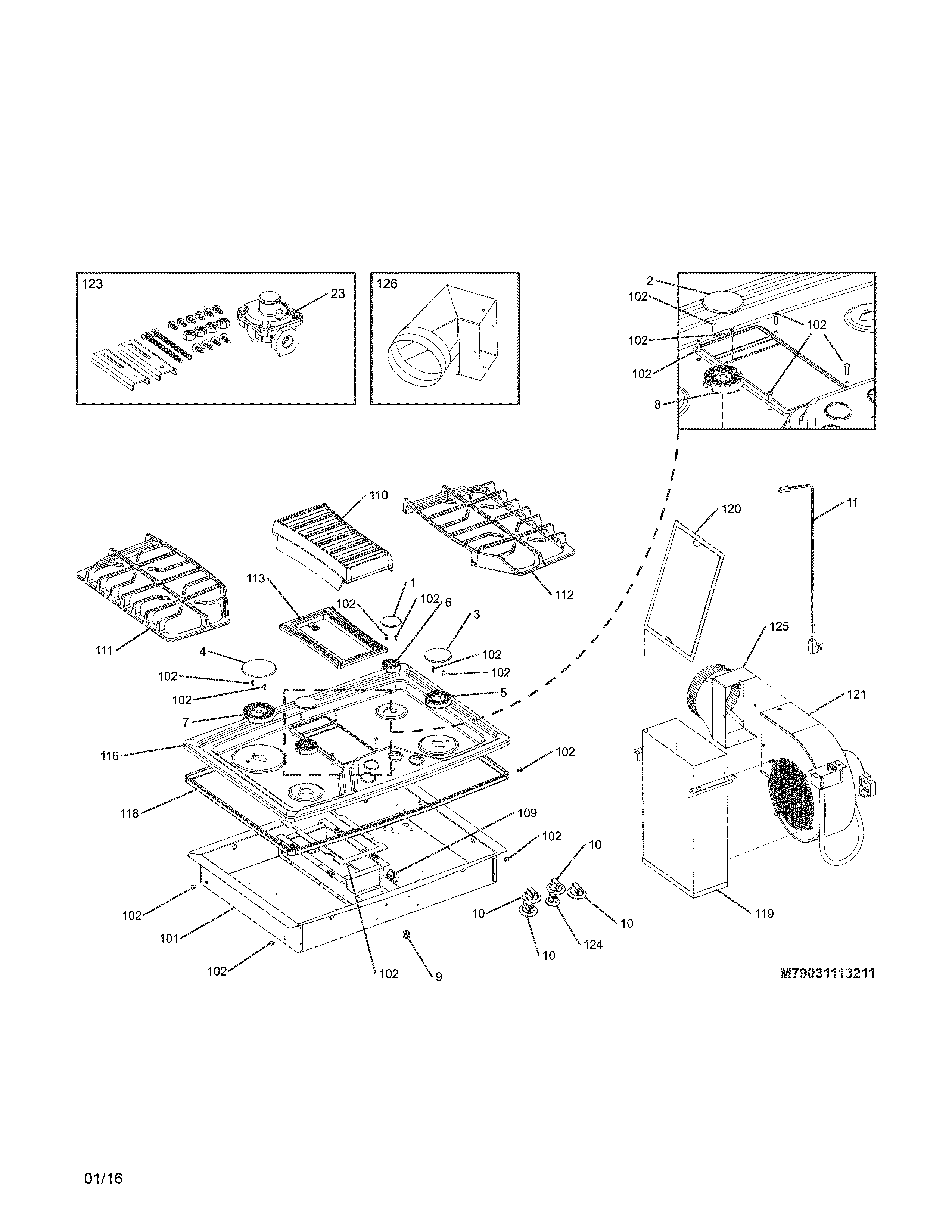

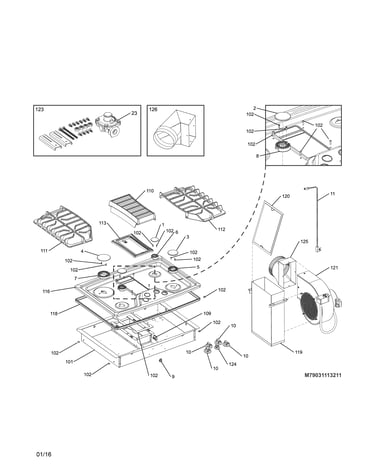

Main top diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#2

Main top diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#1

Main top diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#7

Main top diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89 |
9% OFF Phone Price : $65.89
In Stock
Range Surface Burner Cap 316262104
#4

Main top diagram

Range surface burner cap

Part #316262104

Replaced by #5304508468

?
Manufacturer substitution
This part replaces 316262104. Substitute parts can look different from the original.
BEST SELLER
$39.21 |
13% OFF Phone Price : $45.21
In Stock
Range Surface Burner Orifice (replaces 7316527500) 316527500
#12

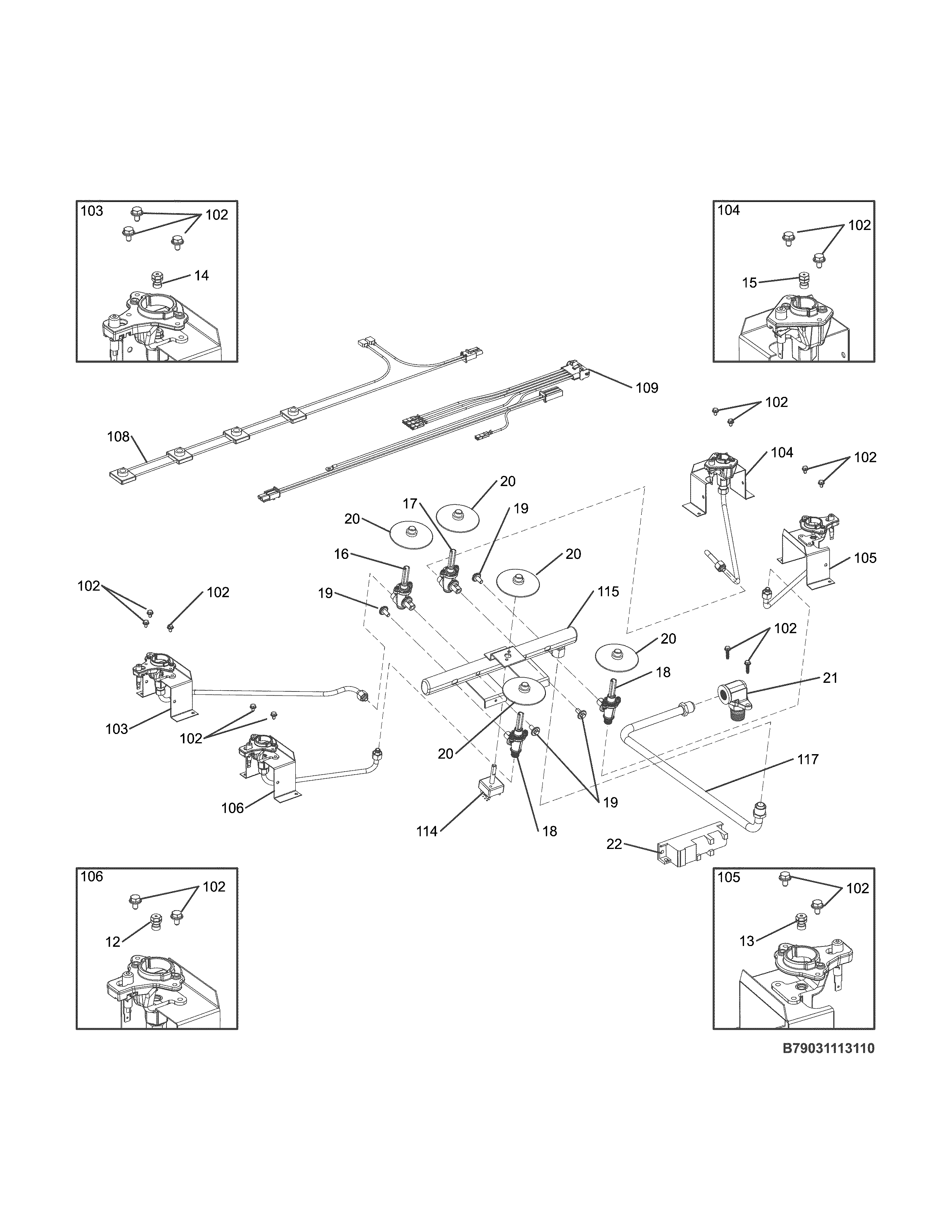

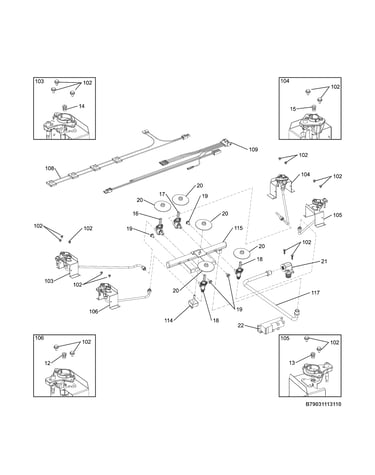

Burner diagram

Range surface burner orifice (replaces 7316527500)

Part #316527500

BEST SELLER
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Tappan Range Surface Burner Orifice (replaces 7316527504) 316527504
#15

Burner diagram

Tappan range surface burner orifice (replaces 7316527504)

Part #316527504

BEST SELLER
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Range Surface Burner Cap, 12,000-btu (black) 316261904
#3

Main top diagram

Range surface burner cap, 12,000-btu (black)

Part #316261904

Replaced by #5304508510

?
Manufacturer substitution
This part replaces 316261904. Substitute parts can look different from the original.
BEST SELLER
$30.67 |
16% OFF Phone Price : $36.67
In Stock
Range Surface Burner Orifice 316527502
#13

Burner diagram

Range surface burner orifice

Part #316527502

This item is not returnable
$23.41 |
20% OFF Phone Price : $29.41
In Stock
Cooktop Pressure Regulator 318122706
#23

Main top diagram

Cooktop pressure regulator

Part #318122706

$93.59 |
6% OFF Phone Price : $99.59
In Stock
