Model # DW1800FW Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire DW1800FW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

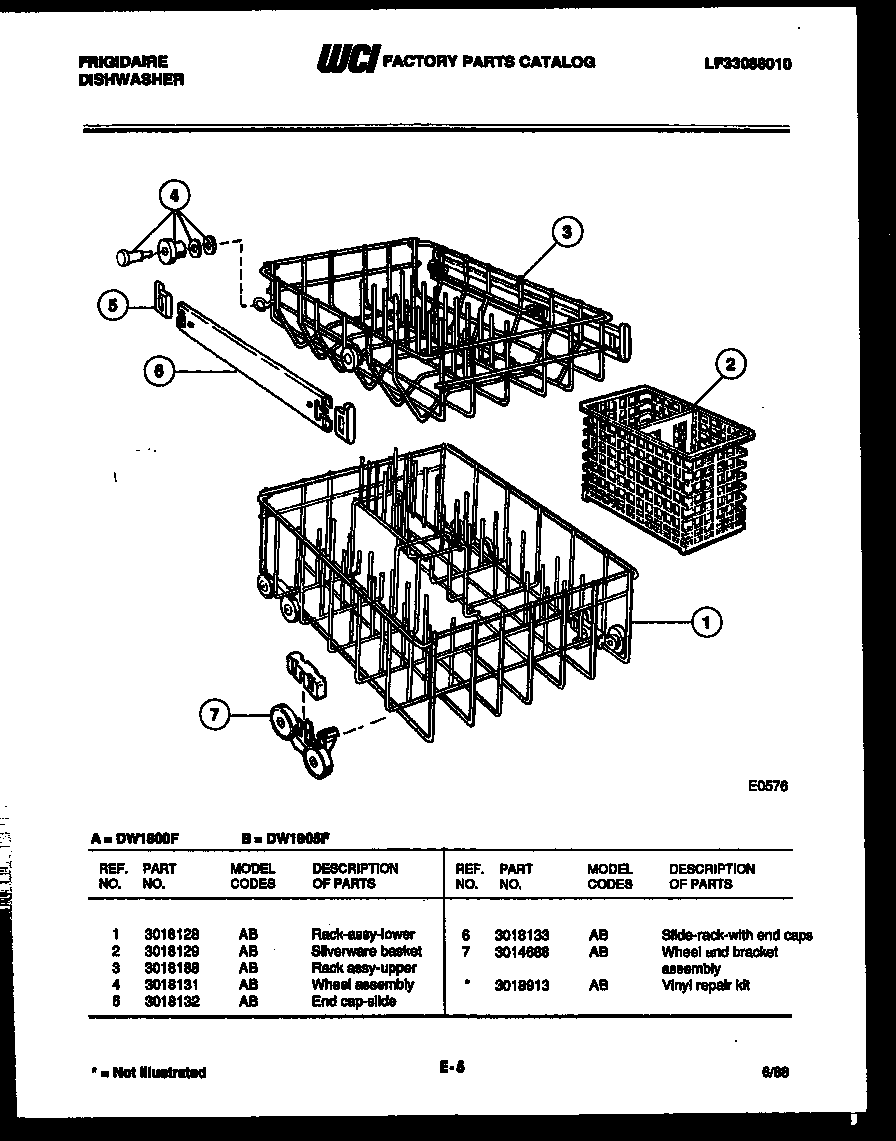

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Nut 3018118
#24

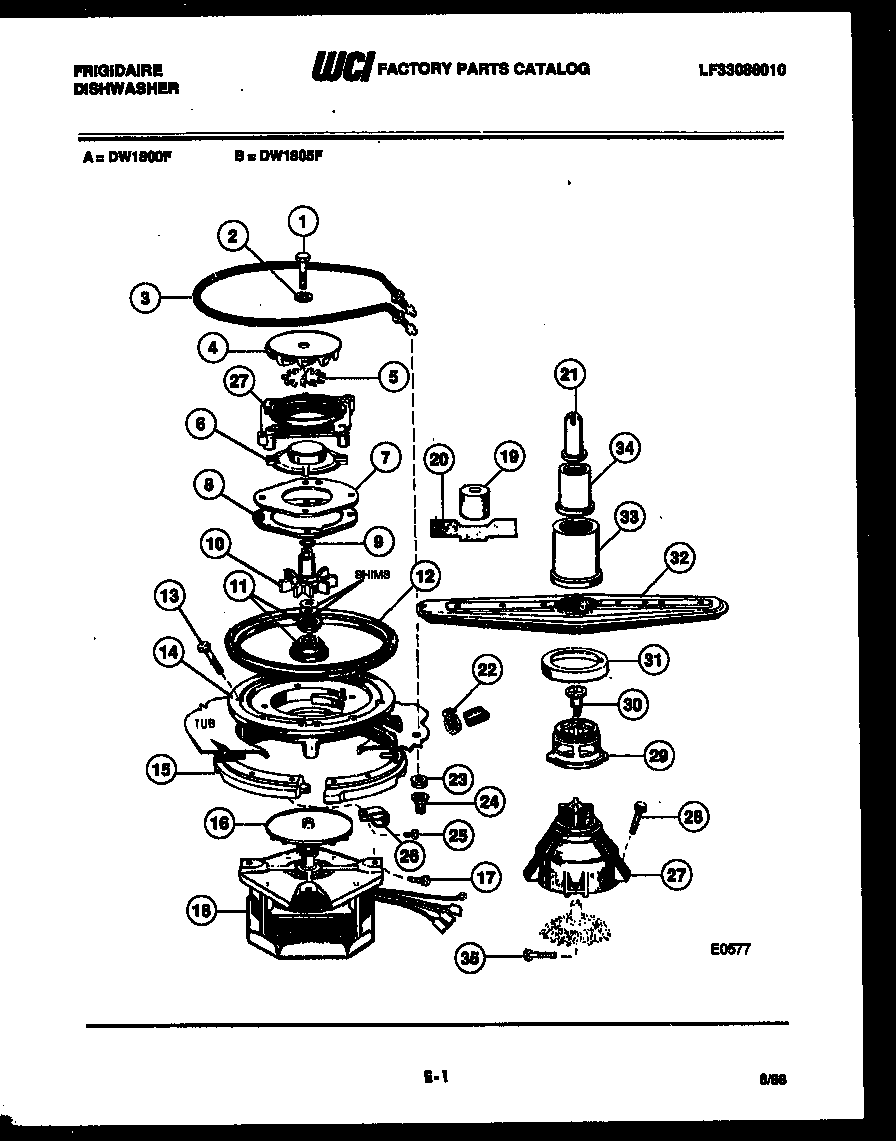

Motor pump parts diagram

Nut

Part #3018118

Replaced by #154106202

?
Manufacturer substitution
This part replaces 3018118. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Nut 3018052
#22

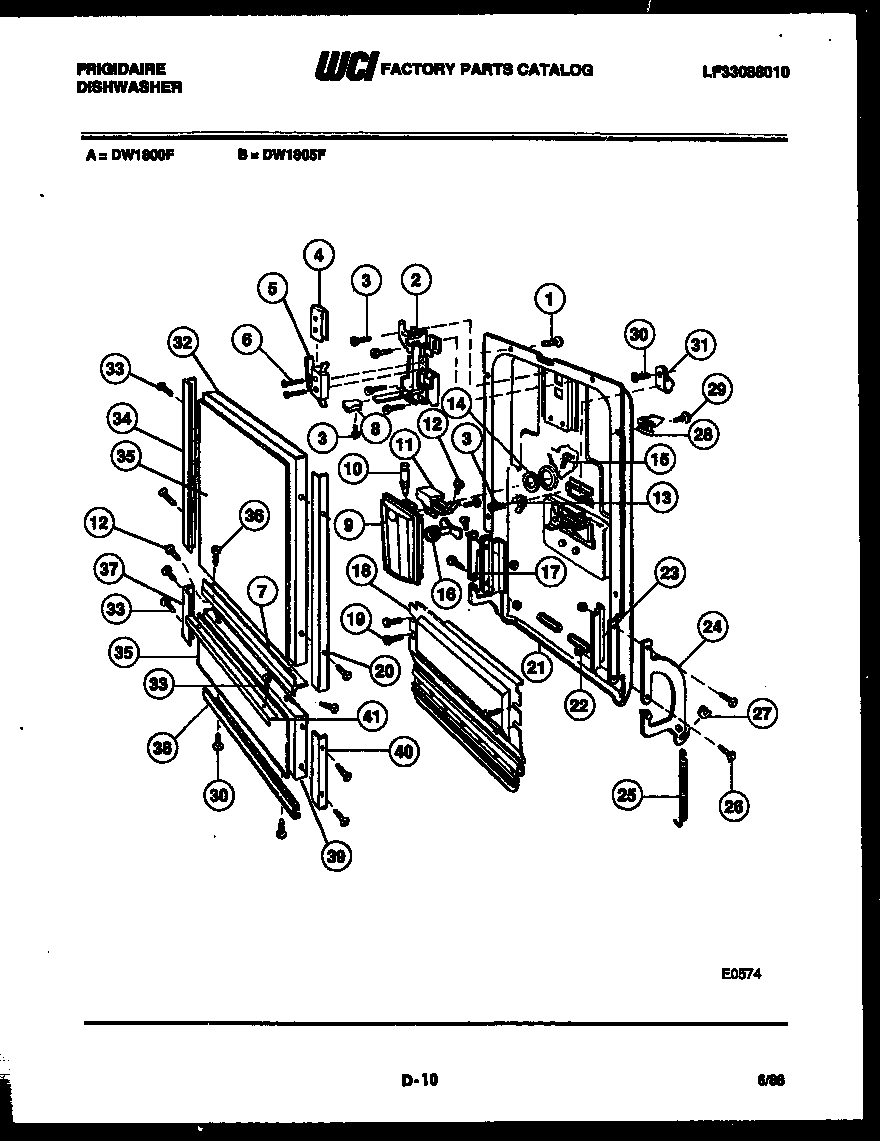

Door parts diagram

Nut

Part #3018052

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3018052. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Screw 3018062
#33

Door parts diagram

Screw

Part #3018062

This item is not returnable
$2.16
In Stock
Nut 3018143
#14

Power dry and motor parts diagram

Nut

Part #3018143

This item is not returnable
$2.49
In Stock
Detergent Cam 3014676
#4

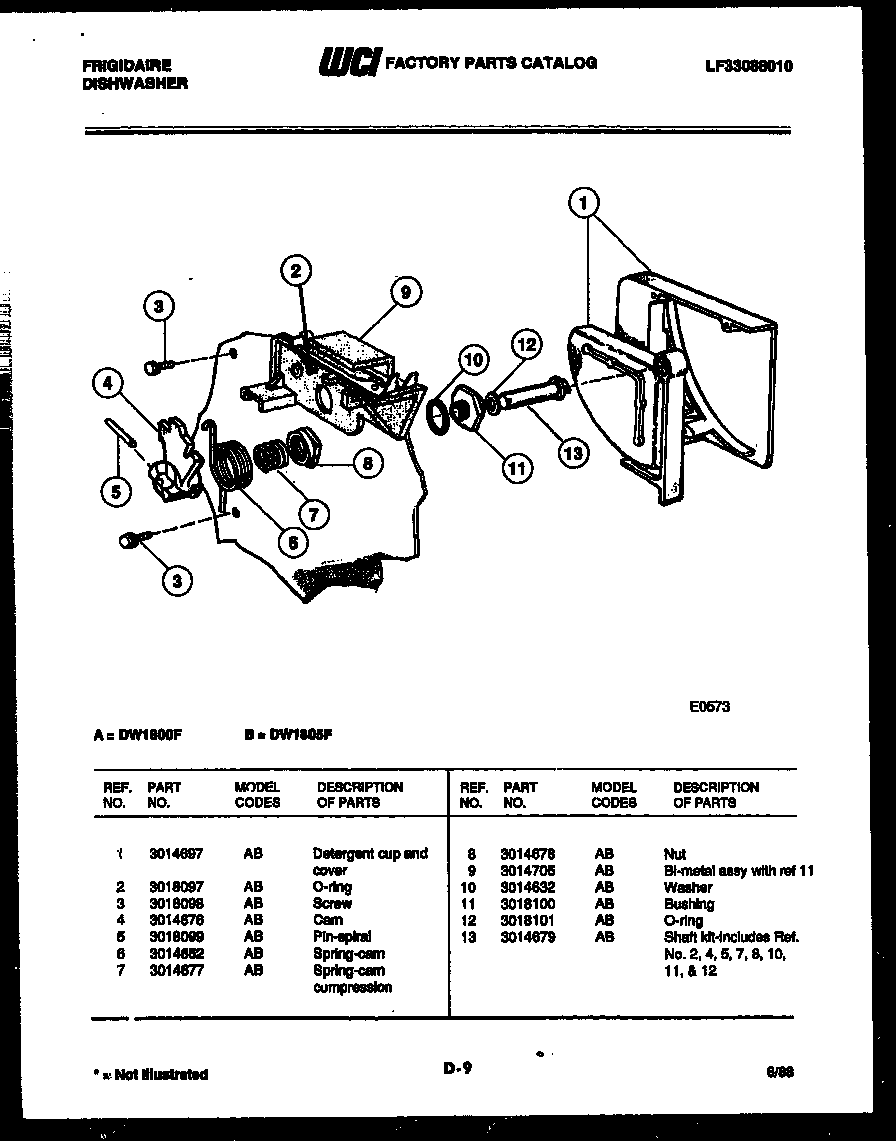

Cam diagram

Detergent cam

Part #3014676

Replaced by #154180301

?
Manufacturer substitution
This part replaces 3014676. Substitute parts can look different from the original.
$16.20
In Stock
Clamp 3018030
#12

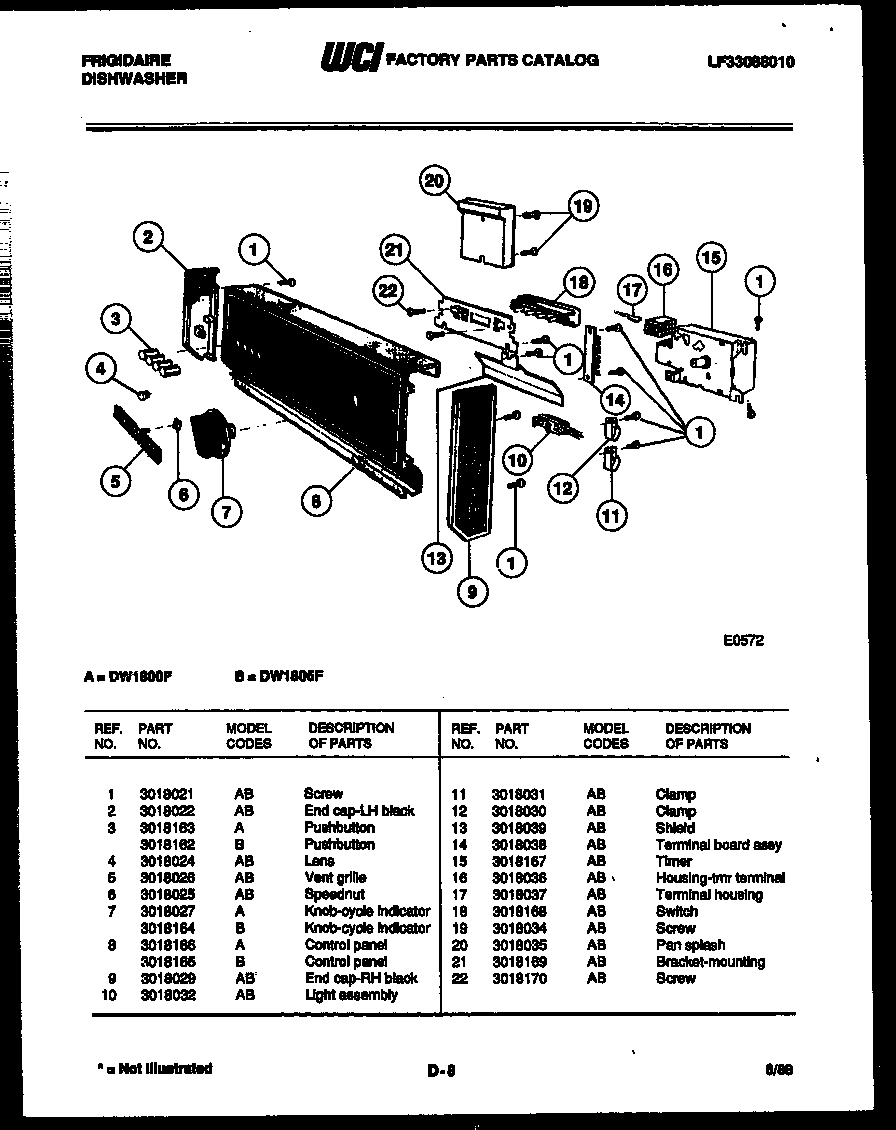

Console and control parts diagram

Clamp

Part #3018030

Replaced by #5300805584

?
Manufacturer substitution
This part replaces 3018030. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Gasket 3018106
#8

Motor pump parts diagram

Gasket

Part #3018106

Replaced by #5300807709

?
Manufacturer substitution
This part replaces 3018106. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Spring 3014677
#7

Cam diagram

Spring

Part #3014677

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 3014677. Substitute parts can look different from the original.
$29.93
In Stock
Screw 3018046
#30

Door parts diagram

Screw

Part #3018046

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 3018046. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Clip 3014661
#8

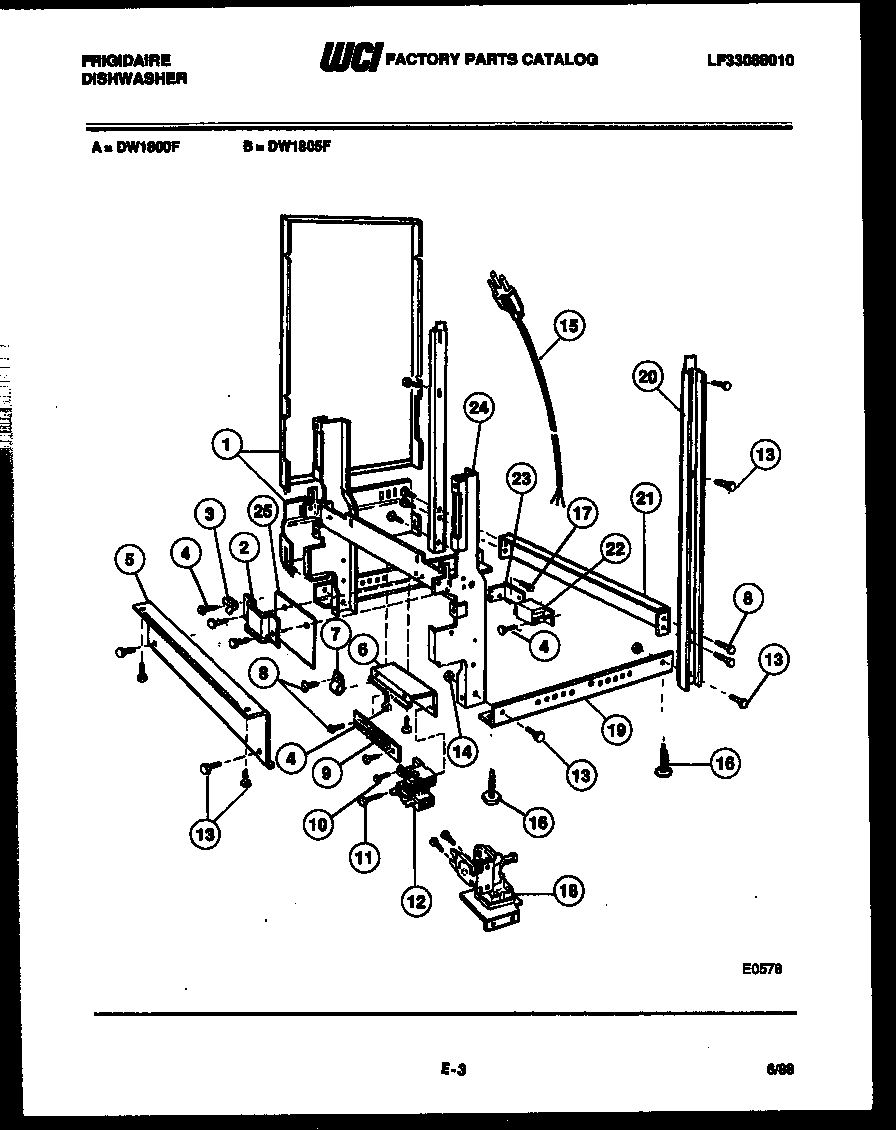

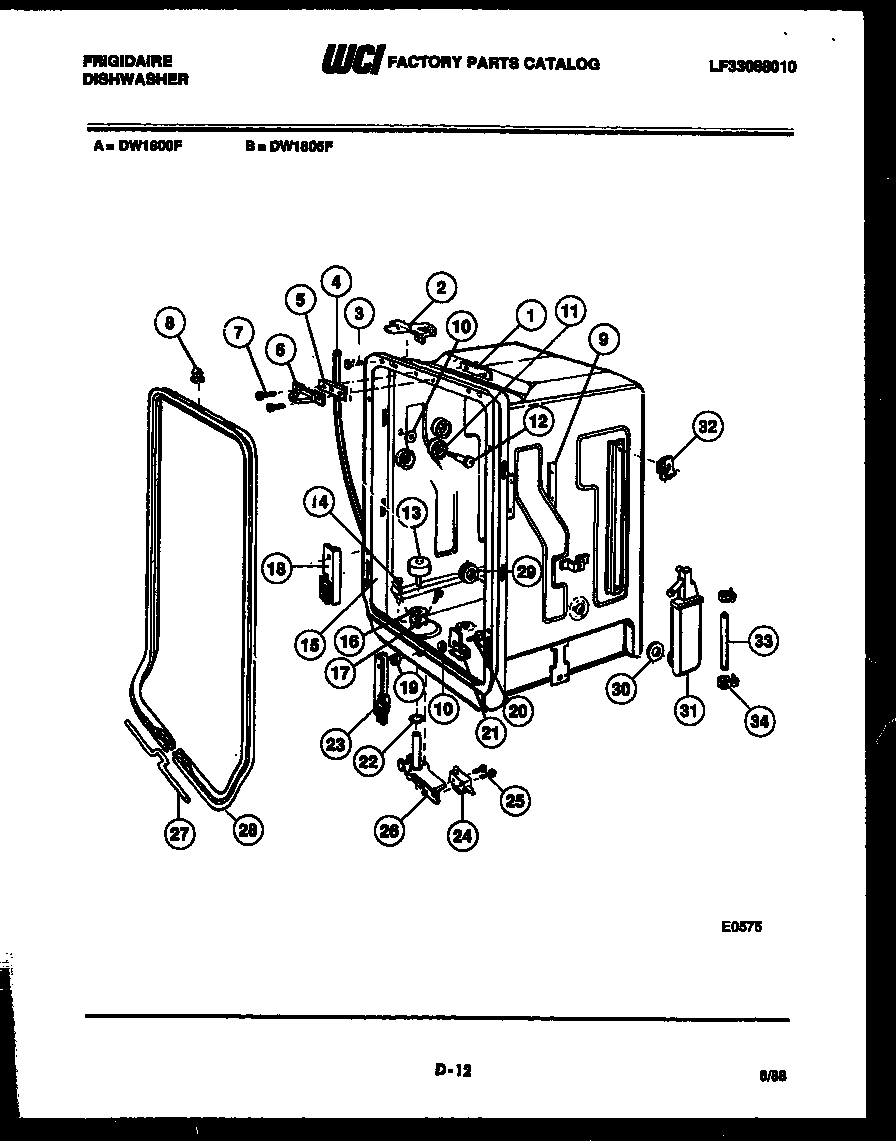

Tub and frame parts diagram

Clip

Part #3014661

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 3014661. Substitute parts can look different from the original.
$84.49
In Stock
