Top-Mount Refrigerator

Model # RTD17A-9E06A Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag RTD17A-9E06A refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

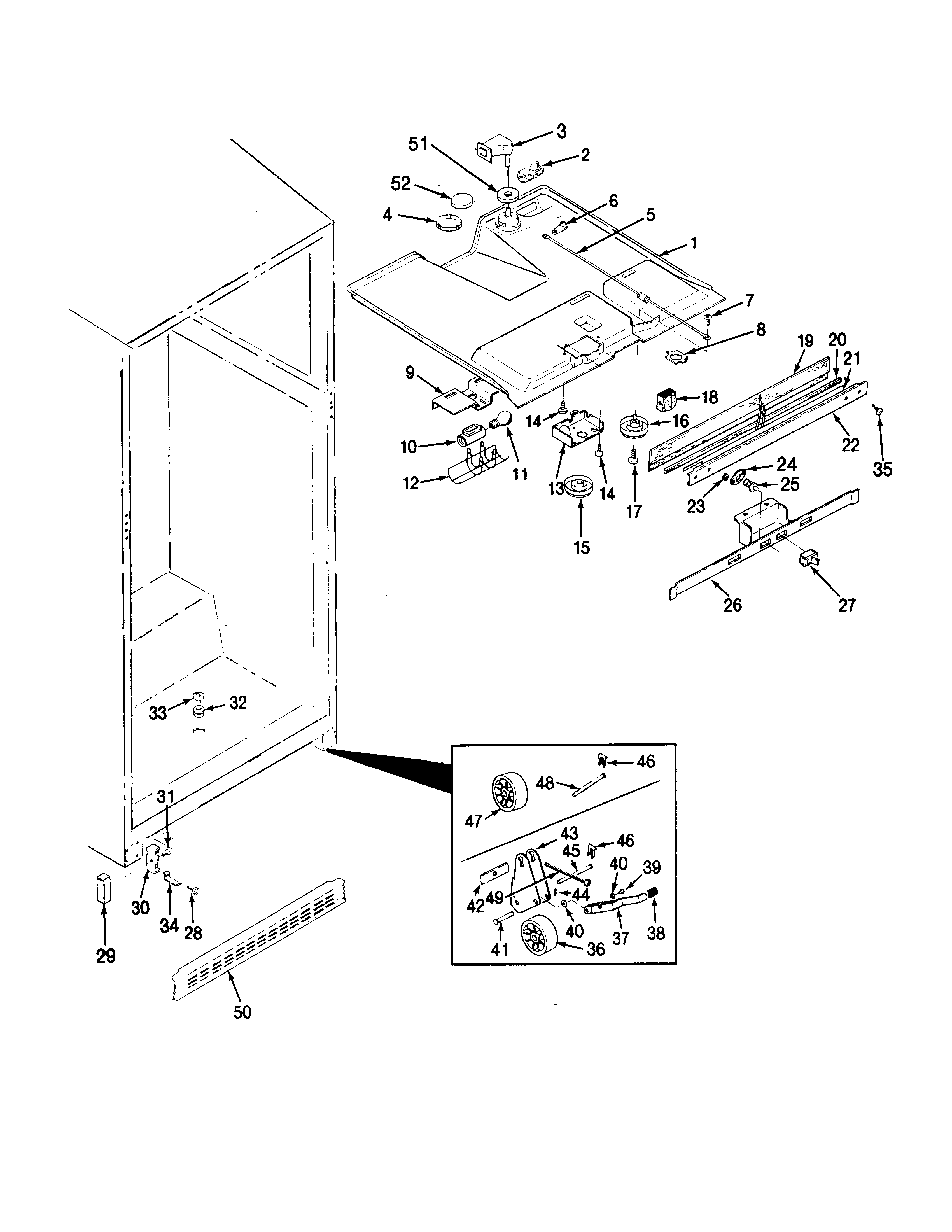

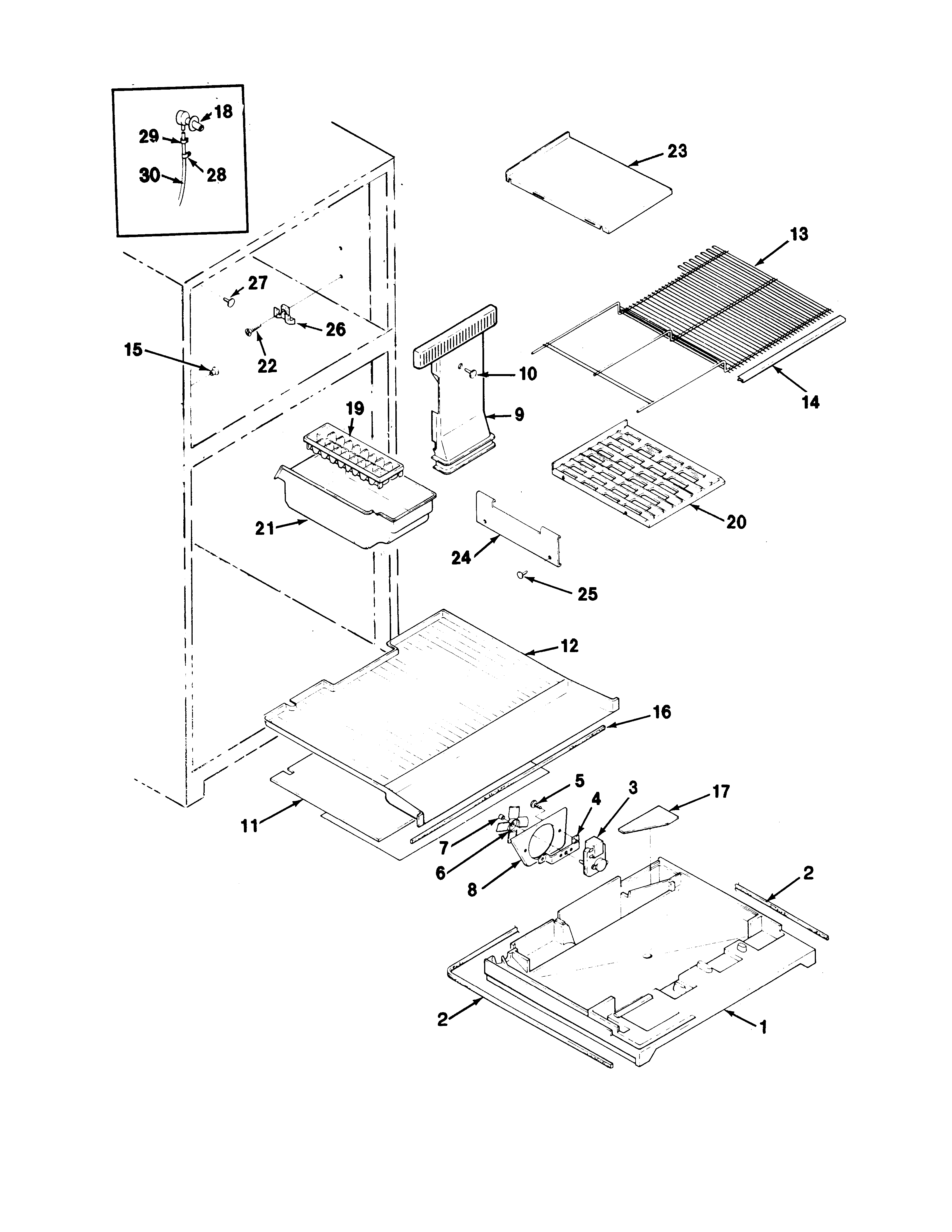

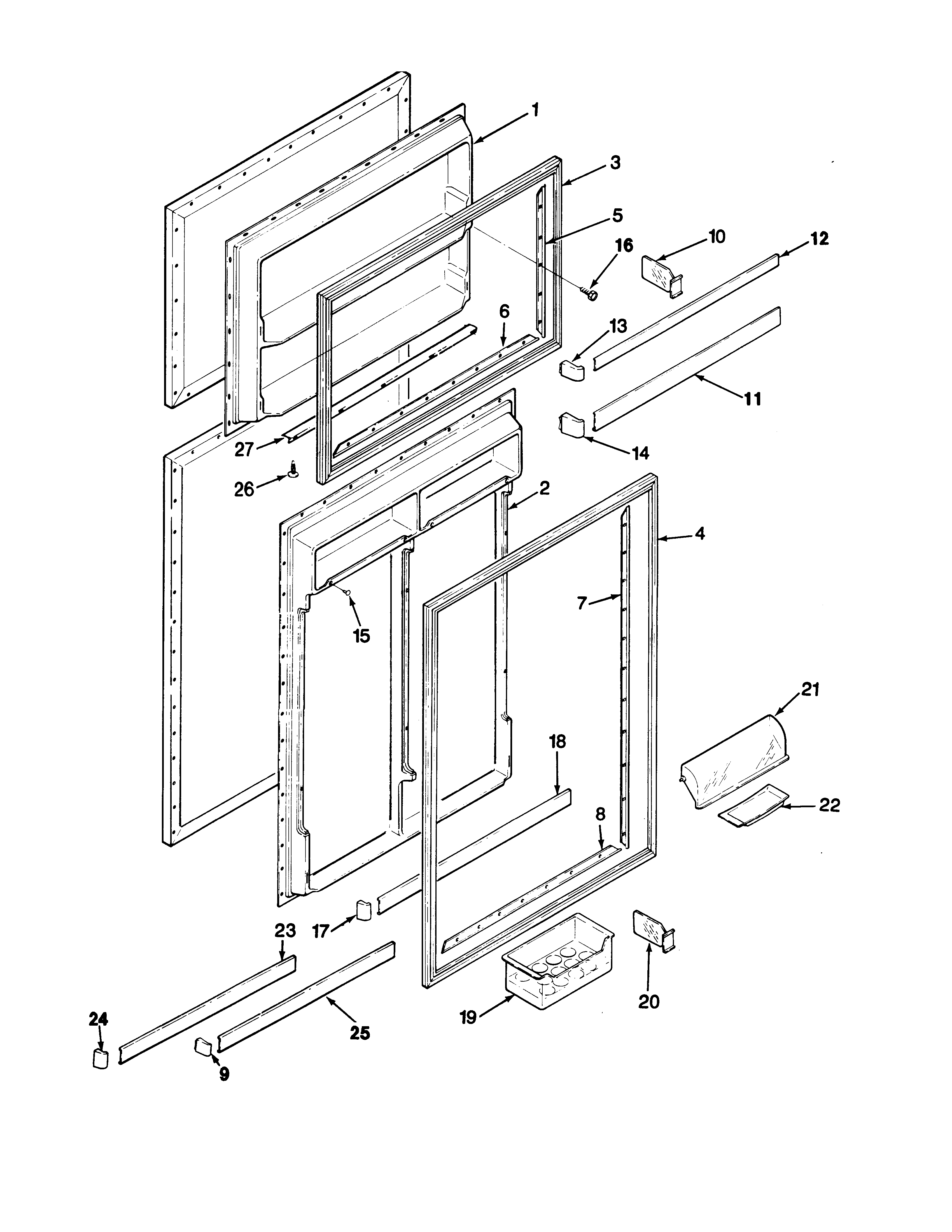

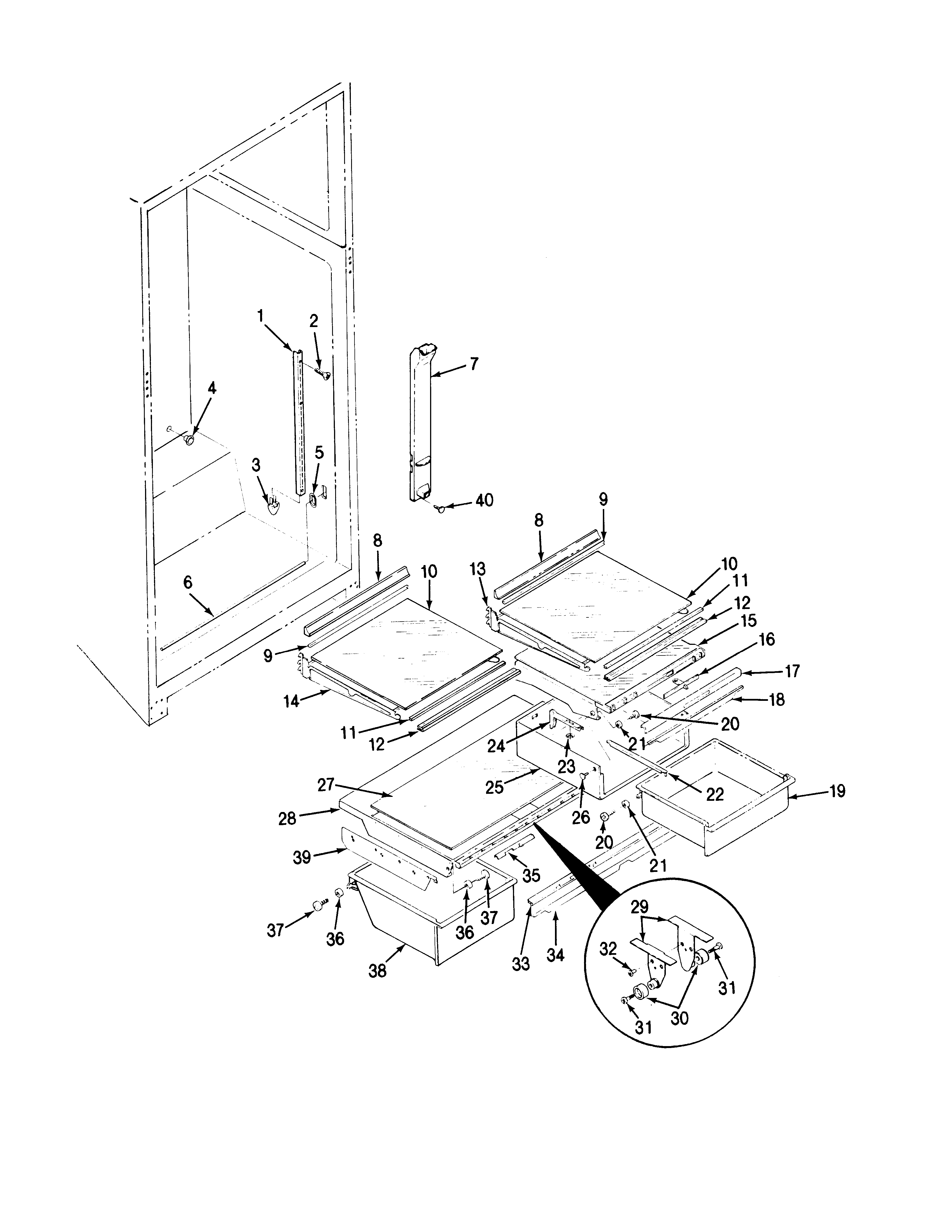

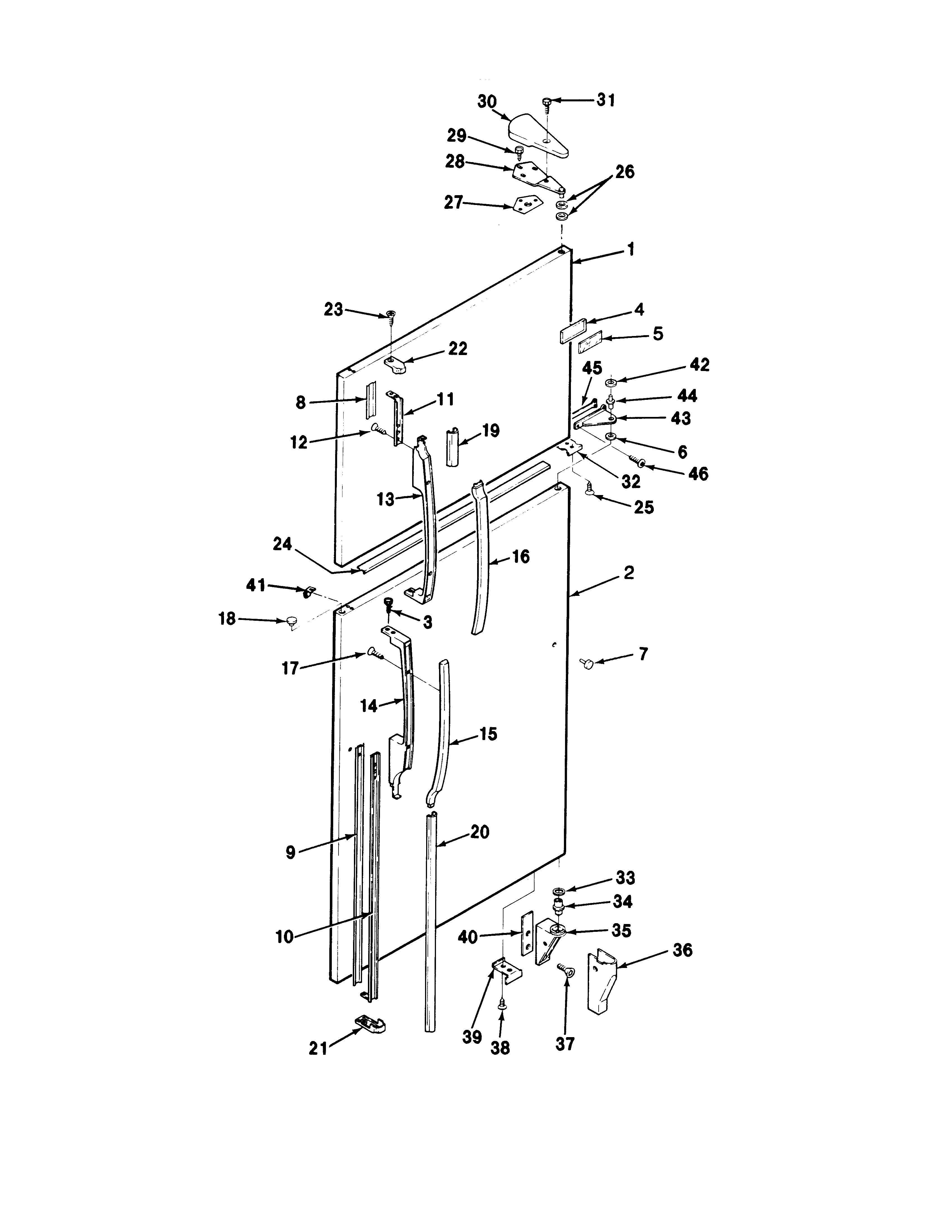

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
RTD17A-9E06A Refrigerators
Drier 13900
#13

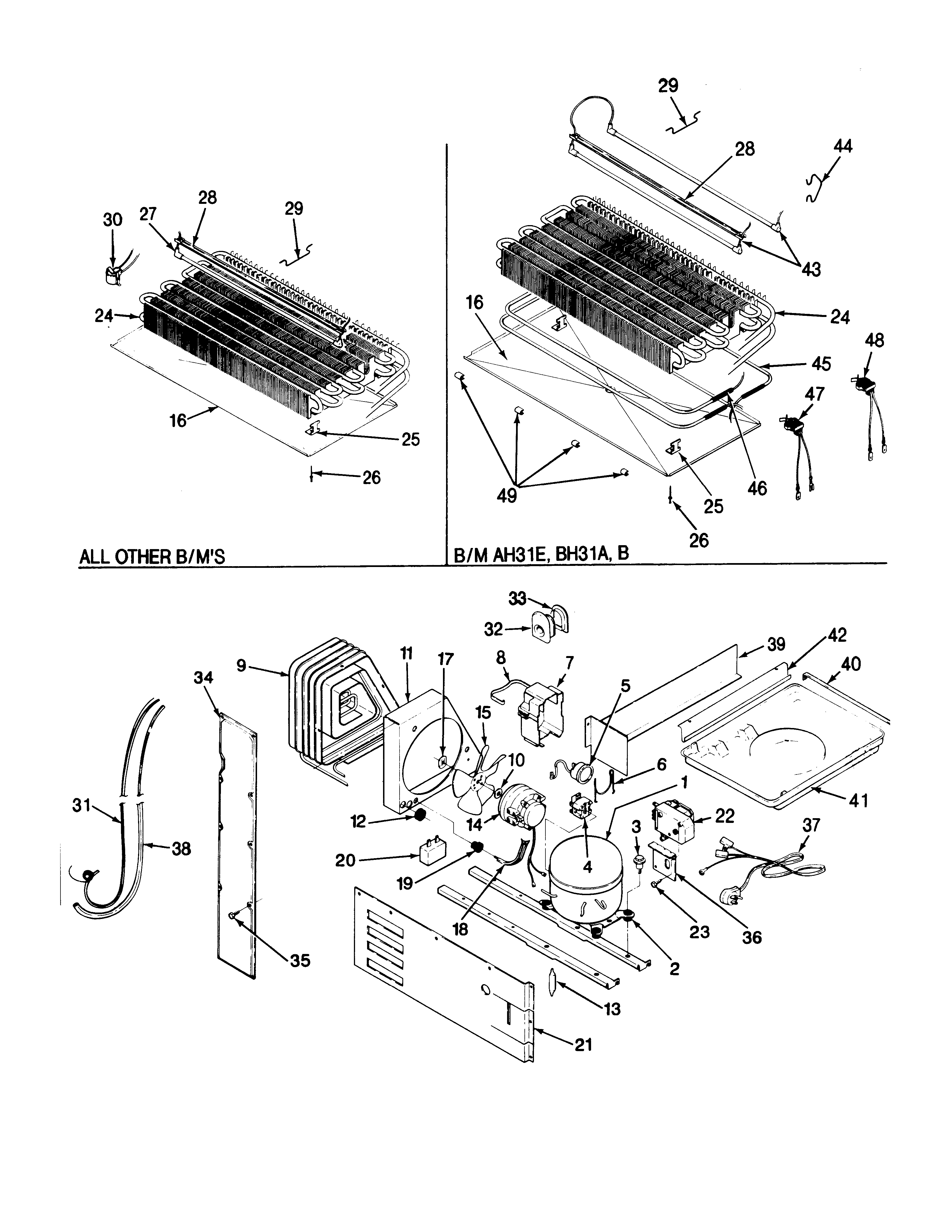

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.04
23% OFF Phone Price : $26.04
In Stock
Refrigerator Ice Maker Module 95109-1
#11

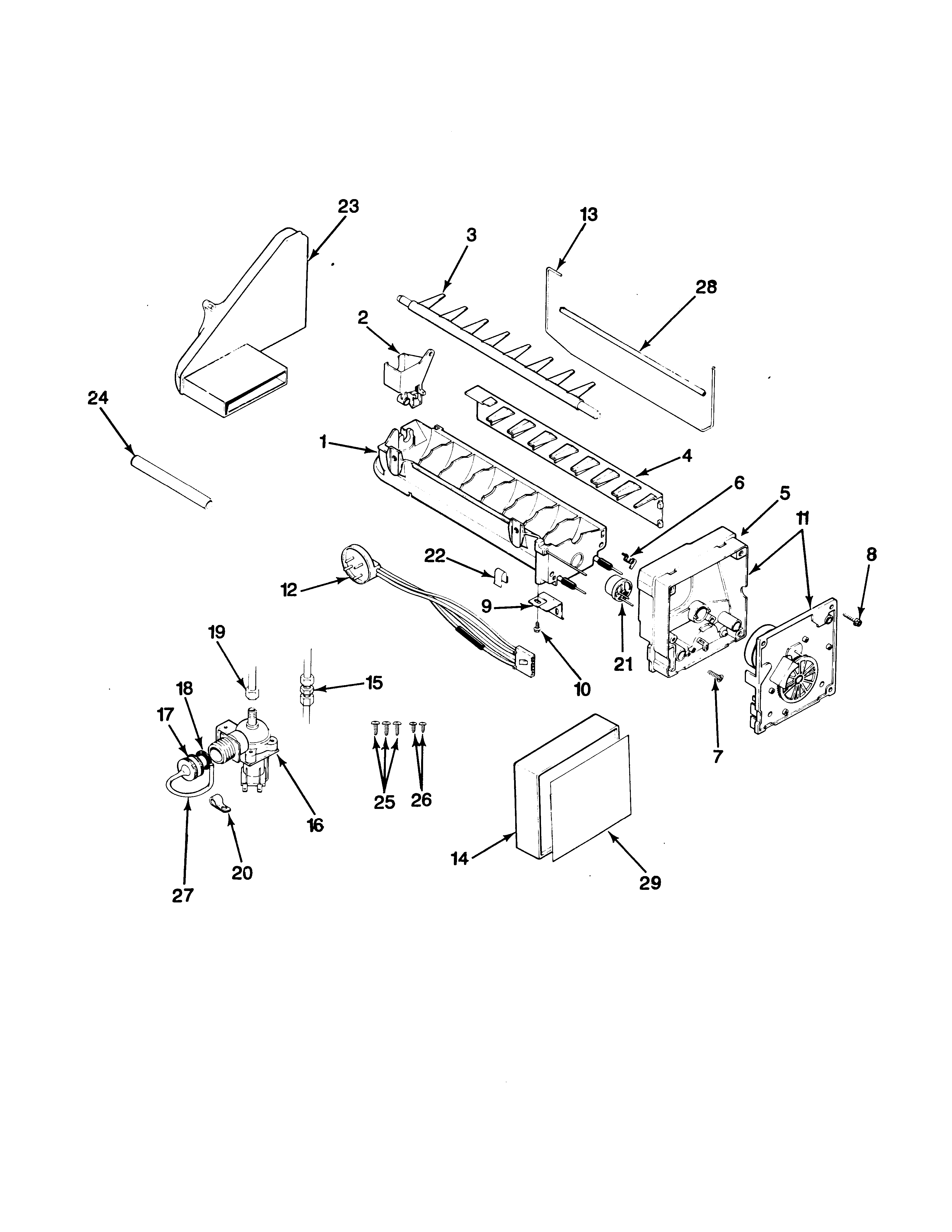

Optional ice maker kit diagram

Refrigerator ice maker module

Part #95109-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor 67560-1
#14

Unit compartment & system diagram

Refrigerator condenser fan motor

Part #67560-1

Replaced by #833697

?
Manufacturer substitution
This part replaces 67560-1. Substitute parts can look different from the original.
BEST SELLER
$57.56
9% OFF Phone Price : $63.56
In Stock
Refrigerator Condenser Fan Motor 67560-7
#14A

Unit compartment & system diagram

Refrigerator condenser fan motor

Part #67560-7

Replaced by #833697

?
Manufacturer substitution
This part replaces 67560-7. Substitute parts can look different from the original.
BEST SELLER
$57.56
9% OFF Phone Price : $63.56
In Stock
Refrigerator Thermostat 95092-1
#21

Optional ice maker kit diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$45.58
12% OFF Phone Price : $51.58
In Stock
Refrigerator Screw 65275-50
#35

Unit compartment & system diagram

Refrigerator screw

Part #65275-50

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 65275-50. Substitute parts can look different from the original.
This item is not returnable
$4.17
19% OFF Phone Price : $5.17
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
This item is not returnable
$4.17
19% OFF Phone Price : $5.17
In Stock
Screw 400016-1
#20A

Optional ice maker kit diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$15.95
11% OFF Phone Price : $17.95
In Stock
Support Module 95103-1
#5

Optional ice maker kit diagram

Support module

Part #95103-1

Replaced by #WP2195914

?
Manufacturer substitution
This part replaces 95103-1. Substitute parts can look different from the original.
$38.69
13% OFF Phone Price : $44.69
In Stock
Refrigerator Screw 400015-31
Refrigerator screw

Part #400015-31

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-31. Substitute parts can look different from the original.
$15.95
11% OFF Phone Price : $17.95
In Stock
