Hotpoint
Top-Mount Refrigerator

Model # CTA12CBCR Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTA12CBCR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

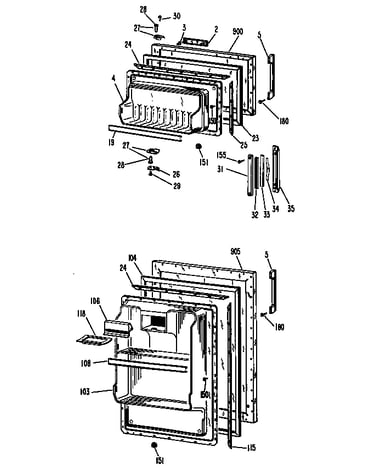

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Power Cord WR23X108
#626C

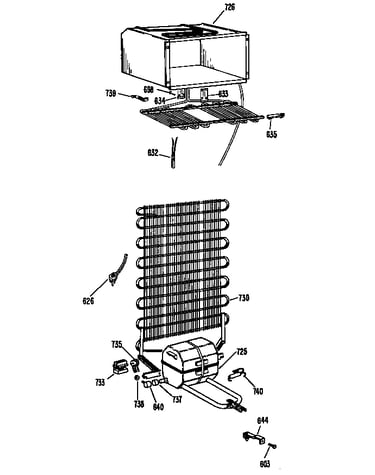

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

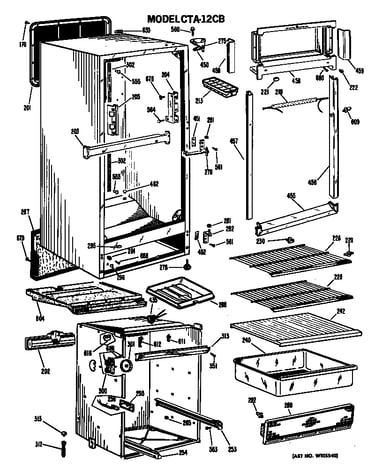

Cabinet and racks diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Screw WR1X1591
#603

Unit diagram

Screw

Part #WR1X1591

This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Glide WR2X4978
#278

Cabinet and racks diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Ice Tray WR30X5101
#213

Cabinet and racks diagram

Refrigerator ice tray

Part #WR30X5101

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X5101. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Screw, 2-pack WR1X5048
#686

Cabinet and racks diagram

Refrigerator screw, 2-pack

Part #WR1X5048

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X5048. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Clip WR2X2417
#456A

Cabinet and racks diagram

Refrigerator clip

Part #WR2X2417

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Button Plug WR2X7065
#221

Cabinet and racks diagram

Refrigerator button plug

Part #WR2X7065

The manufacturer no longer makes this part, and there's no substitute part

Cup Comp & Bolt Asm WR49X166
#640

Unit diagram

Cup comp & bolt asm

Part #WR49X166

The manufacturer no longer makes this part, and there's no substitute part
