Kenmore
Gas Grill

Model # 25810557 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 25810557 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Grate 10222-67
#8

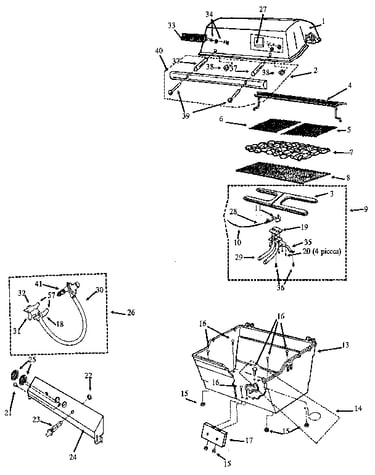

Grill and burner diagram

Grate

Part #10222-67

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-67. Substitute parts can look different from the original.
$44.39 |
12% OFF Phone Price : $50.39
In Stock
Cup Kit 11002-133
#14

Grill and burner diagram

Cup kit

Part #11002-133

The manufacturer no longer makes this part, and there's no substitute part

Top Cast 10473-451-3
#1

Grill and burner diagram

Top cast

Part #10473-451-3

The manufacturer no longer makes this part, and there's no substitute part

Venturi 10420-48
#29

Grill and burner diagram

Venturi

Part #10420-48

The manufacturer no longer makes this part, and there's no substitute part

Grid 10225-123-1
#6

Grill and burner diagram

Grid

Part #10225-123-1

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-13078
#77

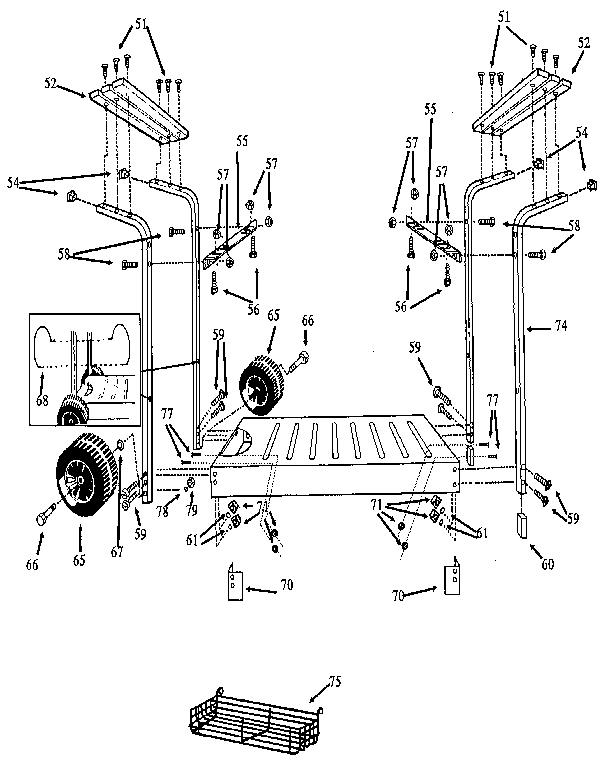

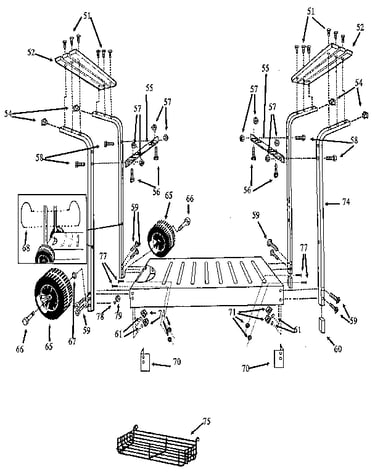

Main frame diagram

Screw

Part #Y-13078

The manufacturer no longer makes this part, and there's no substitute part

Electrode 10342-42
#10

Grill and burner diagram

Electrode

Part #10342-42

The manufacturer no longer makes this part, and there's no substitute part

Regulator 10445-6
#41

Grill and burner diagram

Regulator

Part #10445-6

The manufacturer no longer makes this part, and there's no substitute part

Bolt 10240-13
#66

Main frame diagram

Bolt

Part #10240-13

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-13051
#36

Grill and burner diagram

Screw

Part #Y-13051

The manufacturer no longer makes this part, and there's no substitute part
