Model # MDB7851AWW0 Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag MDB7851AWW0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

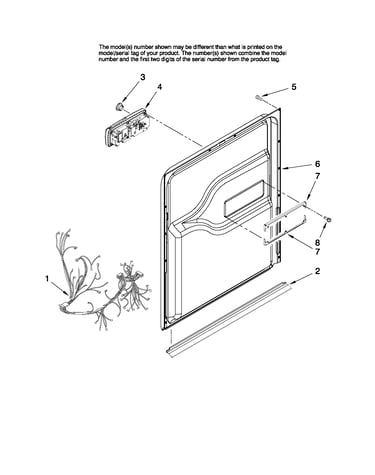

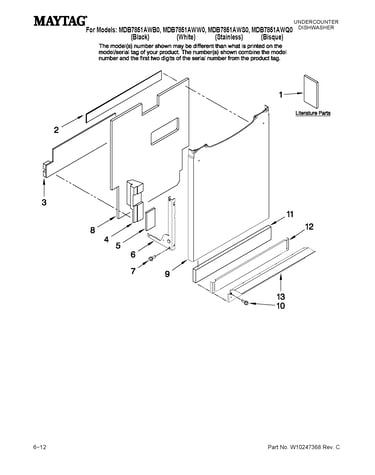

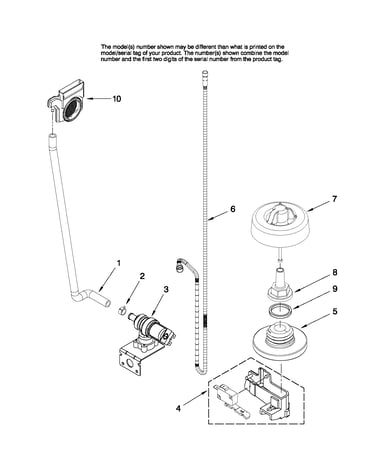

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Dishwasher Door Latch 99003347
#5

Control panel and latch parts diagram

Dishwasher door latch

Part #99003347

Replaced by #WPW10275768

?
Manufacturer substitution
This part replaces 99003347. Substitute parts can look different from the original.
BEST SELLER
$48.78 |
11% OFF Phone Price : $54.78
In Stock
Dishwasher Door Cable 99003446
#12

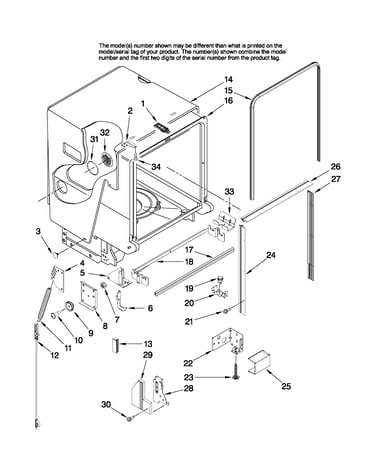

Tub and frame parts diagram

Dishwasher door cable

Part #99003446

The manufacturer no longer makes this part, and there's no substitute part

Tub Arm Washer 99002911
#5

Upper wash and rinse parts diagram

Tub arm washer

Part #99002911

Replaced by #WP6-917644

?
Manufacturer substitution
This part replaces 99002911. Substitute parts can look different from the original.
This item is not returnable
$35.21 |
15% OFF Phone Price : $41.21
In Stock
Bracket- S 6-918346
#4

Tub and frame parts diagram

Bracket- s

Part #6-918346

$14.00
In Stock
Arm, Wash (u 99003070
#4

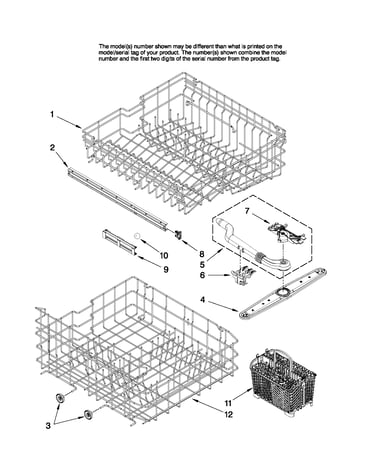

Upper and lower rack parts diagram

Arm, wash (u

Part #99003070

Replaced by #WP99003070

?
Manufacturer substitution
This part replaces 99003070. Substitute parts can look different from the original.
$37.88 |
14% OFF Phone Price : $43.88
In Stock
Trim Tube 99003041
#17

Tub and frame parts diagram

Trim tube

Part #99003041

Replaced by #WP99003041

?
Manufacturer substitution
This part replaces 99003041. Substitute parts can look different from the original.
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Inlet Seal 99002150
#31

Tub and frame parts diagram

Inlet seal

Part #99002150

Replaced by #WP99002150

?
Manufacturer substitution
This part replaces 99002150. Substitute parts can look different from the original.
This item is not returnable
$8.83 |
10% OFF Phone Price : $9.83
In Stock
Dishwasher O-ring 99002651
#10

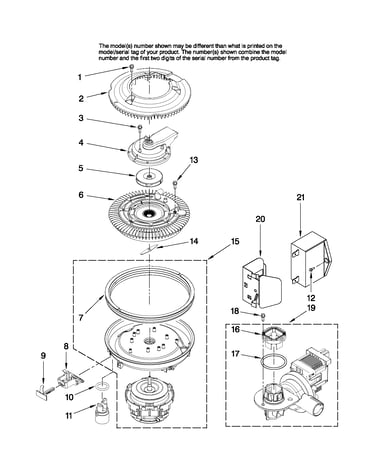

Pump and motor parts diagram

Dishwasher o-ring

Part #99002651

$18.89 |
10% OFF Phone Price : $20.89
In Stock
Samsung Lever Motor 99003056
#8

Pump and motor parts diagram

Samsung lever motor

Part #99003056

$9.79 |
9% OFF Phone Price : $10.79
In Stock
Dishwasher Upper Spray Arm Manifold Retainer 99003071
#6

Upper and lower rack parts diagram

Dishwasher upper spray arm manifold retainer

Part #99003071

$14.00
In Stock
