Model # CGC4C4WSTE Official Gibson gas range - lg32488070

Here are the diagrams and repair parts for Official Gibson CGC4C4WSTE gas range - lg32488070, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

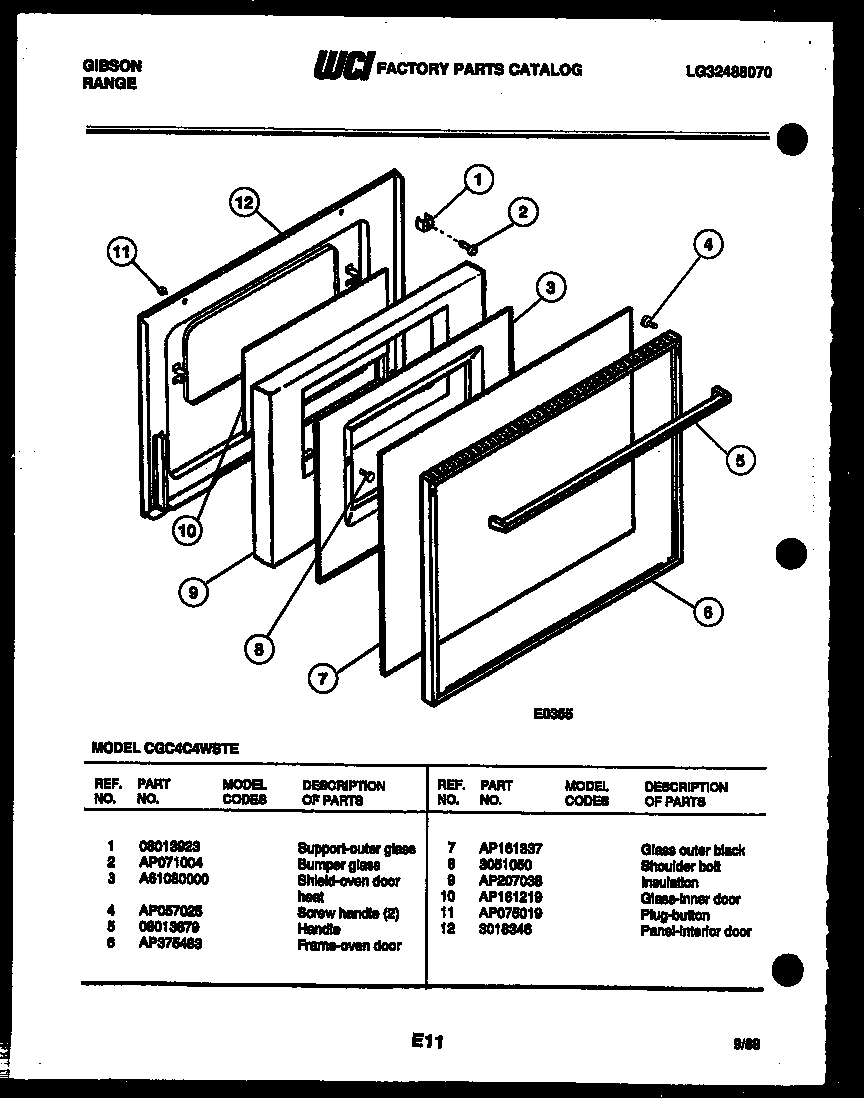

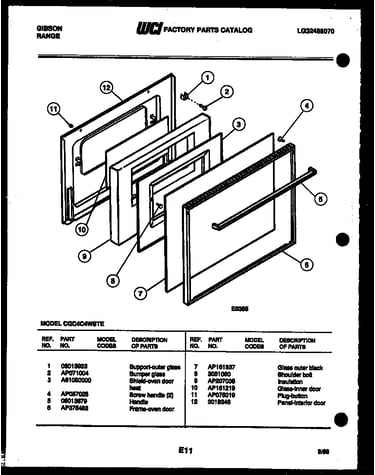

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Hinge 3051077
#7

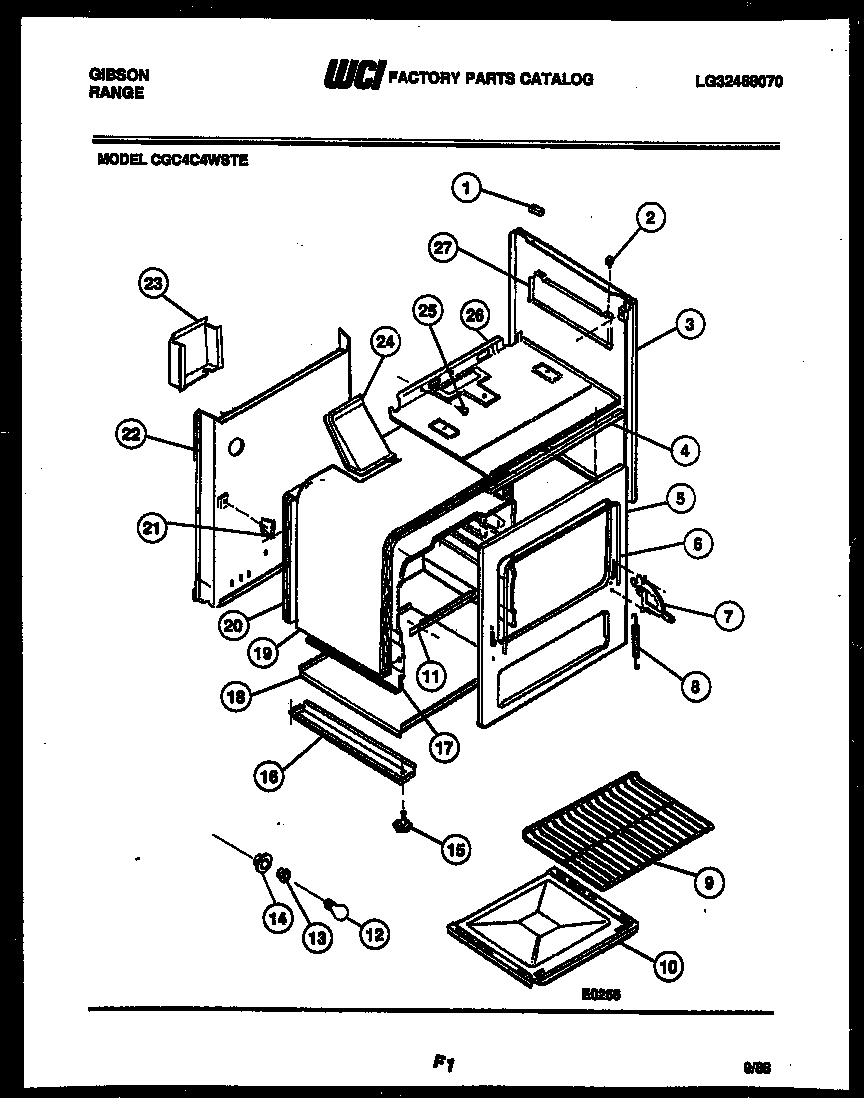

Body parts diagram

Hinge

Part #3051077

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3051077. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Pressure Regulator AP310007
#1

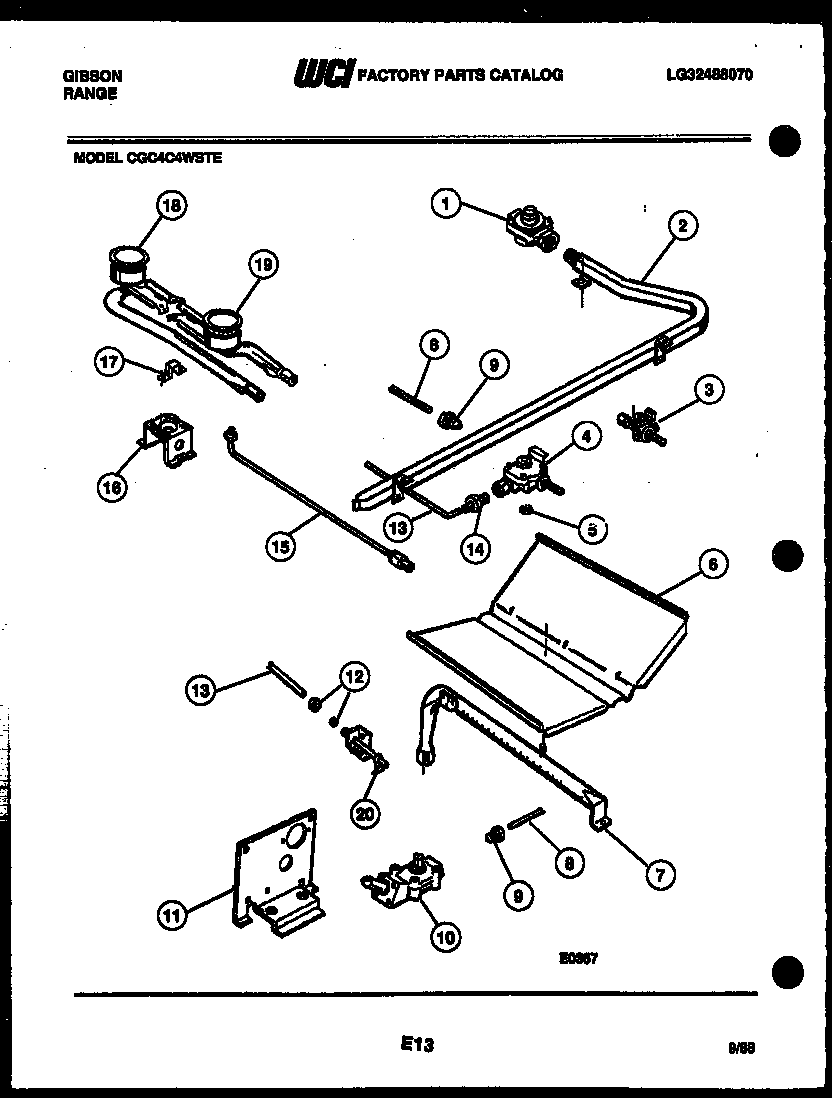

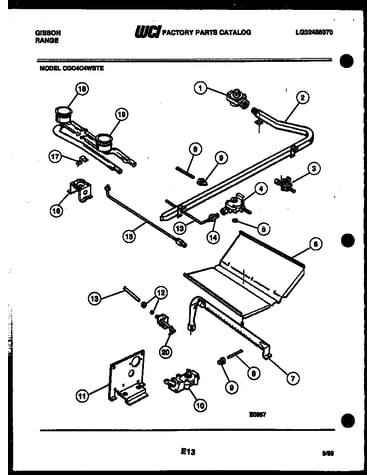

Burner parts diagram

Pressure regulator

Part #AP310007

Replaced by #5308007974

?
Manufacturer substitution
This part replaces AP310007. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Knob AP227502
#5

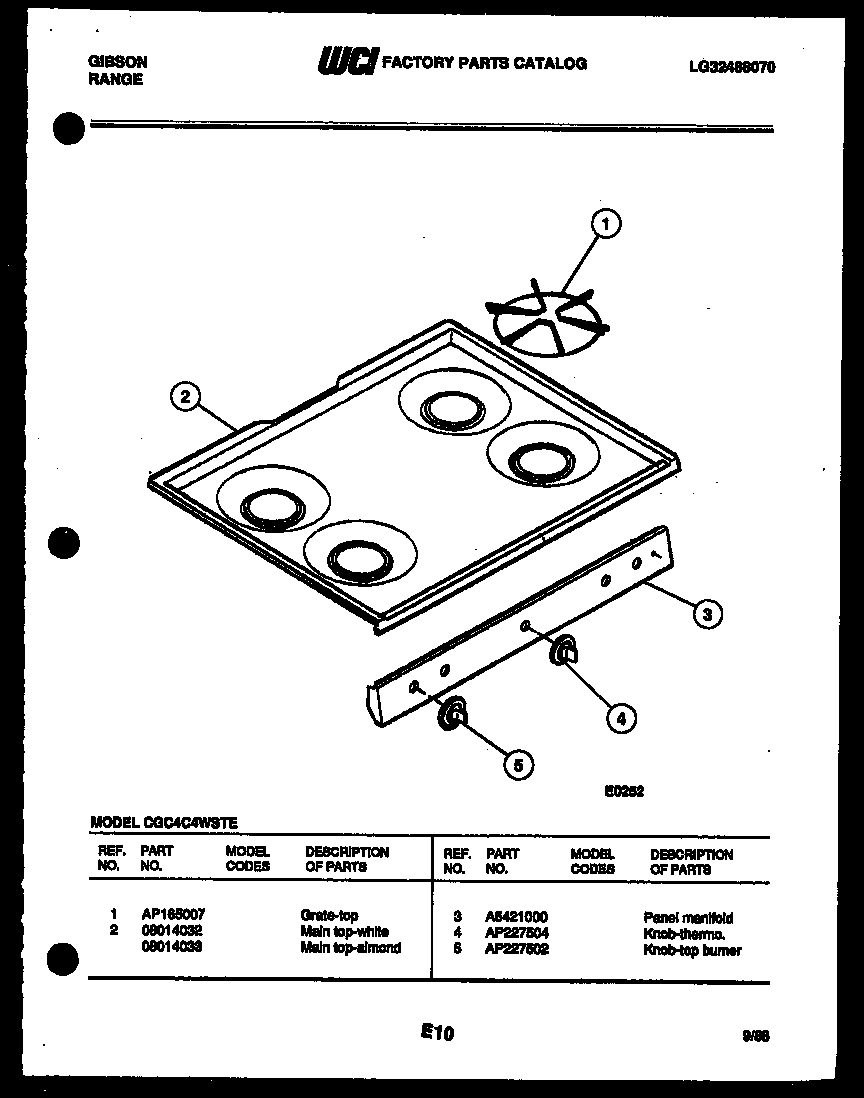

Cooktop parts diagram

Knob

Part #AP227502

Replaced by #5308013898

?
Manufacturer substitution
This part replaces AP227502. Substitute parts can look different from the original.
$26.73
In Stock
Adjustment Nut KGM110924
#6

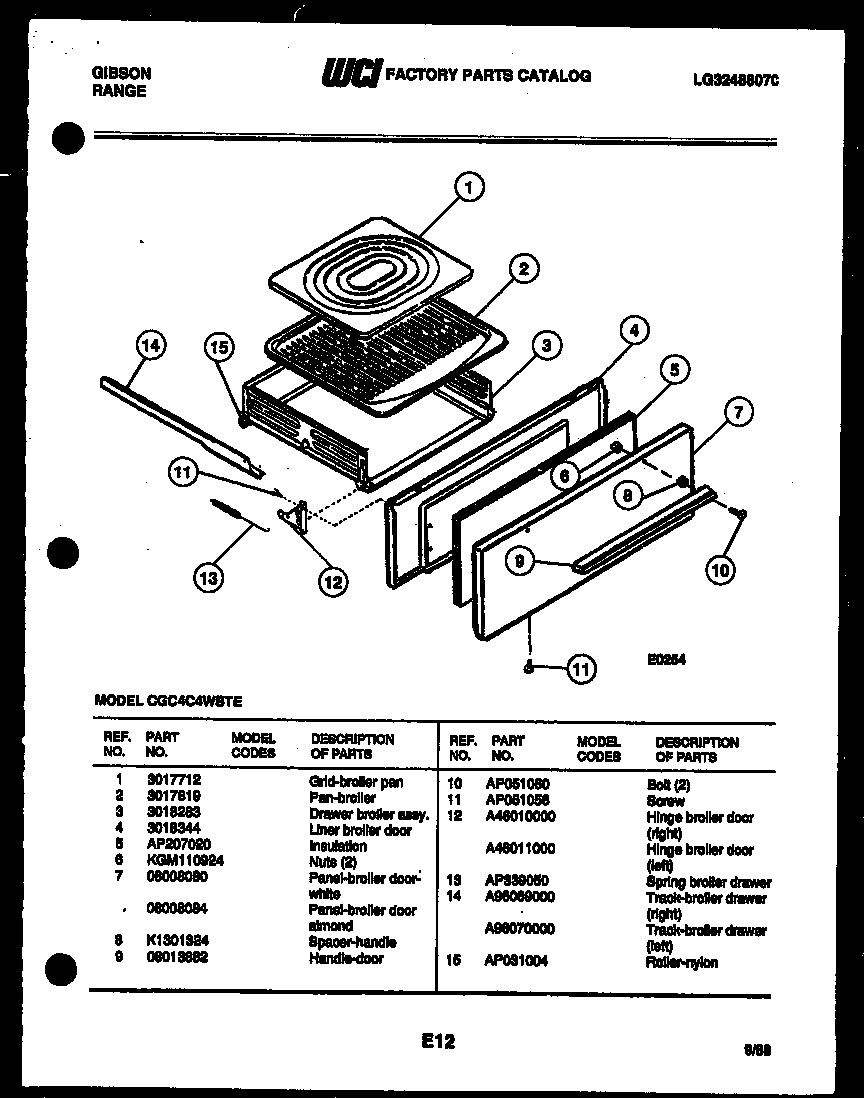

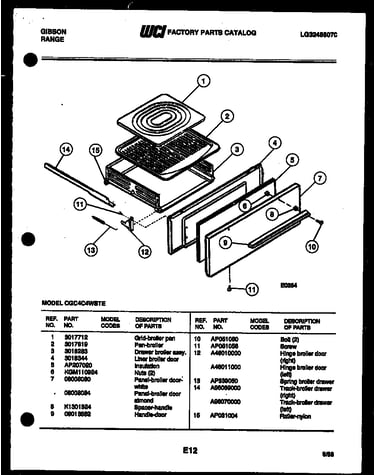

Broiler drawer parts diagram

Adjustment nut

Part #KGM110924

This item is not returnable
$2.16
In Stock
Top Almond 08014033
#2

Cooktop parts diagram

Top almond

Part #08014033

Replaced by #5308014033

?
Manufacturer substitution
This part replaces 08014033. Substitute parts can look different from the original.
$203.78
In Stock
Thermostat 08013927
#4

Burner parts diagram

Thermostat

Part #08013927

The manufacturer no longer makes this part, and there's no substitute part

Drawer 3018283
#3

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Oven Switch AP351129
#3

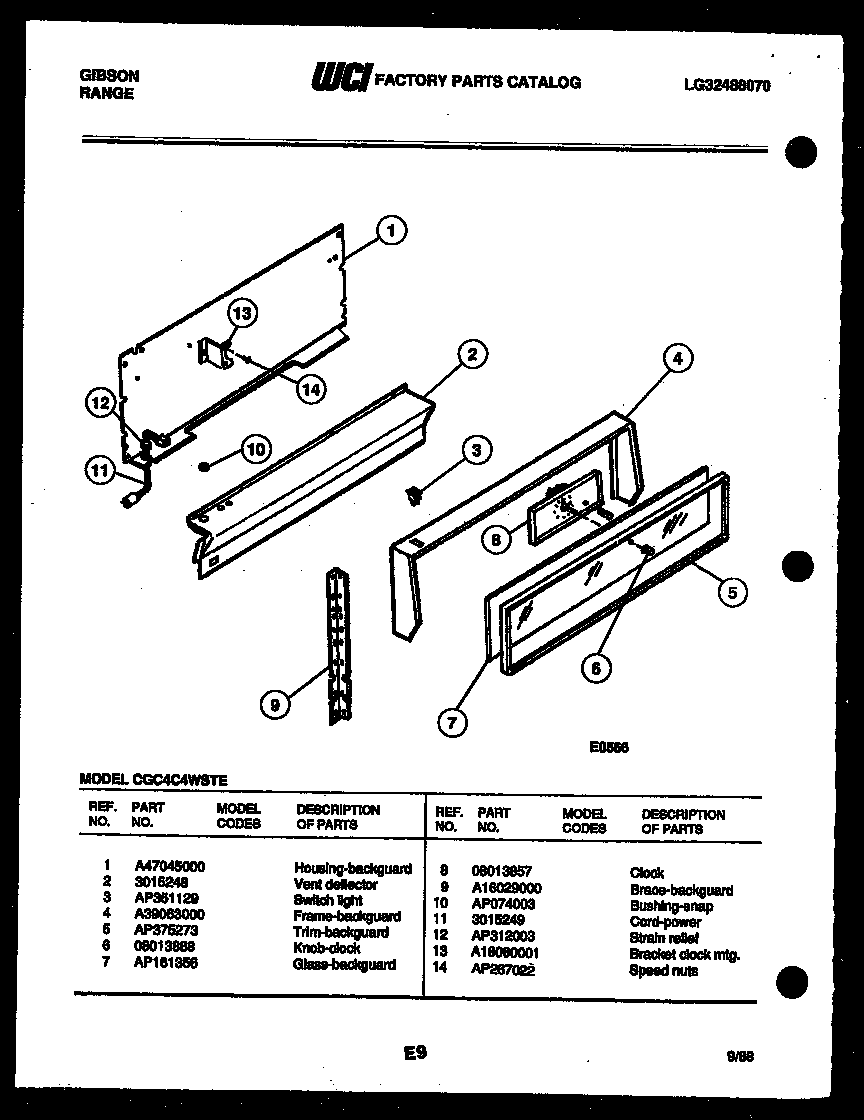

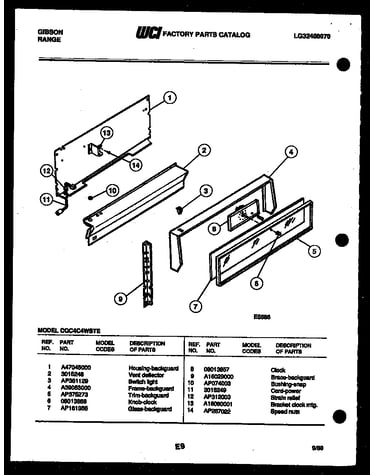

Backguard diagram

Oven switch

Part #AP351129

Replaced by #5308015487

?
Manufacturer substitution
This part replaces AP351129. Substitute parts can look different from the original.
$49.40 |
11% OFF Phone Price : $55.40
In Stock
Bushing AP074003
#10

Backguard diagram

Bushing

Part #AP074003

Replaced by #08008009

?
Manufacturer substitution
This part replaces AP074003. Substitute parts can look different from the original.
$10.20
In Stock
Screw AP051060
#10

Broiler drawer parts diagram

Screw

Part #AP051060

Replaced by #5303292012

?
Manufacturer substitution
This part replaces AP051060. Substitute parts can look different from the original.
$13.29
In Stock
