Gas Line Trimmer

Model # TE400CXL TYPE 4 Official Weed Eater trimmer

Here are the diagrams and repair parts for Official Weed Eater TE400CXL TYPE 4 trimmer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TE400CXL TYPE 4 Line Trimmers
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#61

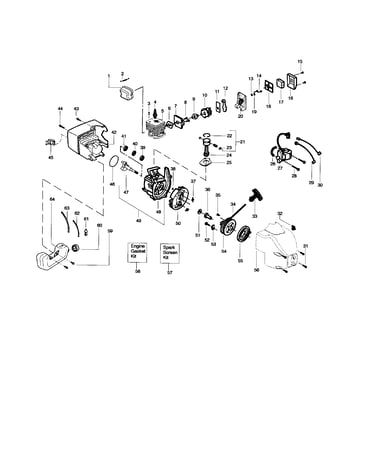

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

4.36 (45)
BEST SELLER
$9.87 |
9% OFF Phone Price : $10.87
In Stock
Poulan Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#63

Cylinder/crankshaft/crankcase diagram

Poulan lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

3.79 (81)
BEST SELLER
$12.79 |
14% OFF Phone Price : $14.79
In Stock
Ayp Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#62

Cylinder/crankshaft/crankcase diagram

Ayp lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

3.9 (79)
BEST SELLER
$16.97 |
11% OFF Phone Price : $18.97
In Stock
Line Trimmer Fuel Tank Cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370) 530014347
#60

Cylinder/crankshaft/crankcase diagram

Line trimmer fuel tank cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370)

Part #530014347

4.45 (11)
BEST SELLER
$12.42 |
14% OFF Phone Price : $14.42
In Stock
Ignition Module 530039211
#27

Cylinder/crankshaft/crankcase diagram

Ignition module

Part #530039211

Replaced by #501092801

?
Manufacturer substitution
This part replaces 530039211. Substitute parts can look different from the original.
5 (6)
BEST SELLER
$32.65 |
16% OFF Phone Price : $38.65
In Stock
Lawn & Garden Equipment Screw 530016349
#15

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment screw

Part #530016349

This item is not returnable
$5.97
In Stock
Wing Nut 530016118
Wing nut

Part #530016118

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016118. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Line Trimmer Line Limiter 530052287
#21

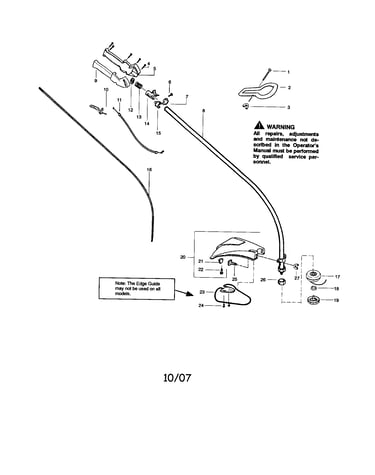

Driveshaft/shield/handle diagram

Line trimmer line limiter

Part #530052287

This item is not returnable
$5.97
In Stock
Edger Recoil Starter Handle 530027569
#33

Cylinder/crankshaft/crankcase diagram

Edger recoil starter handle

Part #530027569

This item is not returnable
$7.97
In Stock
Chainsaw Recoil Starter Pulley 530023817
#37

Cylinder/crankshaft/crankcase diagram

Chainsaw recoil starter pulley

Part #530023817

This item is not returnable
$5.97
In Stock
