Amana
Countertop Microwave

Model # 904.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 904002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
H.v. Lead Kit M5D350
#19B

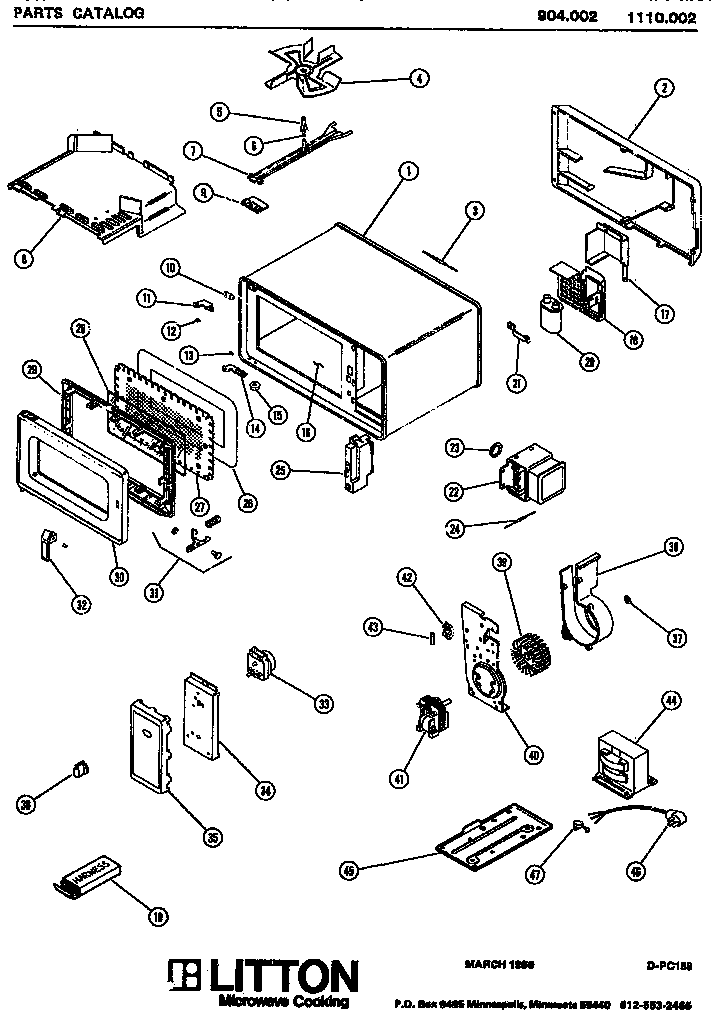

Microwave parts diagram

H.v. lead kit

Part #M5D350

The manufacturer no longer makes this part, and there's no substitute part

Replacememt Thermometer M95D11
#47F

Microwave parts diagram

Replacememt thermometer

Part #M95D11

The manufacturer no longer makes this part, and there's no substitute part

Cover, Stirrer Support M2D765
#9

Microwave parts diagram

Cover, stirrer support

Part #M2D765

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Support Bar M20D255
#7

Microwave parts diagram

Stirrer support bar

Part #M20D255

The manufacturer no longer makes this part, and there's no substitute part

Decorative Panel (1110 - Includes Inlay) M7D749
#35C

Microwave parts diagram

Decorative panel (1110 - includes inlay)

Part #M7D749

The manufacturer no longer makes this part, and there's no substitute part

Bearing M2D664
#6

Microwave parts diagram

Bearing

Part #M2D664

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder M4D39
#42A

Microwave parts diagram

Fuse holder

Part #M4D39

The manufacturer no longer makes this part, and there's no substitute part

Bottom Access Panel (includes Ref. No. 14) M53D58
#45A

Microwave parts diagram

Bottom access panel (includes ref. no. 14)

Part #M53D58

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Grounding M1D888
#25C

Microwave parts diagram

Screw, cord grounding

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part

Lockwasher, Cord Grounding M1D84
#46D

Microwave parts diagram

Lockwasher, cord grounding

Part #M1D84

The manufacturer no longer makes this part, and there's no substitute part
