Model # 7214950 Official Ace gas trimmer
Here are the diagrams and repair parts for Official Ace 7214950 gas trimmer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
7214950 Line Trimmers
#18

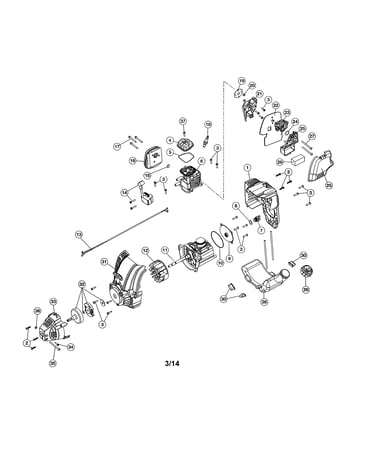

Cylinder/fuel tank/crankcase diagram
Spark plug
Part #753-05784
Replaced by #794-00082
?
Manufacturer substitution
This part replaces 753-05784. Substitute parts can look different from the original.
$9.76 |
9% OFF Phone Price : $10.76
Back Order
#28
Cylinder/fuel tank/crankcase diagram
Lawn & garden equipment engine fuel tank
Part #753-06240
$30.30 |
17% OFF Phone Price : $36.30
In Stock
#32
Cylinder/fuel tank/crankcase diagram
Kmart lawn & garden equipment clutch assembly
Part #753-06281
$29.87 |
17% OFF Phone Price : $35.87
Back Order
#10
Drive shaft/handle/shield diagram
Kmart lawn & garden equipment screw
Part #791-182057
This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
#3
Drive shaft/handle/shield diagram
Kmart line trimmer throttle trigger spring
Part #791-182690
This item is not returnable
$12.30 |
14% OFF Phone Price : $14.30
In Stock
#20
Drive shaft/handle/shield diagram
Kmart line trimmer string cut-off blade
Part #753-06126
This item is not returnable
Get free shipping with Automatic Reorder
$5.59 |
15% OFF Phone Price : $6.59
In Stock
#6
Drive shaft/handle/shield diagram
Kmart line trimmer drive shaft housing, upper (replaces 753-05834, 769-04236)
Part #753-04236
$102.49 |
10% OFF Phone Price : $114.49
In Stock
#29
Cylinder/fuel tank/crankcase diagram
Lawn & garden equipment fuel tank cap
Part #753-1229
This item is not returnable
$30.58 |
16% OFF Phone Price : $36.58
In Stock
#2
Cylinder/fuel tank/crankcase diagram
Screw
Part #753-04595
Replaced by #710-04194
?
Manufacturer substitution
This part replaces 753-04595. Substitute parts can look different from the original.
This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
#33
Cylinder/fuel tank/crankcase diagram
Kmart line trimmer clutch cover assembly
Part #753-05263
This item is not returnable
$37.38
In Stock
Symptoms for gas line trimmers
Choose a symptom to see related grass line trimmer repairs.
Main causes: stale fuel, cracked fuel lines, dirty carburetor, bad spark plug, worn piston rings…
Main causes: stale fuel, clogged fuel filter, faulty spark plug, clogged air filter, cracked fuel lines, clogged carbure…
Main causes: cracked fuel lines, bad carburetor seals, leaky fuel tank cap, damaged fuel tank…
Repair guides for gas line trimmers
These step-by-step repair guides will help you safely fix what’s broken on your grass line trimmer.
How to rebuild a line trimmer carburetor
If the line trimmer engine won't start even though there's fuel in the tank, the carburetor could be the problem. Follow…
Repair difficulty
Time required
15 minutes or less
How to replace a line trimmer carburetor
If the line trimmer won't start even though there's fuel in the tank, the carburetor could be the problem. Follow these …
Repair difficulty
Time required
15 minutes or less
How to replace a line trimmer fuel line
The fuel line on a grass line trimmer deteriorates with time and eventually can split or crack. You can replace it yours…
Repair difficulty
Time required
15 minutes or less
