Model # 3593-Z Official Bissell cleanview bagless vacuum

Here are the diagrams and repair parts for Official Bissell 3593-Z cleanview bagless vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Power Rocker 2031035
#12

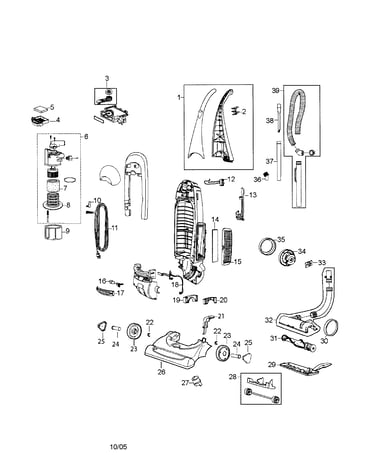

Cleanview bagless diagram

Power rocker

Part #2031035

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 2031095
#27

Cleanview bagless diagram

Vacuum knob

Part #2031095

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 2032069
#1

Cleanview bagless diagram

Handle assembly

Part #2032069

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 2031100
#34

Cleanview bagless diagram

Vacuum motor

Part #2031100

The manufacturer no longer makes this part, and there's no substitute part

Belt 2031093
#30

Cleanview bagless diagram

Belt

Part #2031093

The manufacturer no longer makes this part, and there's no substitute part

Compartment 2031117
#9

Cleanview bagless diagram

Compartment

Part #2031117

The manufacturer no longer makes this part, and there's no substitute part

Wheel 2032037
#23

Cleanview bagless diagram

Wheel

Part #2032037

The manufacturer no longer makes this part, and there's no substitute part

Tray 2032058
#4

Cleanview bagless diagram

Tray

Part #2032058

The manufacturer no longer makes this part, and there's no substitute part

Hepa Filter 2231047
#14

Cleanview bagless diagram

Hepa filter

Part #2231047

The manufacturer no longer makes this part, and there's no substitute part

Fr Wheel Asy 2031094
#28

Cleanview bagless diagram

Fr wheel asy

Part #2031094

The manufacturer no longer makes this part, and there's no substitute part
