Treadmill

Model # IMTL19903 Official Image 10.8 ql treadmill

Here are the diagrams and repair parts for Official Image IMTL19903 10.8 ql treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

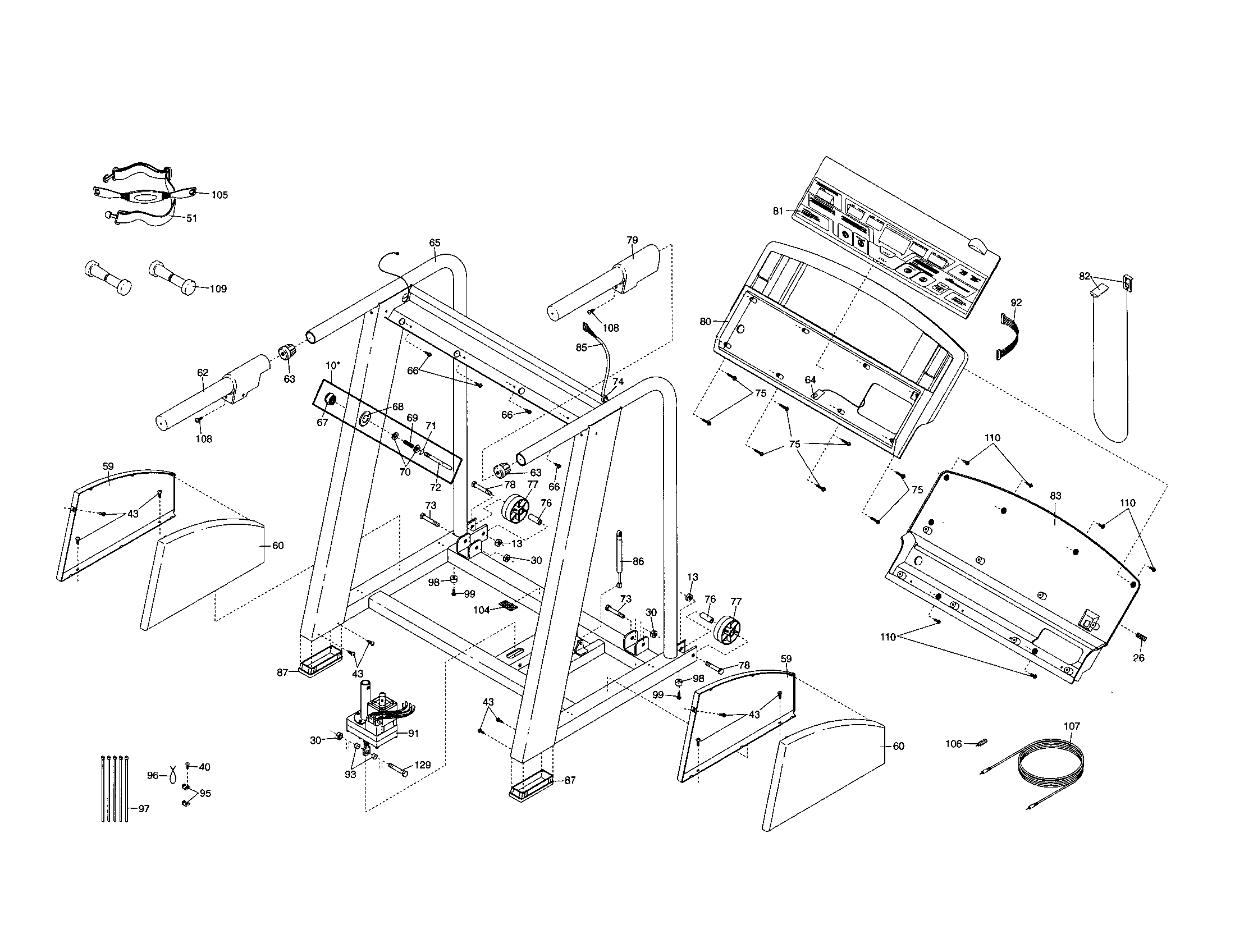

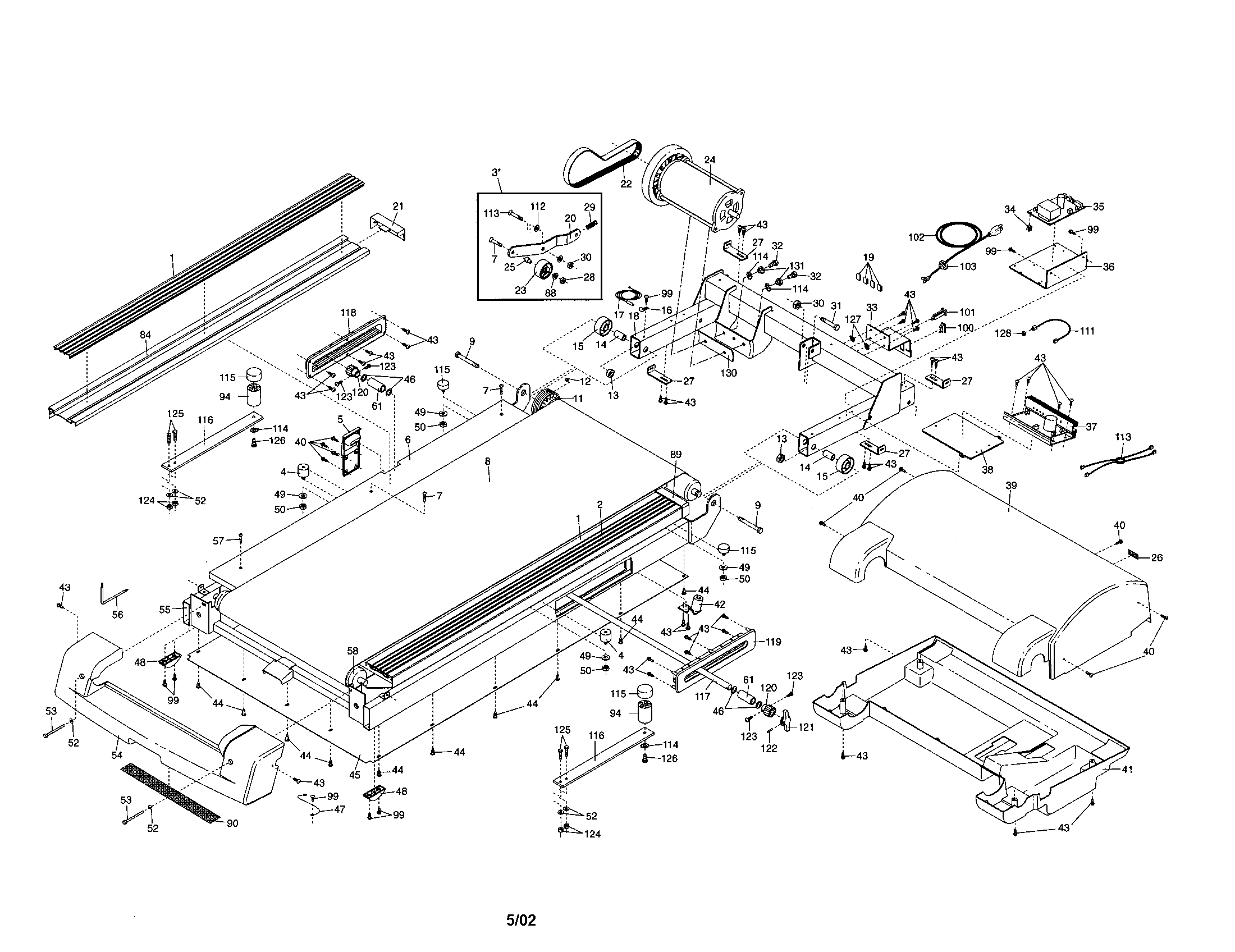

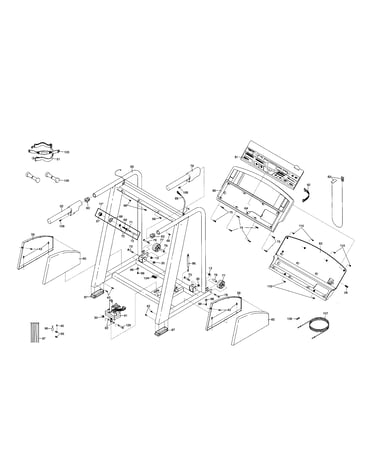

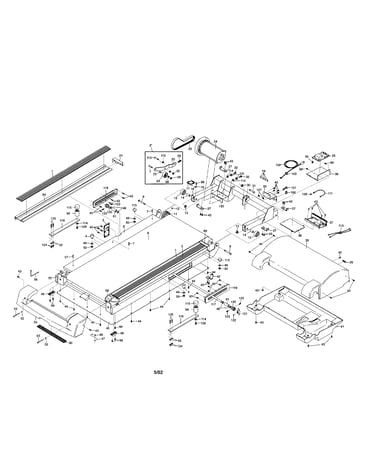

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#102

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#101

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Magnet,rnd,m 100498

#12

All parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Reed Switch 157504

#17

All parts diagram

Black & decker exercise equipment reed switch

Part #157504

This item is not returnable
$10.99
In Stock
Treadmill Drive Motor 172833

#24

All parts diagram

Treadmill drive motor

Part #172833

$458.27
In Stock
Lifestyler Exercise Equipment Screw 013607

#40

All parts diagram

Lifestyler exercise equipment screw

Part #013607

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Black & Decker Wire,jmpr,00 153458

#NI05

All parts diagram

Black & decker wire,jmpr,00

Part #153458

This item is not returnable
$2.99
In Stock
Bkt,hood,mtg 157338

#27

All parts diagram

Bkt,hood,mtg

Part #157338

This item is not returnable
$2.16
In Stock
Toyostove Clamp,wire T 132315

#96

All parts diagram

Toyostove clamp,wire t

Part #132315

This item is not returnable
$2.16
In Stock
