Model # S30 Official Presto automatic electric skillet

Here are the diagrams and repair parts for Official Presto S30 automatic electric skillet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Control Lever Spring 23062
#31

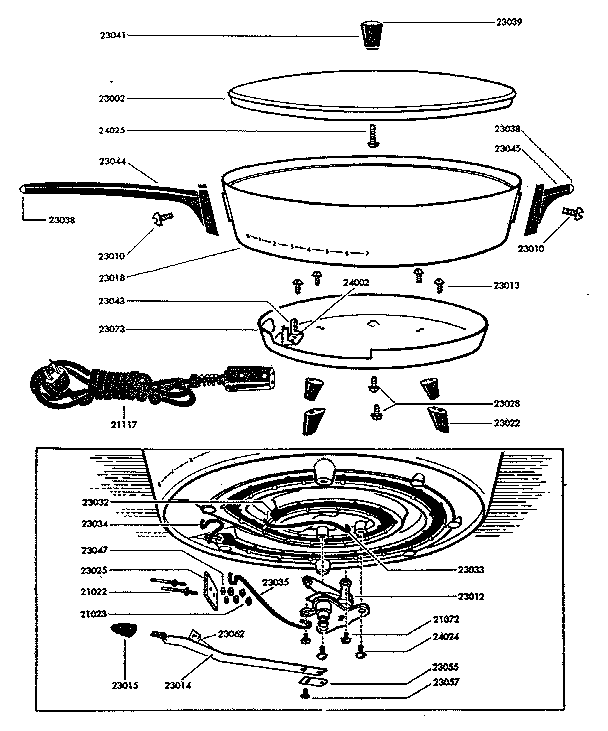

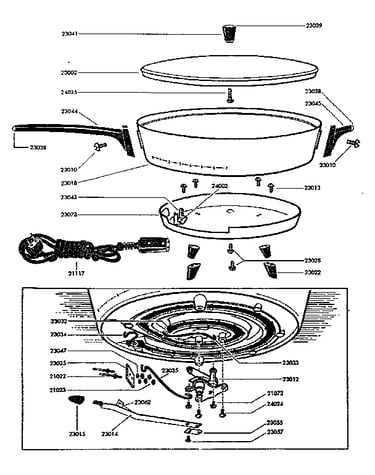

Replacement parts diagram

Control lever spring

Part #23062

The manufacturer no longer makes this part, and there's no substitute part

Heater Element-not Separable, Listed For Identification Purposes Only 23032
#17

Replacement parts diagram

Heater element-not separable, listed for identification purposes only

Part #23032

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 23047
#27

Replacement parts diagram

Lock washer

Part #23047

The manufacturer no longer makes this part, and there's no substitute part

Rear Handle 23045
#26

Replacement parts diagram

Rear handle

Part #23045

The manufacturer no longer makes this part, and there's no substitute part

Bus Bar 23033
#18

Replacement parts diagram

Bus bar

Part #23033

The manufacturer no longer makes this part, and there's no substitute part

Lever 23055
#29

Replacement parts diagram

Lever

Part #23055

The manufacturer no longer makes this part, and there's no substitute part

Screw 24024
#35

Replacement parts diagram

Screw

Part #24024

The manufacturer no longer makes this part, and there's no substitute part

Bus Bar 23034
#19

Replacement parts diagram

Bus bar

Part #23034

The manufacturer no longer makes this part, and there's no substitute part

Recipe Book 23049
#28

Replacement parts diagram

Recipe book

Part #23049

The manufacturer no longer makes this part, and there's no substitute part

Screw 24025
#36

Replacement parts diagram

Screw

Part #24025

The manufacturer no longer makes this part, and there's no substitute part
