Model # 217585122 Official Craftsman 1.2-hp gamefisher boat motor

Here are the diagrams and repair parts for Official Craftsman 217585122 1.2-hp gamefisher boat motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 177 parts |

Washer

Part #95650

The manufacturer no longer makes this part, and there's no substitute part

#57

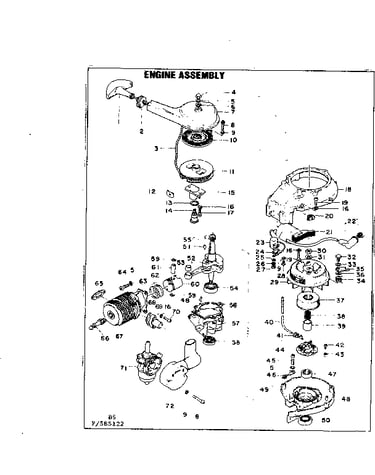

Engine assembly diagram

Crank case

Part #95786

The manufacturer no longer makes this part, and there's no substitute part

#50

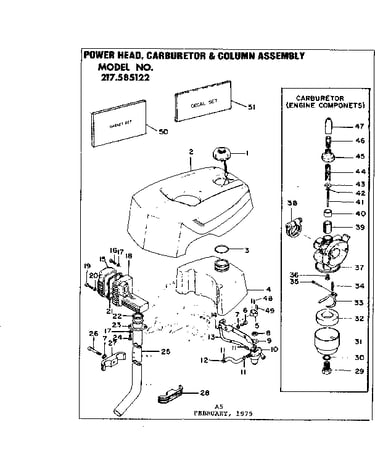

Power head, carburetor & column asm. diagram

Gasket set

Part #190079

The manufacturer no longer makes this part, and there's no substitute part

#49

Engine assembly diagram

Crank case

Part #95784

The manufacturer no longer makes this part, and there's no substitute part

#34

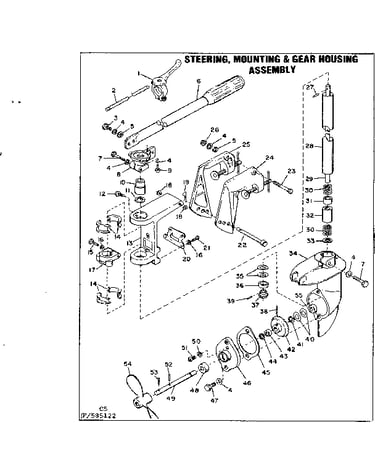

Steering, mounting & gear housing asm. diagram

Gear housing

Part #95361

The manufacturer no longer makes this part, and there's no substitute part

#13

Steering, mounting & gear housing asm. diagram

Swivel

Part #95429

The manufacturer no longer makes this part, and there's no substitute part

#47

Power head, carburetor & column asm. diagram

Rubber cap

Part #95502

The manufacturer no longer makes this part, and there's no substitute part

#40

Power head, carburetor & column asm. diagram

Collar

Part #95500

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #95617

The manufacturer no longer makes this part, and there's no substitute part

#12

Power head, carburetor & column asm. diagram

Fuel pipe

Part #95557

The manufacturer no longer makes this part, and there's no substitute part
