Model # H2RA036S06D Official York central air conditioner

Here are the diagrams and repair parts for Official York H2RA036S06D central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Central Air Conditioner Dual-motor Run Capacitor 024-25859-700
#3

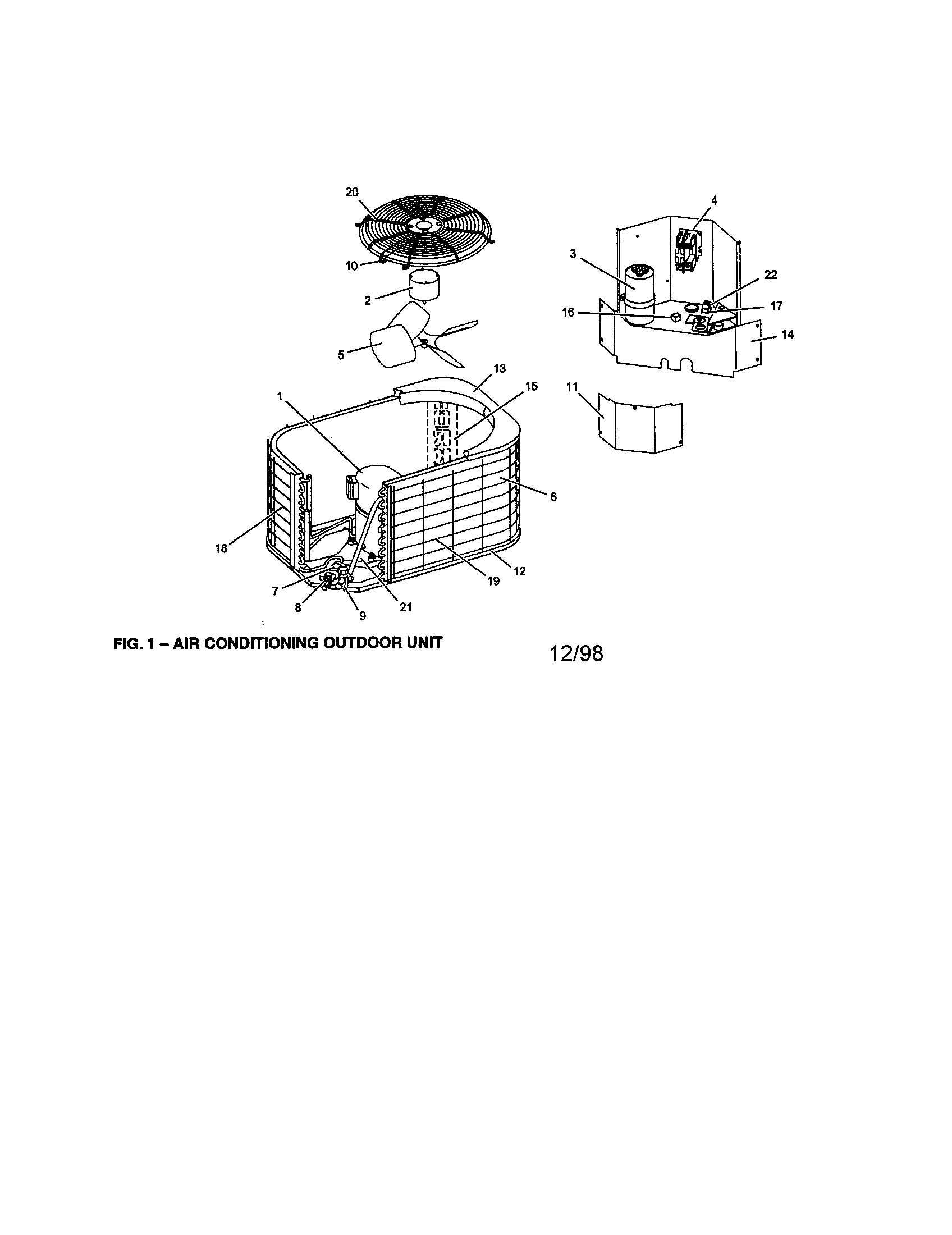

Fig.1 air conditioning outdoor unit diagram

Central air conditioner dual-motor run capacitor

Part #024-25859-700

The manufacturer no longer makes this part, and there's no substitute part

Blade Fan 026-34092-000
#5

Fig.1 air conditioning outdoor unit diagram

Blade fan

Part #026-34092-000

The manufacturer no longer makes this part, and there's no substitute part

Channel El 028-13215-000
#10

Fig.1 air conditioning outdoor unit diagram

Channel el

Part #028-13215-000

The manufacturer no longer makes this part, and there's no substitute part

Contactor 024-27531-000
#4

Fig.1 air conditioning outdoor unit diagram

Contactor

Part #024-27531-000

The manufacturer no longer makes this part, and there's no substitute part

Top Panel 073-15737-001
#13

Fig.1 air conditioning outdoor unit diagram

Top panel

Part #073-15737-001

The manufacturer no longer makes this part, and there's no substitute part

Coil, Condenser W/headers 073-16530-001
#6

Fig.1 air conditioning outdoor unit diagram

Coil, condenser w/headers

Part #073-16530-001

The manufacturer no longer makes this part, and there's no substitute part

Cover Elec 073-15771-010
#11

Fig.1 air conditioning outdoor unit diagram

Cover elec

Part #073-15771-010

The manufacturer no longer makes this part, and there's no substitute part

Guard Coil 073-16634-002
#18

Fig.1 air conditioning outdoor unit diagram

Guard coil

Part #073-16634-002

The manufacturer no longer makes this part, and there's no substitute part

Panel Bloc 073-16585-010
#14

Fig.1 air conditioning outdoor unit diagram

Panel bloc

Part #073-16585-010

The manufacturer no longer makes this part, and there's no substitute part

Valve Sult 025-31900-000
#9

Fig.1 air conditioning outdoor unit diagram

Valve sult

Part #025-31900-000

The manufacturer no longer makes this part, and there's no substitute part
