Rear-Engine Riding Mower

Model # 13196280 Official Craftsman 26" riding lawn mower

Here are the diagrams and repair parts for Official Craftsman 13196280 26" riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

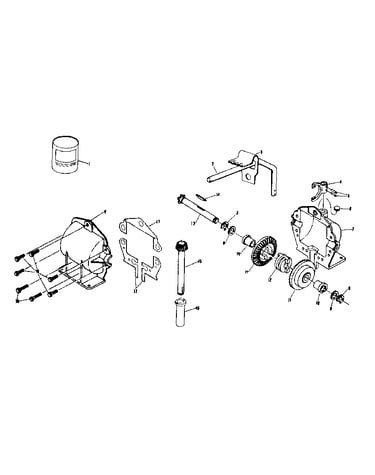

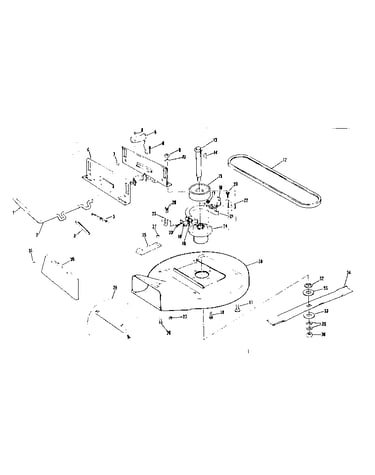

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Washer 61537
#36

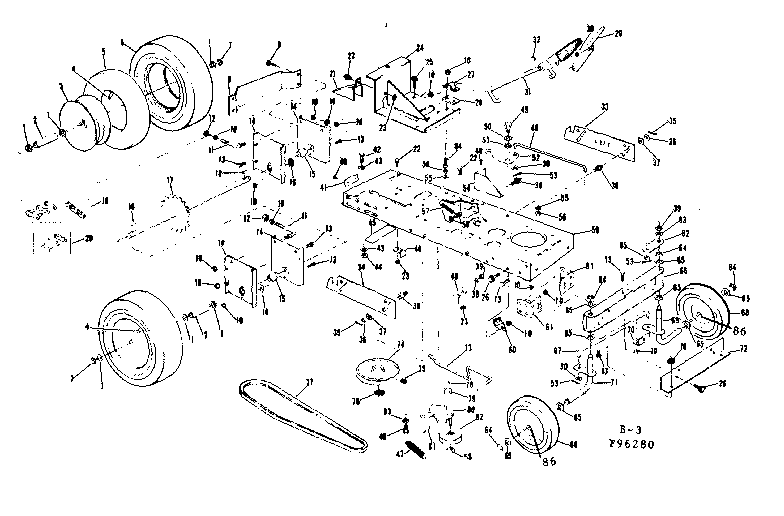

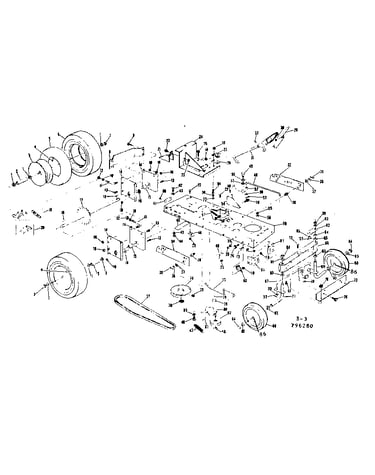

Main frame and wheel assembly diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Washer 52966
#1

Main frame and wheel assembly diagram

Washer

Part #52966

Replaced by #532121749

?
Manufacturer substitution
This part replaces 52966. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Bolt 126211
#44

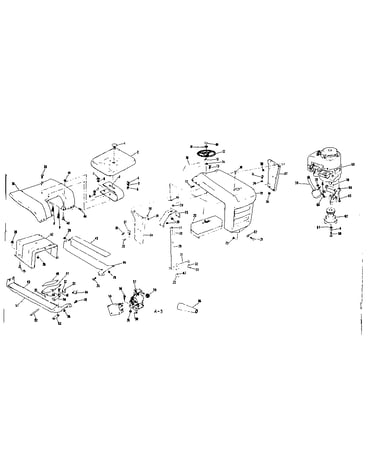

Engine and grill diagram

Bolt

Part #126211

The manufacturer no longer makes this part, and there's no substitute part

E-ring 52913
E-ring

Part #52913

Replaced by #812000029

?
Manufacturer substitution
This part replaces 52913. Substitute parts can look different from the original.
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lawn Mower Transmission Input Shaft 187527
Lawn mower transmission input shaft

Part #187527

Replaced by #532187527

?
Manufacturer substitution
This part replaces 187527. Substitute parts can look different from the original.
$30.64
In Stock
Husqvarna Lawn Tractor Tire Valve Stem Cap (replaces 21303, 24350, 532059192, 9427576) 59192
#4

Main frame and wheel assembly diagram

Husqvarna lawn tractor tire valve stem cap (replaces 21303, 24350, 532059192, 9427576)

Part #59192

Replaced by #532059192

?
Manufacturer substitution
This part replaces 59192. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Washer 52160
#51

Main frame and wheel assembly diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bearing 62346
#15

Main frame and wheel assembly diagram

Bearing

Part #62346

Replaced by #583637001

?
Manufacturer substitution
This part replaces 62346. Substitute parts can look different from the original.
$11.97
In Stock
Husqvarna Lawn Tractor Battery Box 186491
Husqvarna lawn tractor battery box

Part #186491

The manufacturer no longer makes this part, and there's no substitute part

Bolt 187993
Bolt

Part #187993

The manufacturer no longer makes this part, and there's no substitute part
