Samsung
Side-By-Side Refrigerator

Model # RS277ACBP/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RS277ACBP-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

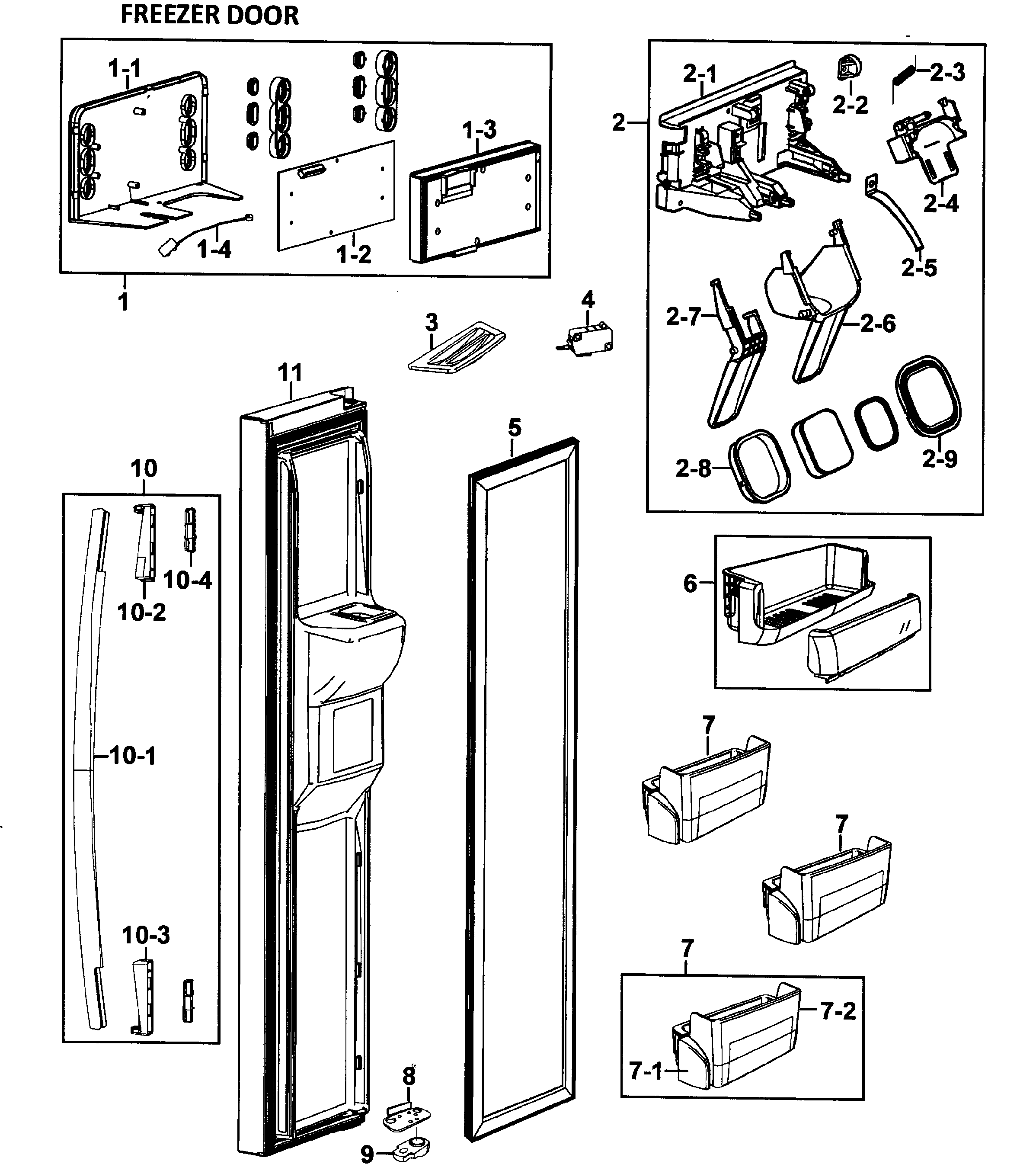

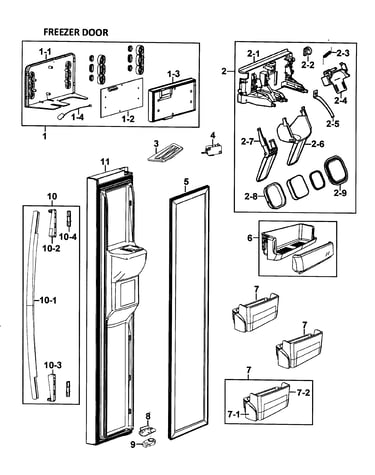

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Refrigerator Compressor MK172DR2U/E09
#25

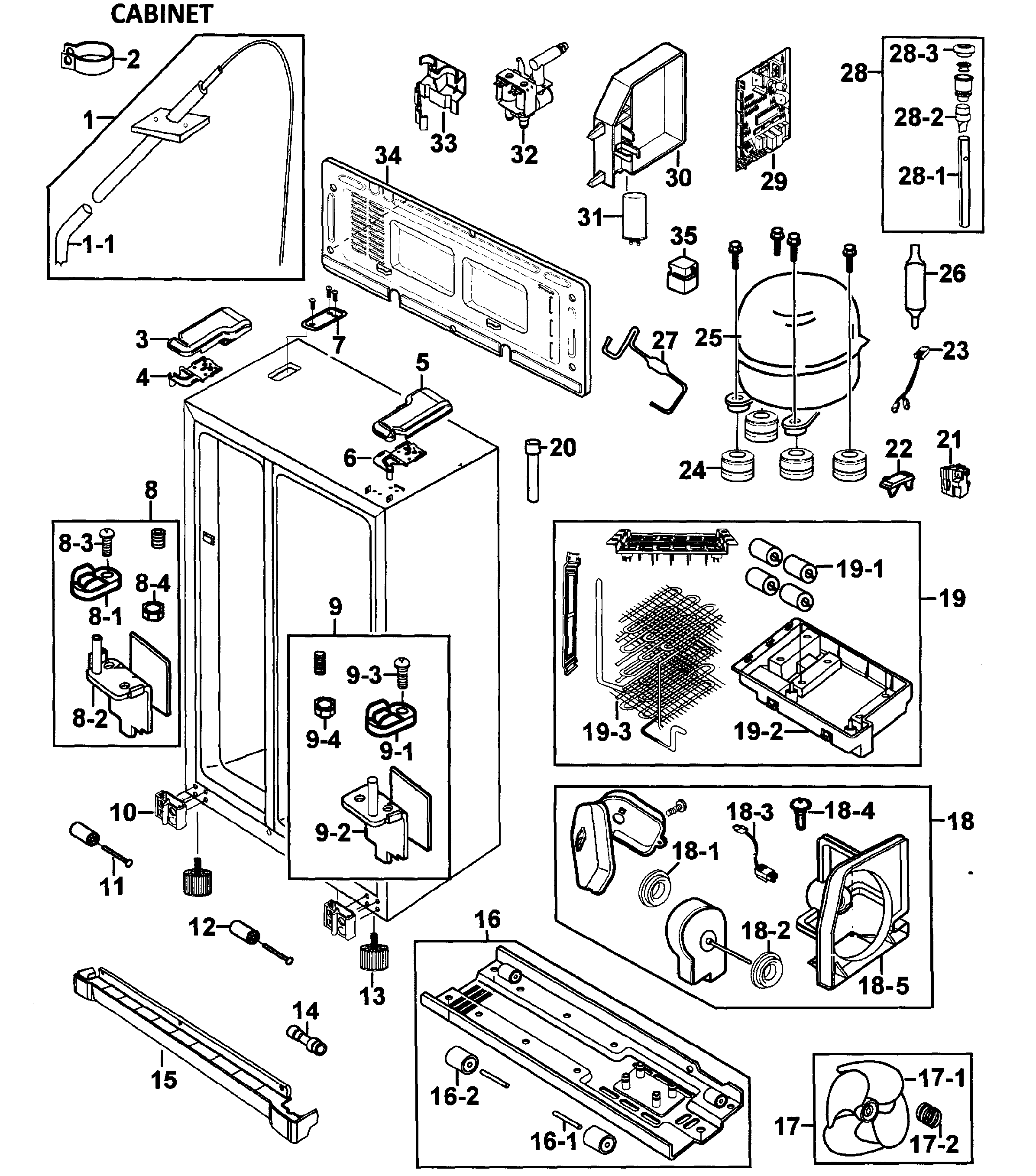

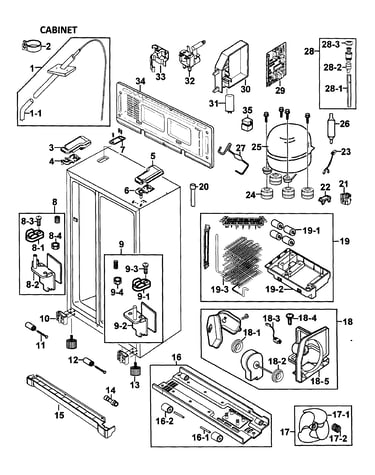

Cabinet diagram

Refrigerator compressor

Part #MK172DR2U/E09

Replaced by #MSE166CL1H/ASH

?
Manufacturer substitution
This part replaces MK172DR2U/E09. Substitute parts can look different from the original.
BEST SELLER
$265.82 |
$12.00 OFF Phone Price : $277.82
In Stock
Refrigerator Dryer DA62-01514A
#26

Cabinet diagram

Refrigerator dryer

Part #DA62-01514A

Replaced by #DA81-06007A

?
Manufacturer substitution
This part replaces DA62-01514A. Substitute parts can look different from the original.
BEST SELLER
$65.48 |
8% OFF Phone Price : $71.48
In Stock
Refrigerator Condenser Fan (replaces Da31-00220a) DA31-00146B
#14-9

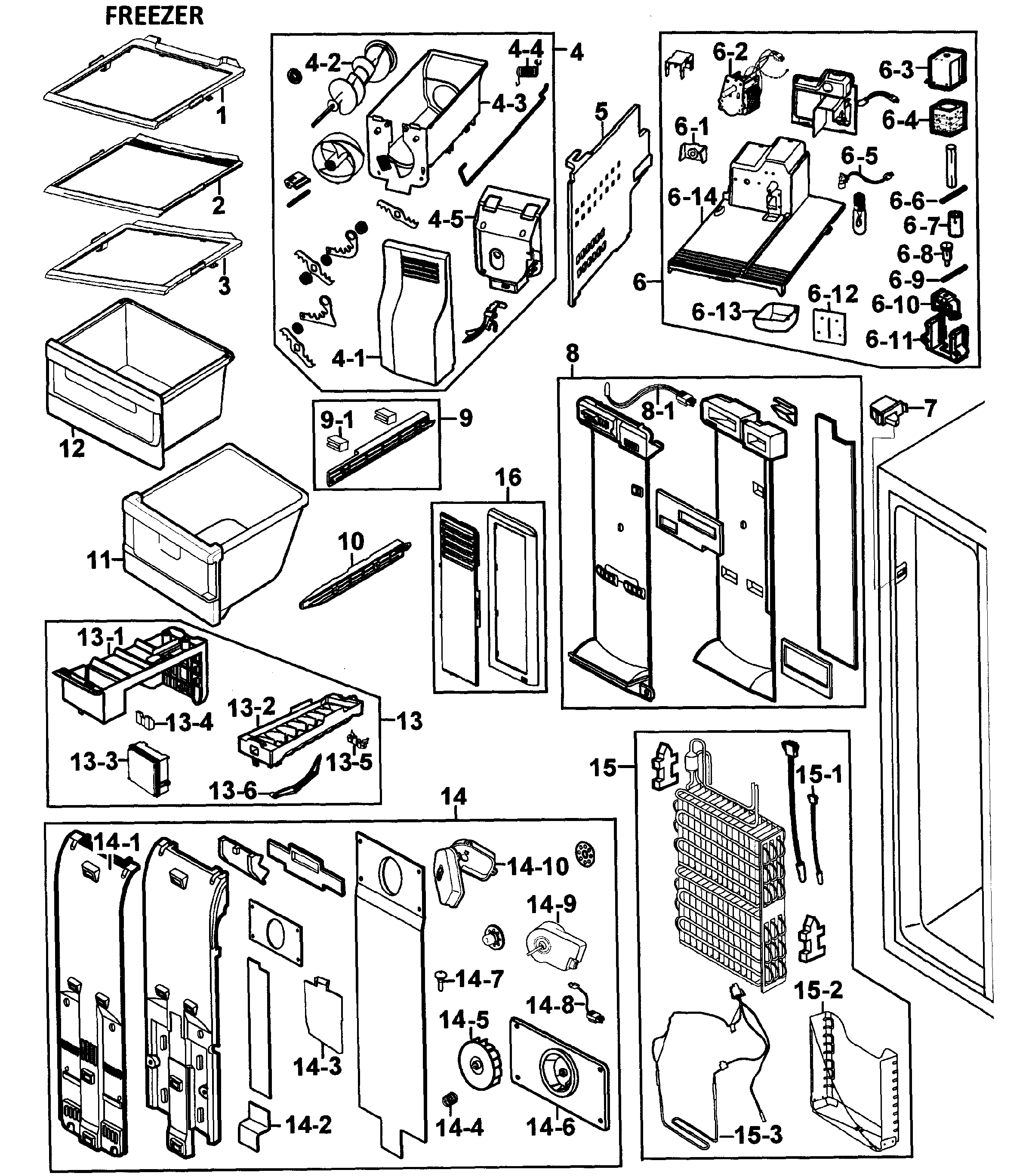

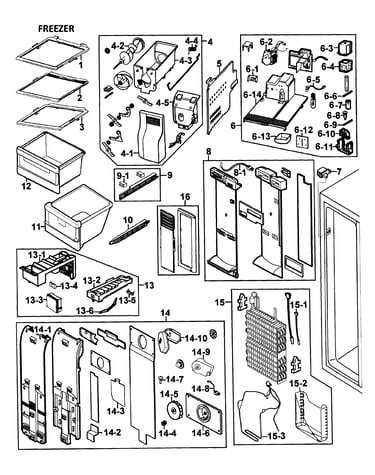

Freezer diagram

Refrigerator condenser fan (replaces da31-00220a)

Part #DA31-00146B

BEST SELLER
$92.34 |
6% OFF Phone Price : $98.34
In Stock
Refrigerator Freezer Evaporator Fan Motor (replaces Da31-00146g, W10126745, W10126746) DA31-00146E
#23-6

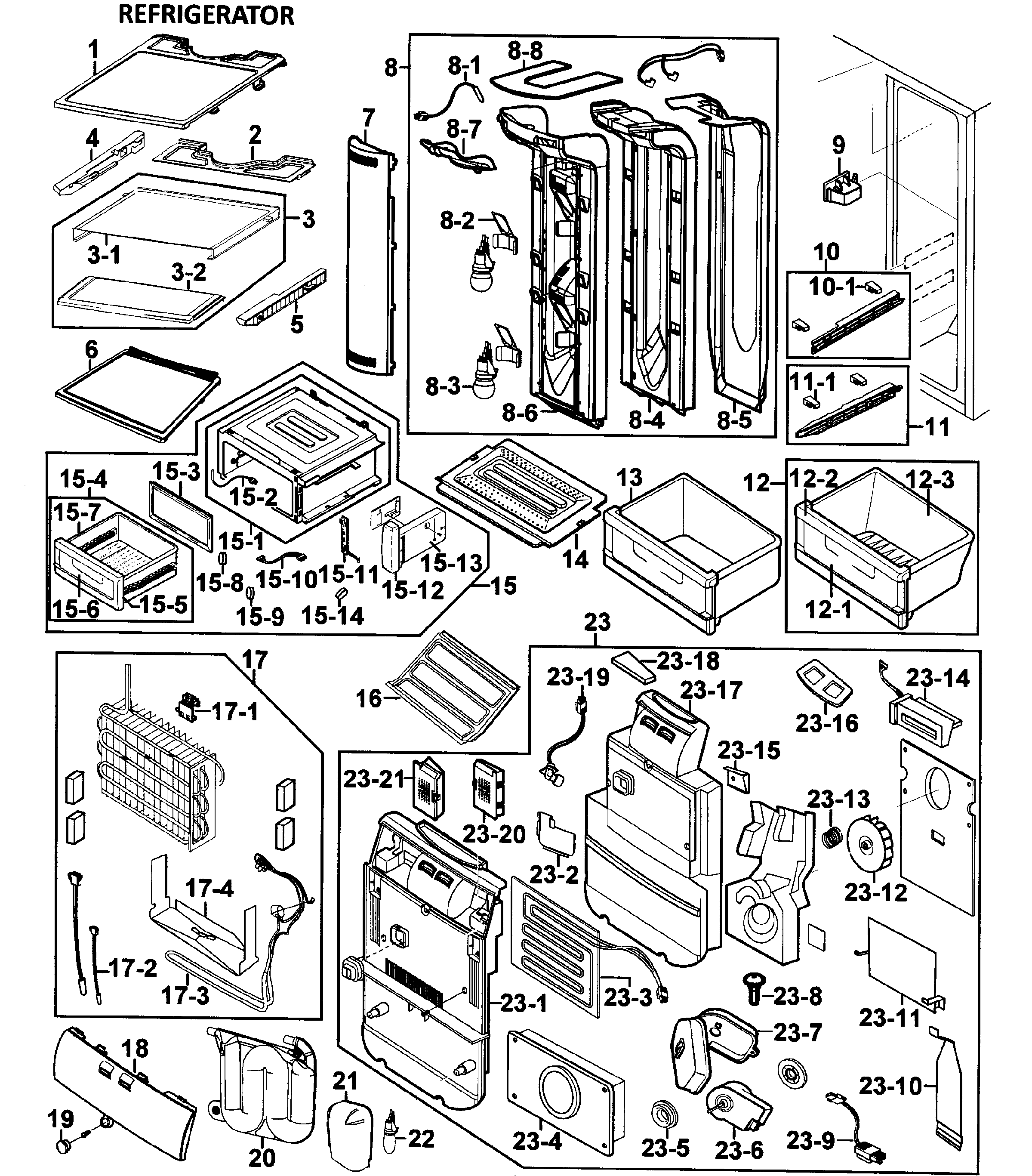

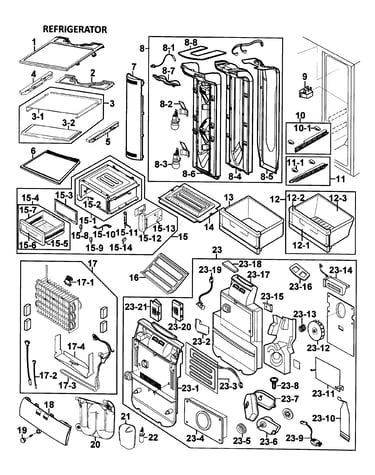

Refrigerator diagram

Refrigerator freezer evaporator fan motor (replaces da31-00146g, w10126745, w10126746)

Part #DA31-00146E

BEST SELLER
$99.11 |
11% OFF Phone Price : $111.11
In Stock
Refrigerator Ice Maker Assembly (replaces Da97-02203d) DA97-02203G
#13

Freezer diagram

Refrigerator ice maker assembly (replaces da97-02203d)

Part #DA97-02203G

$132.97 |
8% OFF Phone Price : $144.97
In Stock
Refrigerator Door Bin DA97-03290A
#2

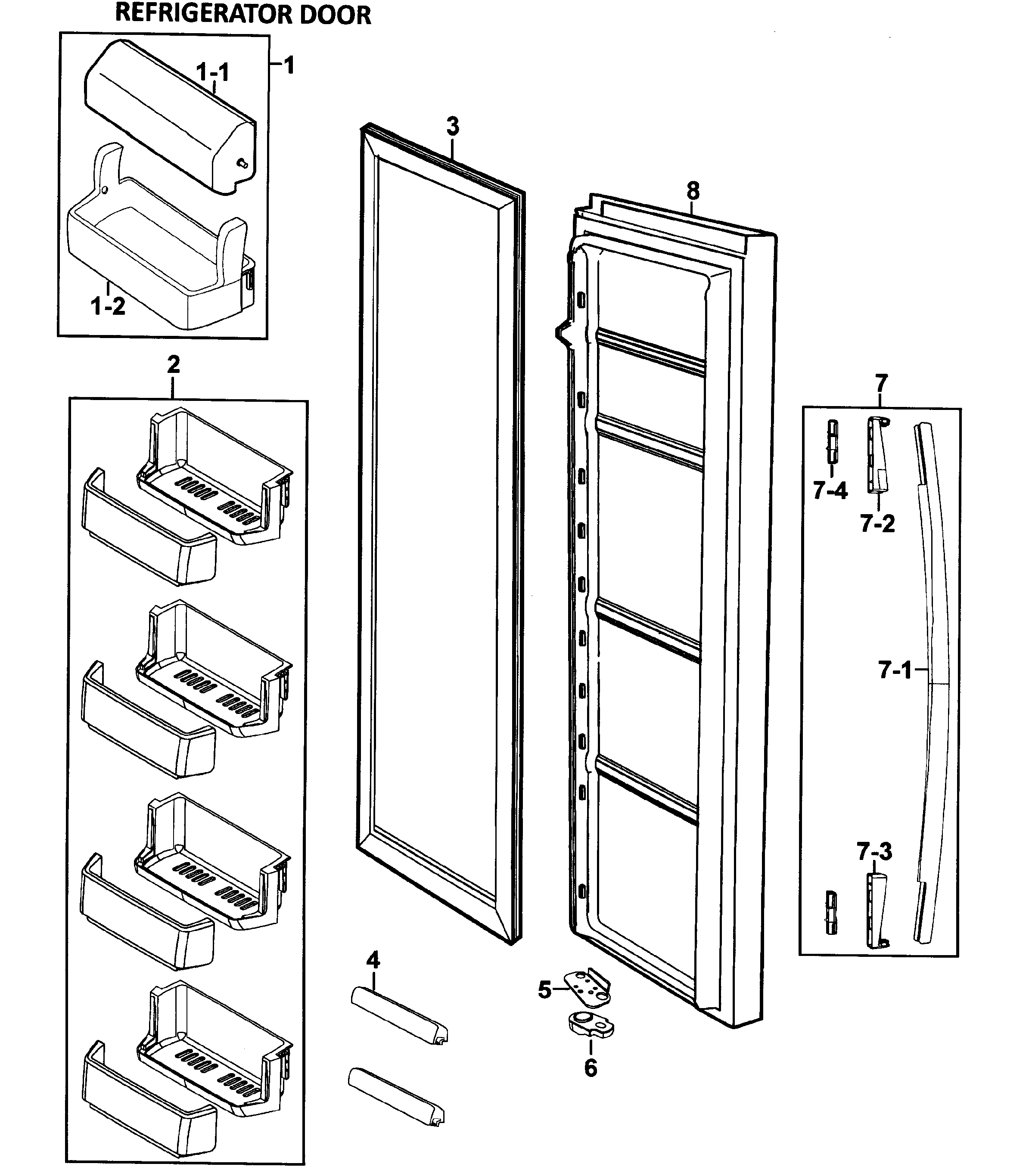

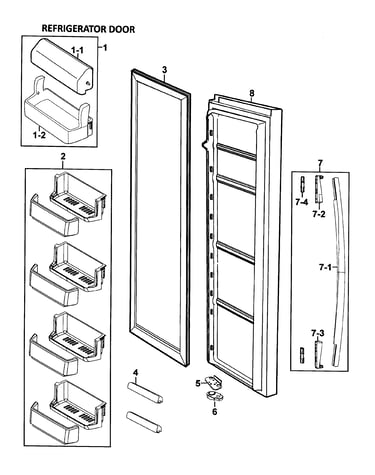

Right door diagram

Refrigerator door bin

Part #DA97-03290A

$51.83 |
10% OFF Phone Price : $57.83
In Stock
Refrigerator Ice Maker Cube Tray (replaces Da63-02284a) DA63-02284B
#13-2

Freezer diagram

Refrigerator ice maker cube tray (replaces da63-02284a)

Part #DA63-02284B

$36.88 |
14% OFF Phone Price : $42.88
In Stock
Refrigerator Drain Tube Grommet DA63-00951C
#28-2

Cabinet diagram

Refrigerator drain tube grommet

Part #DA63-00951C

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Refrigerator Compressor Start Relay DA35-00103B
#21

Cabinet diagram

Refrigerator compressor start relay

Part #DA35-00103B

Replaced by #DA35-00135A

?
Manufacturer substitution
This part replaces DA35-00103B. Substitute parts can look different from the original.
$72.21 |
8% OFF Phone Price : $78.21
In Stock
Refrigerator Ice Maker Thermostat Cover DA63-02183A
#13-5

Freezer diagram

Refrigerator ice maker thermostat cover

Part #DA63-02183A

This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
