GE
Top-Mount Refrigerator

Model # TBT25PAXFRAA Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TBT25PAXFRAA refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

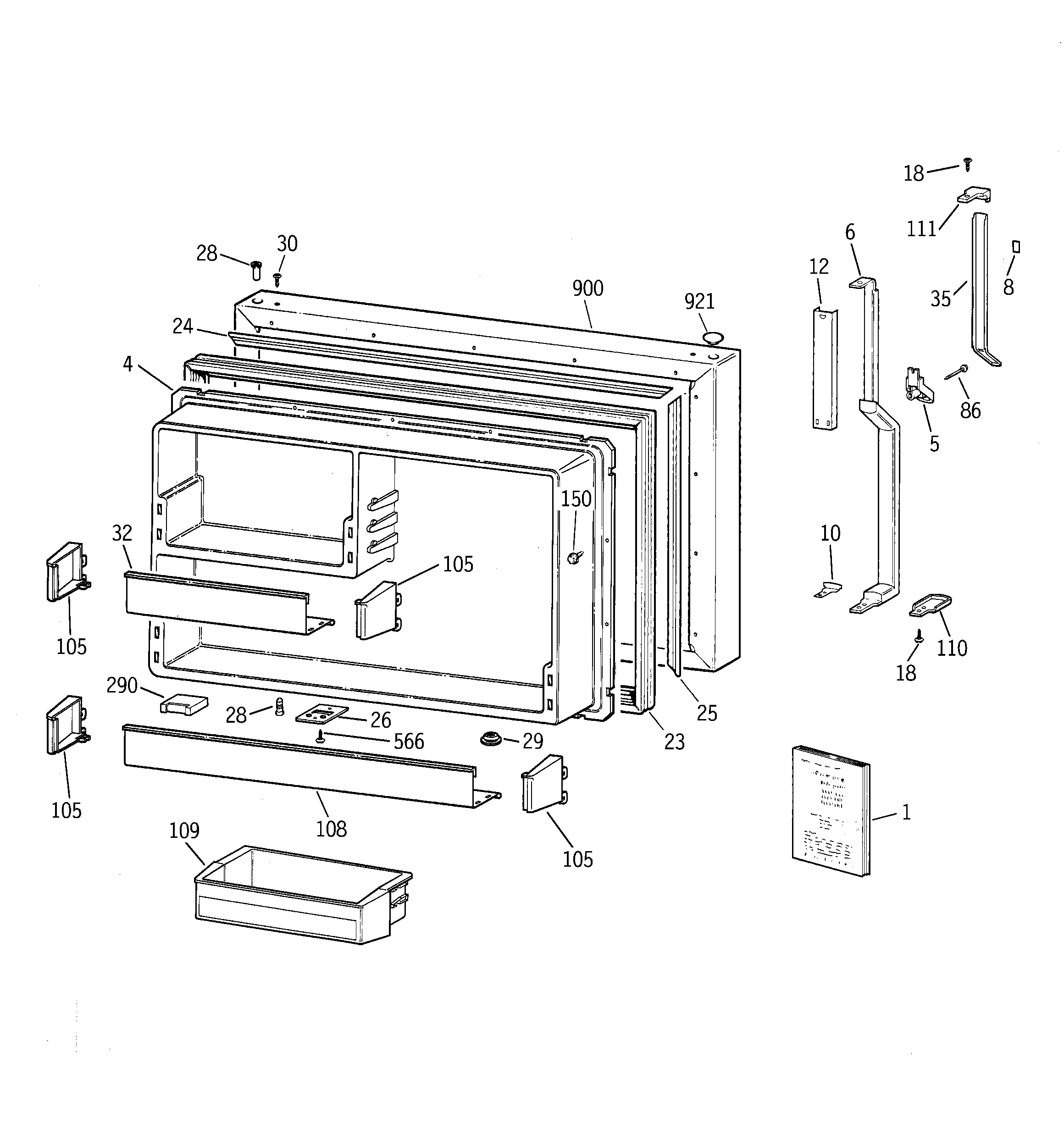

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Dryer Filter WR86X0096
#740

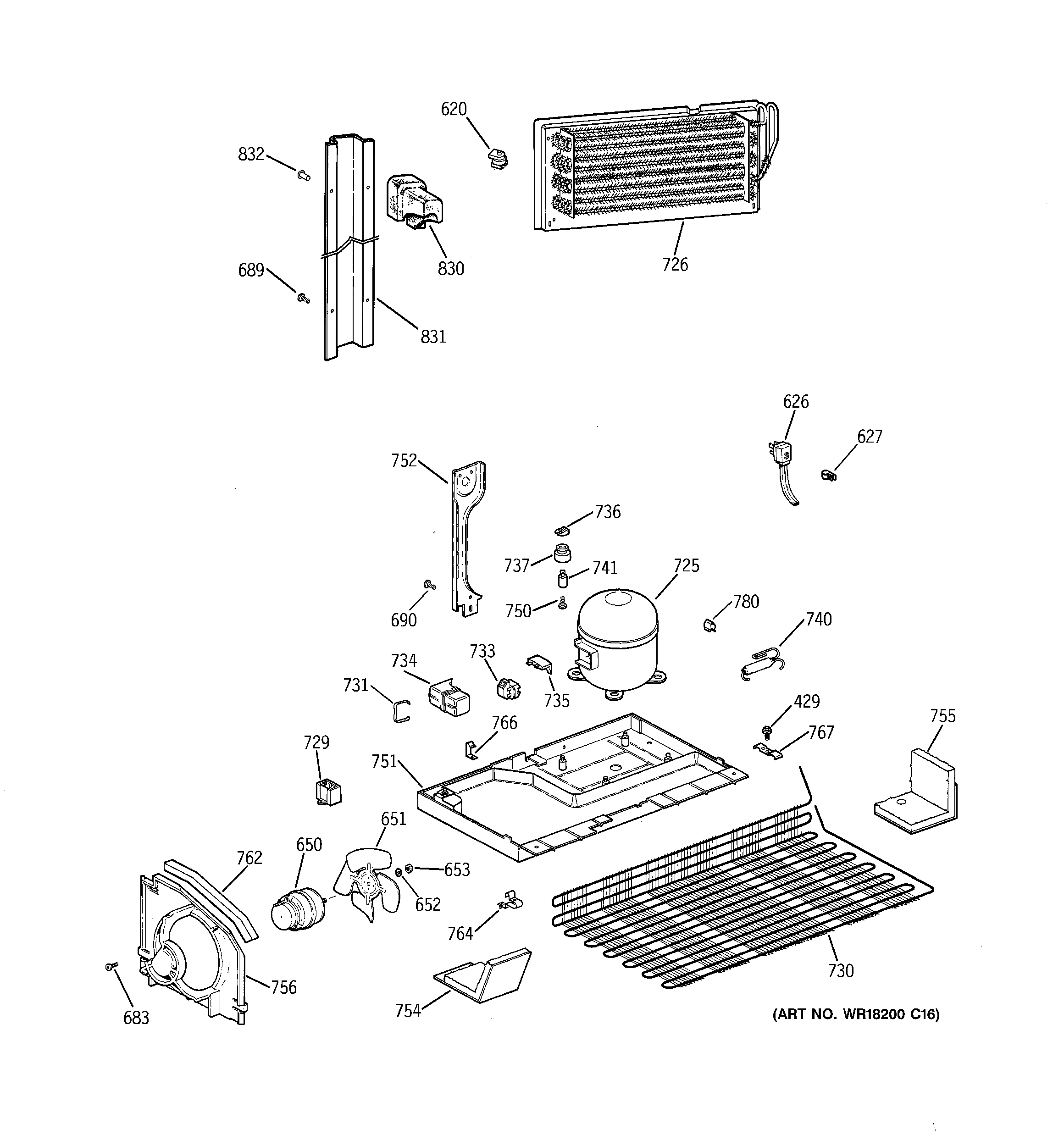

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#437

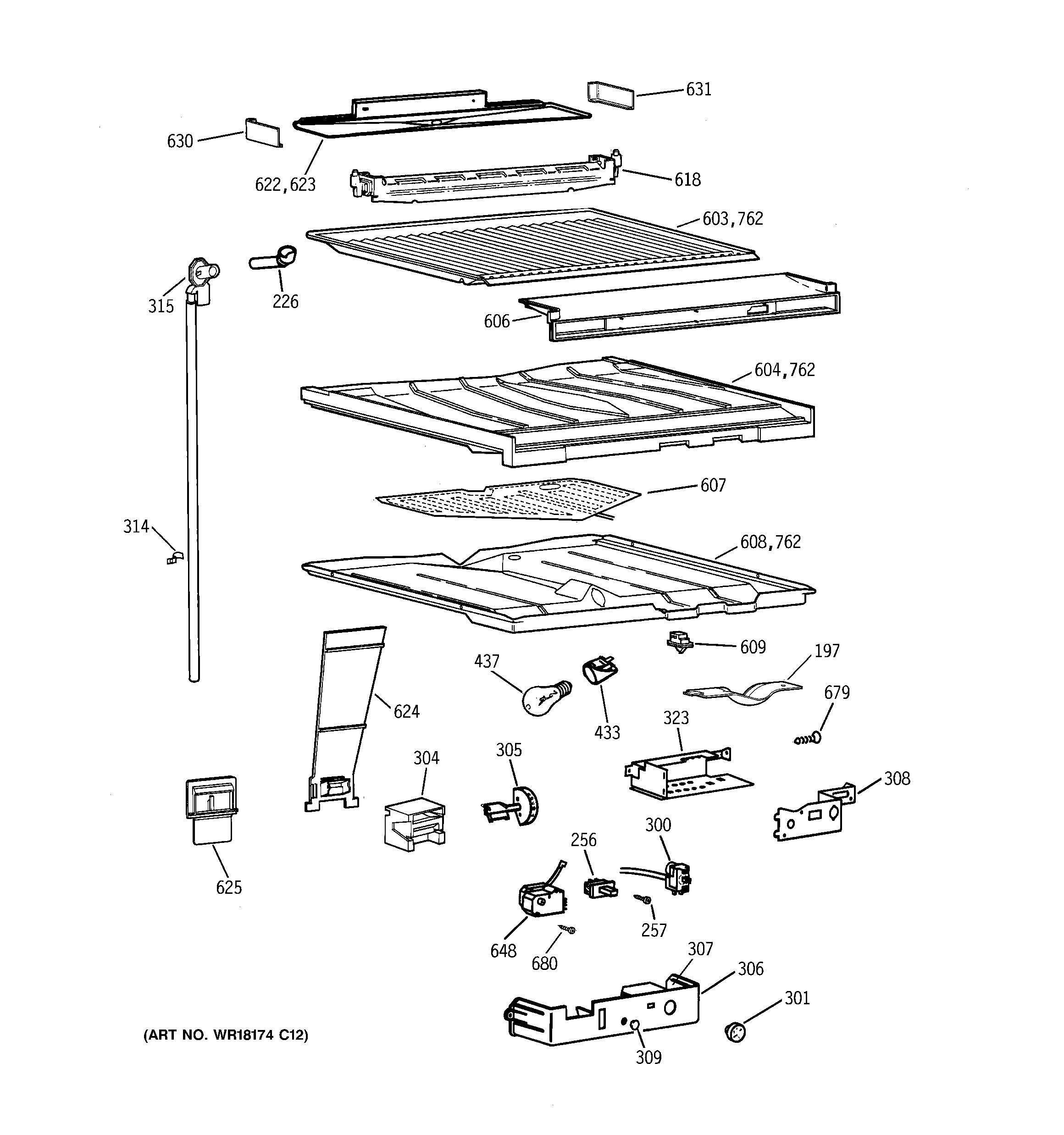

Compartment separator parts diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
40a15/22 STD372402
#435

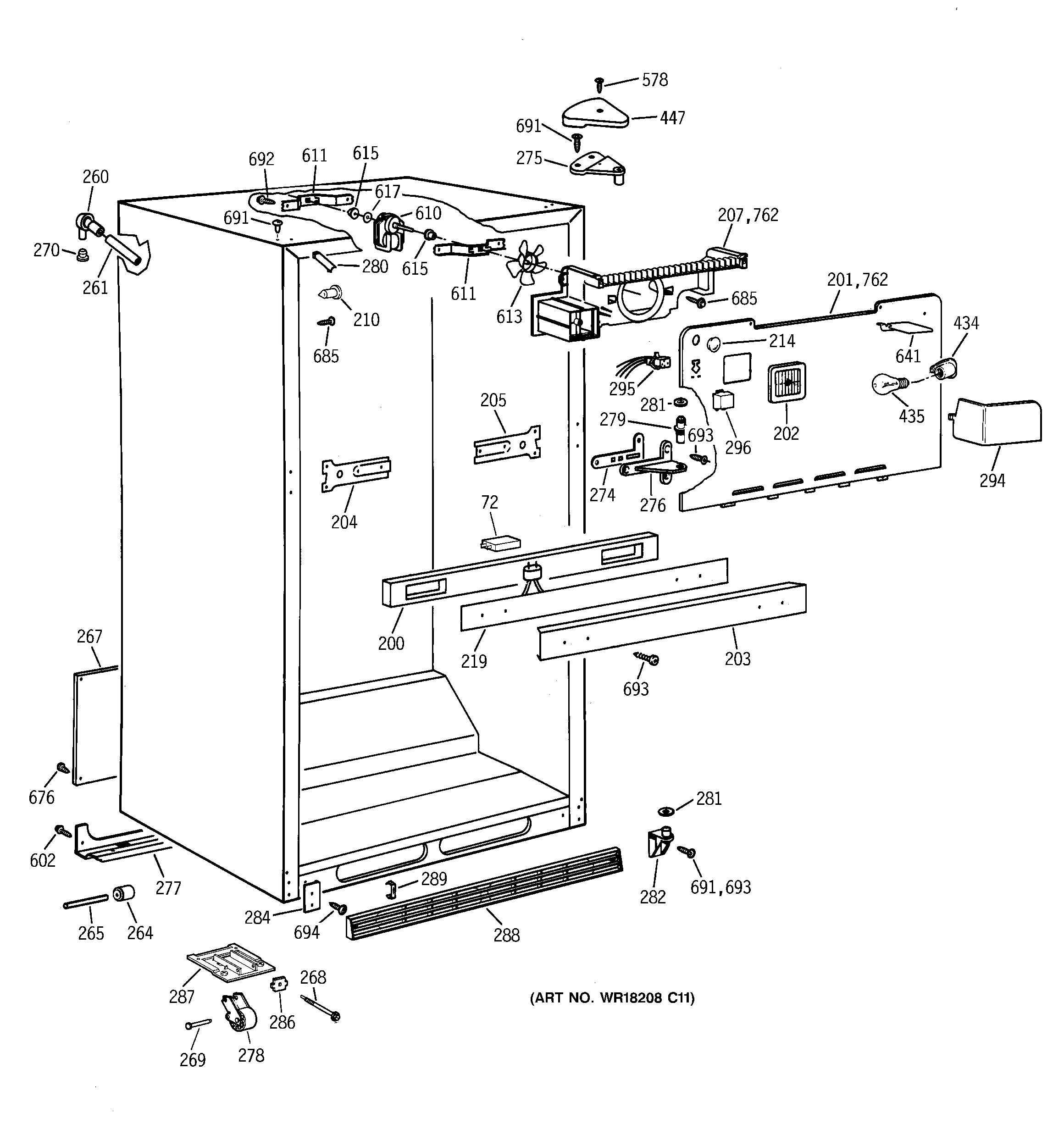

Cabinet parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Door Gasket WR24X0437
#104

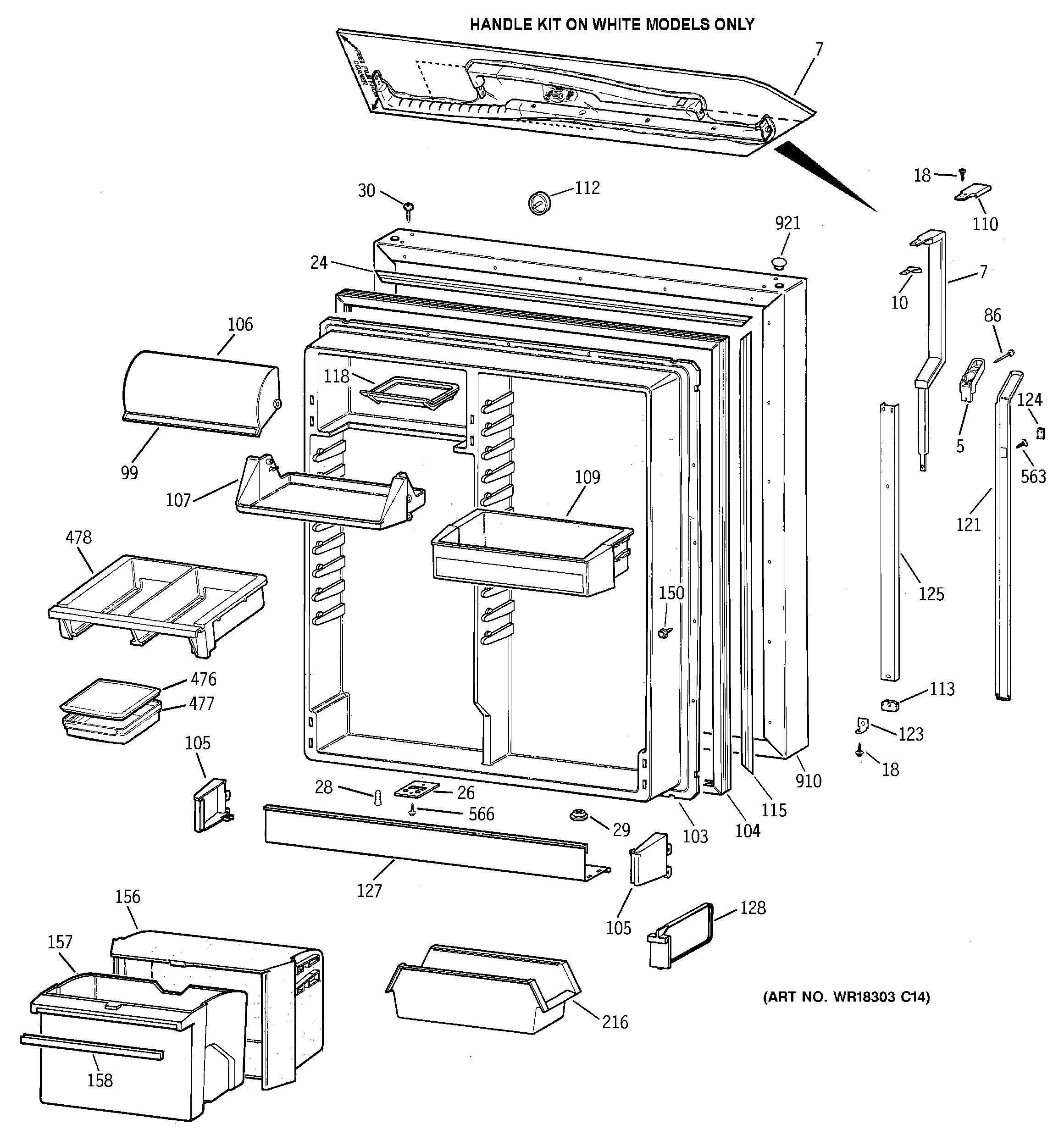

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0437

Replaced by #WR24X437

?
Manufacturer substitution
This part replaces WR24X0437. Substitute parts can look different from the original.
$65.79 |
8% OFF Phone Price : $71.79
In Stock
Light Switch WR23X0193
#609

Compartment separator parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Defrost Heater WR51X0466
#618

Compartment separator parts diagram

Refrigerator defrost heater

Part #WR51X0466

Replaced by #WR51X466

?
Manufacturer substitution
This part replaces WR51X0466. Substitute parts can look different from the original.
$212.27 |
5% OFF Phone Price : $224.27
In Stock
Drive Reversible Plug WR02X8693
#112

Fresh food door diagram

Drive reversible plug

Part #WR02X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR02X8693. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Ice Bucket WR30X0321
#266

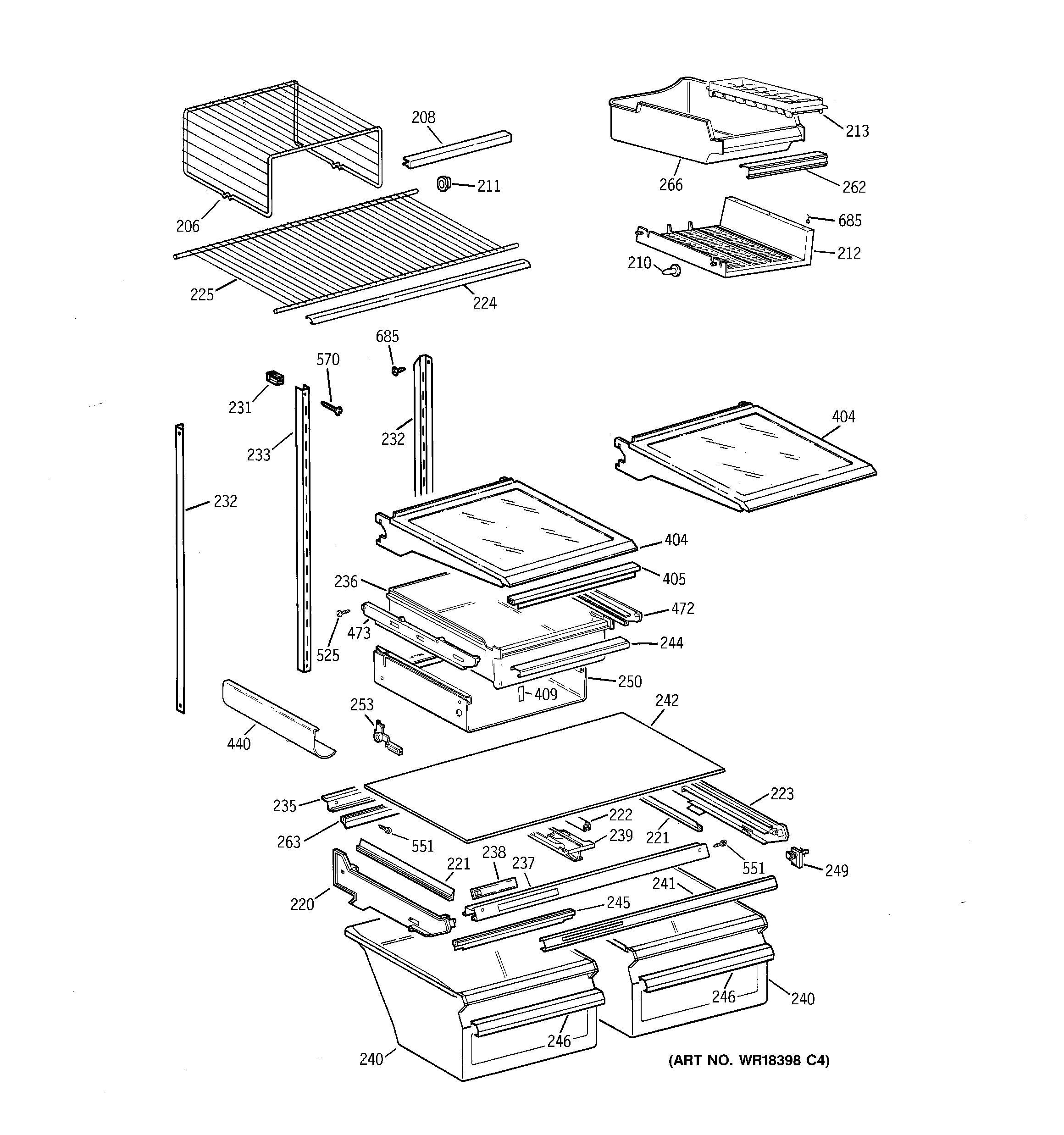

Shelf parts diagram

Refrigerator ice bucket

Part #WR30X0321

Replaced by #WR32X10075

?
Manufacturer substitution
This part replaces WR30X0321. Substitute parts can look different from the original.
$63.74 |
9% OFF Phone Price : $69.74
In Stock
Hinge Washer WR01X1797
#281

Cabinet parts diagram

Hinge washer

Part #WR01X1797

Replaced by #WR1X1797D

?
Manufacturer substitution
This part replaces WR01X1797. Substitute parts can look different from the original.
$23.67 |
20% OFF Phone Price : $29.67
In Stock
