Model # 143649 Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 143649 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Plate 790007
#80

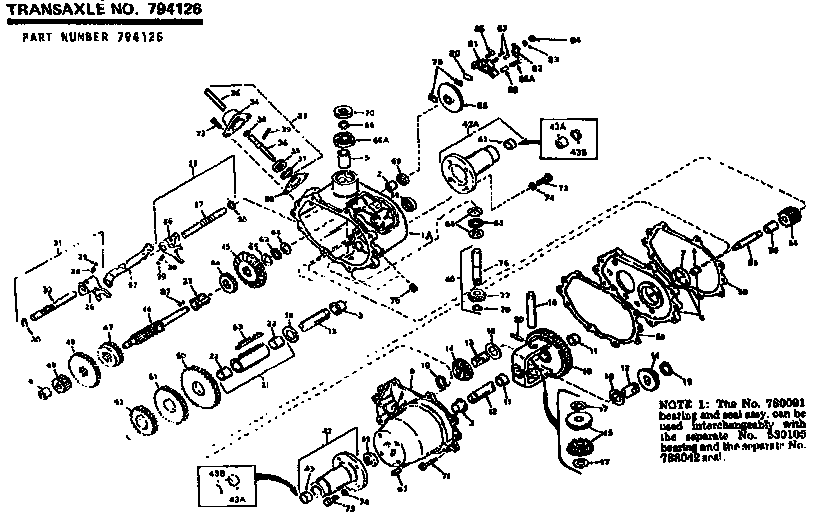

Transaxle diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Holder 790005
#81

Transaxle diagram

Holder

Part #790005

Replaced by #790025

?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
Pin 786026
#67

Transaxle diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Washer 780001
#18

Transaxle diagram

Washer

Part #780001

Replaced by #780001

?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
Back Order
Washer 792076
#83

Transaxle diagram

Washer

Part #792076

Replaced by #792076A

?
Manufacturer substitution
This part replaces 792076. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Pinion 778068
#15

Transaxle diagram

Pinion

Part #778068

Replaced by #778131

?
Manufacturer substitution
This part replaces 778068. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Screw 792007
#72

Transaxle diagram

Screw

Part #792007

Replaced by #792007

?
Manufacturer substitution
This part replaces 792007. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Pin 792049
#39

Transaxle diagram

Pin

Part #792049

Replaced by #792049

?
Manufacturer substitution
This part replaces 792049. Substitute parts can look different from the original.
This item is not returnable
$6.77
In Stock
Gasket 788033
#58

Transaxle diagram

Gasket

Part #788033

Replaced by #788033A

?
Manufacturer substitution
This part replaces 788033. Substitute parts can look different from the original.
This item is not returnable
$4.26
In Stock
Gear 778067
#14

Transaxle diagram

Gear

Part #778067

Replaced by #778132

?
Manufacturer substitution
This part replaces 778067. Substitute parts can look different from the original.
$28.44
In Stock
