Model # MUZ-FH15NA Official Mitsubishi air conditioner

Here are the diagrams and repair parts for Official Mitsubishi MUZ-FH15NA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Fuse E17250382
#NI

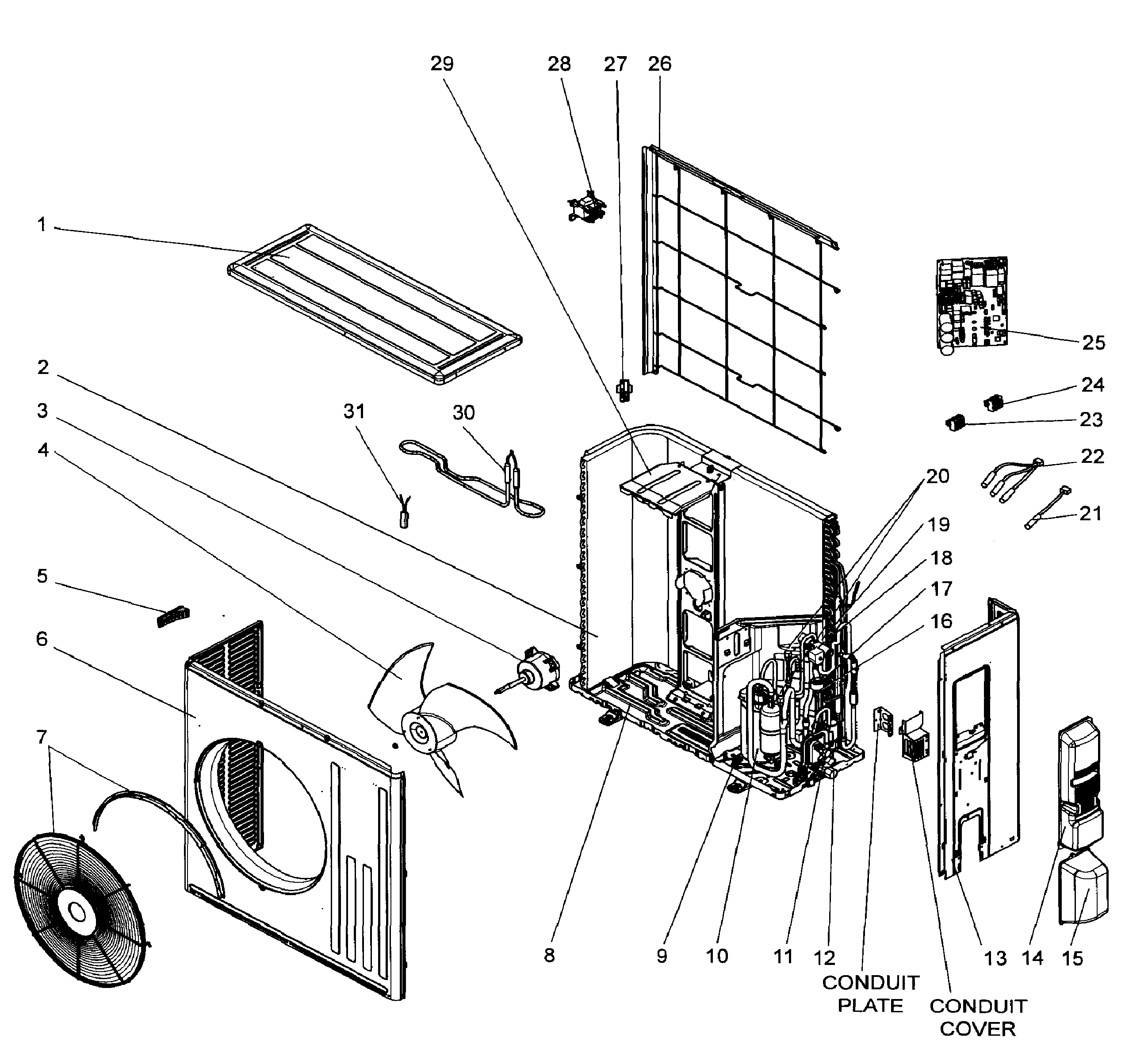

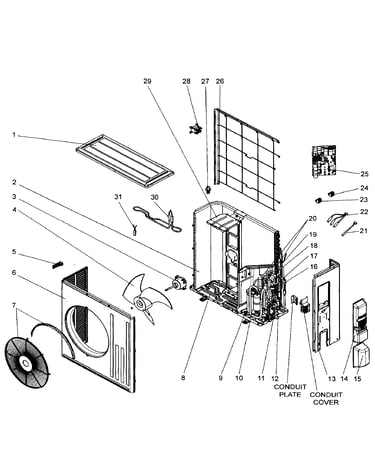

Cabinet parts diagram

Fuse

Part #E17250382

The manufacturer no longer makes this part, and there's no substitute part

Reactor E12F28337
#28

Cabinet parts diagram

Reactor

Part #E12F28337

The manufacturer no longer makes this part, and there's no substitute part

Capl Tube E12527936
#NI

Cabinet parts diagram

Capl tube

Part #E12527936

The manufacturer no longer makes this part, and there's no substitute part

Compressor E12C34506
#9

Cabinet parts diagram

Compressor

Part #E12C34506

The manufacturer no longer makes this part, and there's no substitute part

Valve Cove E12F28650
#15

Cabinet parts diagram

Valve cove

Part #E12F28650

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor E12F76301
#3

Cabinet parts diagram

Fan motor

Part #E12F76301

The manufacturer no longer makes this part, and there's no substitute part

4-way Valve E12A56961
#19

Cabinet parts diagram

4-way valve

Part #E12A56961

The manufacturer no longer makes this part, and there's no substitute part

Expansion E12851640
#16

Cabinet parts diagram

Expansion

Part #E12851640

The manufacturer no longer makes this part, and there's no substitute part

Handle E12817009
#5

Cabinet parts diagram

Handle

Part #E12817009

The manufacturer no longer makes this part, and there's no substitute part

Propeller E12F28501
#4

Cabinet parts diagram

Propeller

Part #E12F28501

The manufacturer no longer makes this part, and there's no substitute part
