Samsung
Bottom-Mount Refrigerator

Model # RF26VACPN/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF26VACPN-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

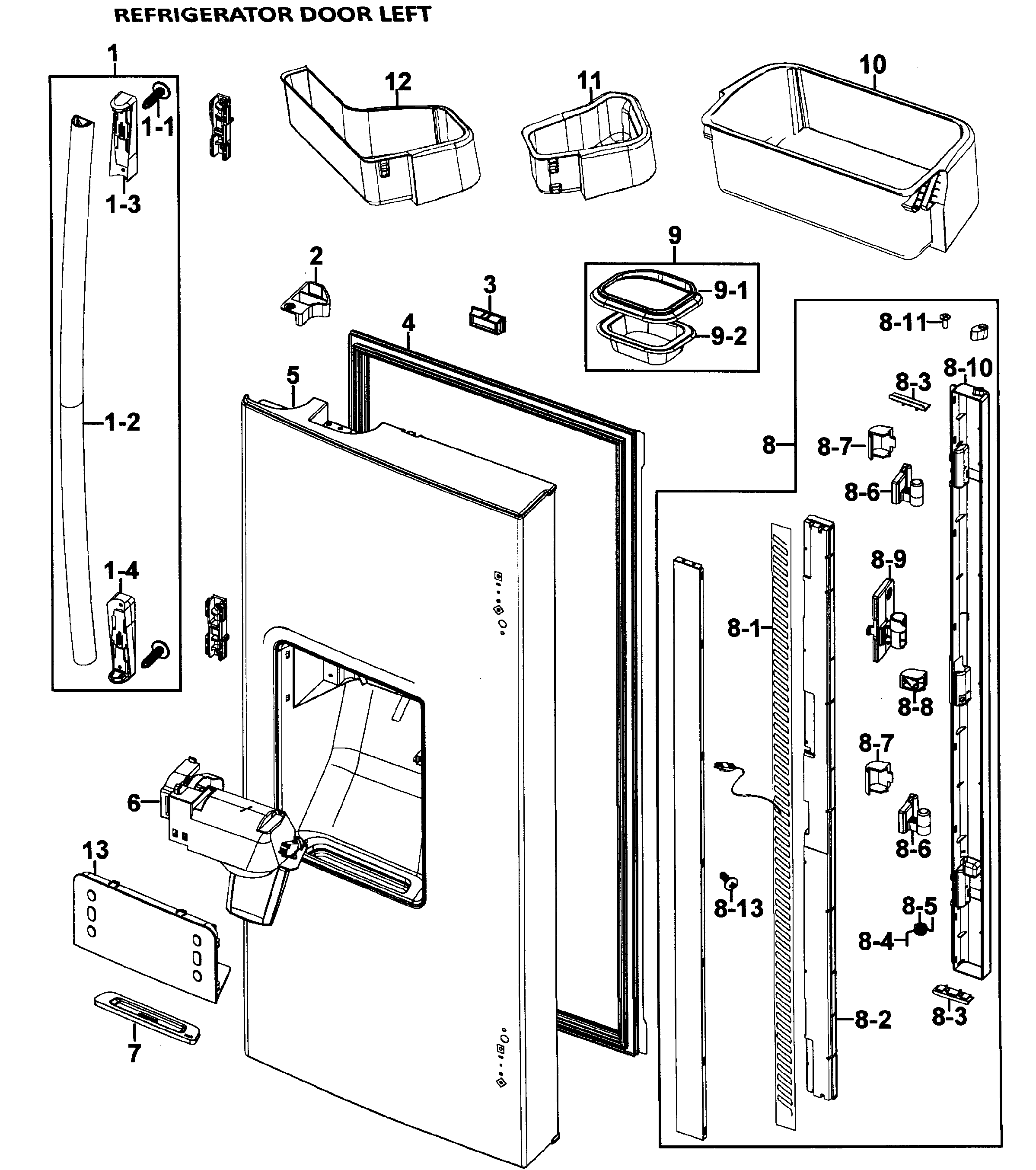

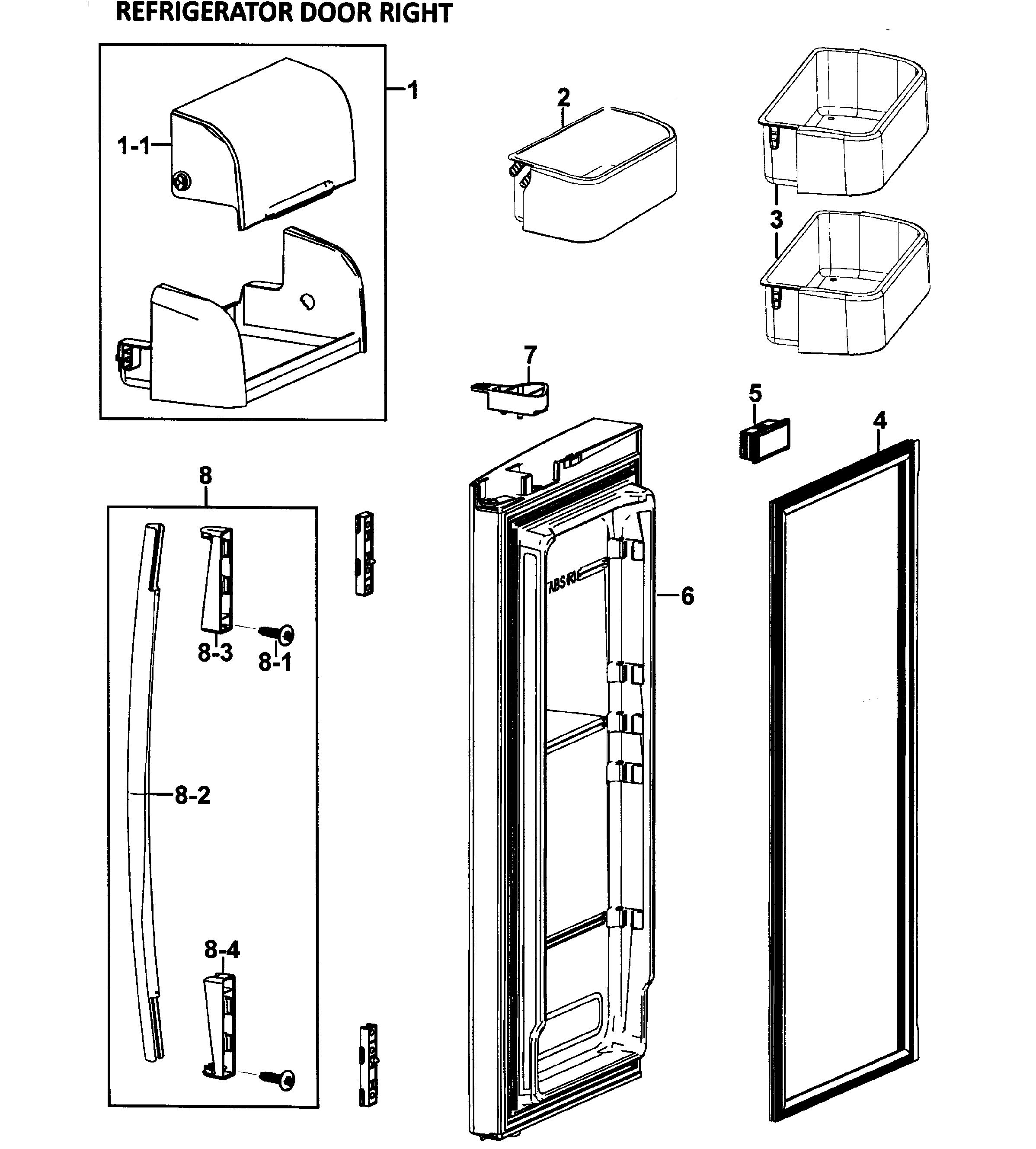

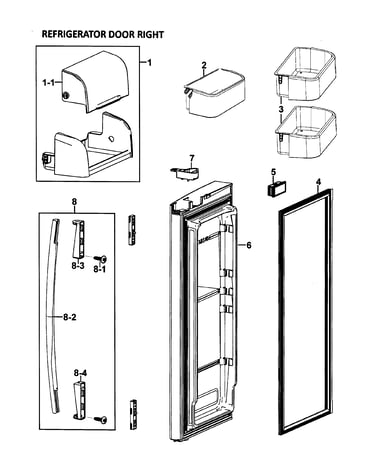

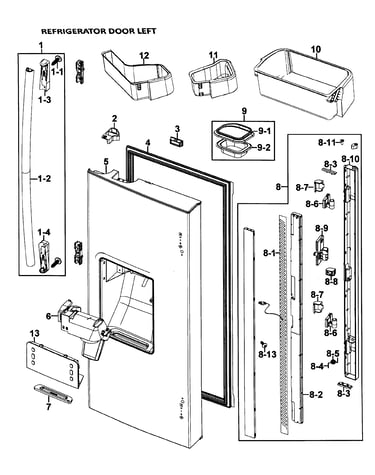

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |
Refrigerator Evaporator Fan Motor (replaces Da31-00146c) DA31-00146H
Refrigerator evaporator fan motor (replaces da31-00146c)

Part #DA31-00146H

BEST SELLER
$94.15 |
8% OFF Was : $102.34
In Stock
Refrigerator Shelf Support End Cap DA61-04809A
#16-6

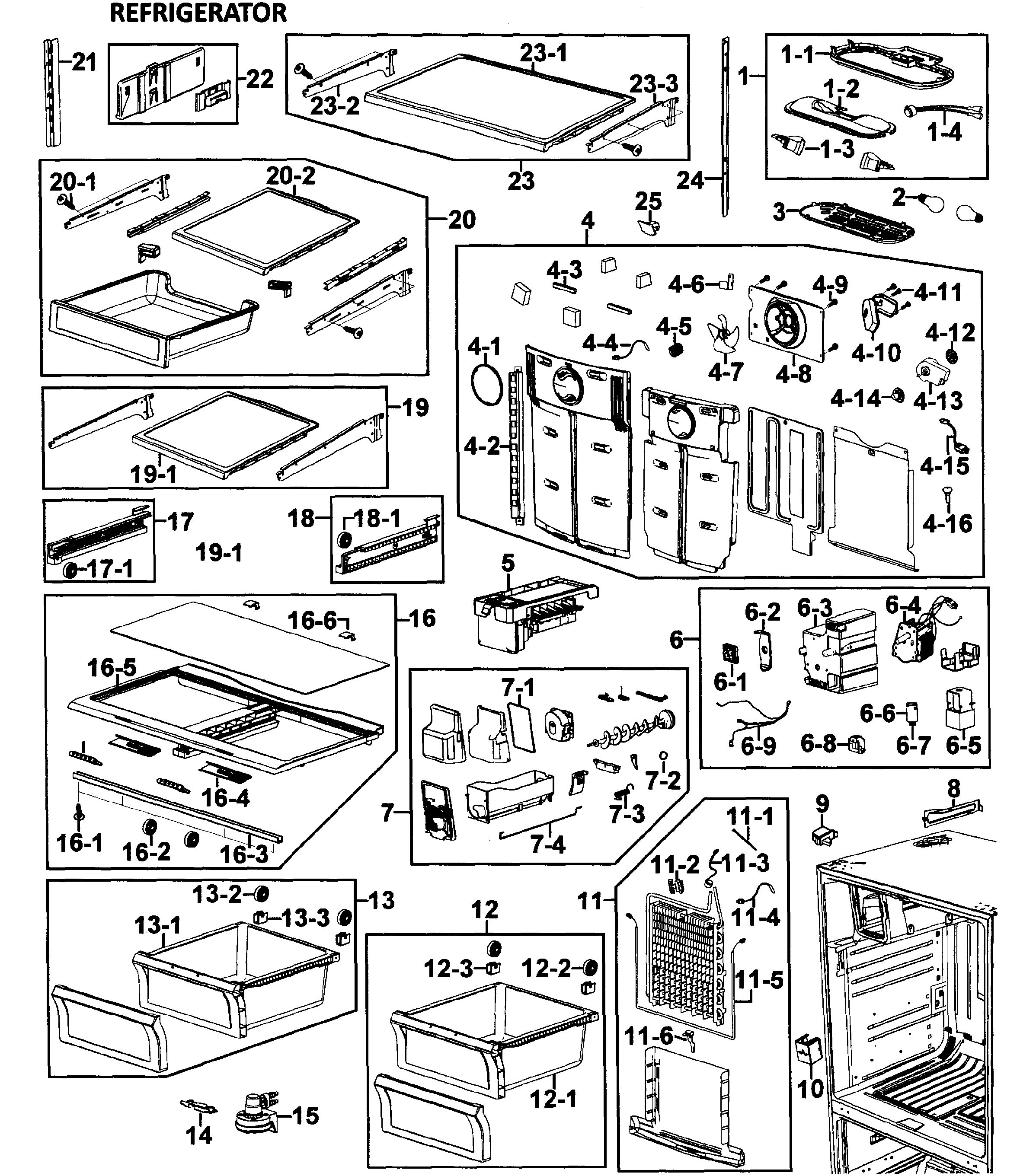

Refrigerator diagram

Refrigerator shelf support end cap

Part #DA61-04809A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Refrigerator Door Gasket (replaces Da97-07191a) DA63-06542A
Refrigerator door gasket (replaces da97-07191a)

Part #DA63-06542A

BEST SELLER
$104.78 |
10% OFF Phone Price : $116.78
In Stock
Refrigerator Water Filter Head (replaces Da97-06317e) DA97-06317A
#15

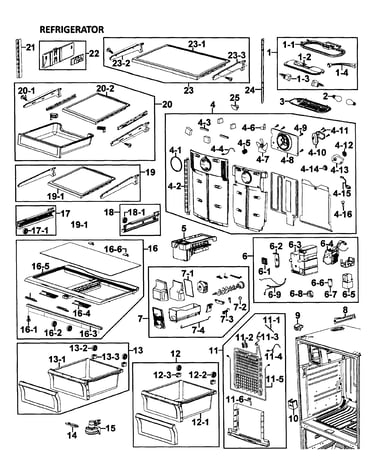

Refrigerator diagram

Refrigerator water filter head (replaces da97-06317e)

Part #DA97-06317A

BEST SELLER
$92.21 |
6% OFF Phone Price : $98.21
In Stock
Refrigerator Gasket Assembly DA97-07192B
#12

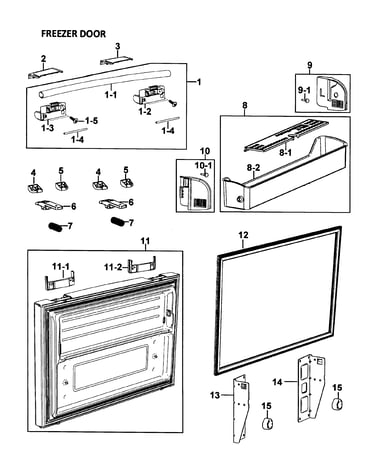

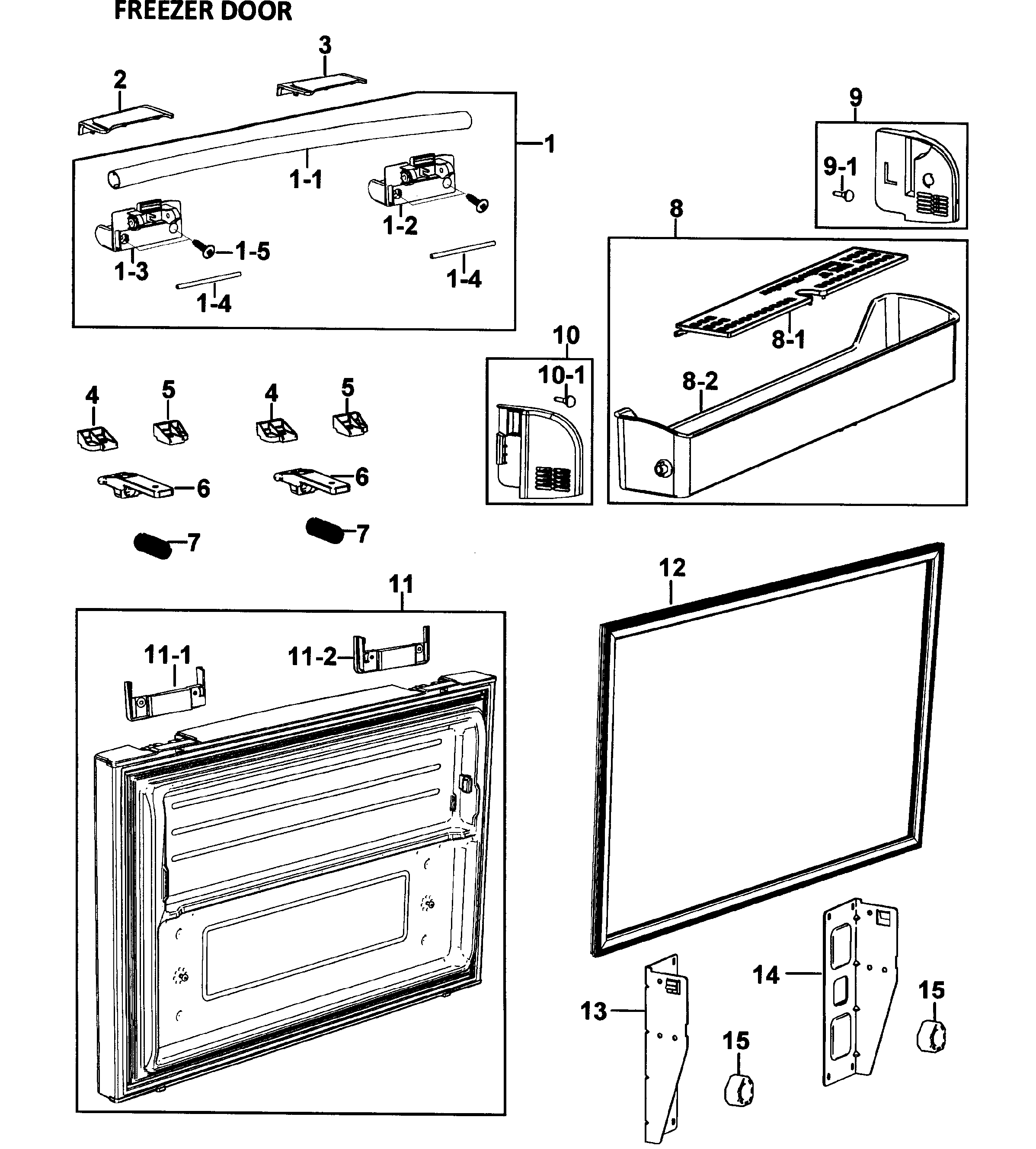

Freezer door diagram

Refrigerator gasket assembly

Part #DA97-07192B

Replaced by #DA63-06541E

?
Manufacturer substitution
This part replaces DA97-07192B. Substitute parts can look different from the original.
BEST SELLER
$101.60 |
11% OFF Phone Price : $113.60
In Stock
Kenmore Pro Refrigerator Water Inlet Valve (replaces Da97-06642b) DA62-00914B
#21

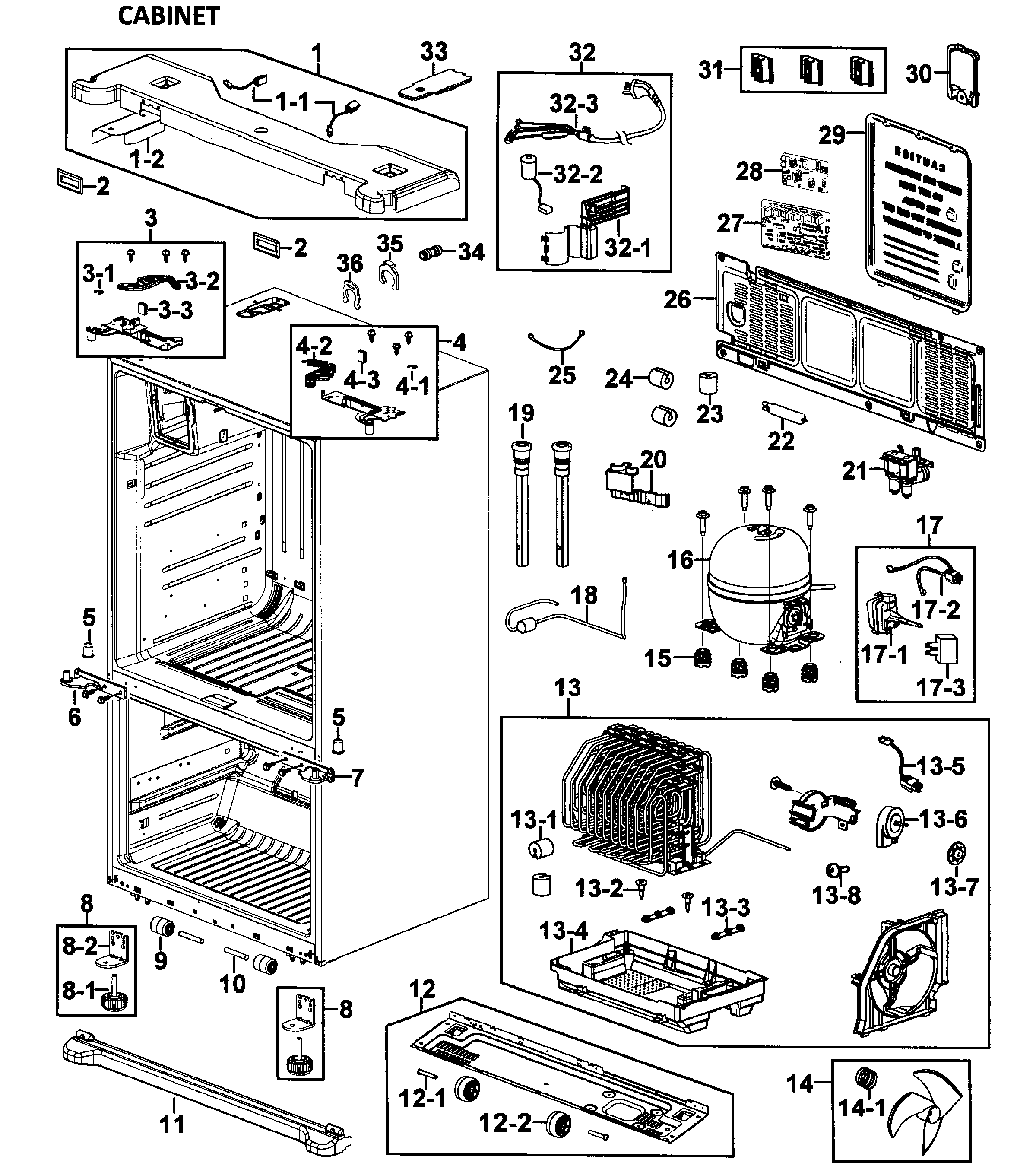

Cabinet assy diagram

Kenmore pro refrigerator water inlet valve (replaces da97-06642b)

Part #DA62-00914B

BEST SELLER
$93.07 |
6% OFF Was : $99.01
In Stock
Refrigerator Freezer Evaporator Fan Motor (replaces Da31-00146g, W10126745, W10126746) DA31-00146E
#1713

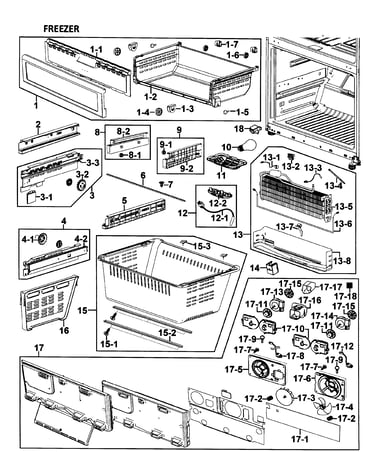

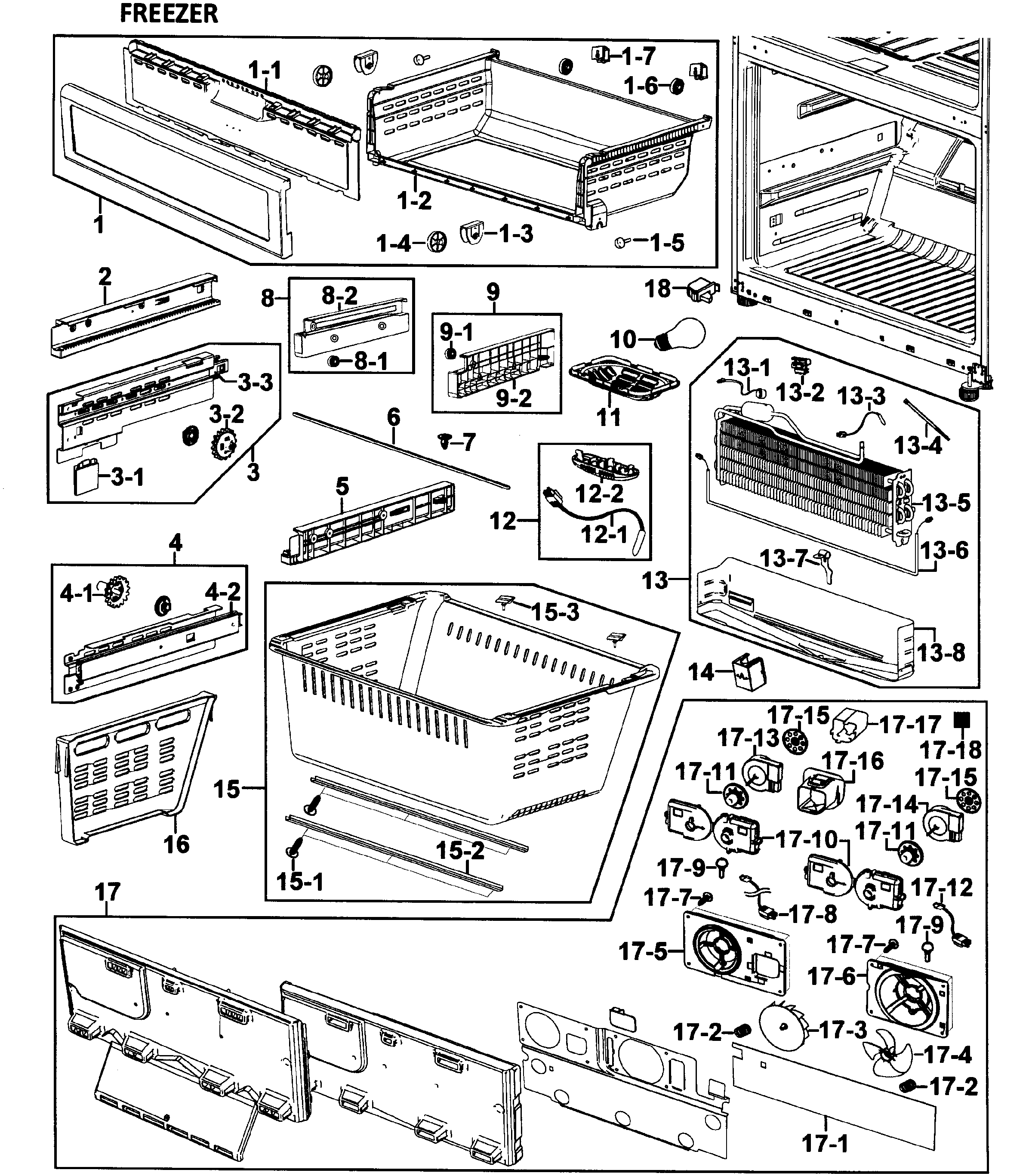

Freezer diagram

Refrigerator freezer evaporator fan motor (replaces da31-00146g, w10126745, w10126746)

Part #DA31-00146E

BEST SELLER
$99.11 |
11% OFF Phone Price : $111.11
In Stock
Refrigerator Defrost Sensor DA32-00027B
Refrigerator defrost sensor

Part #DA32-00027B

BEST SELLER
$30.56 |
16% OFF Phone Price : $36.56
In Stock
Refrigerator Cabinet Drain Tube Assembly DA97-04049H
#19

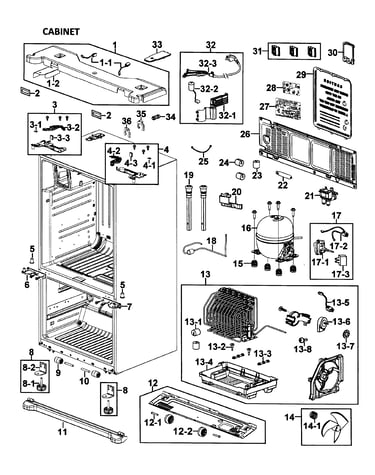

Cabinet assy diagram

Refrigerator cabinet drain tube assembly

Part #DA97-04049H

$19.34
In Stock
Refrigerator Filter Dryer DA62-01469H
#22

Cabinet assy diagram

Refrigerator filter dryer

Part #DA62-01469H

$31.97 |
16% OFF Phone Price : $37.97
In Stock
