Dishwasher

Model # SHXM98W75N/01 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHXM98W75N/01 dishwasher, as well as links to manuals and error code tables, if available.

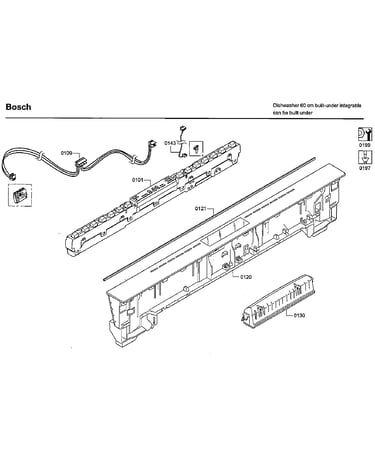

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
SHXM98W75N/01 Dishwasher
Dishwasher Circulation Pump With Heater 12008381
#450

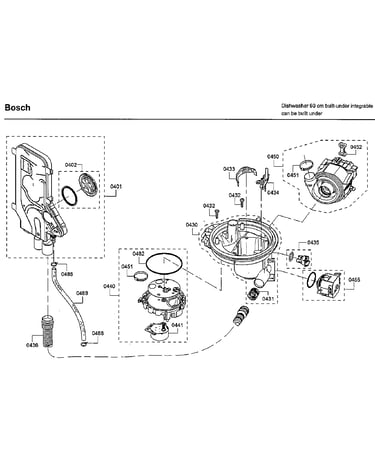

Pump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$96.07
11% OFF Phone Price : $108.07
In Stock
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#544

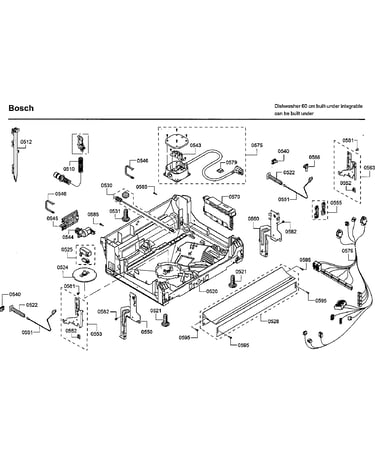

Base diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$35.20
15% OFF Phone Price : $41.20
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#331

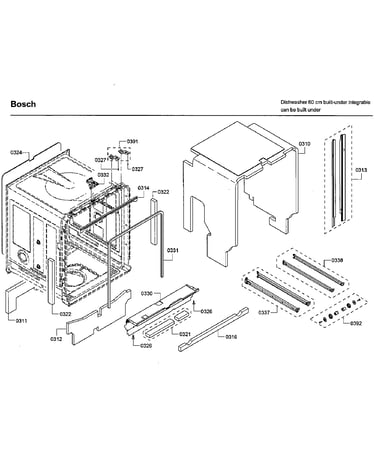

Frame diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$30.97
16% OFF Phone Price : $36.97
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#440

Pump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$51.58
10% OFF Phone Price : $57.58
In Stock
Dishwasher Detergent Dispenser Assembly 12008380
#201

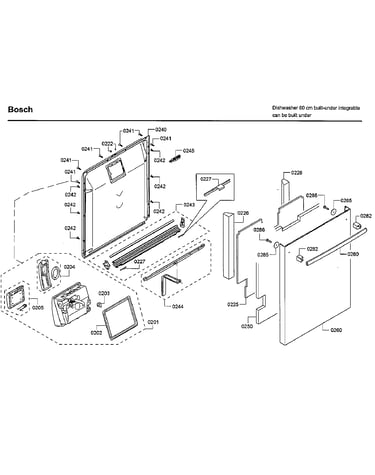

Door diagram

Dishwasher detergent dispenser assembly

Part #12008380

BEST SELLER
$50.07
11% OFF Phone Price : $56.07
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

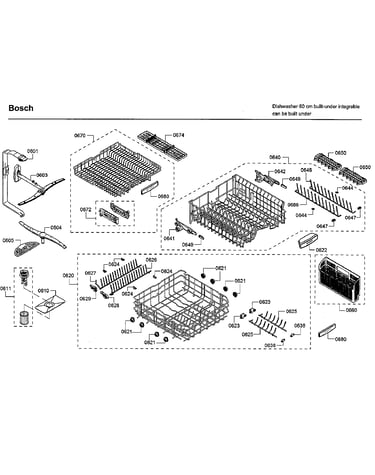

Rack asy diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$35.05
15% OFF Phone Price : $41.05
In Stock
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#525

Base diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

BEST SELLER
$12.84
13% OFF Phone Price : $14.84
In Stock
Dishwasher Drain Hose (replaces 744881) 00744881
#510

Base diagram

Dishwasher drain hose (replaces 744881)

Part #00744881

BEST SELLER
This item is not returnable
$26.64
18% OFF Phone Price : $32.64
In Stock
Dishwasher Turbidity Sensor (replaces 00611567, 00611568, 611323) 00611323
#435

Pump diagram

Dishwasher turbidity sensor (replaces 00611567, 00611568, 611323)

Part #00611323

BEST SELLER
$38.75
13% OFF Phone Price : $44.75
In Stock
Dishwasher Silverware Basket (replaces 704855) 00704855
#660

Rack asy diagram

Dishwasher silverware basket (replaces 704855)

Part #00704855

$44.59
12% OFF Phone Price : $50.59
In Stock
