Model # 867734851 Official Kenmore gas-fired direct vent wall furnace
Here are the diagrams and repair parts for Official Kenmore 867734851 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867734851 Gas-Fired Direct Vent Wall Furnace
#15

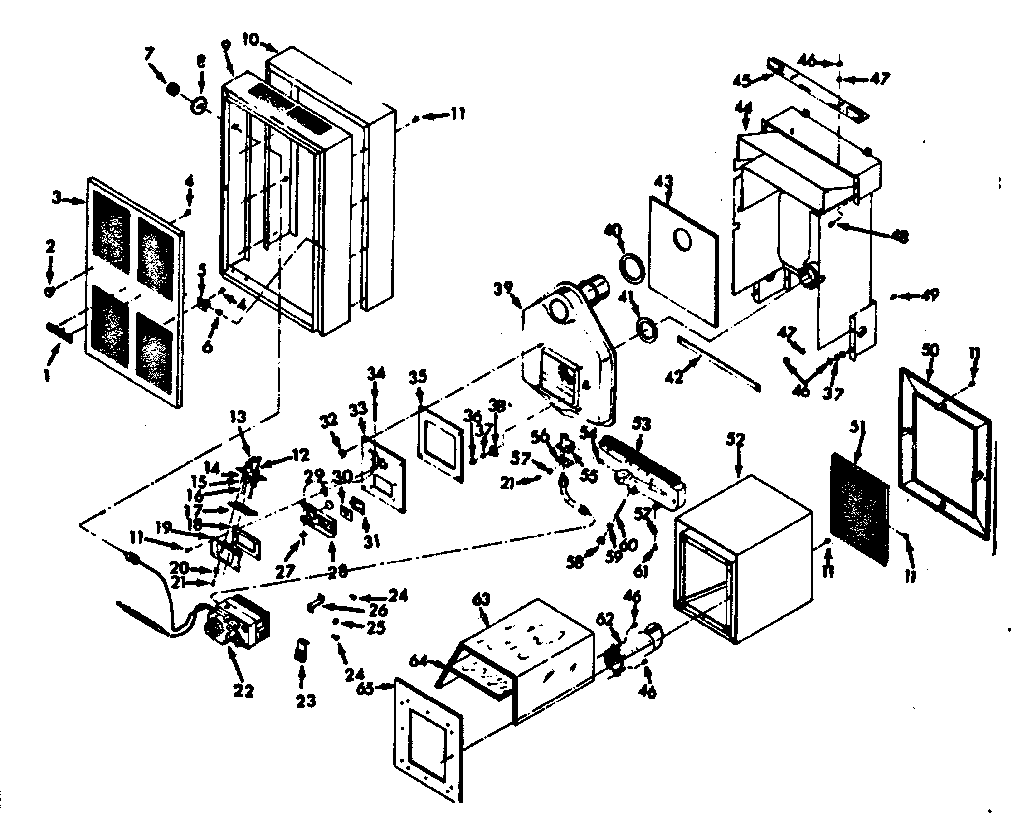

Furnace assembly diagram
Ferrule nut
Part #29441
Replaced by #100108370
?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
#22A
Furnace assembly diagram
Gas valve
Part #503122
Replaced by #700-205
?
Manufacturer substitution
This part replaces 503122. Substitute parts can look different from the original.
$856.06 |
$12.00 OFF Phone Price : $868.06
In Stock
#16
Furnace assembly diagram
Pilot tubing
Part #85535
Replaced by #100108370
?
Manufacturer substitution
This part replaces 85535. Substitute parts can look different from the original.
$36.67
In Stock
#12A
Furnace assembly diagram
Thermocouple
Part #503076
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 503076. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
#12B
Furnace assembly diagram
Thermocouple
Part #503255
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 503255. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
#NI
All parts diagram
Guarantee
Part #F642-18169A
The manufacturer no longer makes this part, and there's no substitute part
#13A
Furnace assembly diagram
Pilot burner
Part #503264
The manufacturer no longer makes this part, and there's no substitute part
#13B
Furnace assembly diagram
Pilot burner
Part #500822
The manufacturer no longer makes this part, and there's no substitute part
#22B
Furnace assembly diagram
Control
Part #503340
The manufacturer no longer makes this part, and there's no substitute part
#14B
Furnace assembly diagram
Orifice
Part #39854
The manufacturer no longer makes this part, and there's no substitute part
