Model # LP3250-6000-0 Official Generac generator

Here are the diagrams and repair parts for Official Generac LP3250-6000-0 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

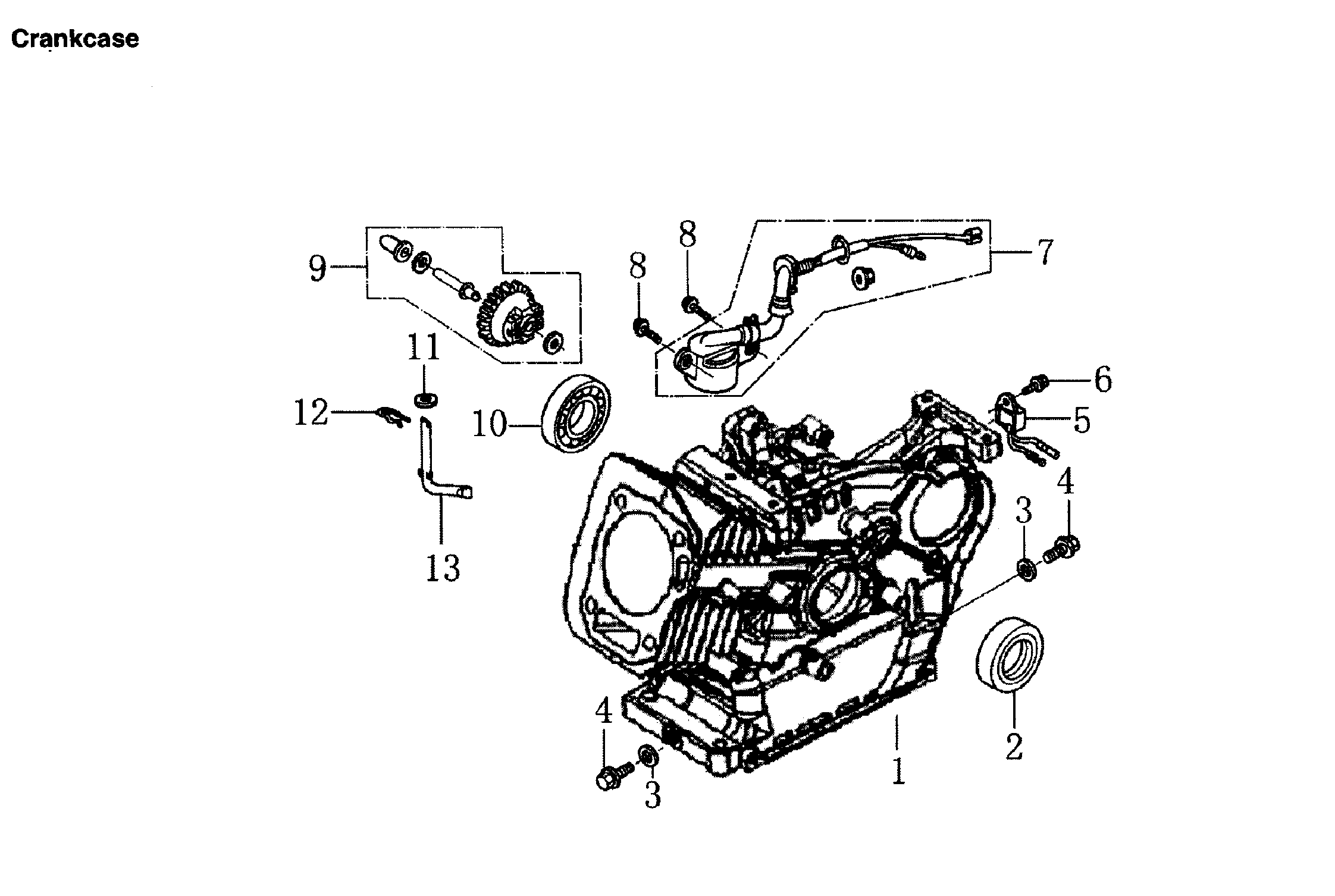

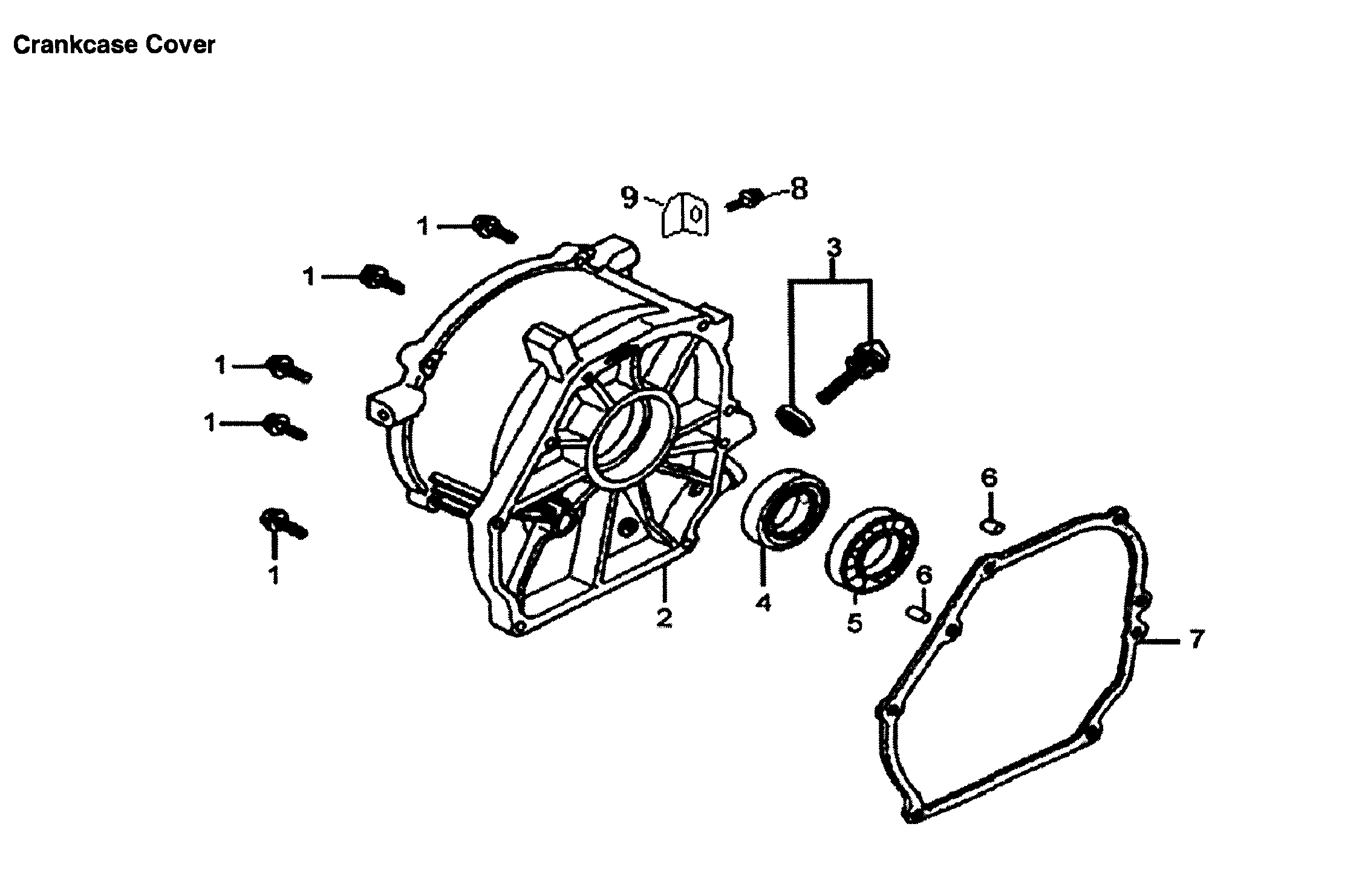

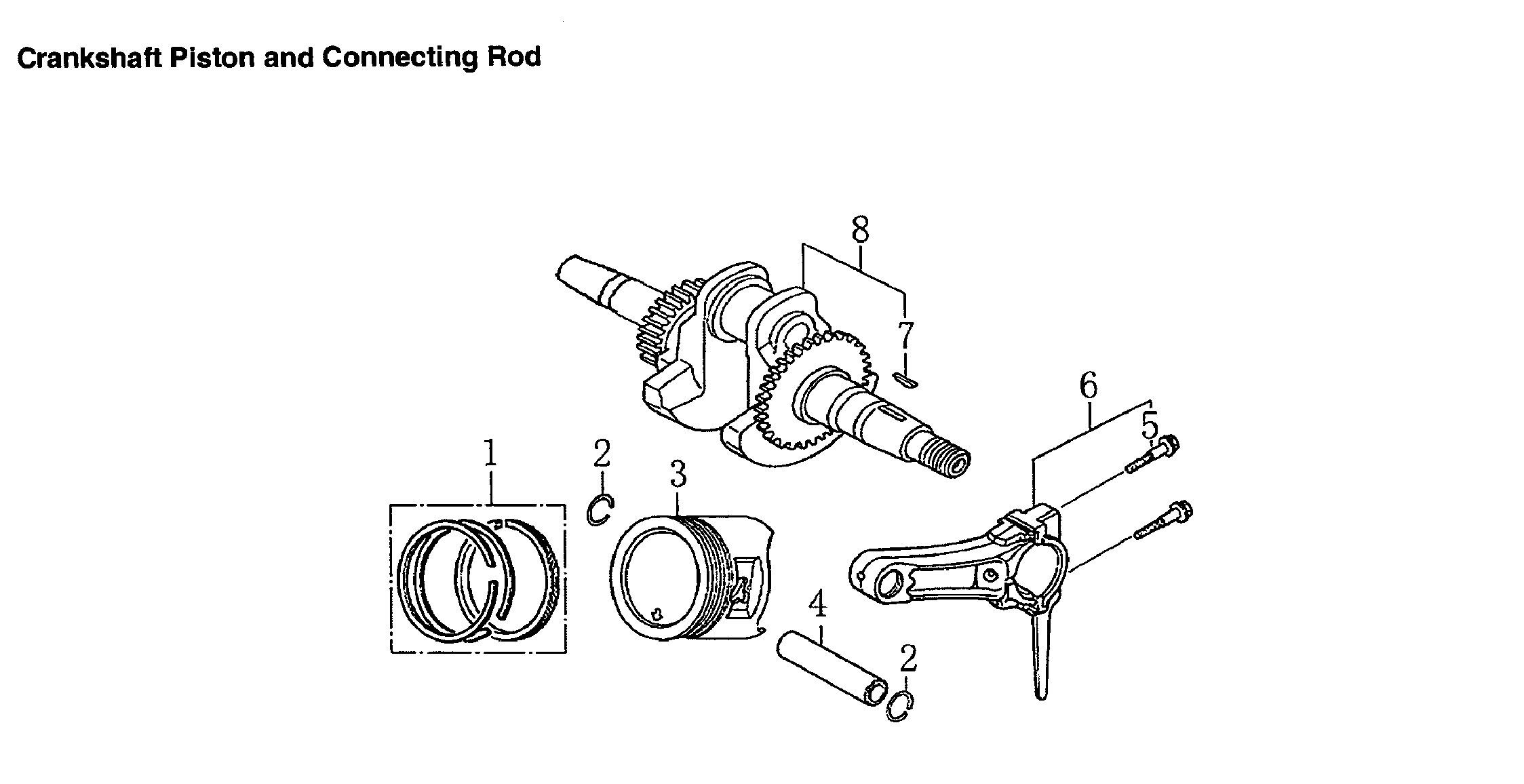

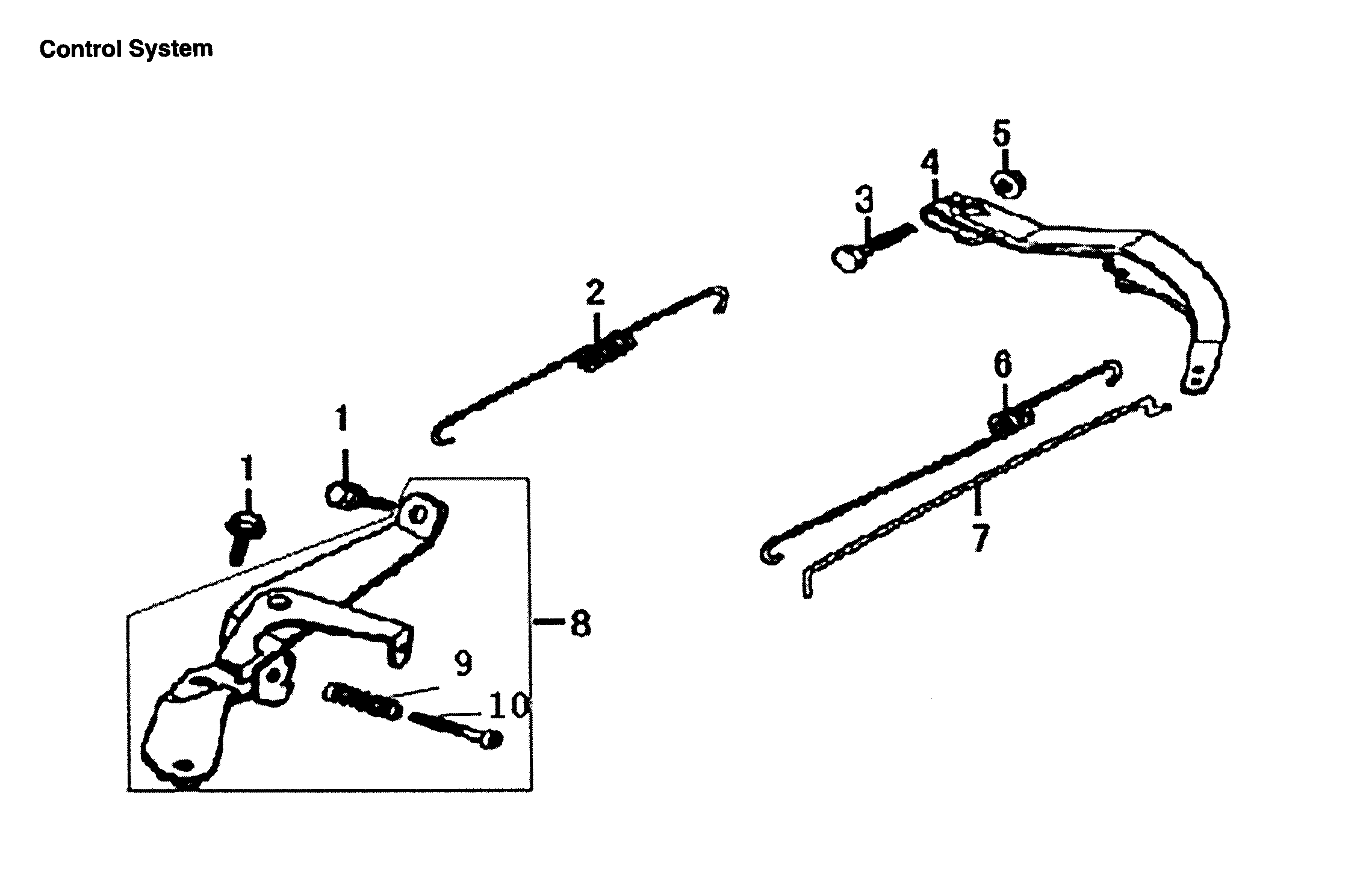

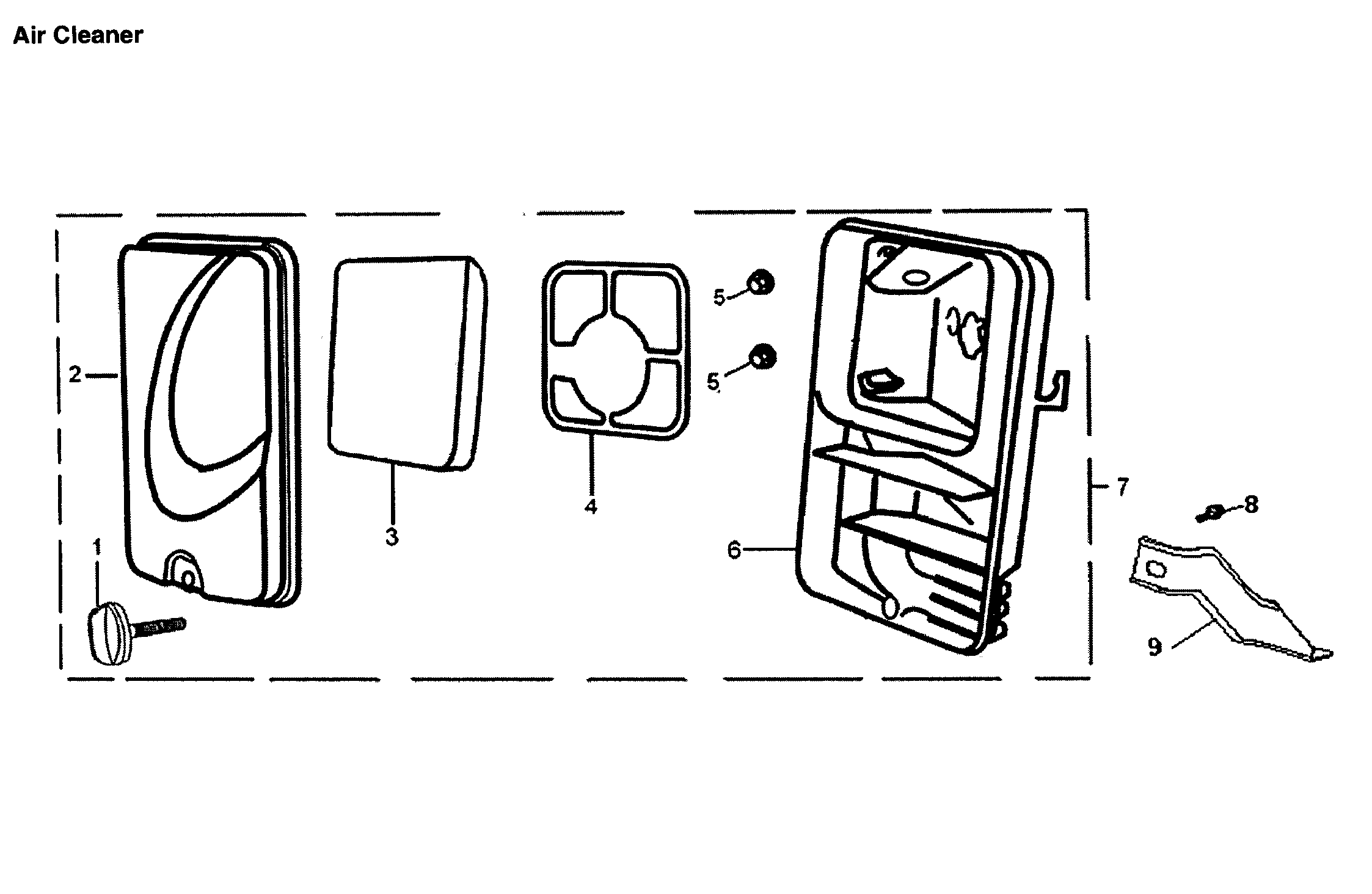

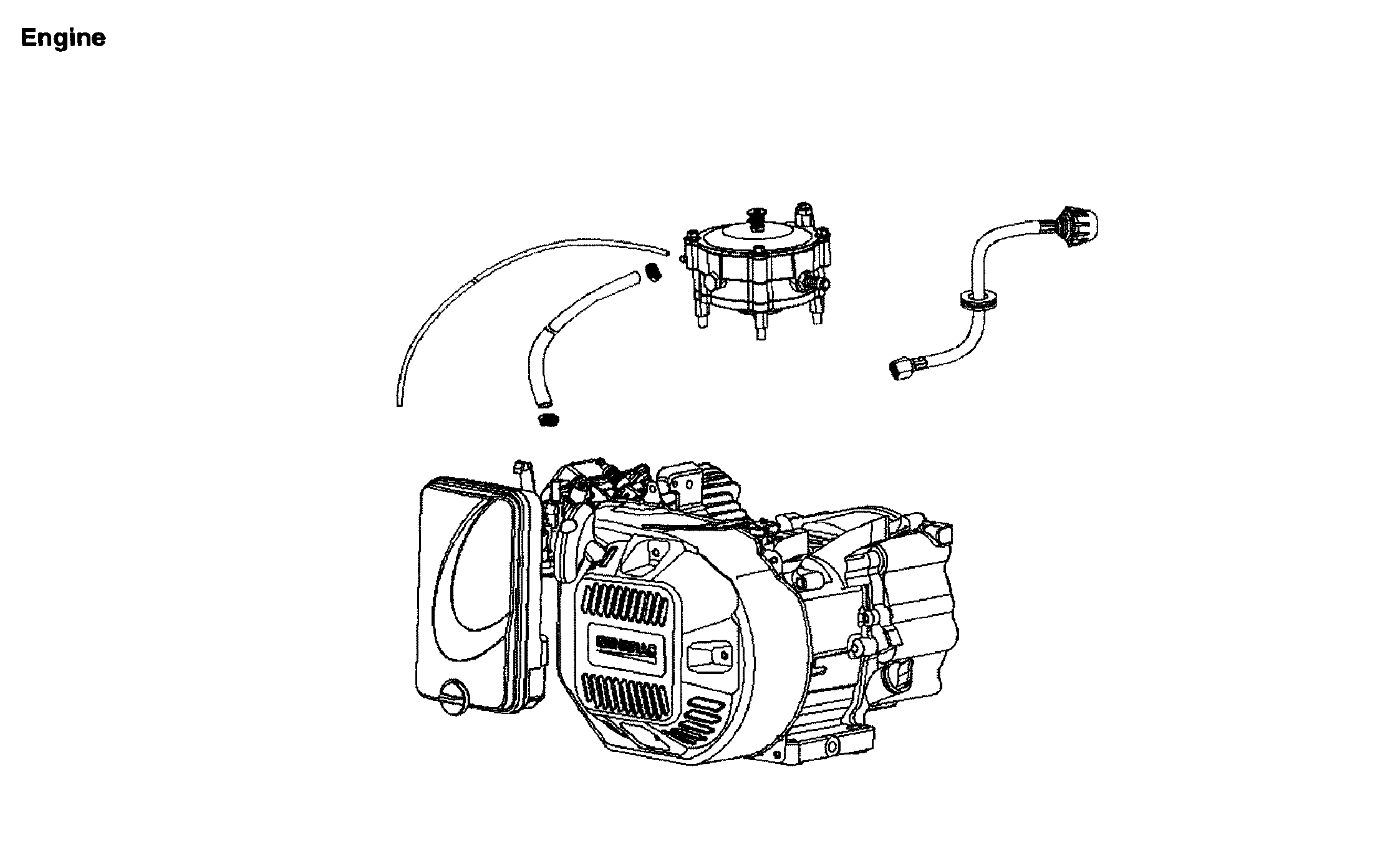

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |

Generator Receptacle, 20-amp, 120-volt 0D4968
#70

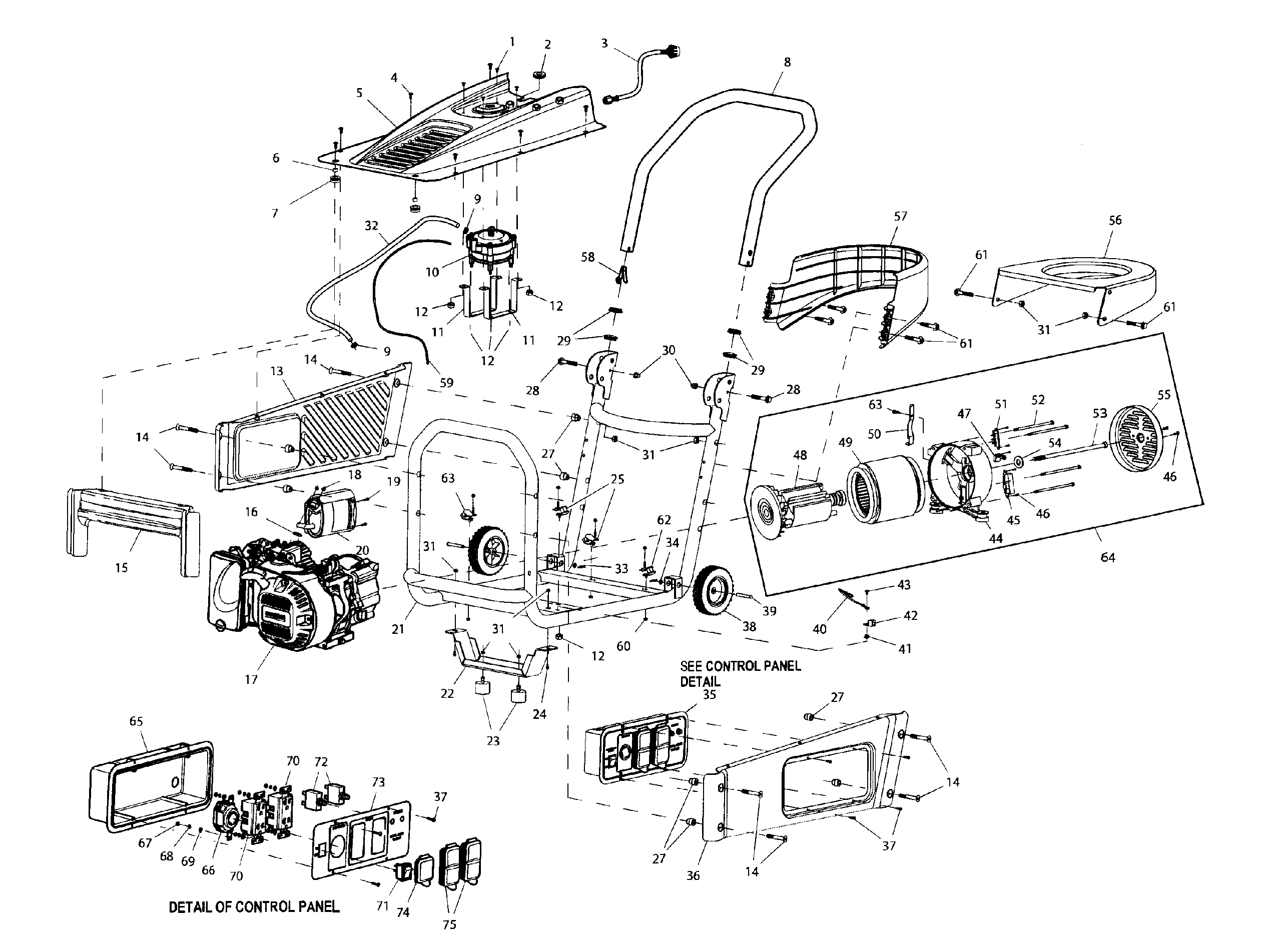

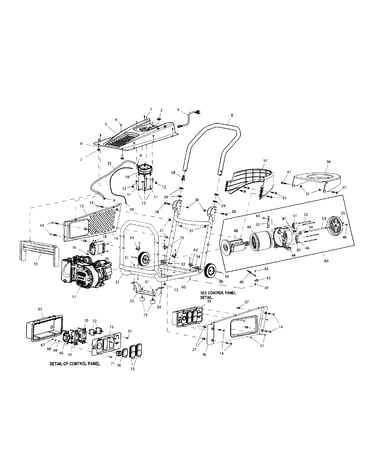

Frame assy diagram

Generator receptacle, 20-amp, 120-volt

Part #0D4968

This item is not returnable
In Stock
Generator Carburetor Gasket 0J35220127
#6

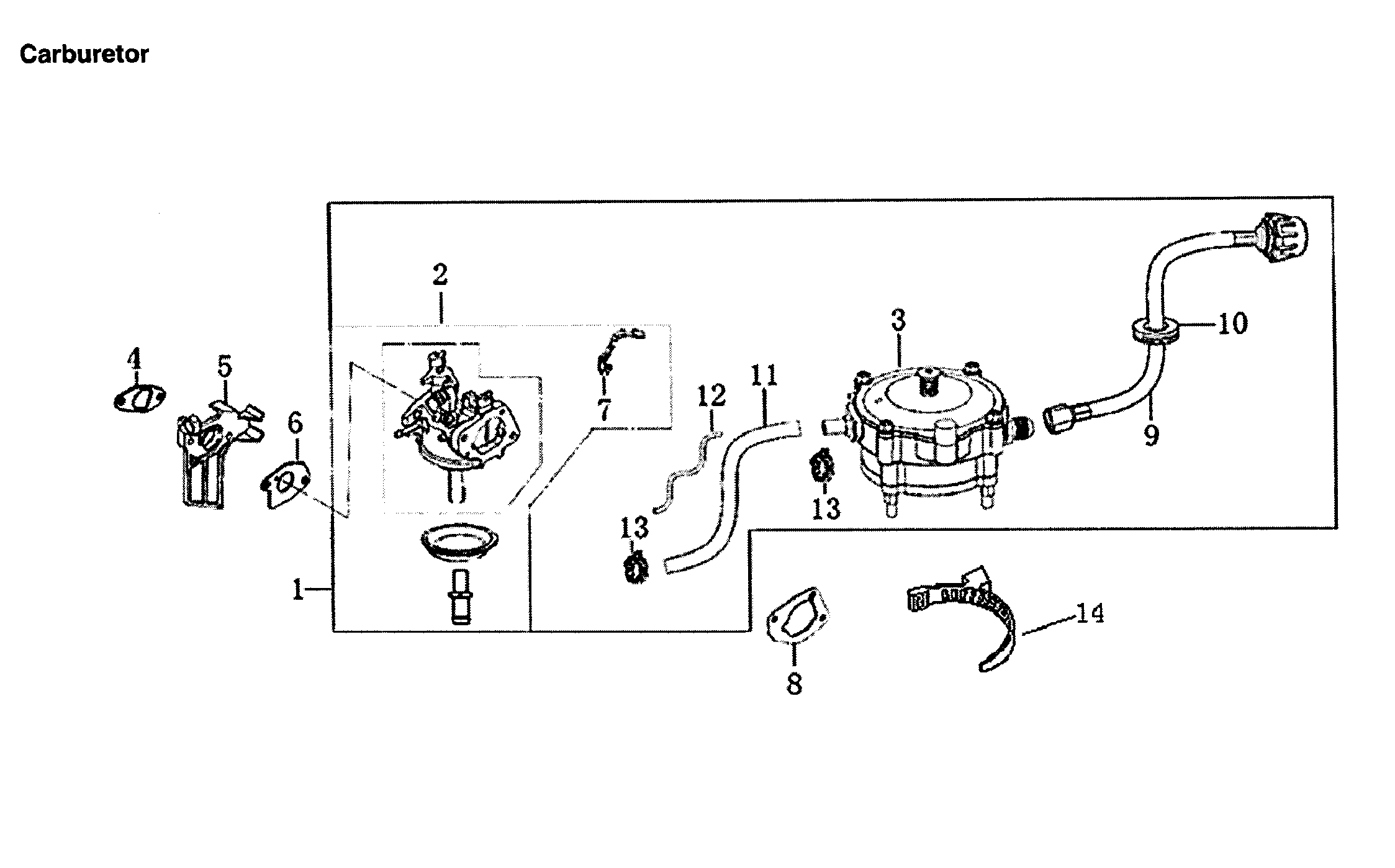

Carburetor diagram

Generator carburetor gasket

Part #0J35220127

This item is not returnable
In Stock
Generator Engine Ignition Coil 0J35220153
#5

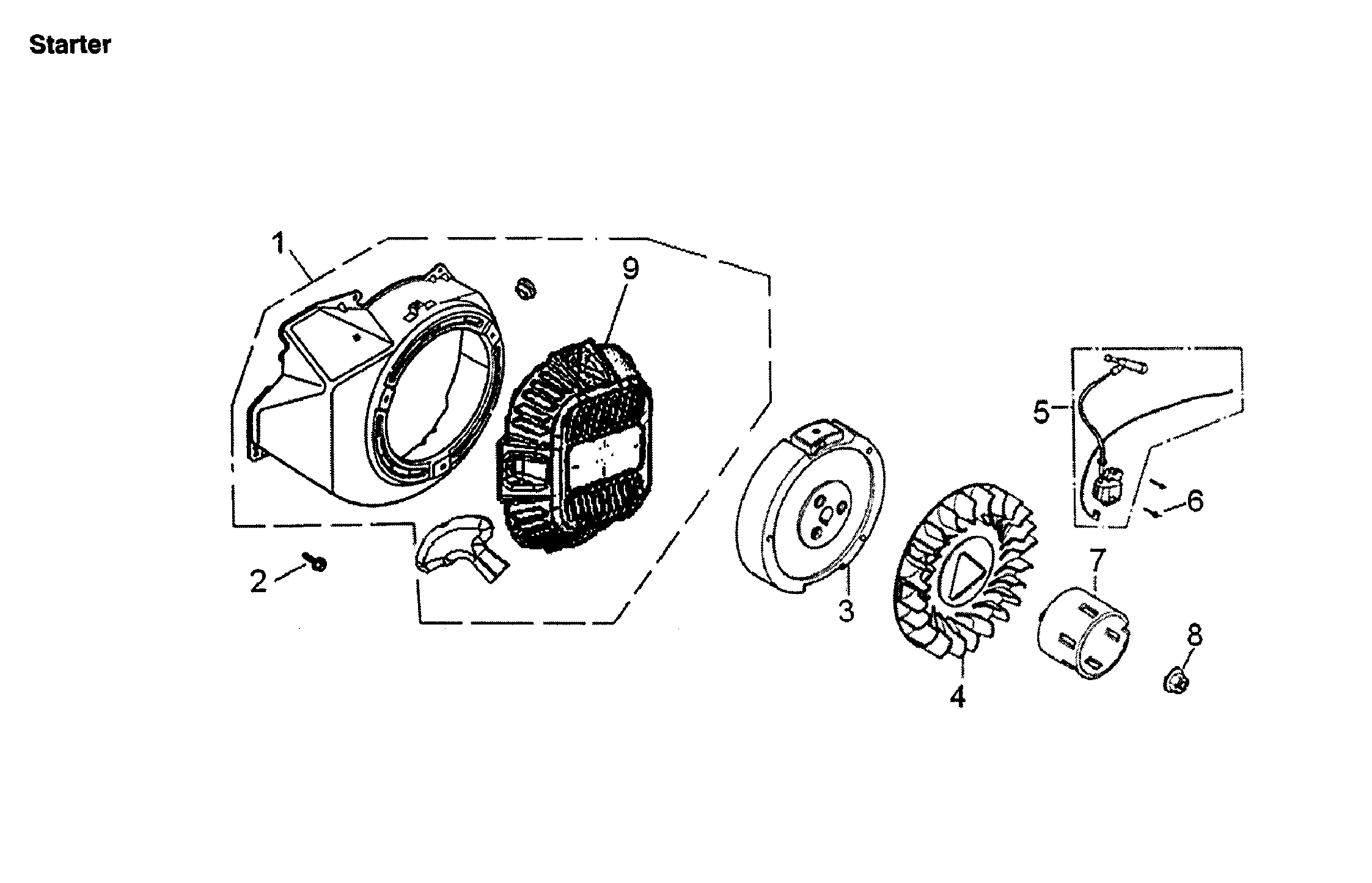

Starter diagram

Generator engine ignition coil

Part #0J35220153

In Stock
Seal Guide 0J35220119
#11

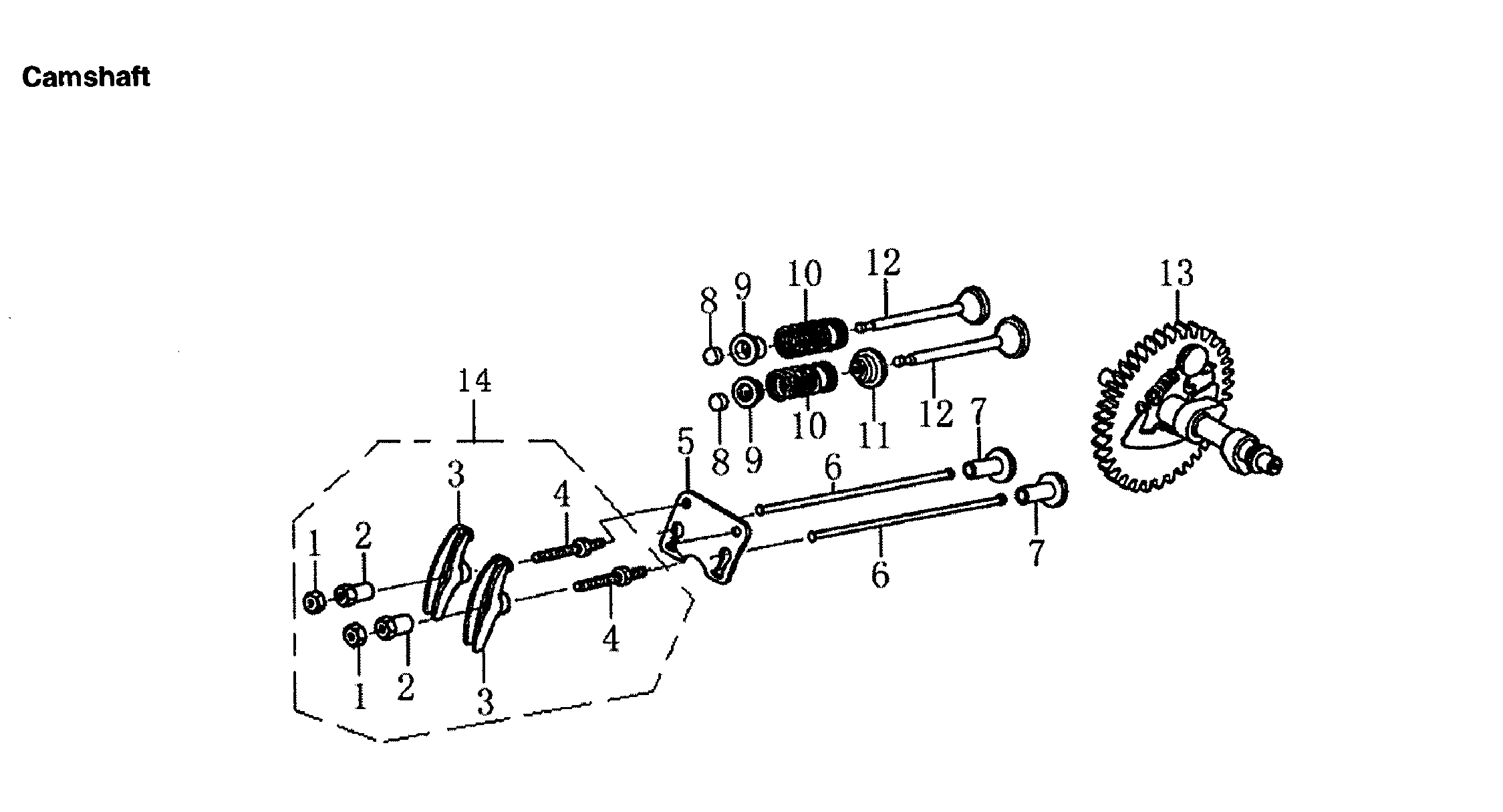

Camshaft diagram

Seal guide

Part #0J35220119

In Stock
Complete Head 0J47870110
#1

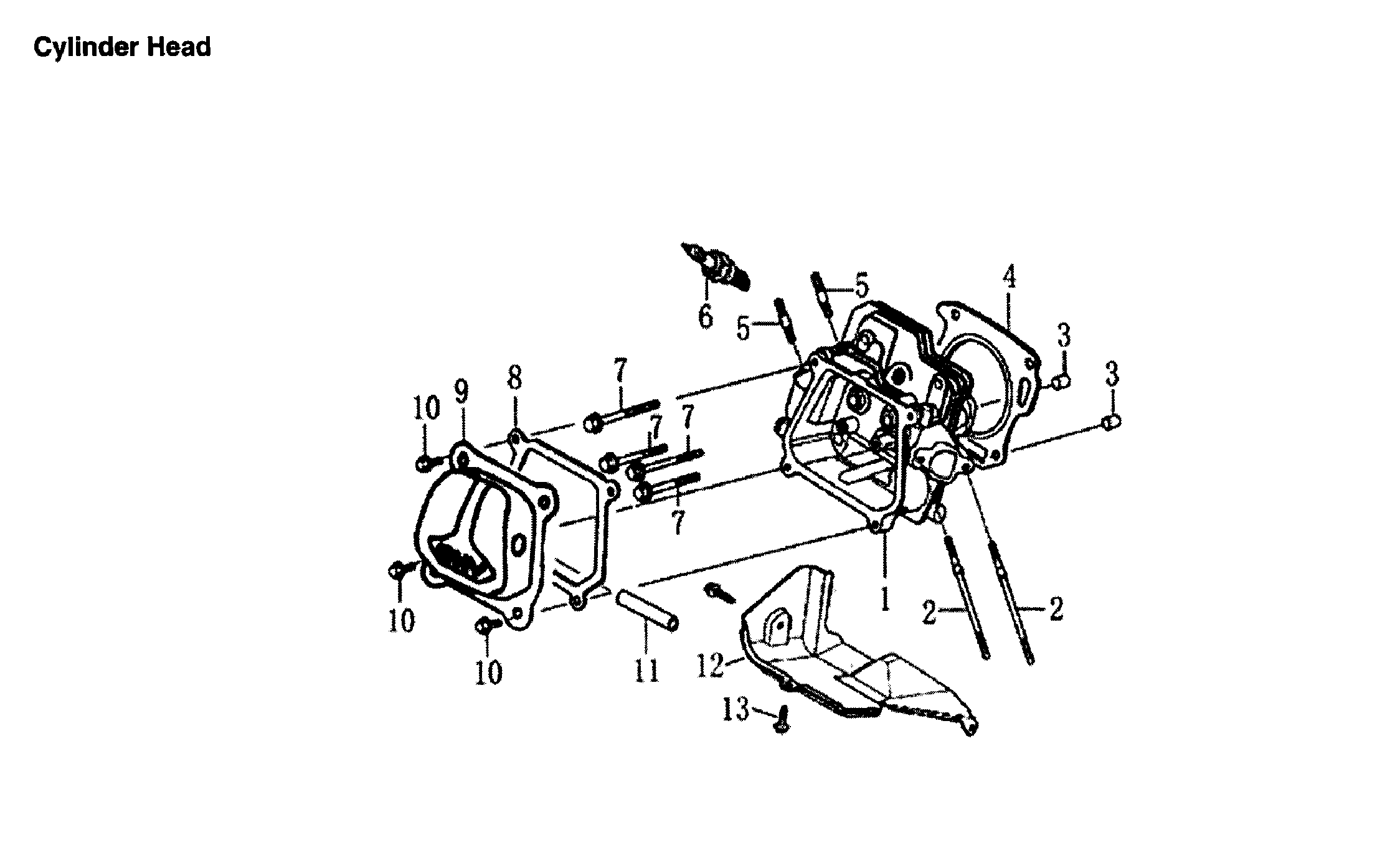

Cylinder head diagram

Complete head

Part #0J47870110

In Stock
Lever 0J47870137
#7

Carburetor diagram

Lever

Part #0J47870137

This item is not returnable
In Stock
Vibration Mount 0J2085D
#62

Frame assy diagram

Vibration mount

Part #0J2085D

In Stock
Lug 0J4534
#42

Frame assy diagram

Lug

Part #0J4534

In Stock
Plate 0J35230116
#5

Camshaft diagram

Plate

Part #0J35230116

This item is not returnable
In Stock
Control Panel 0J5113
#35

Frame assy diagram

Control panel

Part #0J5113

In Stock
