Model # HRE2950SCSA Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HRE2950SCSA electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Nipple (w/he 66001705
#22A

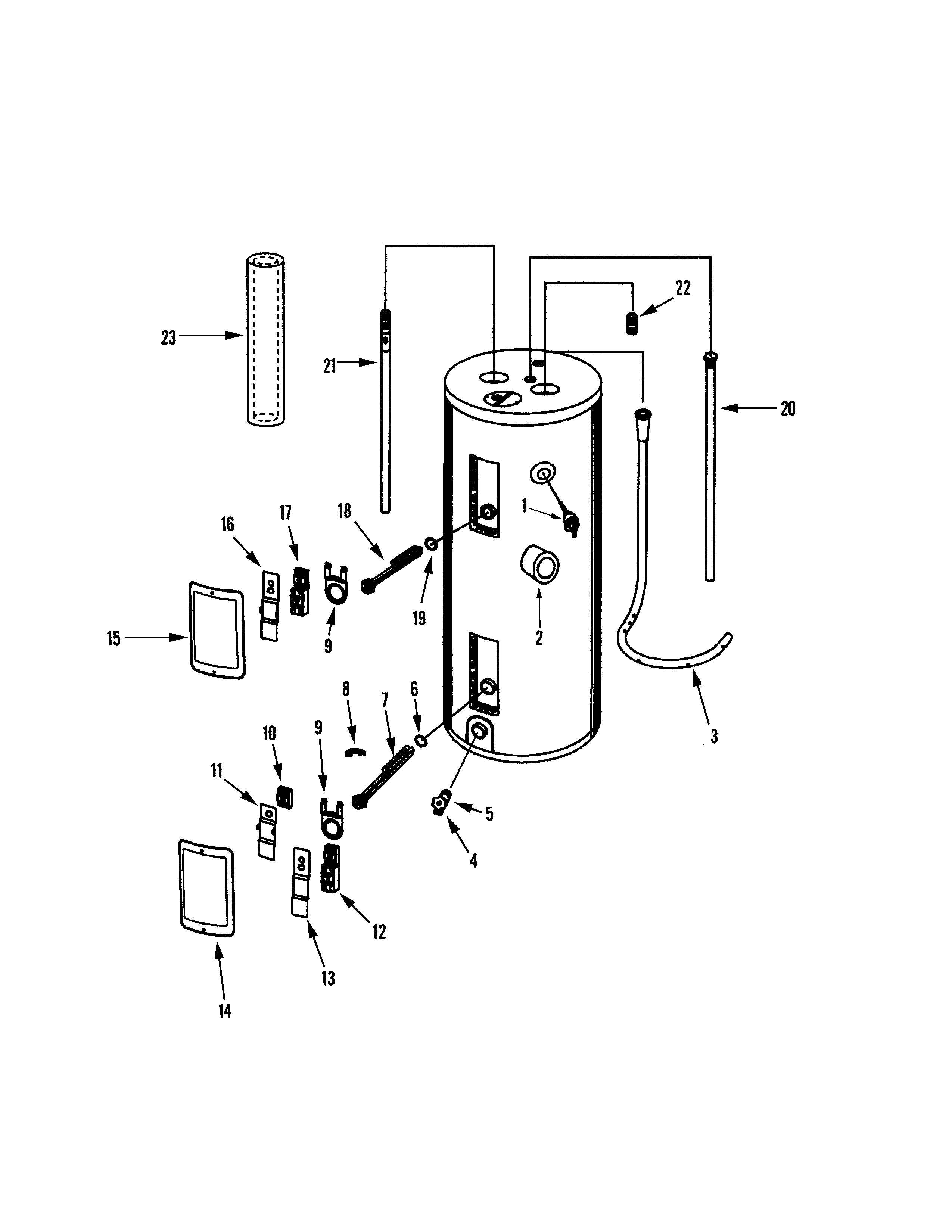

Body diagram

Nipple (w/he

Part #66001705

Replaced by #66001705

?
Manufacturer substitution
This part replaces 66001705. Substitute parts can look different from the original.
$21.67
In Stock
Buss Bar Kit 66001055
#8

Body diagram

Buss bar kit

Part #66001055

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 66001217
#21A

Body diagram

Anode rod

Part #66001217

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001064
#16

Body diagram

Terminal cover

Part #66001064

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 380 66001106
Elem htg 380

Part #66001106

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 550 66001107
#7A

Body diagram

Elem htg 550

Part #66001107

The manufacturer no longer makes this part, and there's no substitute part

Washer, Drai 66001021
#5

Body diagram

Washer, drai

Part #66001021

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 66001009
#17

Body diagram

Thermostat

Part #66001009

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001268
#11

Body diagram

Terminal cover

Part #66001268

The manufacturer no longer makes this part, and there's no substitute part

Bracket, The 66001054
#9

Body diagram

Bracket, the

Part #66001054

The manufacturer no longer makes this part, and there's no substitute part
