Kenmore
Central Air Conditioner

Model # 2538711414 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538711414 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Screw 516359
#7

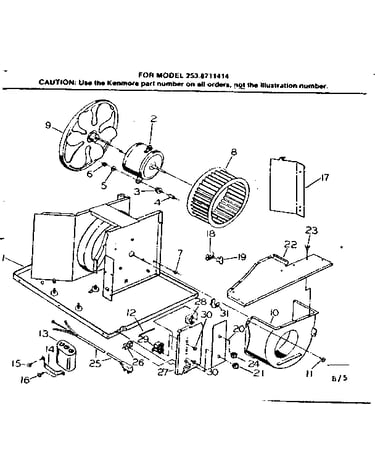

Electrical system & air handling parts diagram

Screw

Part #516359

Replaced by #154419403

?
Manufacturer substitution
This part replaces 516359. Substitute parts can look different from the original.
$12.69
In Stock
Screw 516353
#16

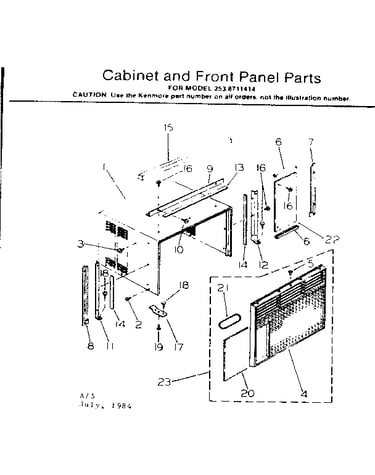

Cabinet and front panel parts diagram

Screw

Part #516353

Replaced by #154419403

?
Manufacturer substitution
This part replaces 516353. Substitute parts can look different from the original.
$12.69
In Stock
Room Air Conditioner Air Filter 9186
#20

Cabinet and front panel parts diagram

Room air conditioner air filter

Part #9186

The manufacturer no longer makes this part, and there's no substitute part

Switch 513352
#28

Electrical system & air handling parts diagram

Switch

Part #513352

The manufacturer no longer makes this part, and there's no substitute part

Seal 149187-12
#14

Cabinet and front panel parts diagram

Seal

Part #149187-12

The manufacturer no longer makes this part, and there's no substitute part

Member 151421-01
#11

Cabinet and front panel parts diagram

Member

Part #151421-01

The manufacturer no longer makes this part, and there's no substitute part

Compressor 511987-02
#2

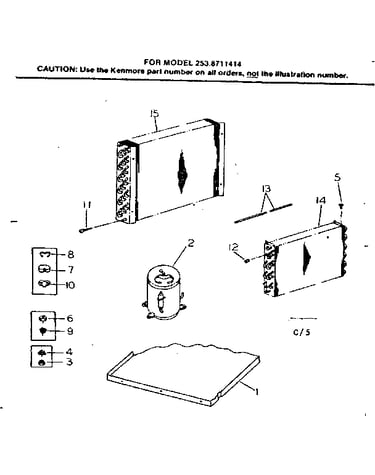

Unit parts diagram

Compressor

Part #511987-02

The manufacturer no longer makes this part, and there's no substitute part

Cover 511993
#7

Unit parts diagram

Cover

Part #511993

The manufacturer no longer makes this part, and there's no substitute part

Cord 99731
#21

Cabinet and front panel parts diagram

Cord

Part #99731

The manufacturer no longer makes this part, and there's no substitute part

Corner Pad 501435-01

#NI

All parts diagram

Corner pad

Part #501435-01

The manufacturer no longer makes this part, and there's no substitute part
