Model # 4481ATF-1 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4481ATF-1 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

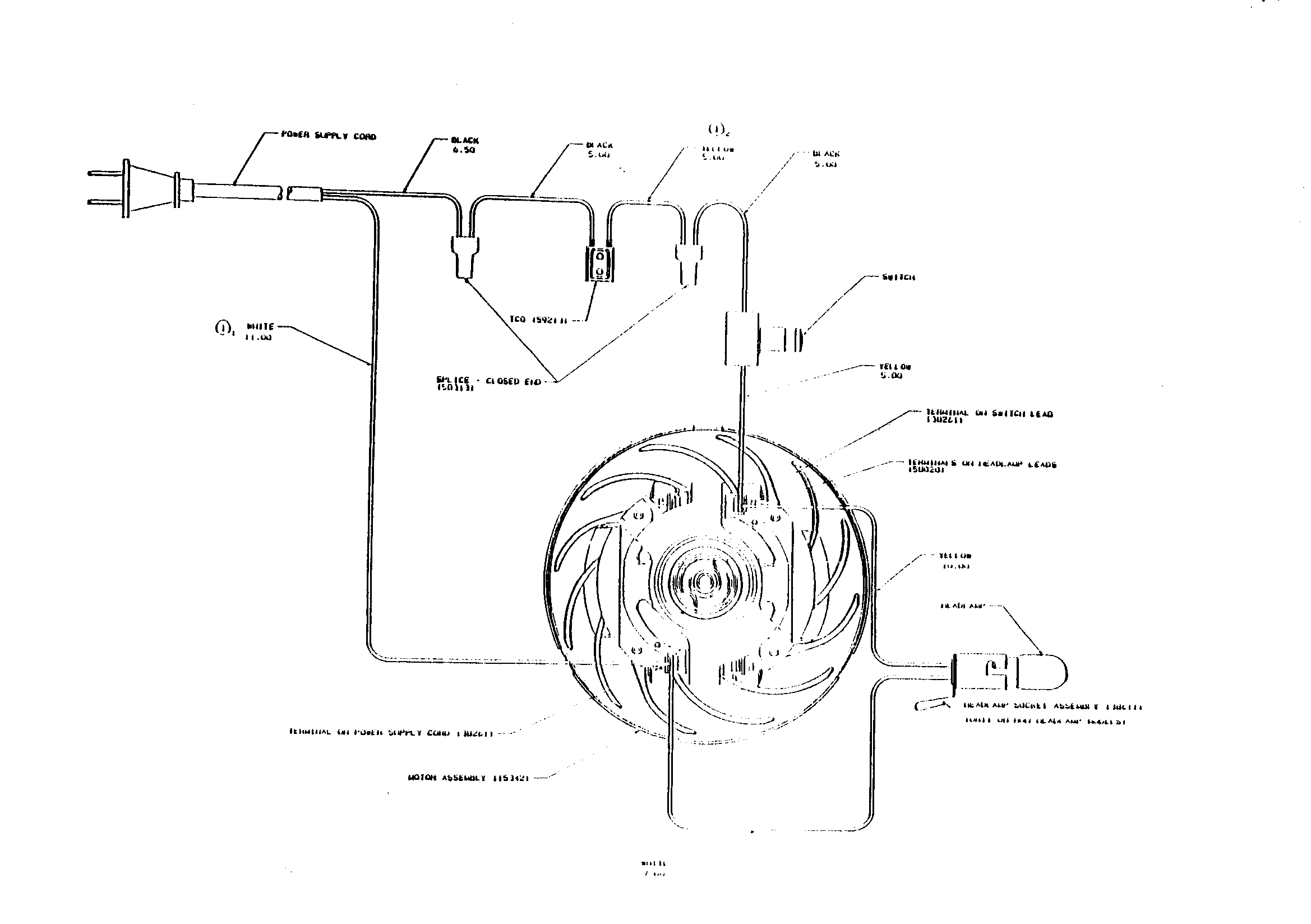

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Tube 59362B
#26B

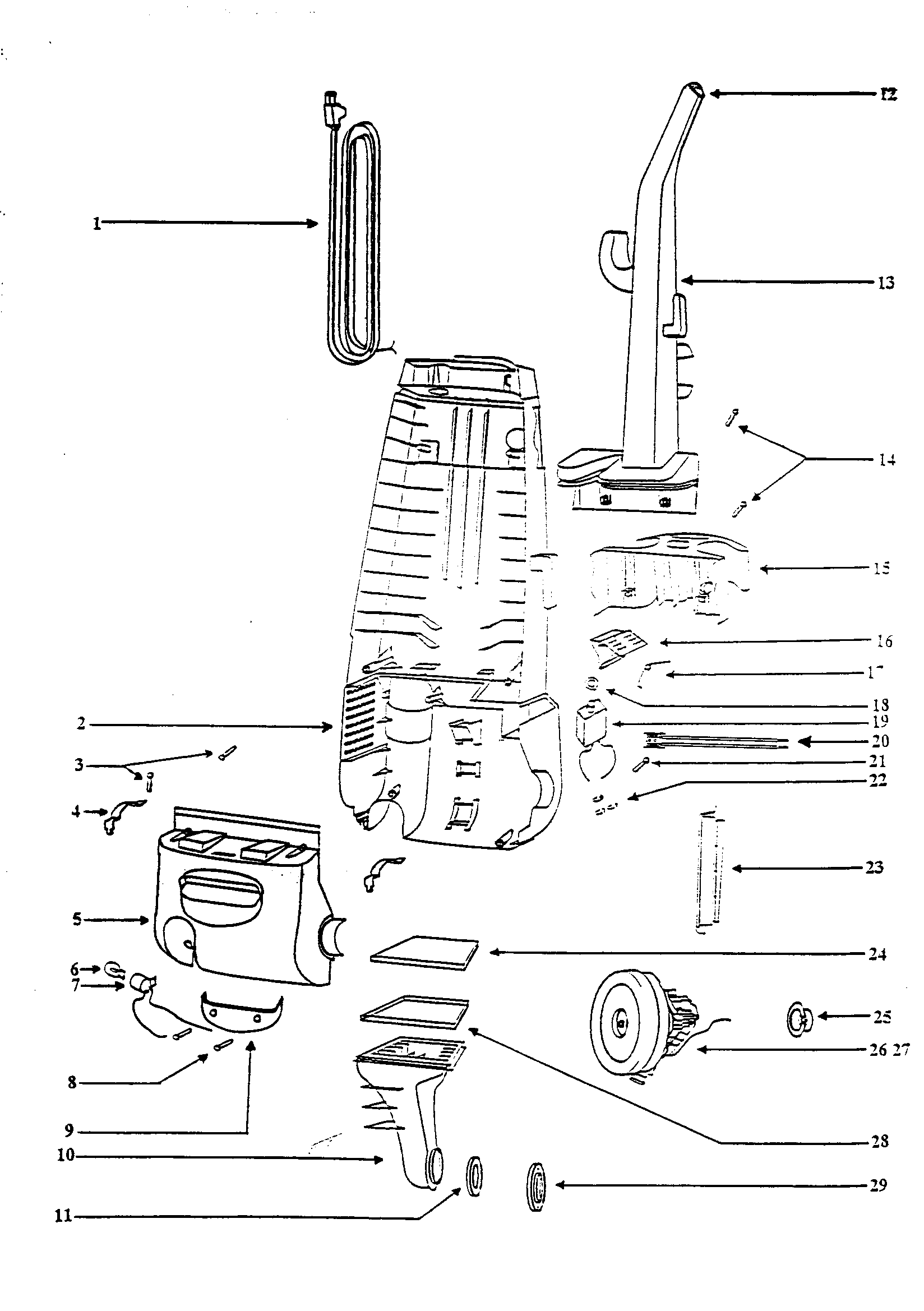

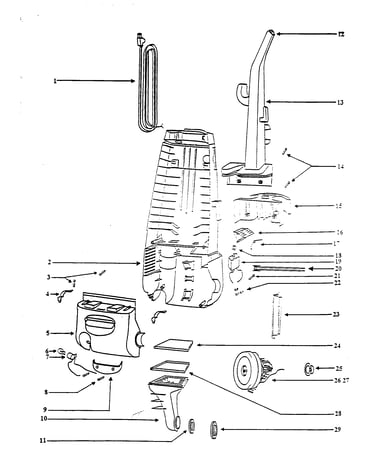

Handle assembly diagram

Tube

Part #59362B

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59595-1
#11

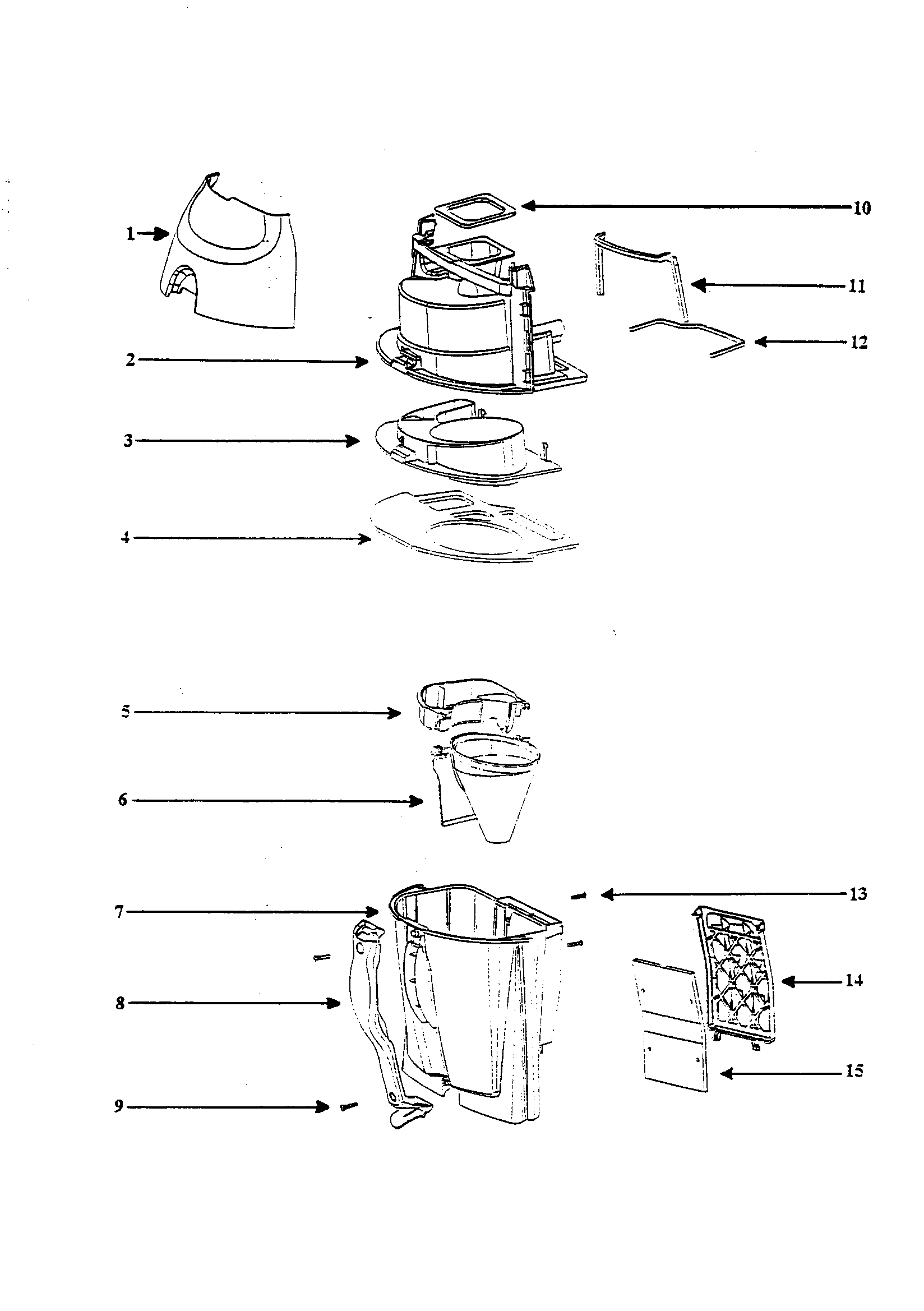

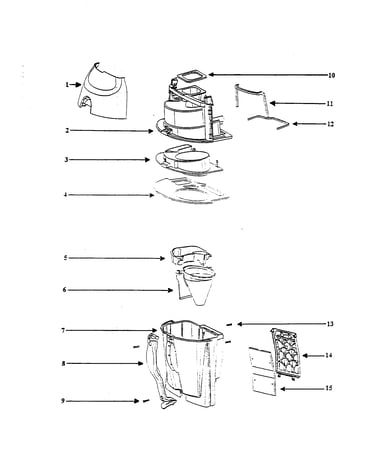

Filter bag diagram

Gasket

Part #59595-1

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#9

Handle assembly diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 60068-2
#8

Handle assembly diagram

Vacuum screw, 10-pack

Part #60068-2

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#5

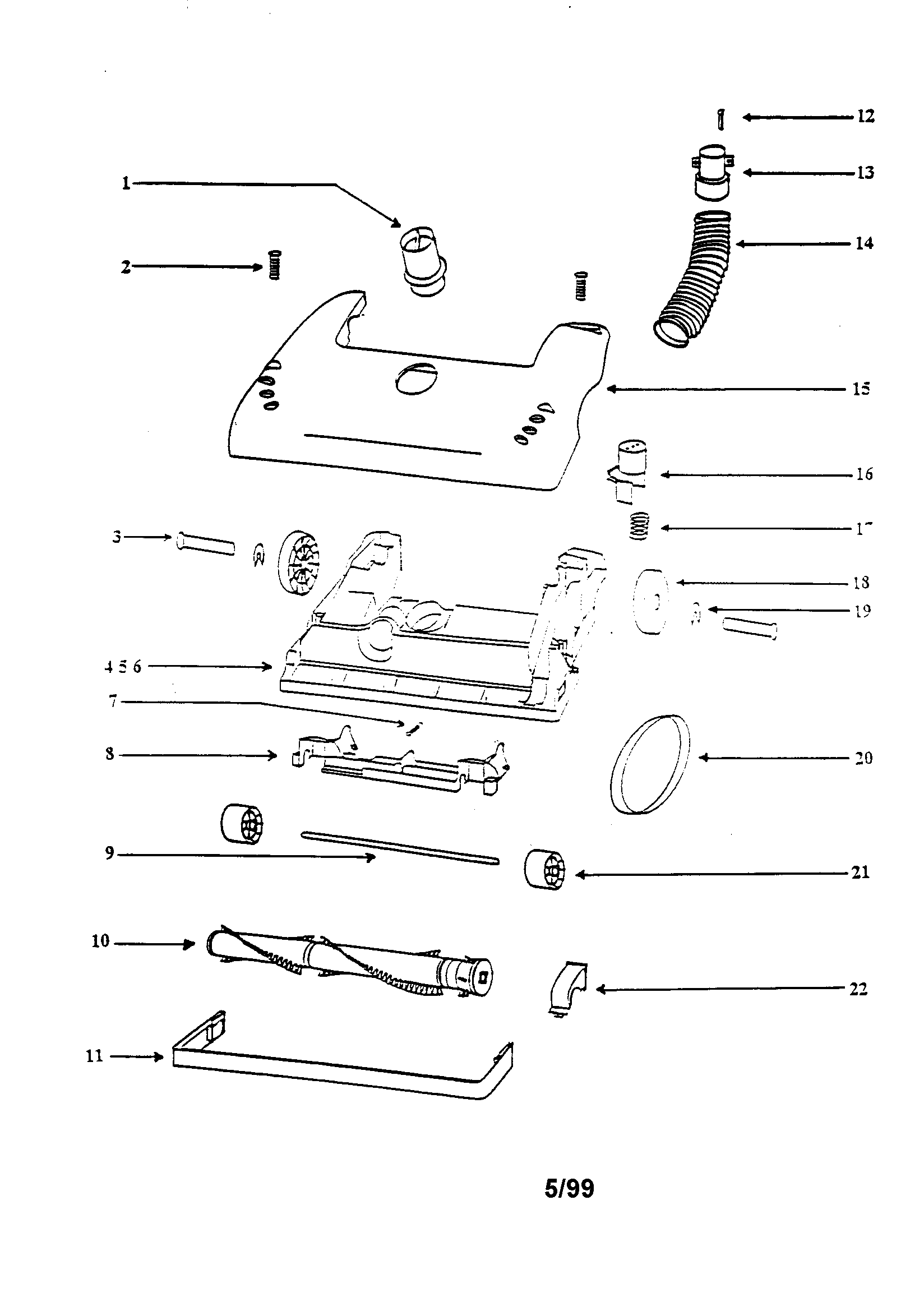

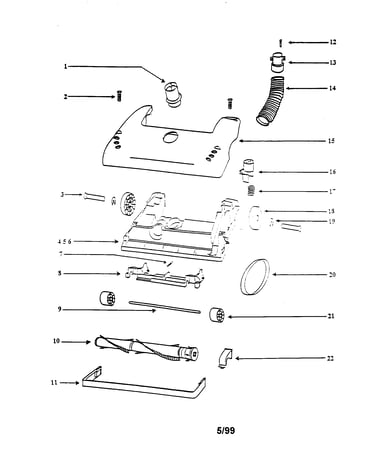

Base diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Wand 58728B
#3

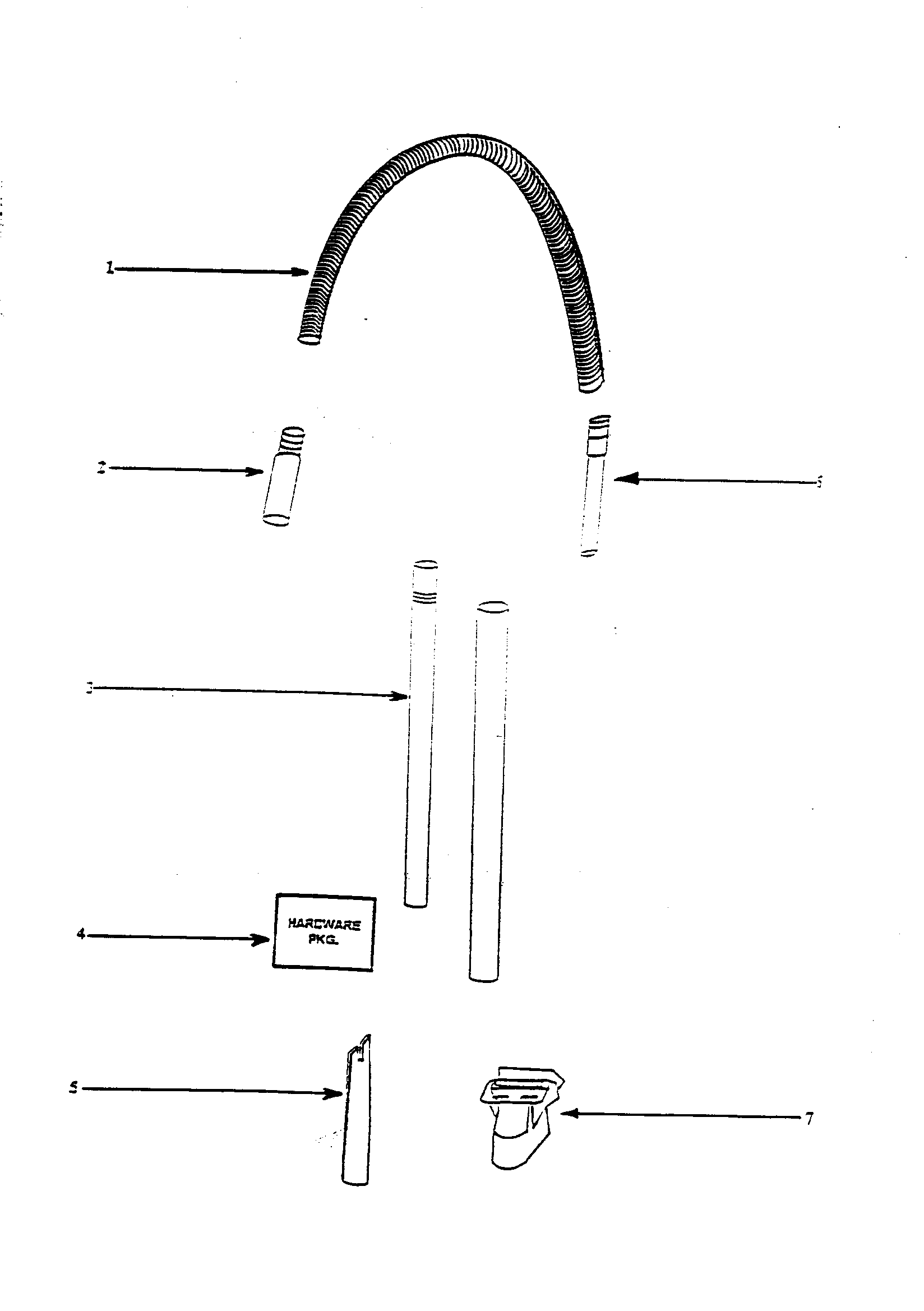

Hose and attachment diagram

Wand

Part #58728B

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#22

Handle assembly diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#26A

Handle assembly diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#7

Base diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part
