KitchenAid
Food Processor

Model # 5KFPM770BPM1 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPM770BPM1 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Food Processor Scraper 8211760
#1

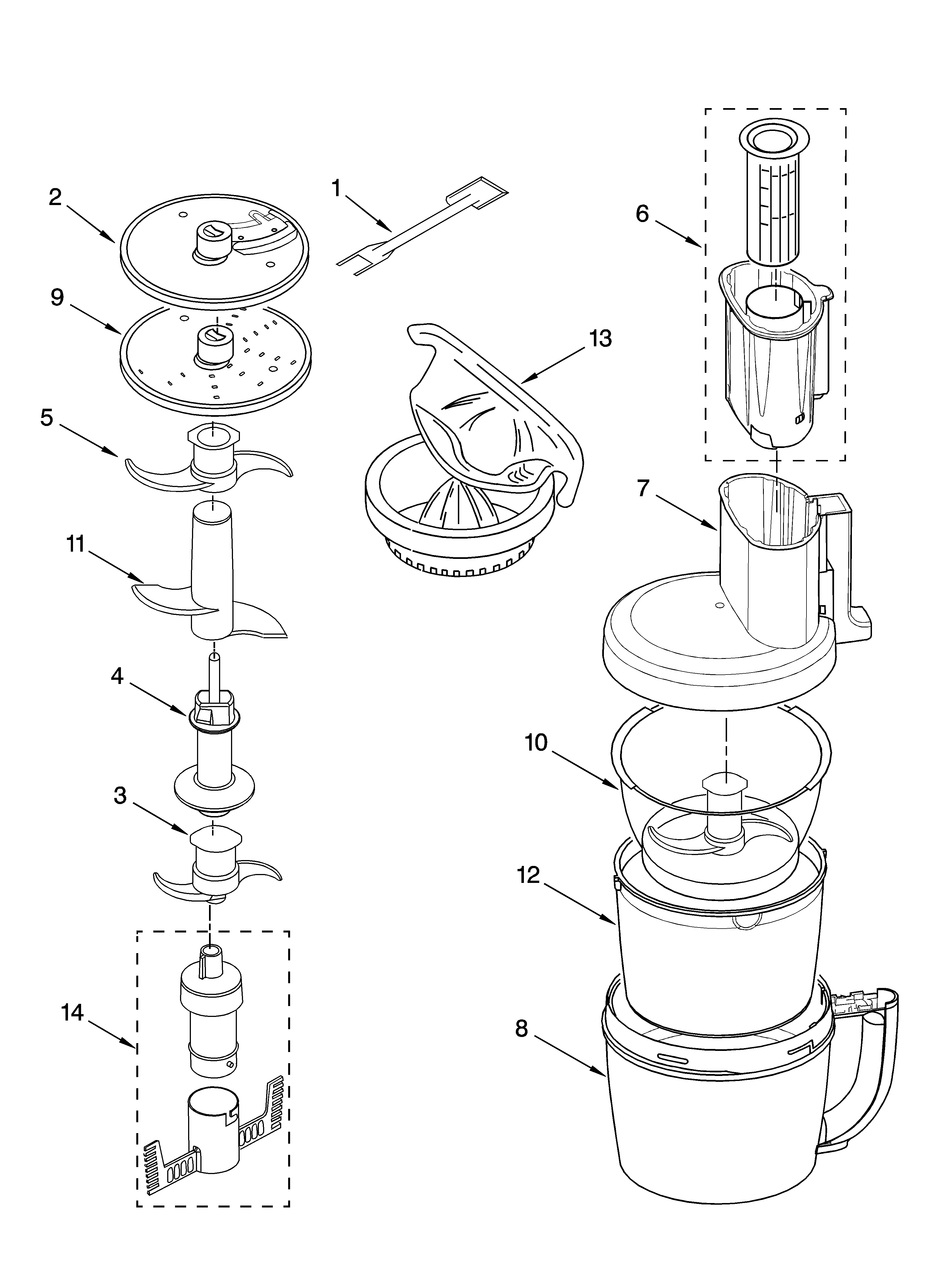

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |
19% OFF Phone Price : $31.79
In Stock
Parts List W10185702
#1A

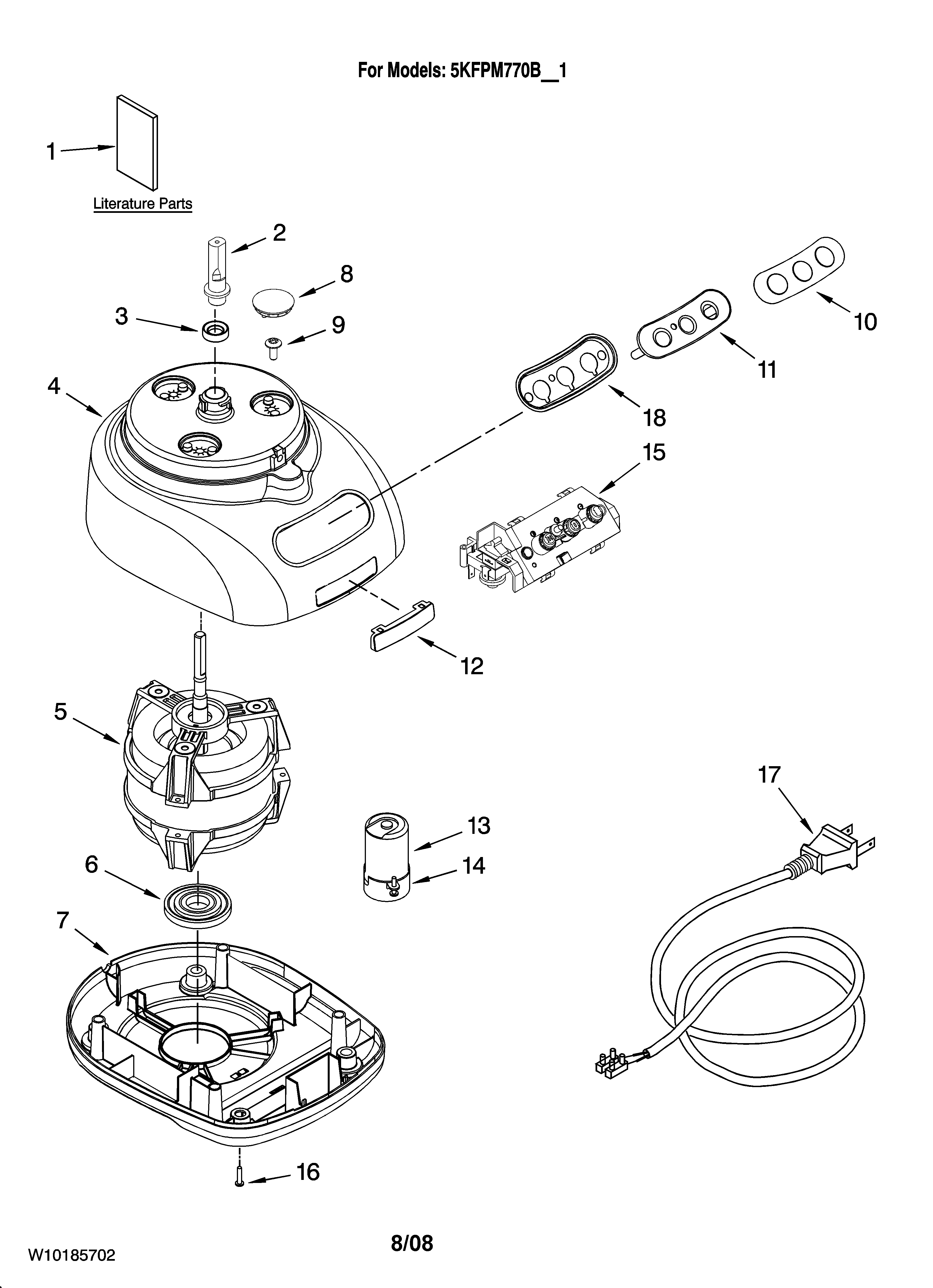

Motor and housing parts diagram

Parts list

Part #W10185702

This item is not returnable
$3.99
In Stock
Bowl Cover 8212024
#7A

Attachment parts diagram

Bowl cover

Part #8212024

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 8212073
#17A

Motor and housing parts diagram

Power cord

Part #8212073

The manufacturer no longer makes this part, and there's no substitute part

Base 8212081
#7

Motor and housing parts diagram

Base

Part #8212081

The manufacturer no longer makes this part, and there's no substitute part

Extractor W10186748
#13

Attachment parts diagram

Extractor

Part #W10186748

The manufacturer no longer makes this part, and there's no substitute part

Overlay 8212087
#10

Motor and housing parts diagram

Overlay

Part #8212087

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Shaft W10187053
#2

Motor and housing parts diagram

Sleeve shaft

Part #W10187053

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide 8212058
#1

Motor and housing parts diagram

Use and care guide

Part #8212058

The manufacturer no longer makes this part, and there's no substitute part

Blade W10187050
#5

Attachment parts diagram

Blade

Part #W10187050

The manufacturer no longer makes this part, and there's no substitute part
