Weed Eater
Gas Walk-Behind Mower

Model # WE5TY22SC Official Weed Eater rotary lawn mower

Here are the diagrams and repair parts for Official Weed Eater WE5TY22SC rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Lawn Mower Blade Adapter 851514
#59

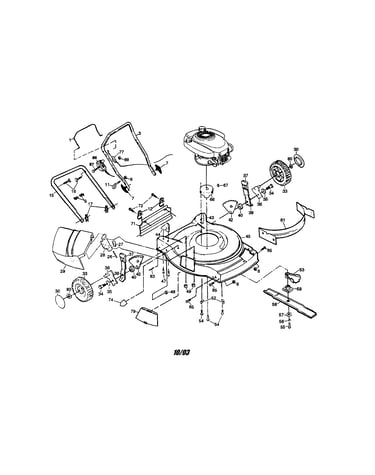

Lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Nut 132004
#88

Lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Rope Guide 179585
#11

Lawn mower diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#14

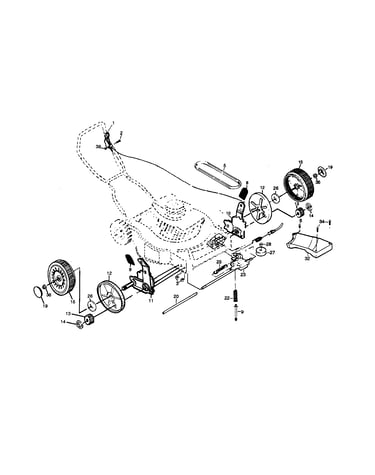

Handle diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Belt 146527
#5

Handle diagram

Belt

Part #146527

Replaced by #532157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$25.69
In Stock
Walk-behind Lawn Mower Selector Knob 87877
Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Spring 700331X004
#38

Lawn mower diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Tapping Screw 750097
Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Lawn & Garden Equipment Bearing 77881
#7

Gear case diagram

Lawn & garden equipment bearing

Part #77881

Replaced by #532077881

?
Manufacturer substitution
This part replaces 77881. Substitute parts can look different from the original.
$33.31
In Stock
Lawn Mower Blade 141114
#58

Lawn mower diagram

Lawn mower blade

Part #141114

Replaced by #532406713

?
Manufacturer substitution
This part replaces 141114. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
