Whirlpool
Washer

Model # CAE2745FQ1 Official Whirlpool commercial washer

Here are the diagrams and repair parts for Official Whirlpool CAE2745FQ1 commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

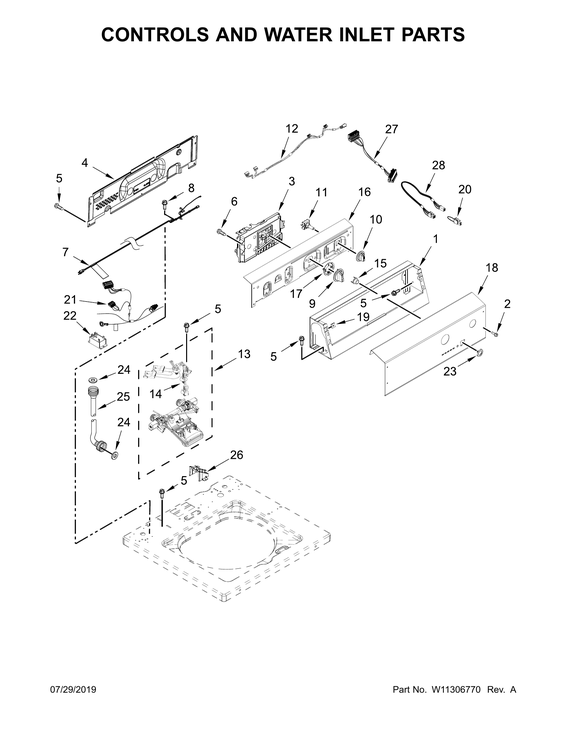

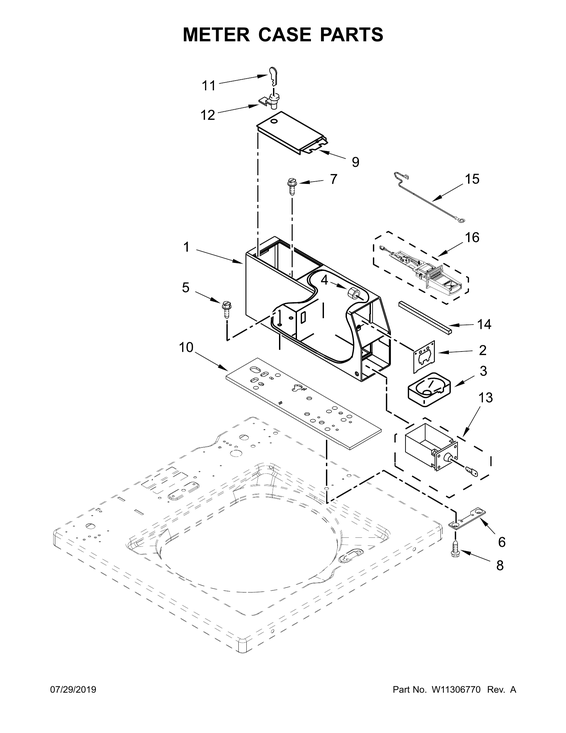

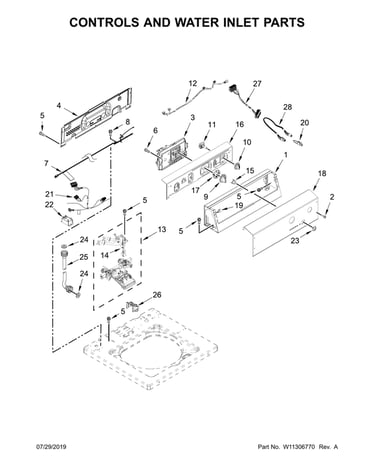

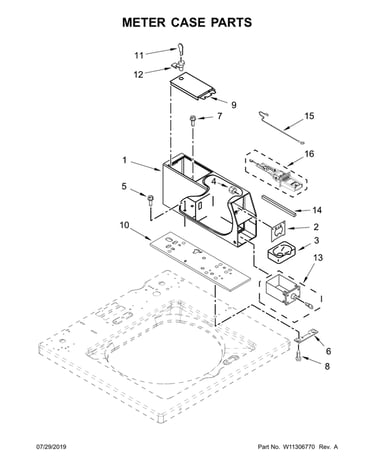

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#15

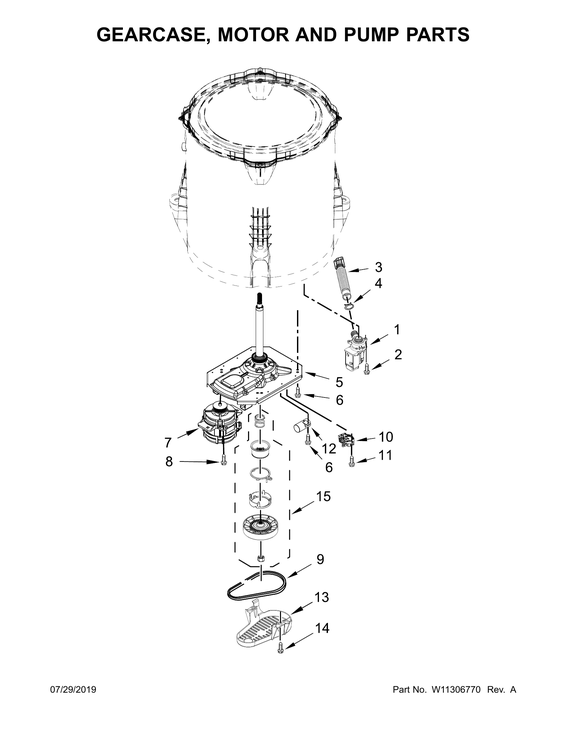

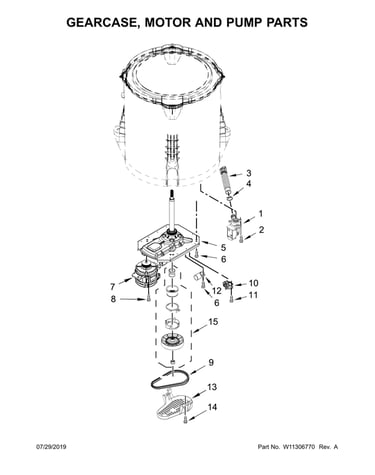

Gearcase, motor & pump diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Spanner Nut 21366
#9

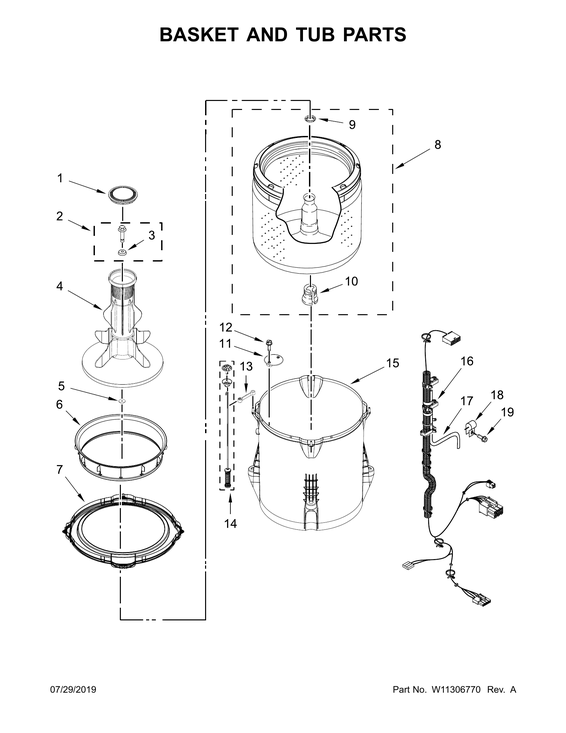

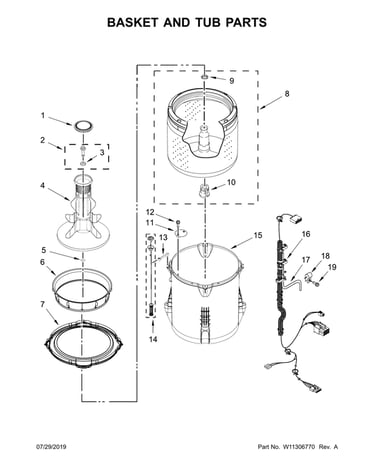

Basket & tub parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Gearcase, motor & pump diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Washer Screw W10003790
#2

Basket & tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Hose Asm - D W11203364
#27

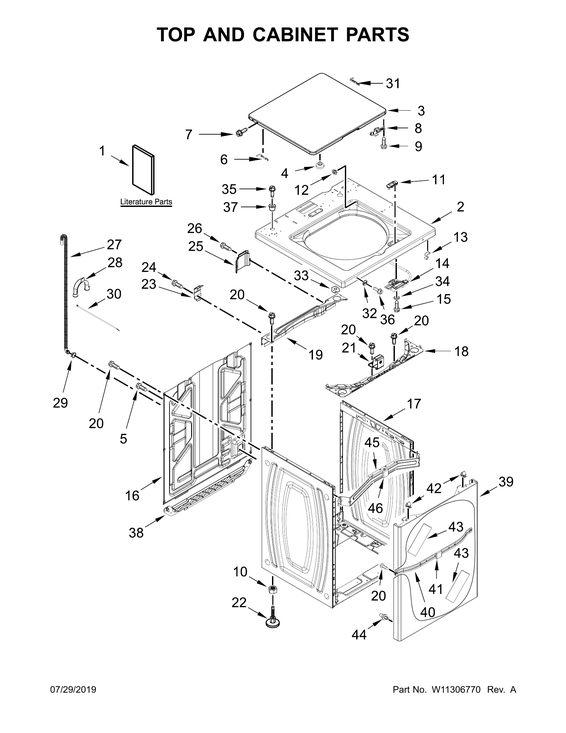

Top & cabinet parts diagram

Hose asm - d

Part #W11203364

Replaced by #W11244231

?
Manufacturer substitution
This part replaces W11203364. Substitute parts can look different from the original.
BEST SELLER
$18.74 |
10% OFF Phone Price : $20.74
In Stock
Hose W10531633
#17

Basket & tub parts diagram

Hose

Part #W10531633

Replaced by #WP353244

?
Manufacturer substitution
This part replaces W10531633. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Washer Pulley Shield W10427633
#13

Gearcase, motor & pump diagram

Washer pulley shield

Part #W10427633

Replaced by #WPW10427633

?
Manufacturer substitution
This part replaces W10427633. Substitute parts can look different from the original.
BEST SELLER
$24.99 |
19% OFF Phone Price : $30.99
In Stock
Washer Door Strike W10240513
#8

Top & cabinet parts diagram

Washer door strike

Part #W10240513

Replaced by #WPW10240513

?
Manufacturer substitution
This part replaces W10240513. Substitute parts can look different from the original.
BEST SELLER
$29.89 |
17% OFF Phone Price : $35.89
In Stock
Outer Tub W10238320
#15

Basket & tub parts diagram

Outer tub

Part #W10238320

Replaced by #W10371566

?
Manufacturer substitution
This part replaces W10238320. Substitute parts can look different from the original.
BEST SELLER
$191.77 |
6% OFF Phone Price : $203.77
In Stock
Hose Asm - D W10763078
#3

Gearcase, motor & pump diagram

Hose asm - d

Part #W10763078

Replaced by #W10899966

?
Manufacturer substitution
This part replaces W10763078. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.43 |
17% OFF Phone Price : $34.43
In Stock
