Model # MDE3706AZW Official Maytag washer/dryer
Here are the diagrams and repair parts for Official Maytag MDE3706AZW washer/dryer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

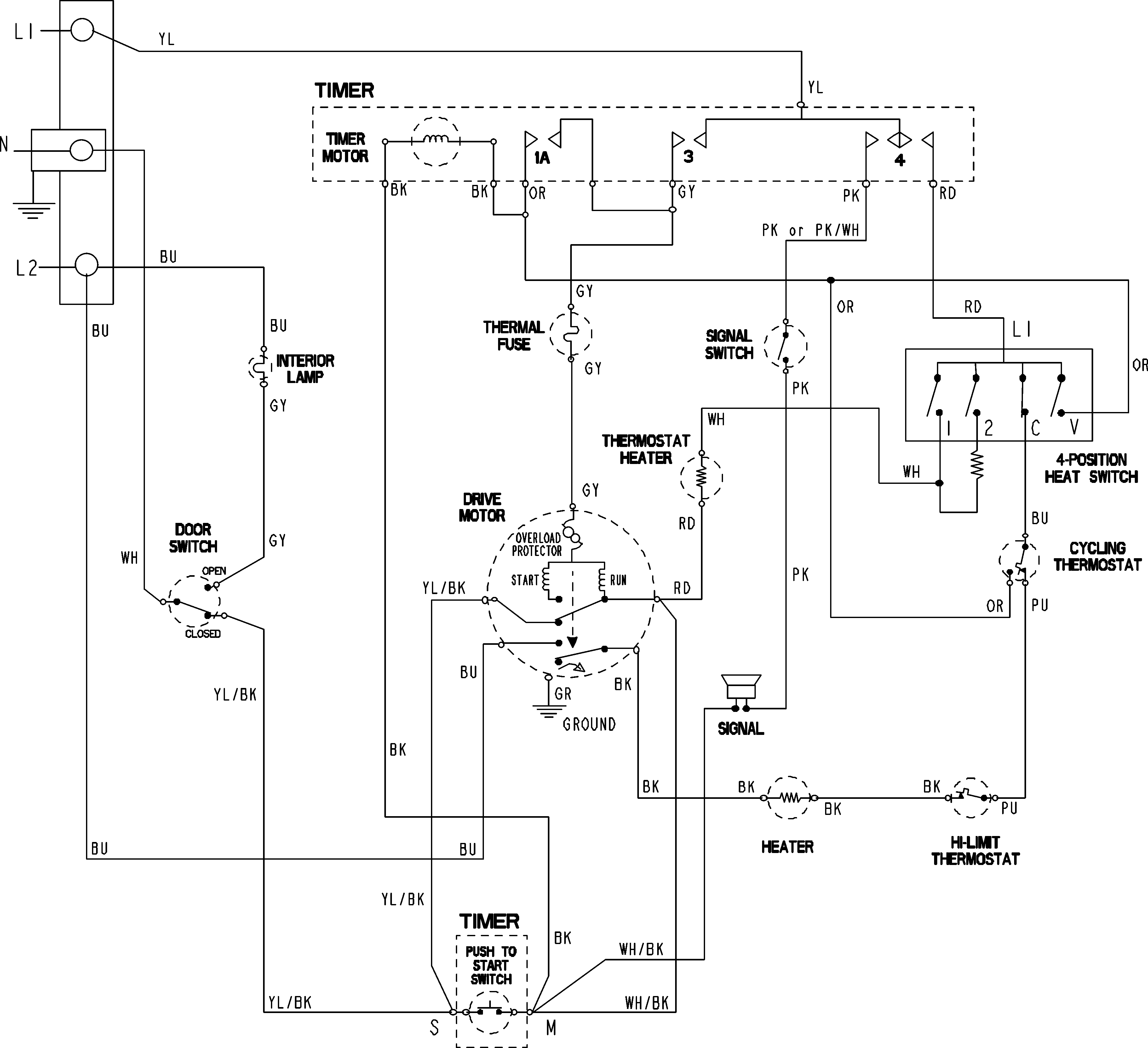

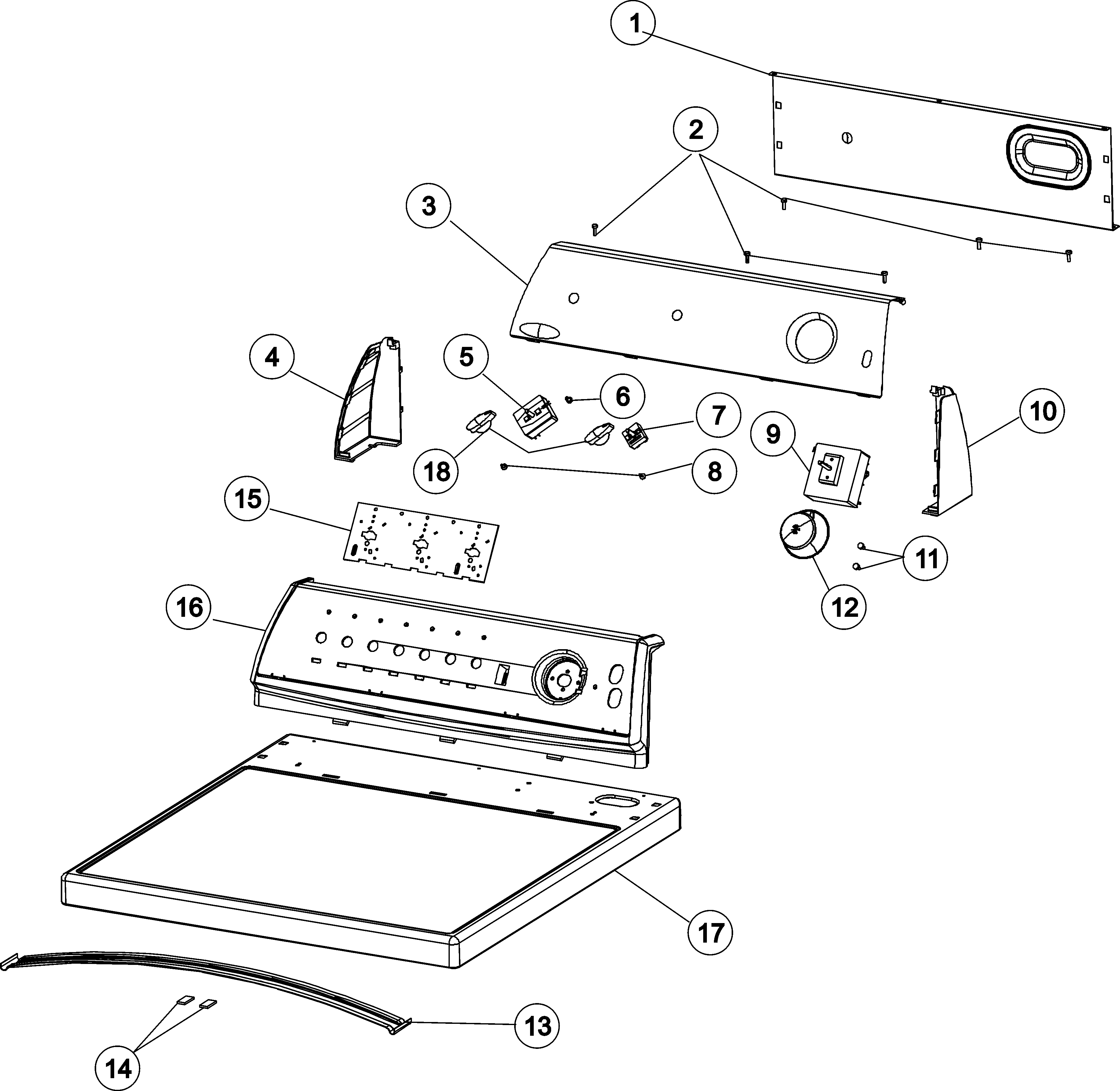

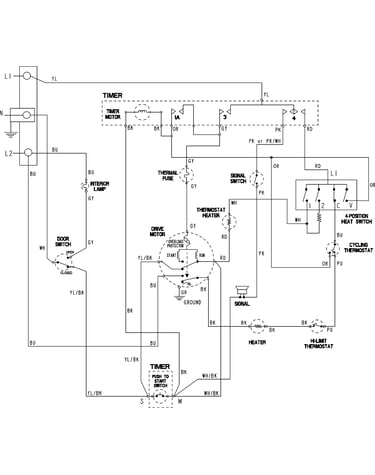

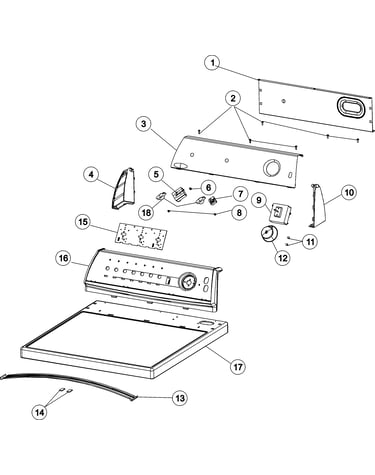

SELECT DIAGRAM
Browse Parts for
MDE3706AZW Washer/Dryer

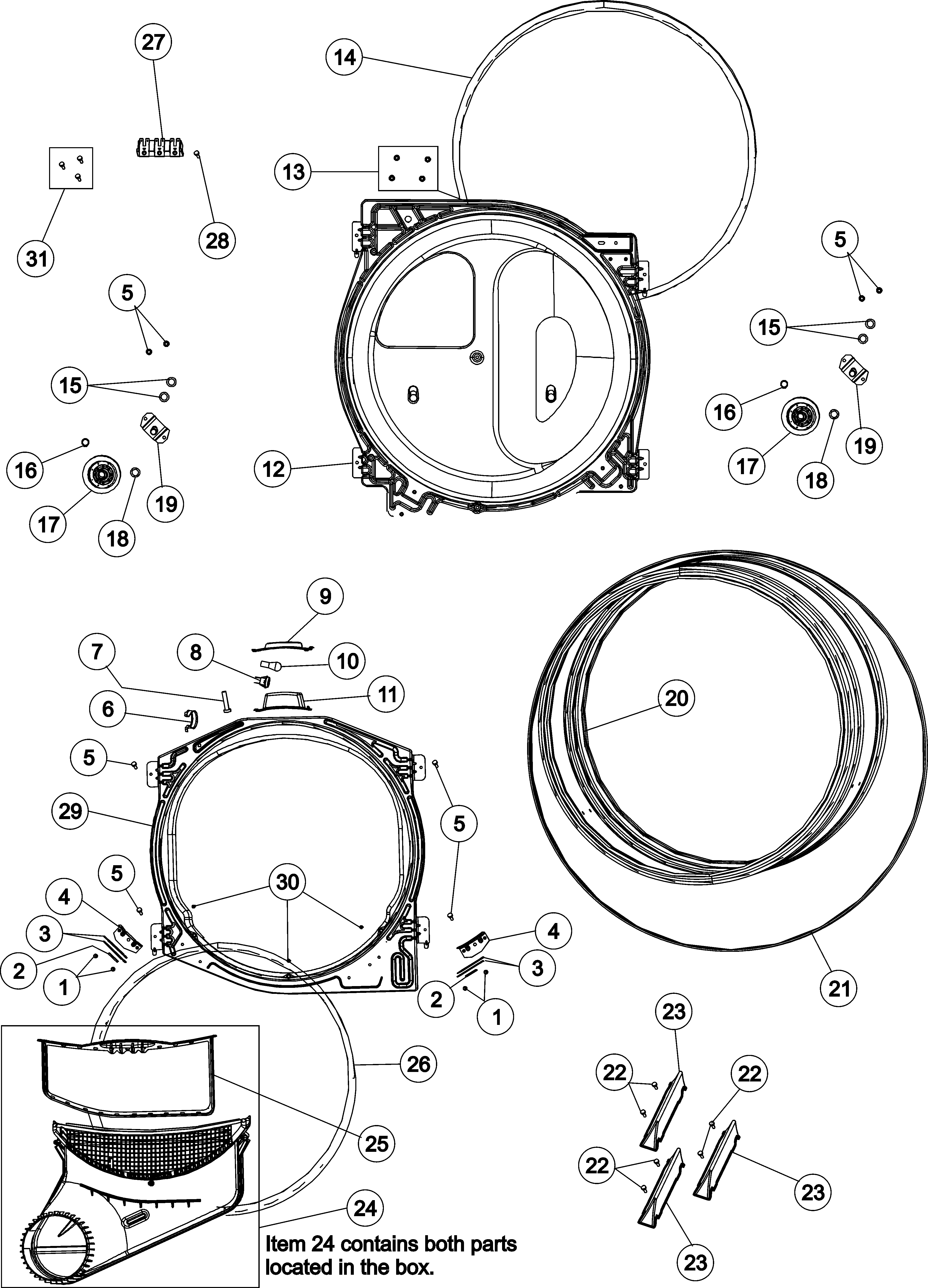

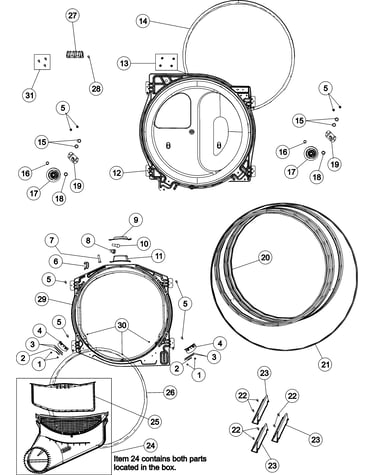

#21
Tumbler diagram
Dryer drum belt
Part #40111201
Replaced by #WP40111201
?
Manufacturer substitution
This part replaces 40111201. Substitute parts can look different from the original.
$15.11 |
12% OFF Phone Price : $17.11
In Stock

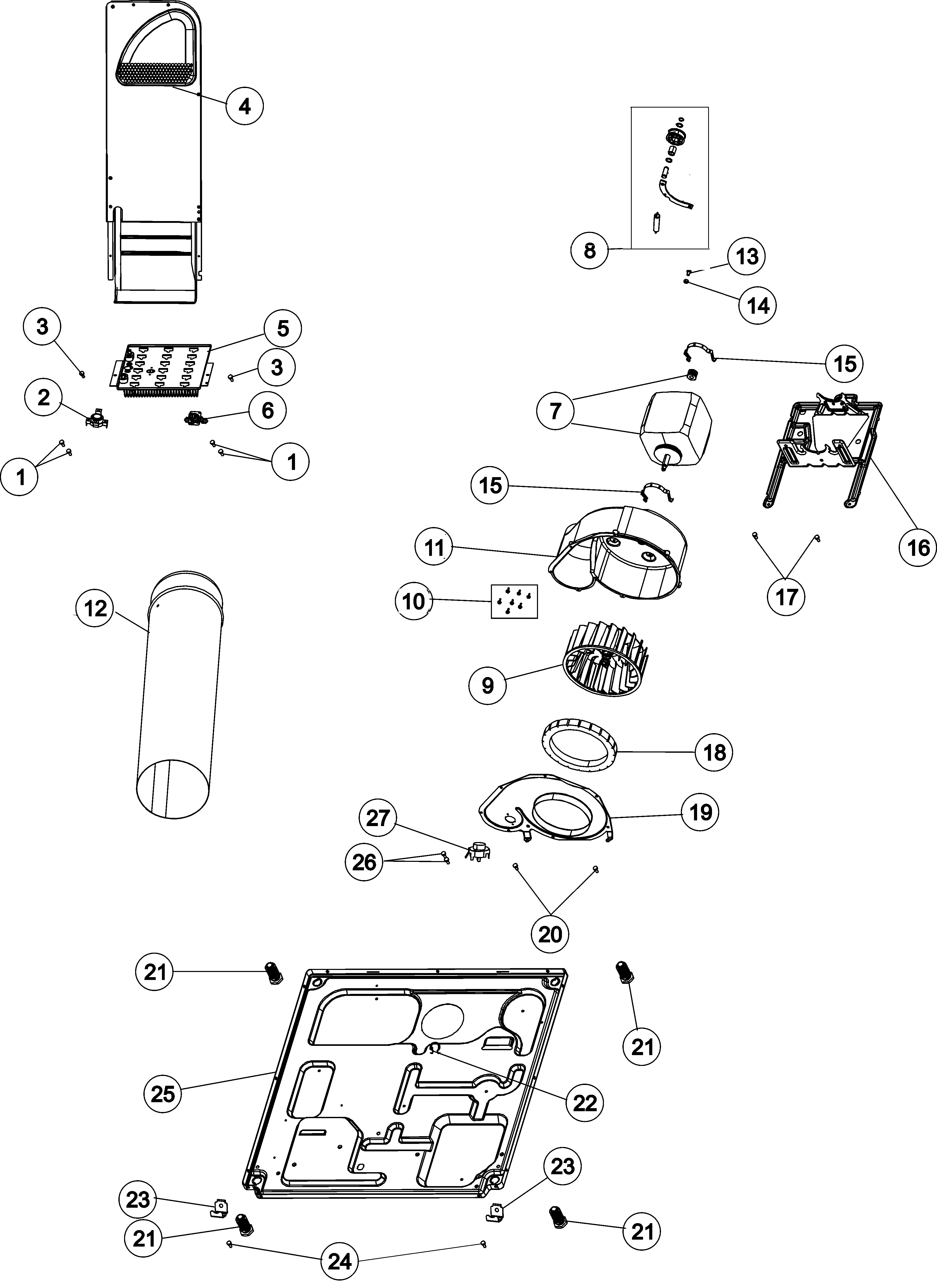

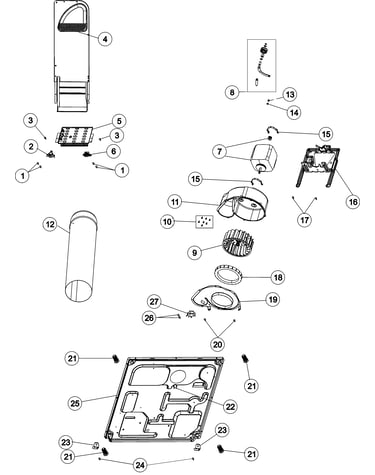

#7
Base, heater & motor diagram
Dryer drive motor
Part #2200376
Replaced by #WP2200376
?
Manufacturer substitution
This part replaces 2200376. Substitute parts can look different from the original.
$104.23 |
10% OFF Phone Price : $116.23
In Stock
#17
Tumbler diagram
Dryer drum support roller
Part #37001042
Replaced by #WP37001042
?
Manufacturer substitution
This part replaces 37001042. Substitute parts can look different from the original.
$16.19 |
11% OFF Phone Price : $18.19
In Stock
#8
Base, heater & motor diagram
Dryer idler assembly
Part #37001287
Replaced by #WP37001287
?
Manufacturer substitution
This part replaces 37001287. Substitute parts can look different from the original.
$32.66 |
16% OFF Phone Price : $38.66
In Stock
#9
Base, heater & motor diagram
Speed queen dryer blower wheel (replaces 510139p, 56000p)
Part #56000
$57.02 |
10% OFF Phone Price : $63.02
In Stock
#6
Base, heater & motor diagram
Dryer thermal fuse, 352-degree f
Part #40113801
Replaced by #WP40113801
?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
$14.01 |
12% OFF Phone Price : $16.01
In Stock
#15
Base, heater & motor diagram
Clamp
Part #58047
Replaced by #WP660658
?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock

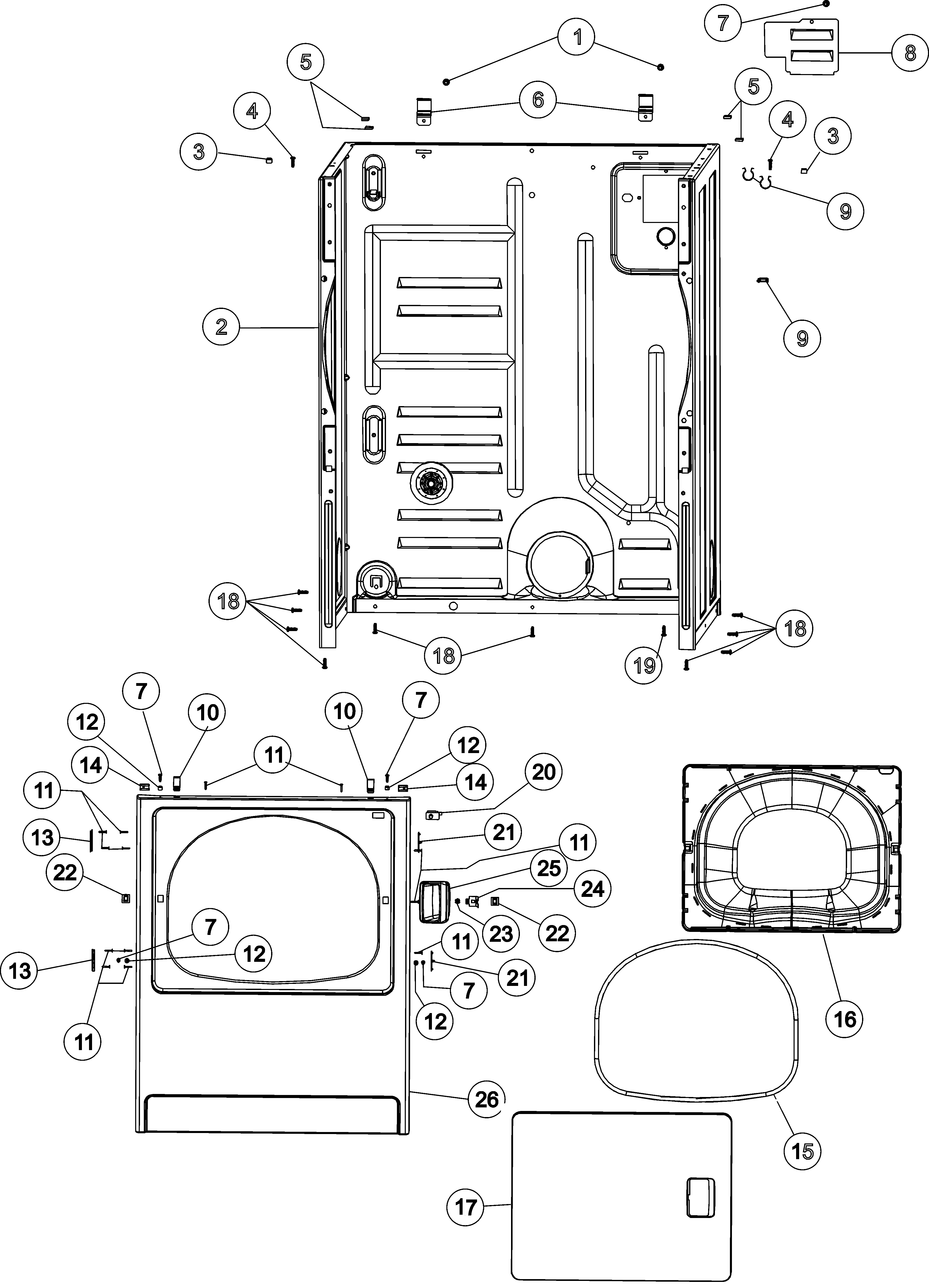

#20

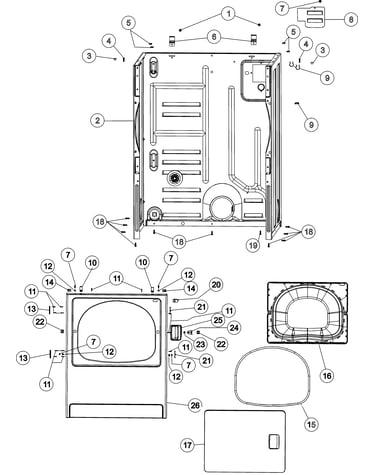

Cabinet & front panel diagram
Drive switch
Part #504570
Replaced by #W10169313
?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
$20.58 |
23% OFF Phone Price : $26.58
In Stock
Dryer drum rear seal
Part #37001132
Replaced by #WP37001132
?
Manufacturer substitution
This part replaces 37001132. Substitute parts can look different from the original.
$33.04 |
15% OFF Phone Price : $39.04
In Stock
#16
Tumbler diagram
Laundry appliance retaining ring
Part #23748
Replaced by #WP23748
?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
