Model # AEM08LXQ1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEM08LXQ1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Escutcheon WJ07X20239
#39

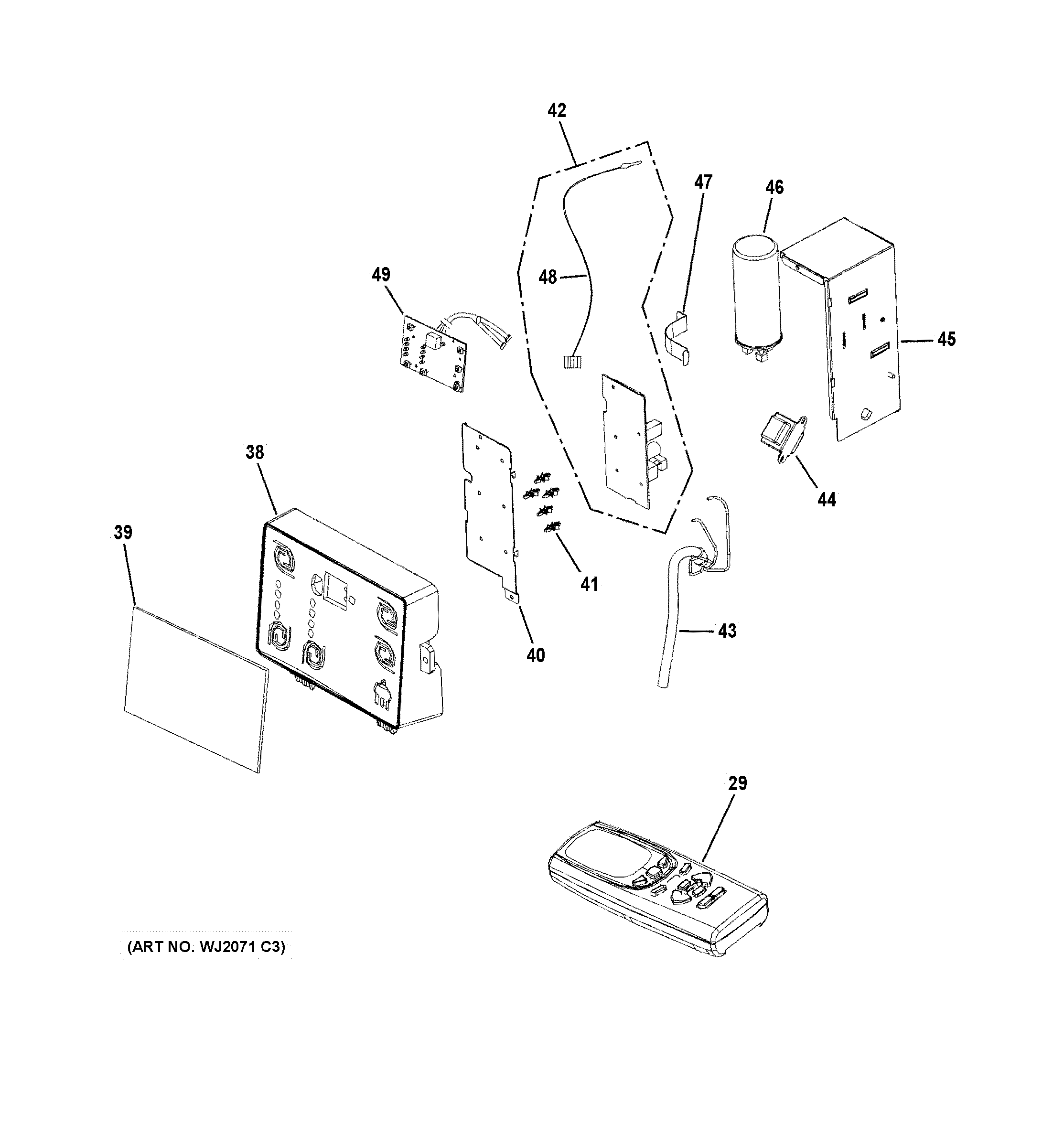

Control parts diagram

Escutcheon

Part #WJ07X20239

$16.94
In Stock
Pcb Support WJ01X10354
#41

Control parts diagram

Pcb support

Part #WJ01X10354

This item is not returnable
$4.35
In Stock
Top Rail WJ65X21840
#24

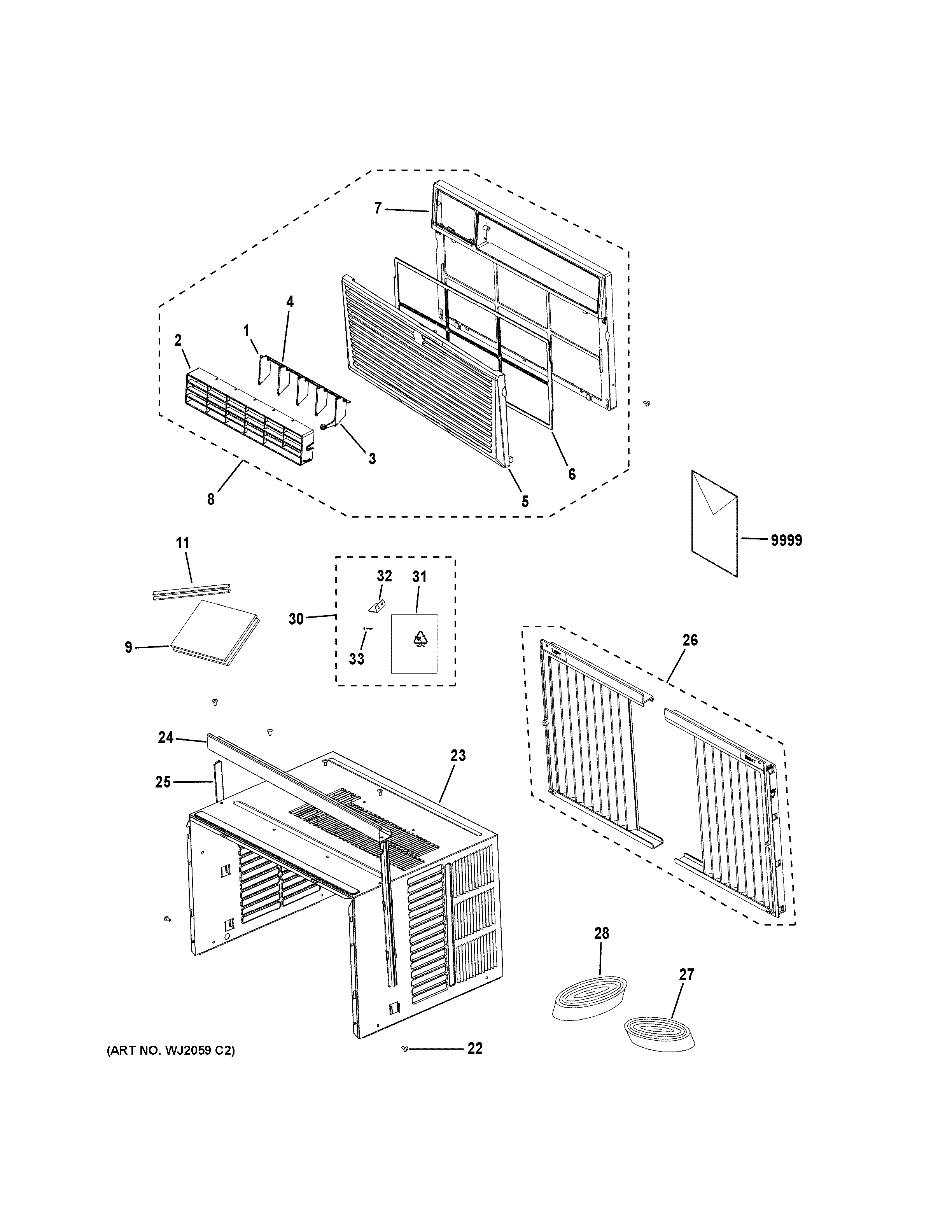

Grille & chassis parts diagram

Top rail

Part #WJ65X21840

$18.97 |
10% OFF Phone Price : $20.97
In Stock
Panel WJ82X20304
#8

Grille & chassis parts diagram

Panel

Part #WJ82X20304

$34.49
In Stock
Gasket Seal WJ43X10074
#28

Grille & chassis parts diagram

Gasket seal

Part #WJ43X10074

$9.83
In Stock
Capacitor WJ02X20245
#47

Control parts diagram

Capacitor

Part #WJ02X20245

$11.09
In Stock
Spring Washer WJ03X10074
#36

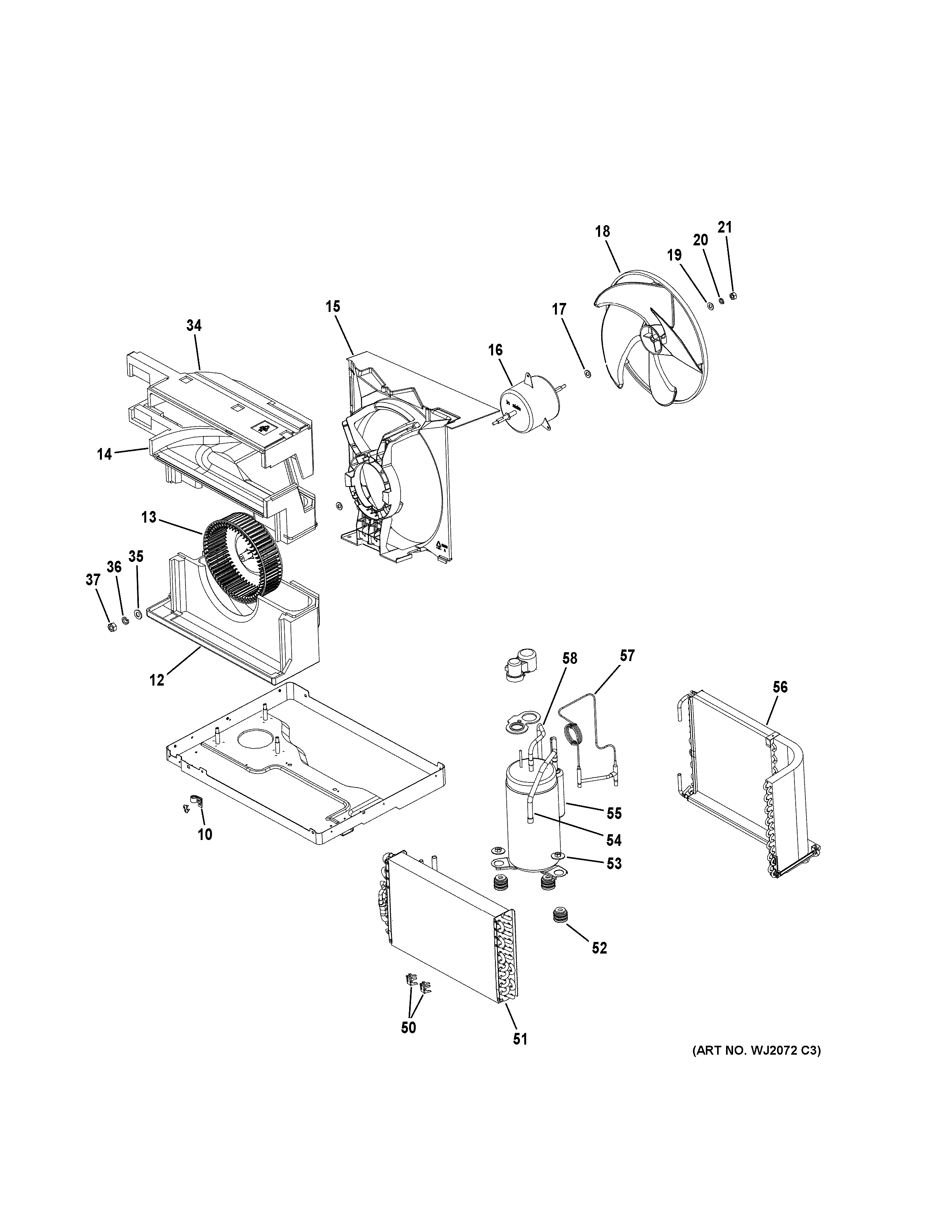

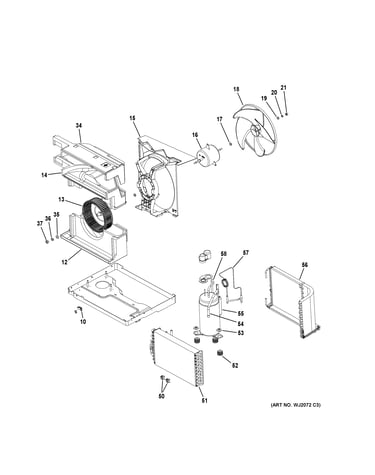

Base pan & unit parts diagram

Spring washer

Part #WJ03X10074

$11.26
In Stock
Room Air Conditioner Compressor Grommet WJ01X21206
#52

Base pan & unit parts diagram

Room air conditioner compressor grommet

Part #WJ01X21206

$18.89
In Stock
Room Air Conditioner Display Board WJ26X20184
#49

Control parts diagram

Room air conditioner display board

Part #WJ26X20184

$65.75 |
8% OFF Phone Price : $71.75
In Stock
Hardware WJ01X10349
#30

Grille & chassis parts diagram

Hardware

Part #WJ01X10349

$9.38 |
10% OFF Phone Price : $10.38
In Stock
