Amana
Electric Cooktop

Model # AKED3060E-P1131751NE Official Amana electric counter unit

Here are the diagrams and repair parts for Official Amana AKED3060E-P1131751NE electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Machine Screw 0041768
#28

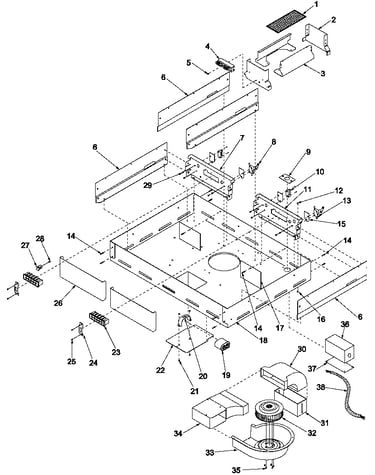

Cavity diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Infinite Switch 0315563
#17

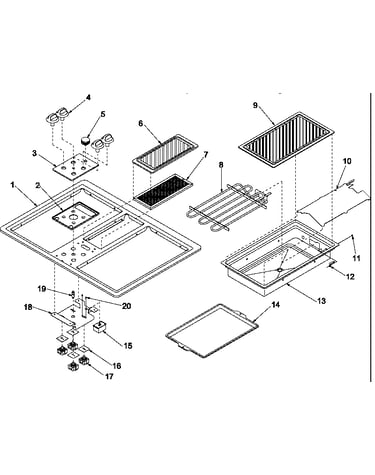

Main top diagram

Infinite switch

Part #0315563

Replaced by #WP74011243

?
Manufacturer substitution
This part replaces 0315563. Substitute parts can look different from the original.
$55.86 |
10% OFF Phone Price : $61.86
In Stock
Screw M0234422
#20

Main top diagram

Screw

Part #M0234422

This item is not returnable
$4.22
In Stock
Screw, #8-18 0041829
#5

Cavity diagram

Screw, #8-18

Part #0041829

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 0041829. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Switch Panel 0308371
#13

Cavity diagram

Switch panel

Part #0308371

The manufacturer no longer makes this part, and there's no substitute part

Pan Grille 316488CG
#13

Main top diagram

Pan grille

Part #316488CG

The manufacturer no longer makes this part, and there's no substitute part

Element 0042123
#27

Cavity diagram

Element

Part #0042123

The manufacturer no longer makes this part, and there's no substitute part

Glass Frame 315725B
#2

Main top diagram

Glass frame

Part #315725B

The manufacturer no longer makes this part, and there's no substitute part

Strike, Gril 0315593
#12

Main top diagram

Strike, gril

Part #0315593

The manufacturer no longer makes this part, and there's no substitute part

Shield, Front 0317025
#26

Cavity diagram

Shield, front

Part #0317025

The manufacturer no longer makes this part, and there's no substitute part
