Kenmore Elite
Gas Range

Model # 79031049800 Official Kenmore Elite gas range

Here are the diagrams and repair parts for Official Kenmore Elite 79031049800 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

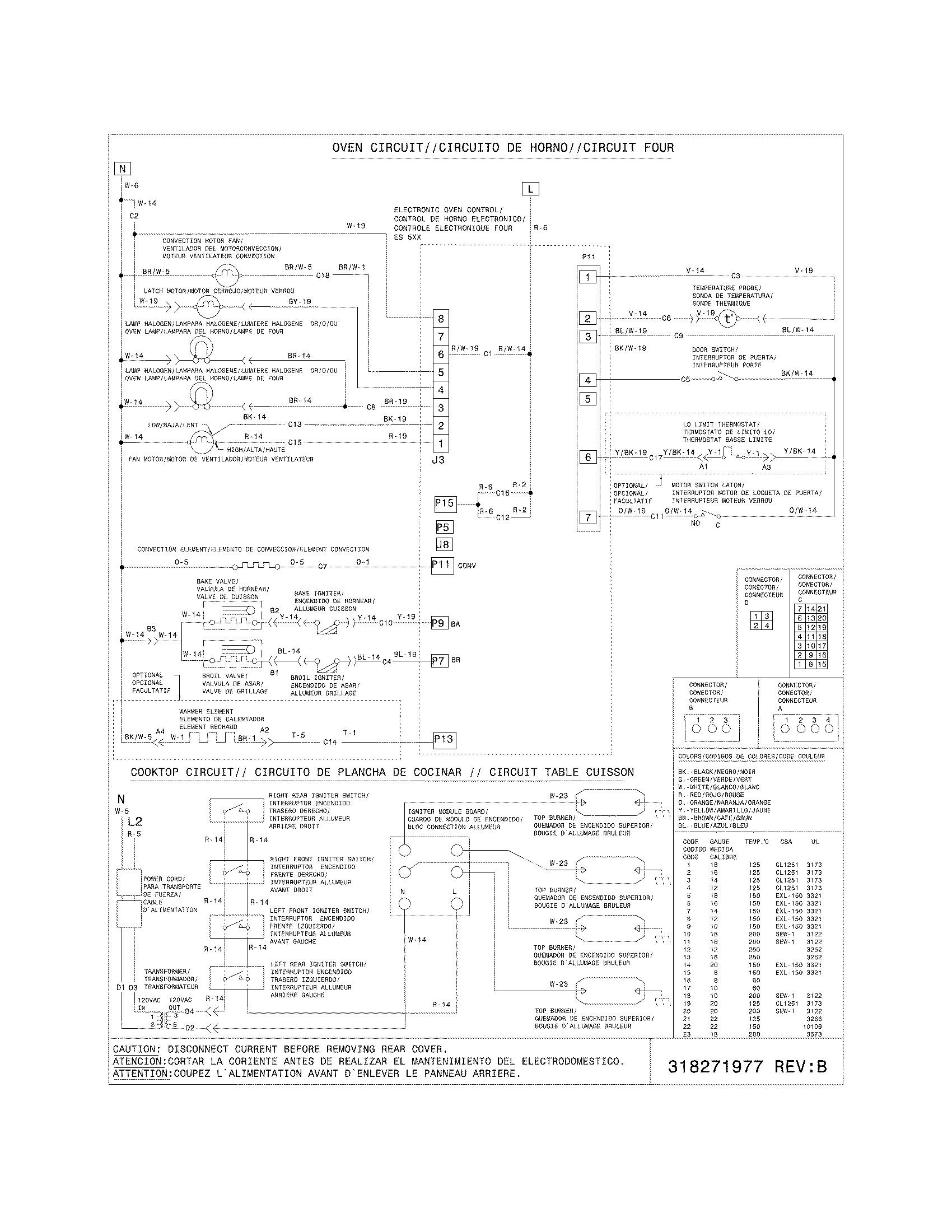

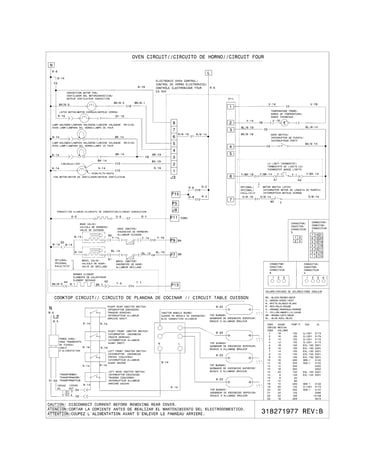

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Range Oven Door Inner Glass 316117500
#8

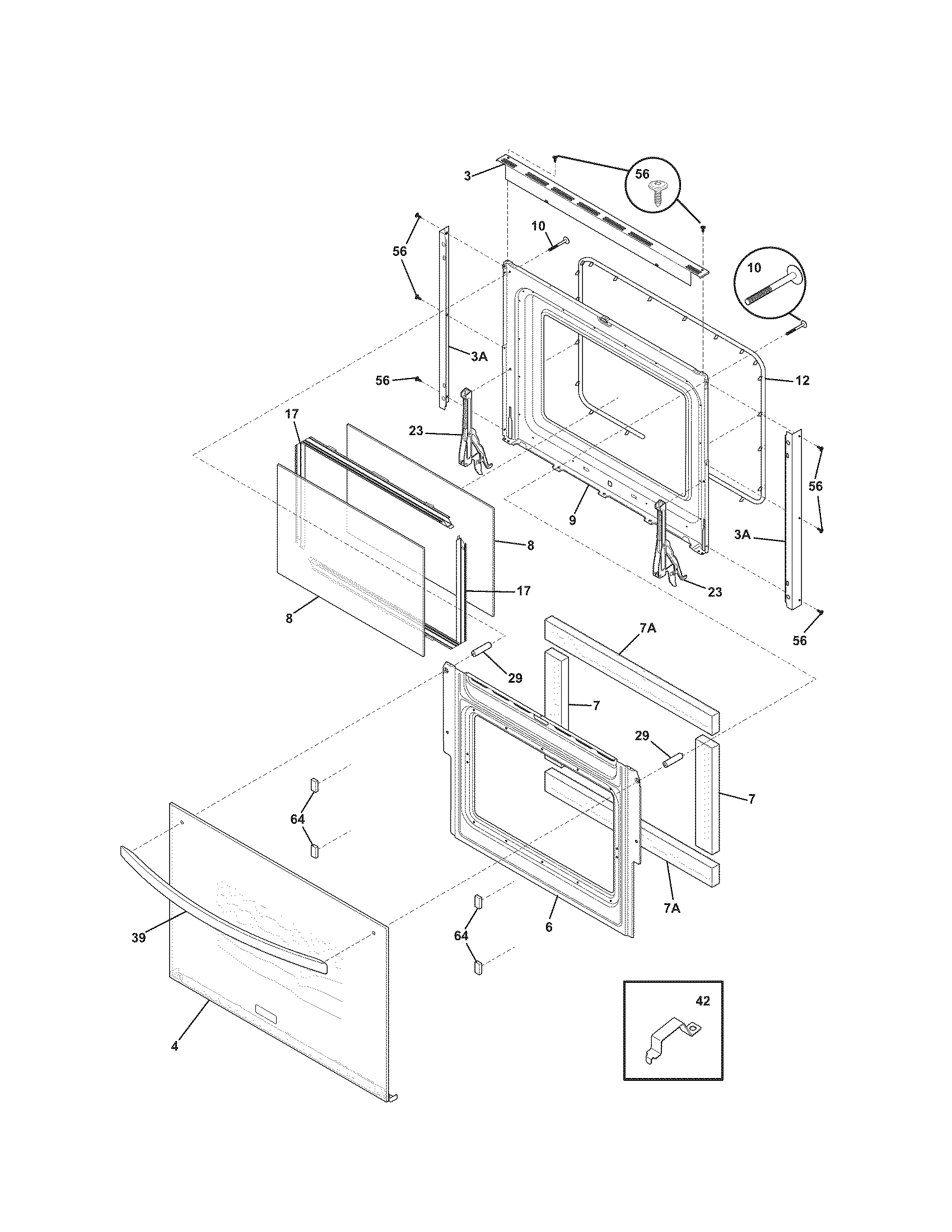

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

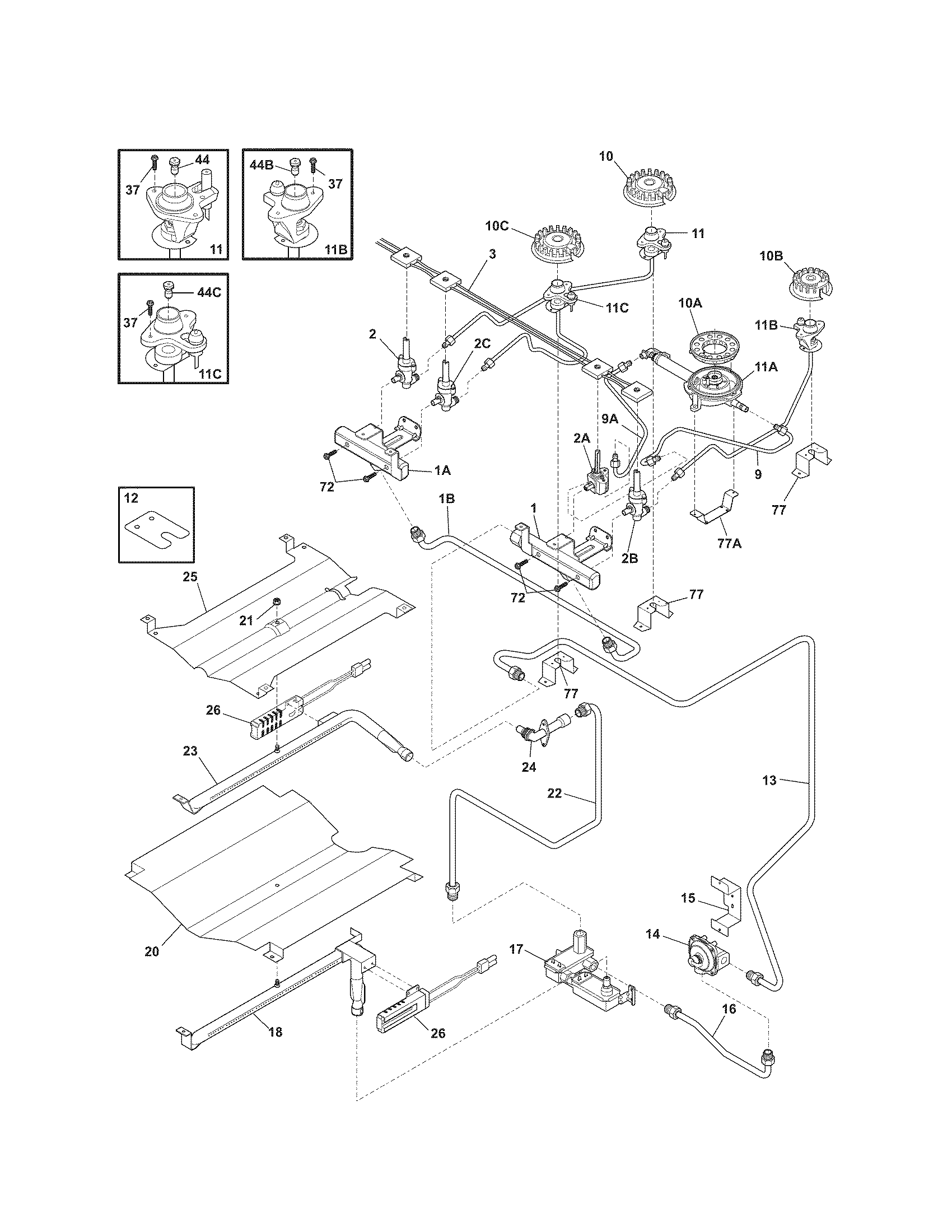

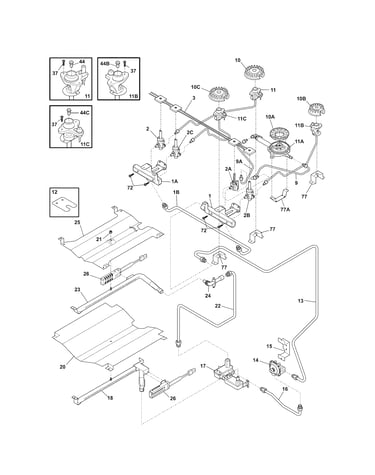

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$29.85 |
17% OFF Phone Price : $35.85
In Stock
Range Oven Gas Valve (replaces 7316404901) 316404901
#17

Burner diagram

Range oven gas valve (replaces 7316404901)

Part #316404901

BEST SELLER
$214.91 |
5% OFF Phone Price : $226.91
In Stock
Range Oven Cooling Fan Assembly (replaces 318073018, 7318073018, 7318073028) 318073028
#108

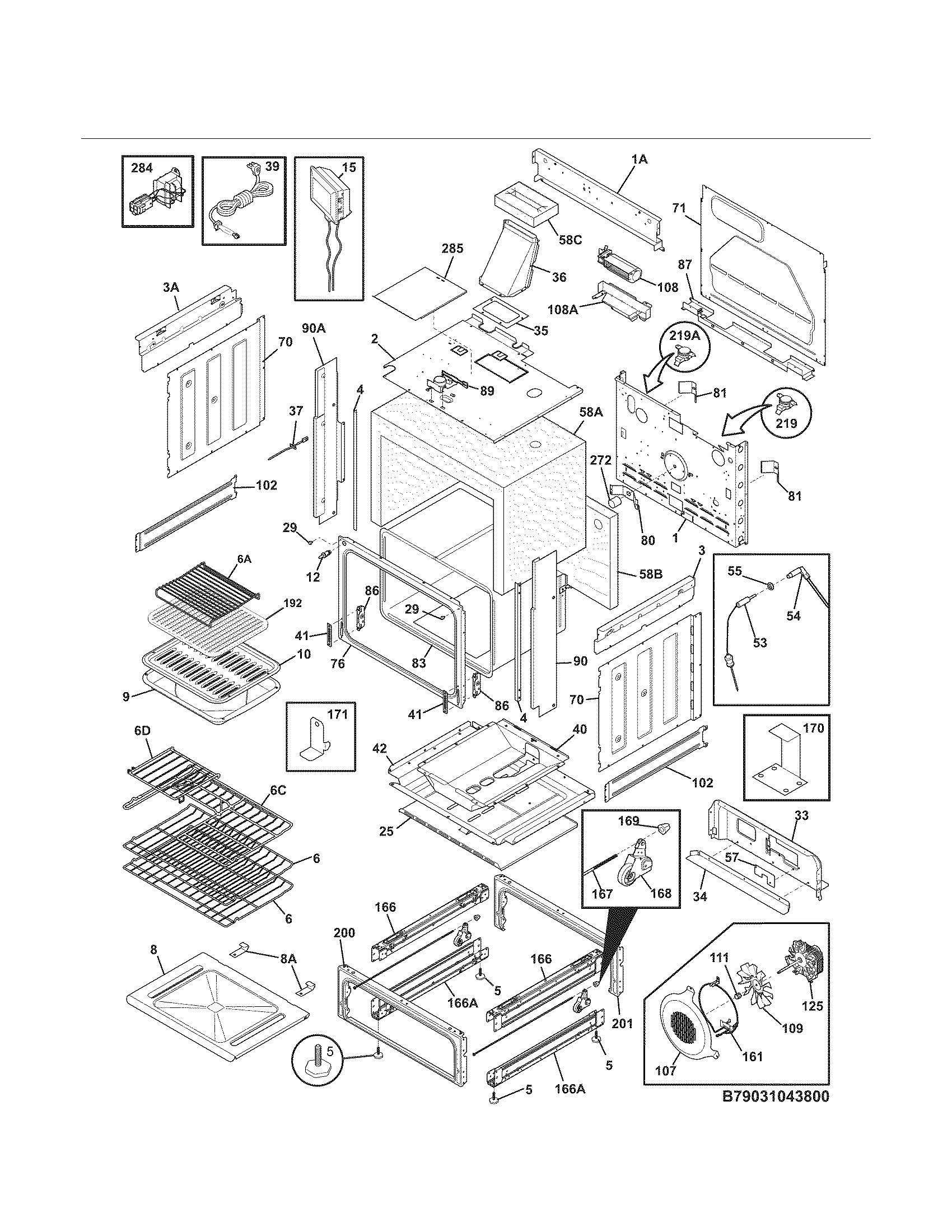

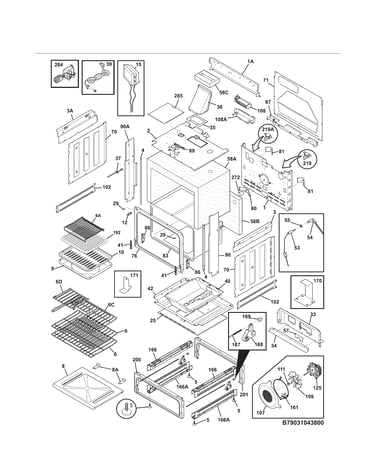

Body diagram

Range oven cooling fan assembly (replaces 318073018, 7318073018, 7318073028)

Part #318073028

$205.71 |
6% OFF Phone Price : $217.71
In Stock
Thermostat 318003613
#219

Body diagram

Thermostat

Part #318003613

Replaced by #318003624

?
Manufacturer substitution
This part replaces 318003613. Substitute parts can look different from the original.
This item is not returnable
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Range Storage Drawer Outer Rail (replaces 318591900) 316105501
#124

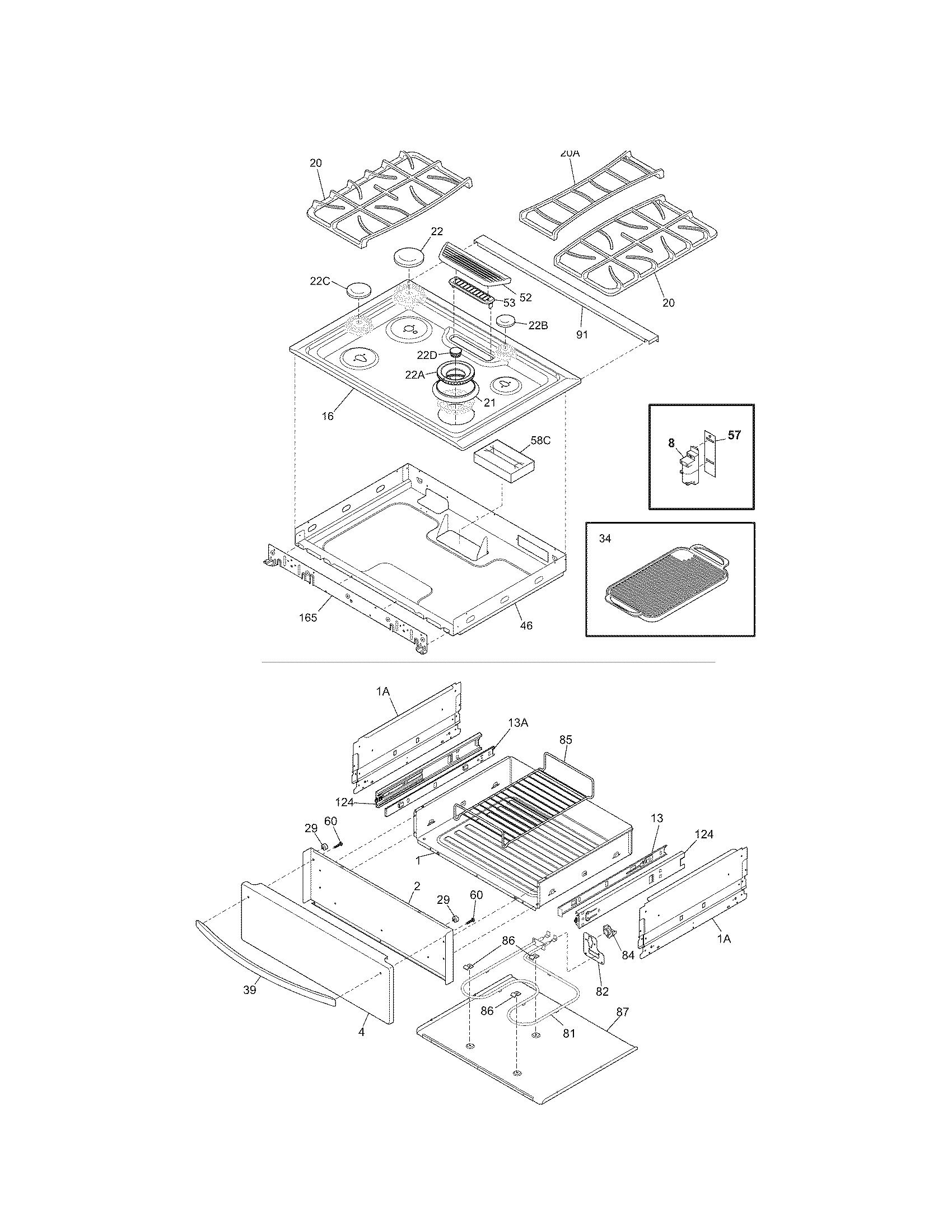

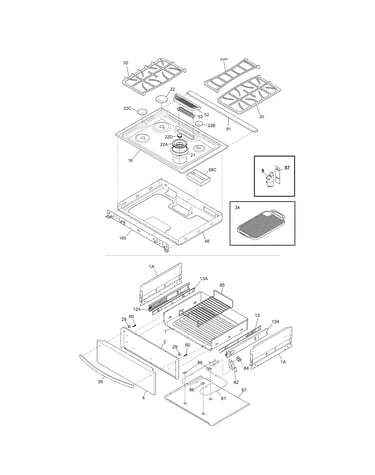

Top/drawer diagram

Range storage drawer outer rail (replaces 318591900)

Part #316105501

$73.89 |
8% OFF Phone Price : $79.89
In Stock
Ikea Range Screw 5304453707
#NI

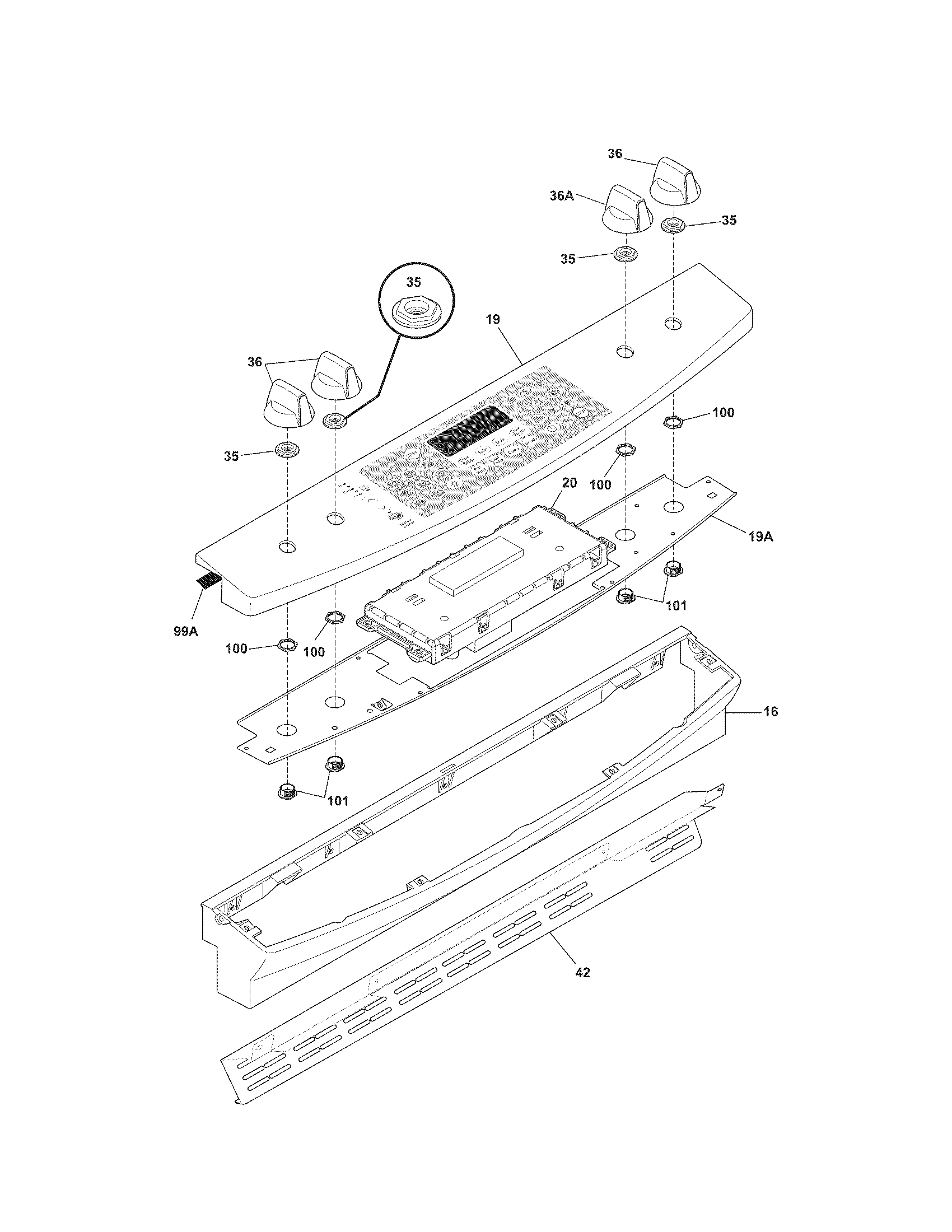

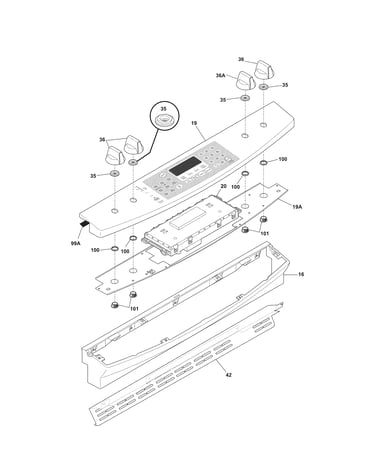

Backguard diagram

Ikea range screw

Part #5304453707

$14.69
In Stock
Range Convection Fan Motor (replaces 318398201, 75304463302) 5304463302
#125

Body diagram

Range convection fan motor (replaces 318398201, 75304463302)

Part #5304463302

$119.79 |
9% OFF Phone Price : $131.79
In Stock
Range Screw 5303311333
#NI

Top/drawer diagram

Range screw

Part #5303311333

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 5303311333. Substitute parts can look different from the original.
$14.69
In Stock
Screw 5303300155
#NI

Top/drawer diagram

Screw

Part #5303300155

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 5303300155. Substitute parts can look different from the original.
$14.69
In Stock
