Jenn-Air
Built-In Microwave

Model # JMC8100ADQ Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air JMC8100ADQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

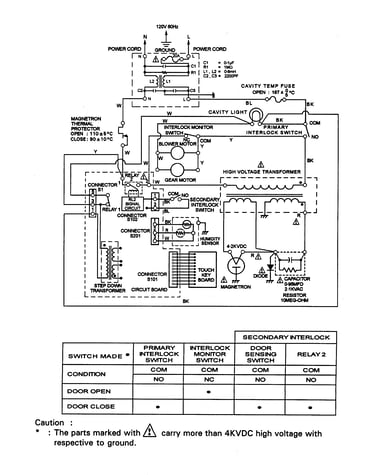

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Motor Screw 58001048
#8

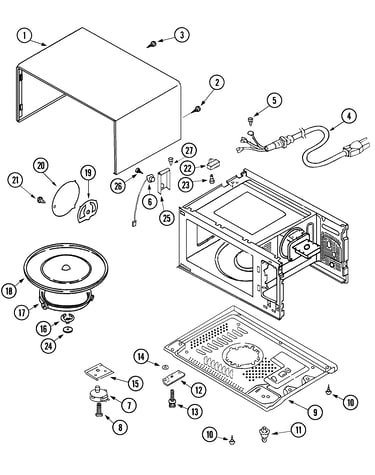

Base & cavity diagram

Motor screw

Part #58001048

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 58001048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw (tpg T 58001004
Screw (tpg t

Part #58001004

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 58001004. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Fuse (250v 2 58001220
#9

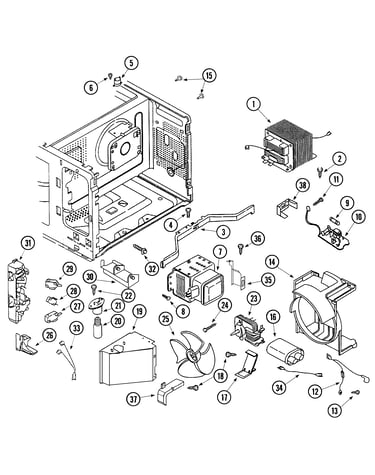

Internal controls diagram

Fuse (250v 2

Part #58001220

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 58001220. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
120v Lamp 58001101
#20

Internal controls diagram

120v lamp

Part #58001101

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 58001101. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Overlay Control 58001291
#1B

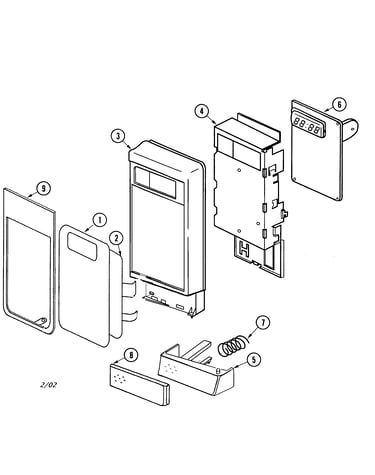

Control panel diagram

Overlay control

Part #58001291

The manufacturer no longer makes this part, and there's no substitute part

Duct Sensor 58001200
#25

Base & cavity diagram

Duct sensor

Part #58001200

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 58001191
#4A

Base & cavity diagram

Power cord

Part #58001191

The manufacturer no longer makes this part, and there's no substitute part

Overlay Control 58001277
#1

Control panel diagram

Overlay control

Part #58001277

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 58001182
#3A

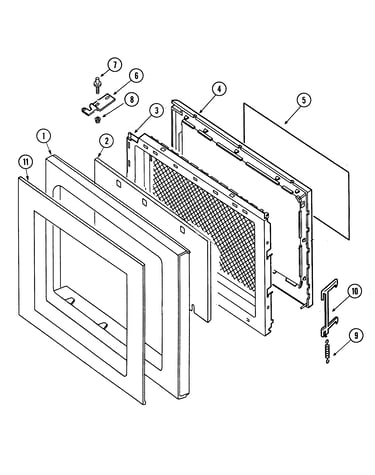

Door diagram

Door frame

Part #58001182

The manufacturer no longer makes this part, and there's no substitute part

Duct Magnet 58001226
#35

Internal controls diagram

Duct magnet

Part #58001226

The manufacturer no longer makes this part, and there's no substitute part
