Model # 143584112 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143584112 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

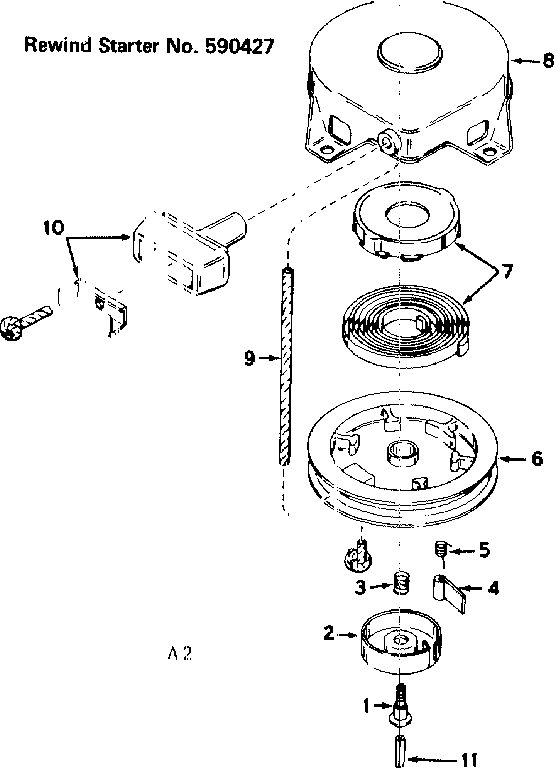

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

O-ring 631028
#25

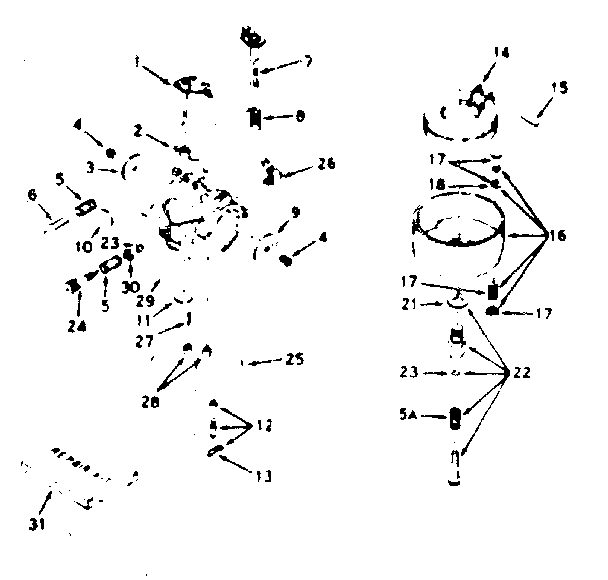

Carburetor diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#12

Carburetor diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetor diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Fitting 631038
#26

Carburetor diagram

Fitting

Part #631038

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Element 27233
#40

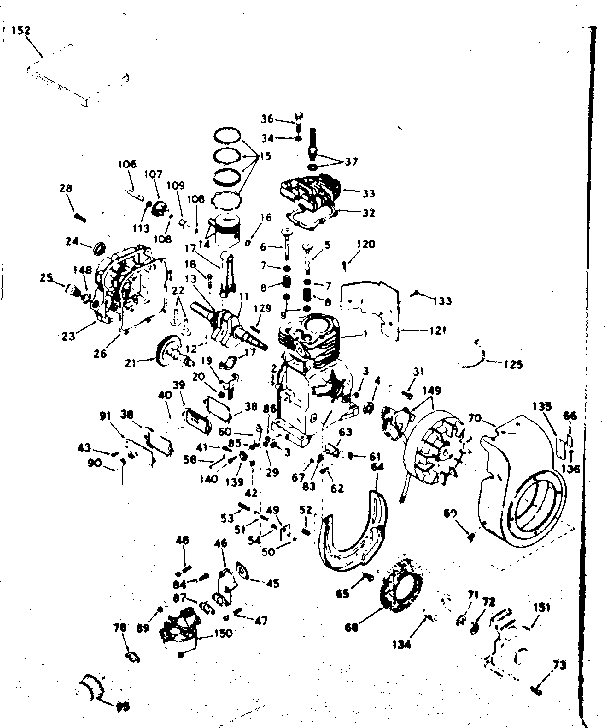

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#8

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#90

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part
