Model # 5648912521 Official Kenmore compact refrigerator
Here are the diagrams and repair parts for Official Kenmore 5648912521 compact refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for5648912521 Compact Refrigerator
- #33

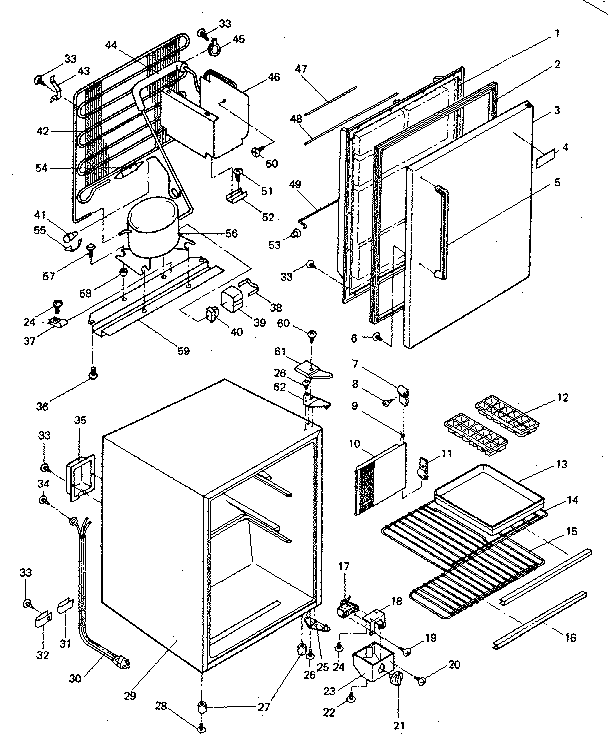

Cabinet parts diagram
Refrigerator screwPart #300308
The manufacturer no longer makes this part, and there's no substitute part
- #13
Cabinet parts diagram
Refrigerator drip trayPart #300150
The manufacturer no longer makes this part, and there's no substitute part
- #17
Cabinet parts diagram
Craftsman refrigerator temperature control thermostatPart #300204
The manufacturer no longer makes this part, and there's no substitute part
- #15
Cabinet parts diagram
Refrigerator shelfPart #300458
The manufacturer no longer makes this part, and there's no substitute part
- #48
Cabinet parts diagram
Refrigerator shelfPart #300203
The manufacturer no longer makes this part, and there's no substitute part
- Bolt
Part #300459
The manufacturer no longer makes this part, and there's no substitute part
- #30
Cabinet parts diagram
Power cordPart #300158
The manufacturer no longer makes this part, and there's no substitute part
- #29
Cabinet parts diagram
Refrigerator cabinetPart #300719
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Technical sheetPart #300717
The manufacturer no longer makes this part, and there's no substitute part
- #45
Cabinet parts diagram
Suction sealPart #300249
The manufacturer no longer makes this part, and there's no substitute part
