Model # KCGM10RB Official Kelvinator glass door refrigerator

Here are the diagrams and repair parts for Official Kelvinator KCGM10RB glass door refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

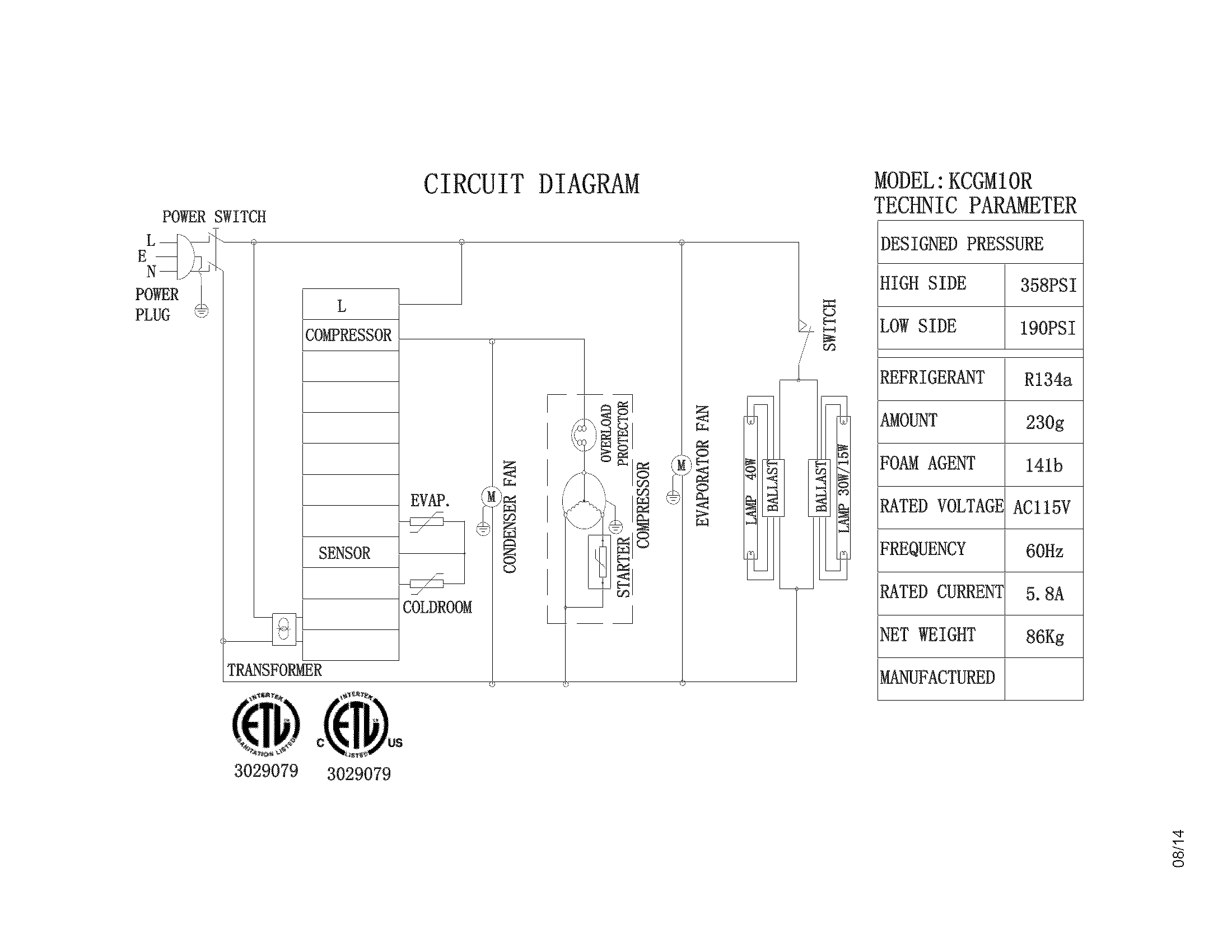

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Refrigeration Appliance Compressor 5304493026
#41

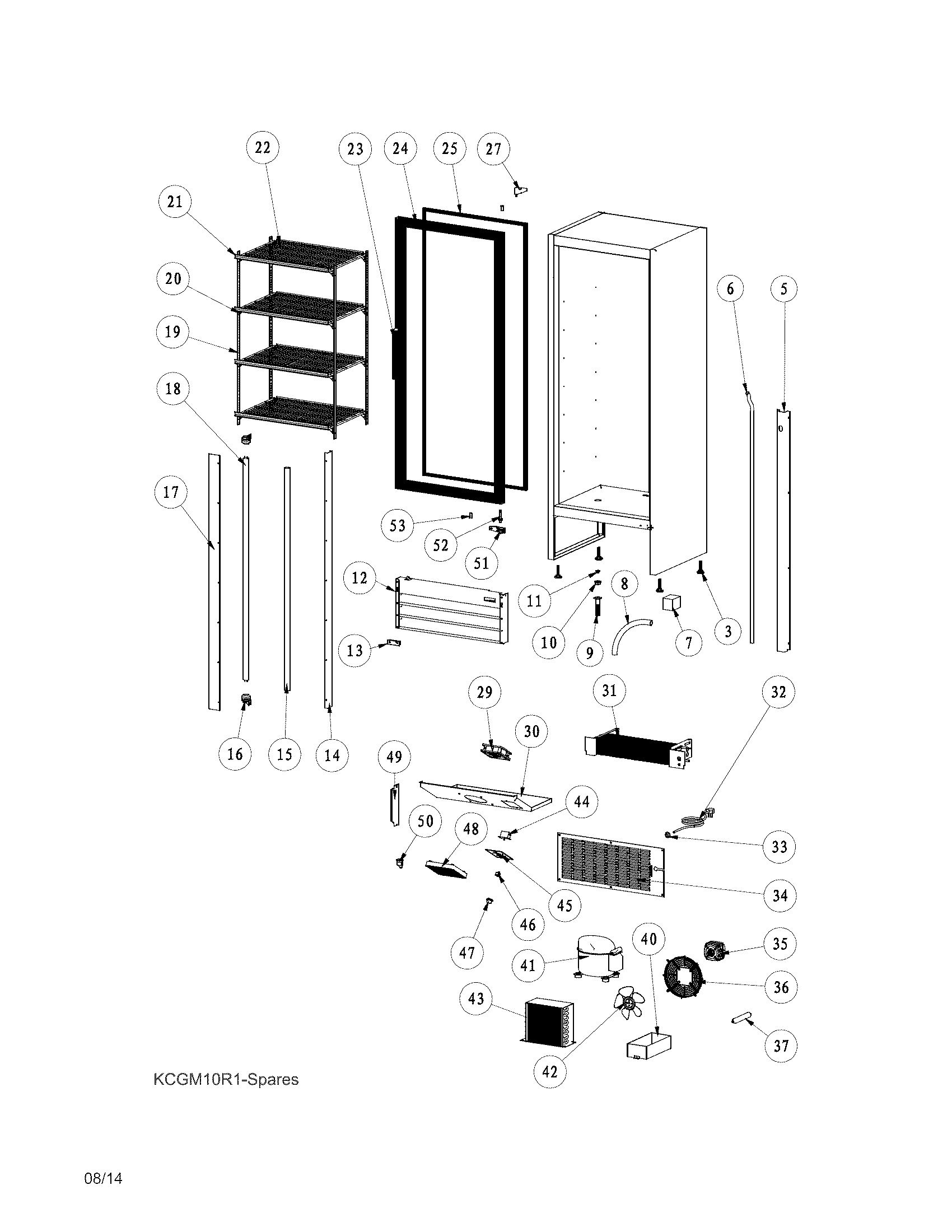

Recommended spare parts diagram

Refrigeration appliance compressor

Part #5304493026

$341.90
In Stock
Clip 5304493090
#20

Recommended spare parts diagram

Clip

Part #5304493090

Replaced by #297121900

?
Manufacturer substitution
This part replaces 5304493090. Substitute parts can look different from the original.
$11.45 |
15% OFF Phone Price : $13.45
In Stock
Refrigerator Motor 5304493104
#35

Recommended spare parts diagram

Refrigerator motor

Part #5304493104

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Channel 5304493075
#5

Recommended spare parts diagram

Refrigerator channel

Part #5304493075

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5304493111
#43

Recommended spare parts diagram

Condenser

Part #5304493111

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bushing 5304493101
#33

Recommended spare parts diagram

Refrigerator bushing

Part #5304493101

The manufacturer no longer makes this part, and there's no substitute part

Overload 5304493031
#NI

Recommended spare parts diagram

Overload

Part #5304493031

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pin 5304493119
#52

Recommended spare parts diagram

Refrigerator pin

Part #5304493119

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Gasket 5304493095
#25

Recommended spare parts diagram

Refrigerator gasket

Part #5304493095

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ballast 5304493116
#49

Recommended spare parts diagram

Refrigerator ballast

Part #5304493116

The manufacturer no longer makes this part, and there's no substitute part
